NANO VNA-F V2 3G Antenna Analyser 50kHz -3GHz 5000mAh

View larger

Display all pictures

Manufacturer: CHELEGANCE / JNCRadio

Reference: CHELEGANCE-NANOVNA-V2-2171

Condition: New product

Country of origin:

China

NANOVNA-F V2 3GHz Antenna Analyser 50kHz to 3000 MHz

Read the 4 reviews

Average rating: 5/5 Number of reviews: 4

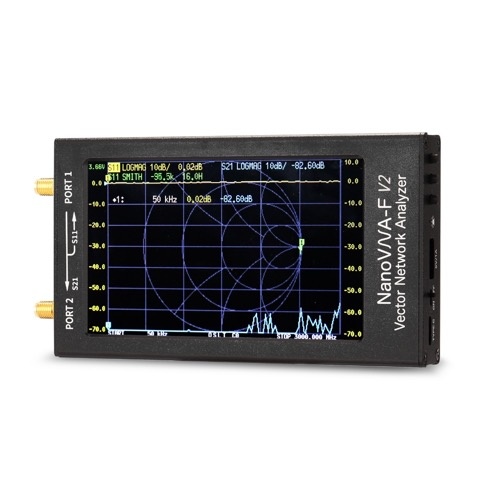

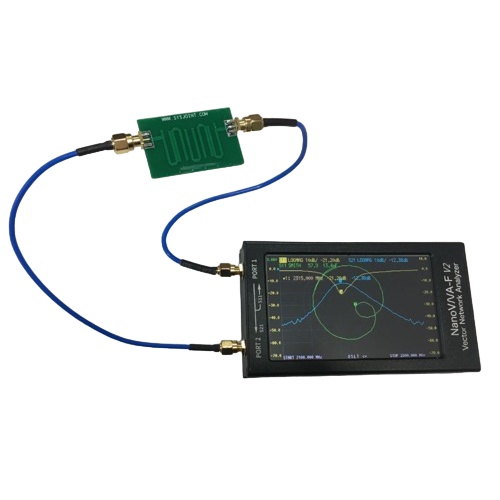

The NanoVNA-F V2 is a new-generation vector network analyser designed to be both portable and self-contained, with a wide range of features.

The analyser is equipped with a 4.3" IPS LCD display, a robust metal case and a 5000 mAh battery offering continuous operation for up to 7 hours, thanks to its low-power consumption design.

It has a measurement frequency range of up to 3 GHz. Its S21 dynamic range is over 70 dB between 50 kHz and 1.5 GHz and over 60 dB between 1.5 GHz and 3 GHz.

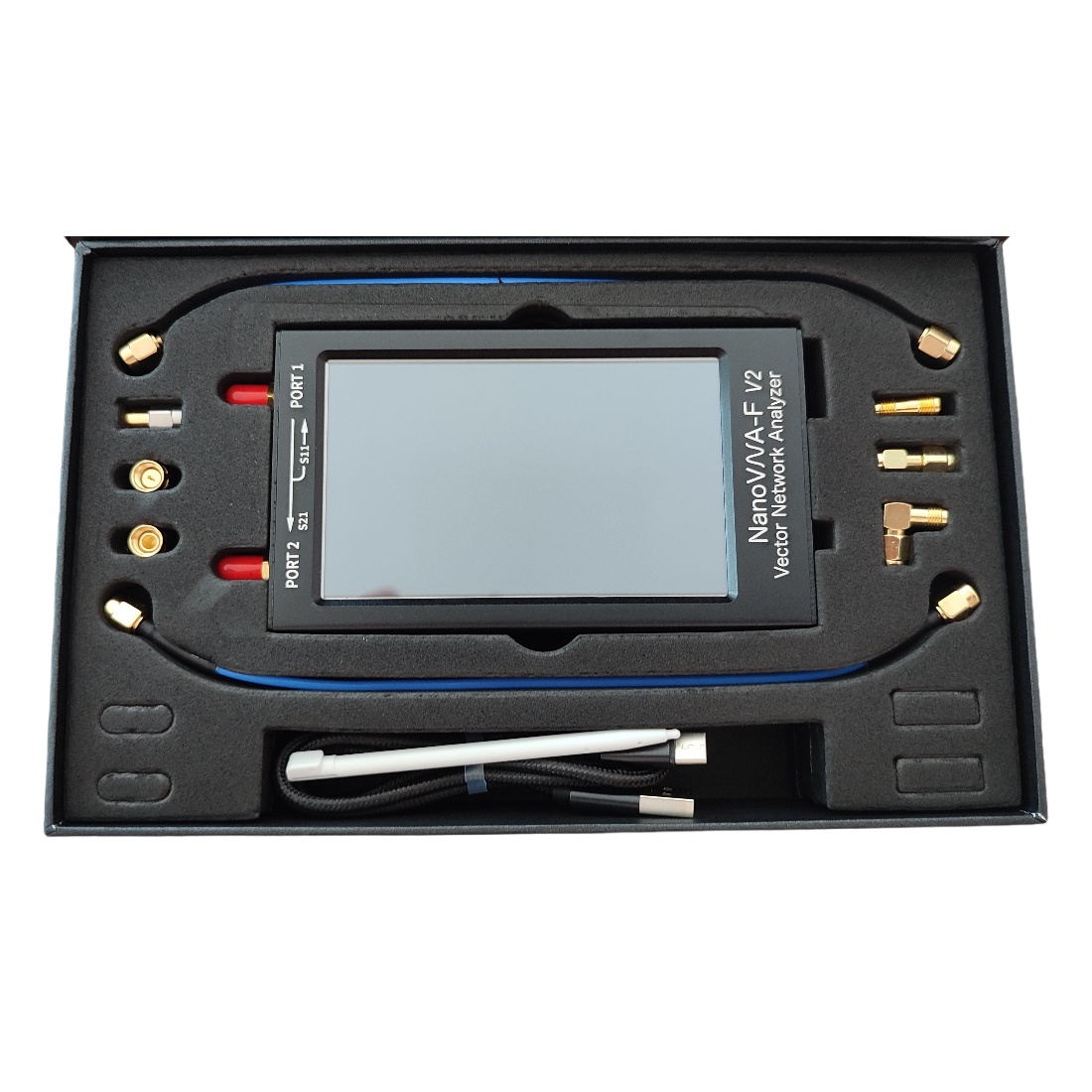

Supplied with: 1 Nano VNA V2, 1 stylus, 1 SMA calibration kit, 2 RG405 20 cm SMA male cables, 1 SMA male to SMA female angled adapter, 1 SMA female to SMA female adapter, 1 SMA male to SMA male adapter and a USB cable.

More details

Download

Manuel NANO VNA-F V2 (EN)

5.33M

Guide NANO VNA-F V2 (EN)

165.36k

Firmware NANO VNA-F V2

111.19k

NANOVNA-F V2 manual 2.0 (FR)

3.3M

Data sheet

Frequency range: 50kHz ~ 3GHz
Dynamic range S11 : 50dB (50kHz ~ 1.5GHz), 40dB (1.5GHz ~ 3GHz)
Dynamic range S21: 70dB (50kHz ~ 1.5GHz), 60dB (1.5GHz ~ 3GHz)
RF output power: -9dBm
Frequency tolerance: 0.5ppm
Display: 4.3″ IPS LCD, 800*480, RTP touchpad

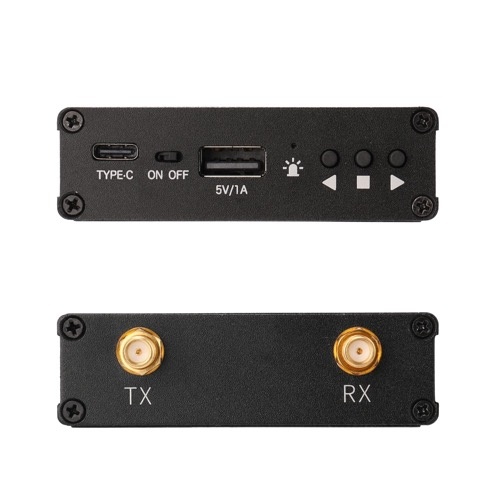

Operation via touch screen or 3 side buttons
Battery: 3.7V Li-Po, 5000mAh
Aluminium casing: 125 mm x 75 mm x 20 mm
SMA female RF port
Scan points: 101
Calibration results storage: 5
Interpolation of calibration results possible
Traces: 4
Markers: 4
Measurements: S-parameter, VSWR, Smith chart, phase, ploar, etc.
Marker table can be moved up and down
Firmware update via U-disk with C-type cable
USB power output: 5V/1A

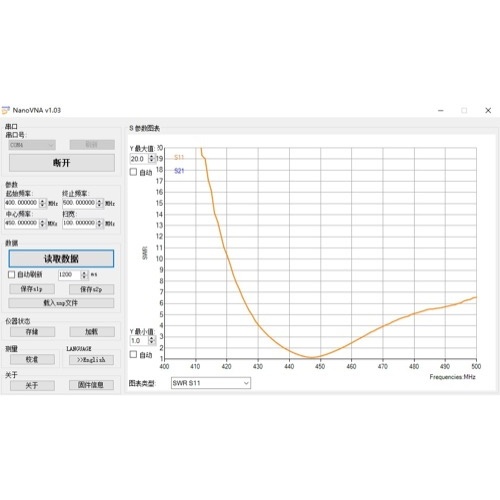

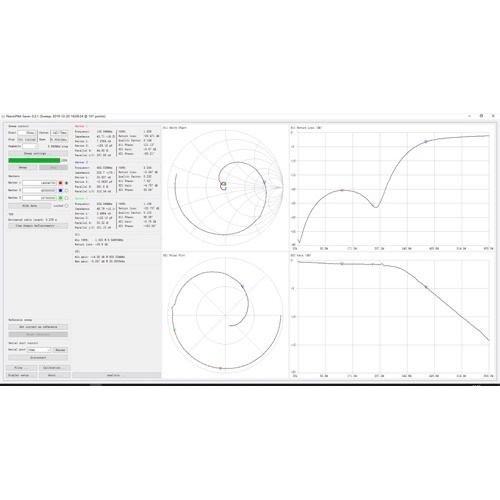

NanoVNA-saver compatible, supports screen capture
