CHELEGANCE JNCRADIO VNA 3G - 50kHz to 3GHz Aluminium enclosure

View larger

Display all pictures

Manufacturer: CHELEGANCE / JNCRadio

Reference: CHEL-CH0010005-VNA-3G-2422

Condition: New product

Country of origin: China

Safety Information +

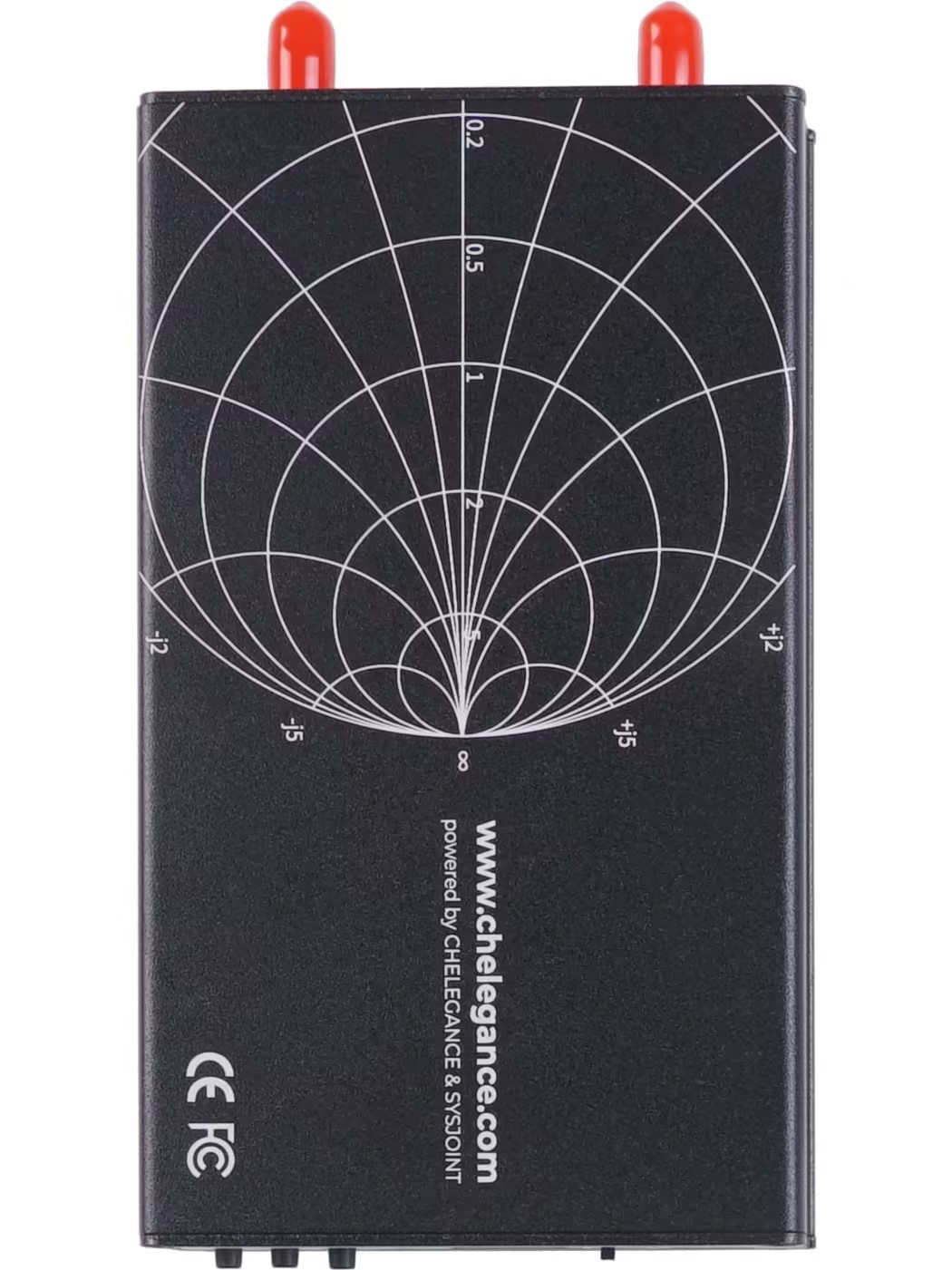

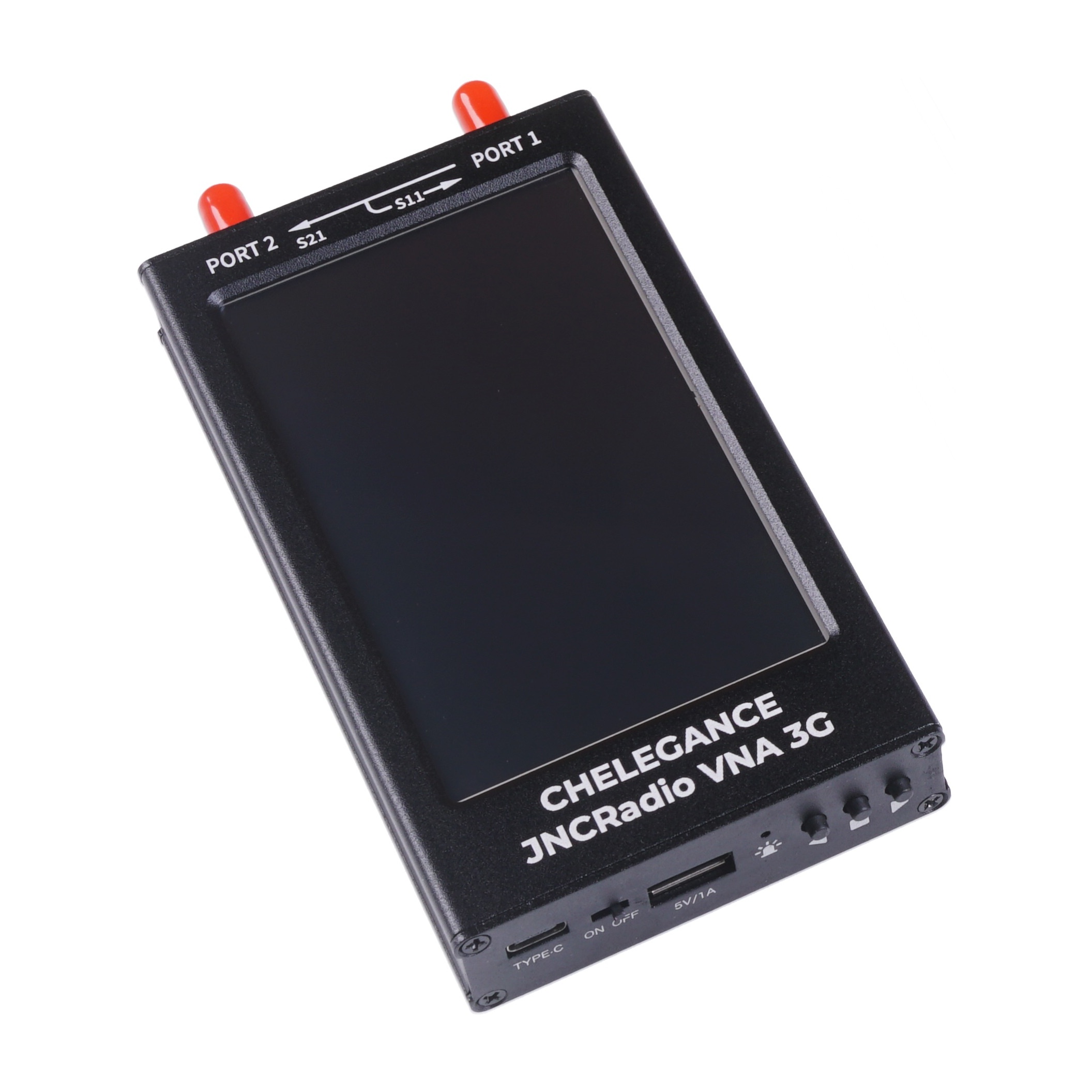

CHELEGANCE JNCRADIO VNA 3G - 50kHz to 3GHz Aluminium enclosure

Read the 4 reviews

Average rating: 5/5 Number of reviews: 4

JNCRadio's 3G VNA is a portable vector network analyser with frequency coverage from 50kHz to 3GHz.

It is a more advanced product, built on the basis of the NanoVNA-F V2, with a much more powerful processor and new firmware.

4 times faster operation - Scanning speed has been increased by a factor of 4 to 400 points/s.
Presentation of more measurement details - Scanning of points up to 501
Save more calibration results - up to 13 calibration status storage locations
Integrated RTC - snp files are named with RTC time
A more powerful processor makes operation smoother and facilitates future firmware updates to add new features.
4.3" IPS display and metal casing

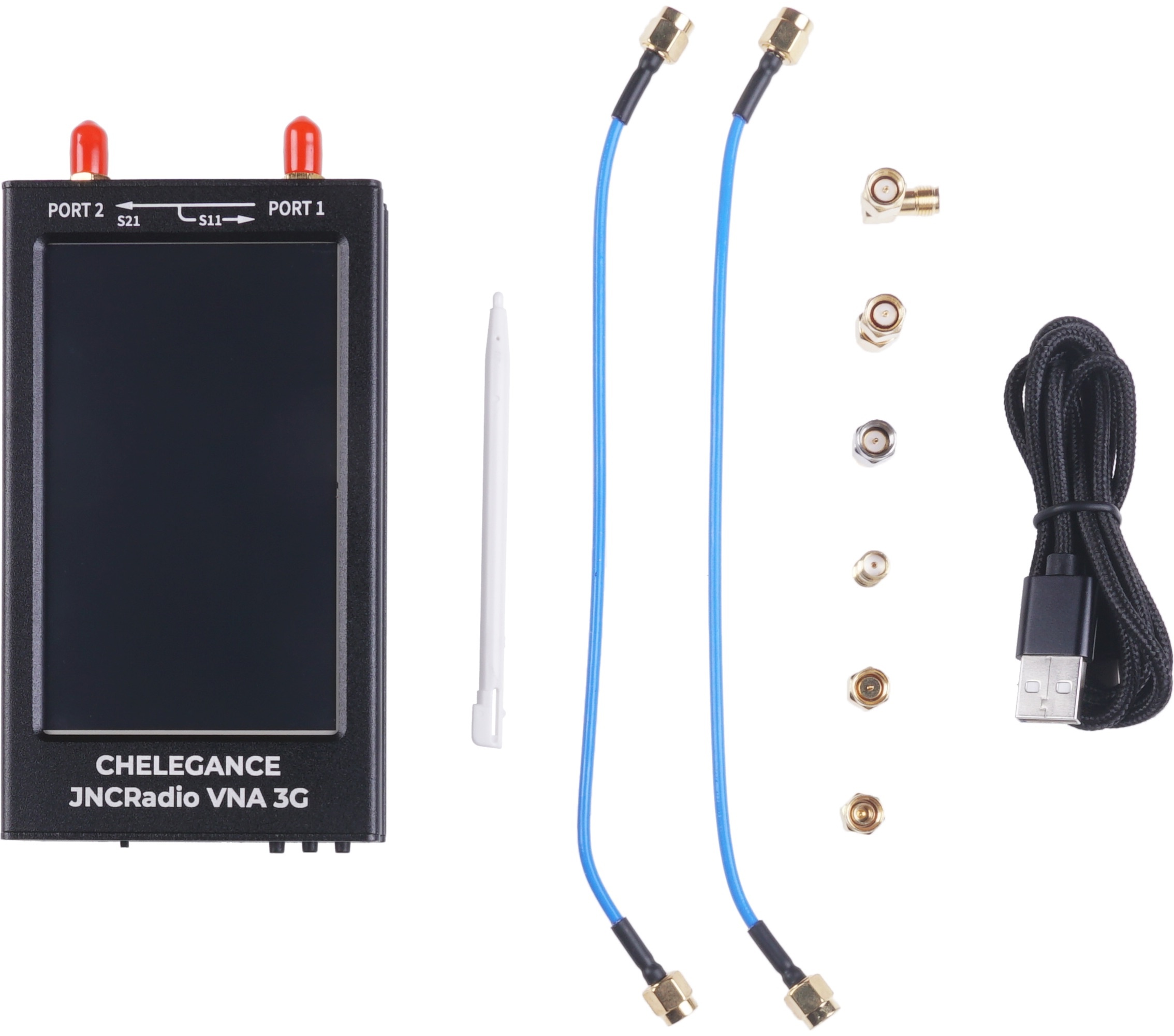

Supplied with: 1x JNCRadio VNA 3G, 2x 20cm SMA-Male cable RG316, 1x calibration kit, 1x SMA-Male adapter, 1x SMA-Female adapter, 1x USB Type-C cable, 1x stylus.

More details

Download

NANOVNA VNA 3G manual 2.0 (EN)

1.66M

NANOVNA VNA 3G manual 2.0 (FR)

5.57M

Data sheet

APPLICATIONS

CHARACTERS S11, S21
- VSWR, SMITH DIAGRAM
- LOGMAG
- PHASE, DELAY
- Q FACTOR, POLAR, LINEAR
MEASUREMENT
- ANTENNA
- CABLE
- AMPLIFIER
- DUPLEXER
- FILTER

SPECIFICATION

Parameters	Specification	Operating conditions
Frequency range	50kHz~3GHz
RF output power	-10dBm	50kHz - 140MHz
	-9dBm	140MHz - 1GHz
	-12dBm	1GHz - 2GHz
	-14dBm	2GHz - 3GHz
Frequency accuracy	<±0.5ppm
Dynamic range S21	80dB	50kHz - 1.5GHz
	70dB	1.5 GHz - 3 GHz
Dynamic range S11	50dB	50kHz - 1.5GHz
	40dB	1.5 GHz - 3 GHz
Scanning points	501	11-501 configurable
Traces	4
Markers	4
Calibration memory	>10
Scanning speed	400 pts/s
Screen	4.3-inch IPS LCD	Resolution: 800*480
Touch screen	RTP
Battery	3.7V 5000mAh
Charging/data port	USB Type-C
Charging voltage	4.7V - 5.5V
Power output	USB-A 5V/1A
RF connector	SMA
Device dimensions	1307522mm
Shell material	Aluminium alloy
Operating temperature	0℃-45℃
