HackRF PRO SDR half-duplex transceiver with FPGA 100 kHz to 6 GHz
429,00 € tax excl.
CB radio WASHINGTON II AM FM SSB 80W PEP dual-band 24Mhz and 28MHz
385,00 € tax excl.
VR-N76 waterproof walkie-talkie VHF-UHF APRS TNC BT GPS & Android/iOS app
149,00 € tax excl.
BP-26B battery for VGC VR-N76 2600mAh 7.4V walkie talkie with USB-C
18,90 € tax excl.

Viewed products

RF demo / test kit for...
This RF NanoVNA demo kit consists of a PCB...

Specials

SIRIO HGO 4G LTE antenna with 5m SMA coaxial cable
68,54 € -10% 76,15 €

RF demo / test kit for NanoVNA vector analyzer antenna RF measuring devices NANOVNA-PCB-946

View larger

Display all pictures

Manufacturer: Deepelec

Reference: DEEPELEC-VNA-TEST-PCB-946

Condition: New product

Country of origin:

China

RF demo / test kit for NanoVNA vector analyzer antenna official Deepelec

Read the review

Average rating: 5/5 Number of reviews: 1

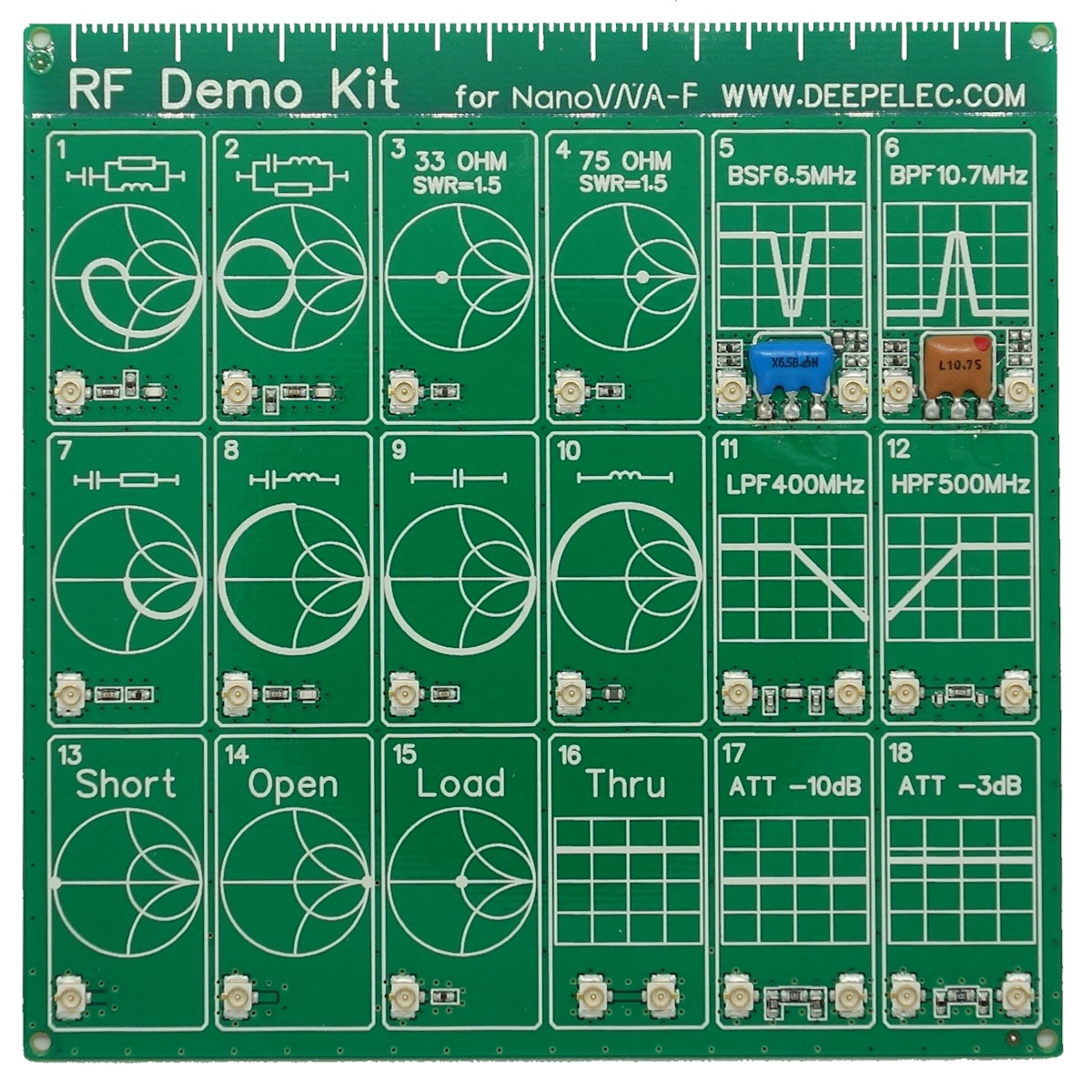

This RF NanoVNA demo kit consists of a PCB which allows you to test or demonstrate the 18 RF functions or components listed below.

This RF test card is recommended for demo and use with VNA antenna analyzer NanoVNA.

Comes with: 1 NanoVNA RF PCB test card official Deepelec, 2 x 20 cm adapter cables.

More details

Download

RF demo board guide

117.71k

Data sheet

TEST RF NanoVNA demo kit functions

RLC circuit
33 ohm resistor (SWR: 1.5)
75 ohm resistor (SWR: 1.5)
BSF ceramic band-stop filter (center frequency 6.5 MHz)
BPF ceramic filter (central frequency 10.7 MHz)
RC circuit
LC circuit
Capacitor
Low pass filter (3dB 400 MHz bandwidth)
High pass filter (bandwidth (3dB 500 MHz)
Short circuit calibration circuit, open circuit, with a dummy load 50 ohms
Attenuation -3dB and -10dB.

There are two stages to the test:

Step 1. Connect the two 20CM SMA to IPEX adapter cables to the NanoVNA.

Step 2. Recalibrate the NanoVNA using circuits 13 Short, 14 Open, 15 Load and 16 Thru on the test board and save the settings in SAVE 0.
