Mobile 144-430Mhz QYT KT-8900 mini 25W

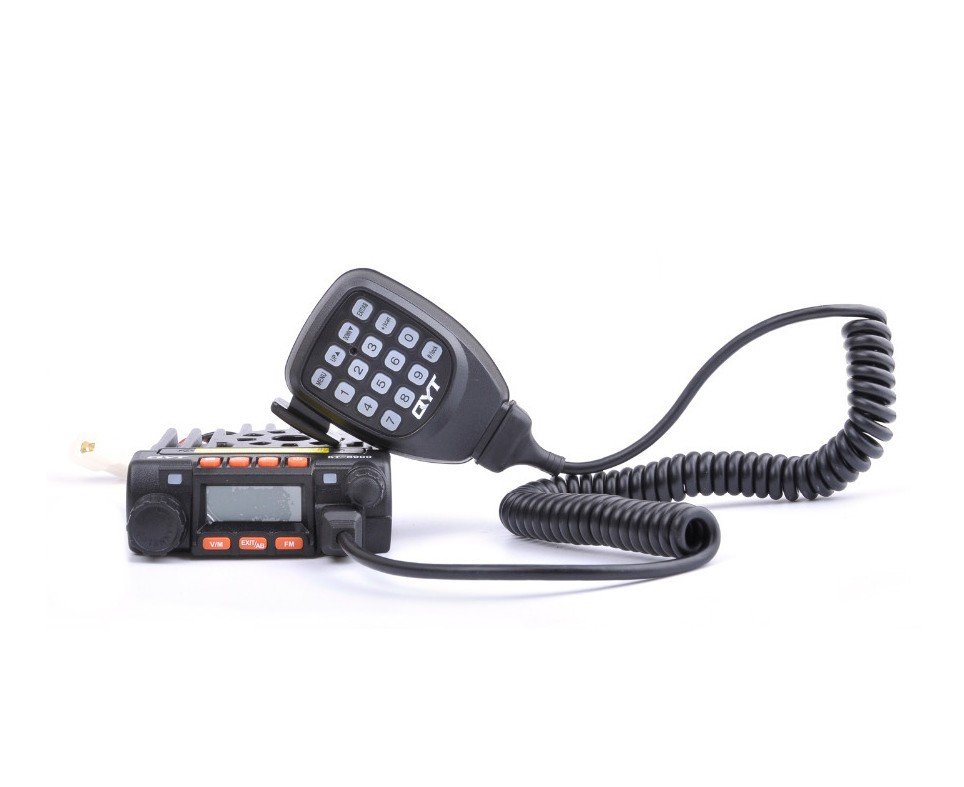

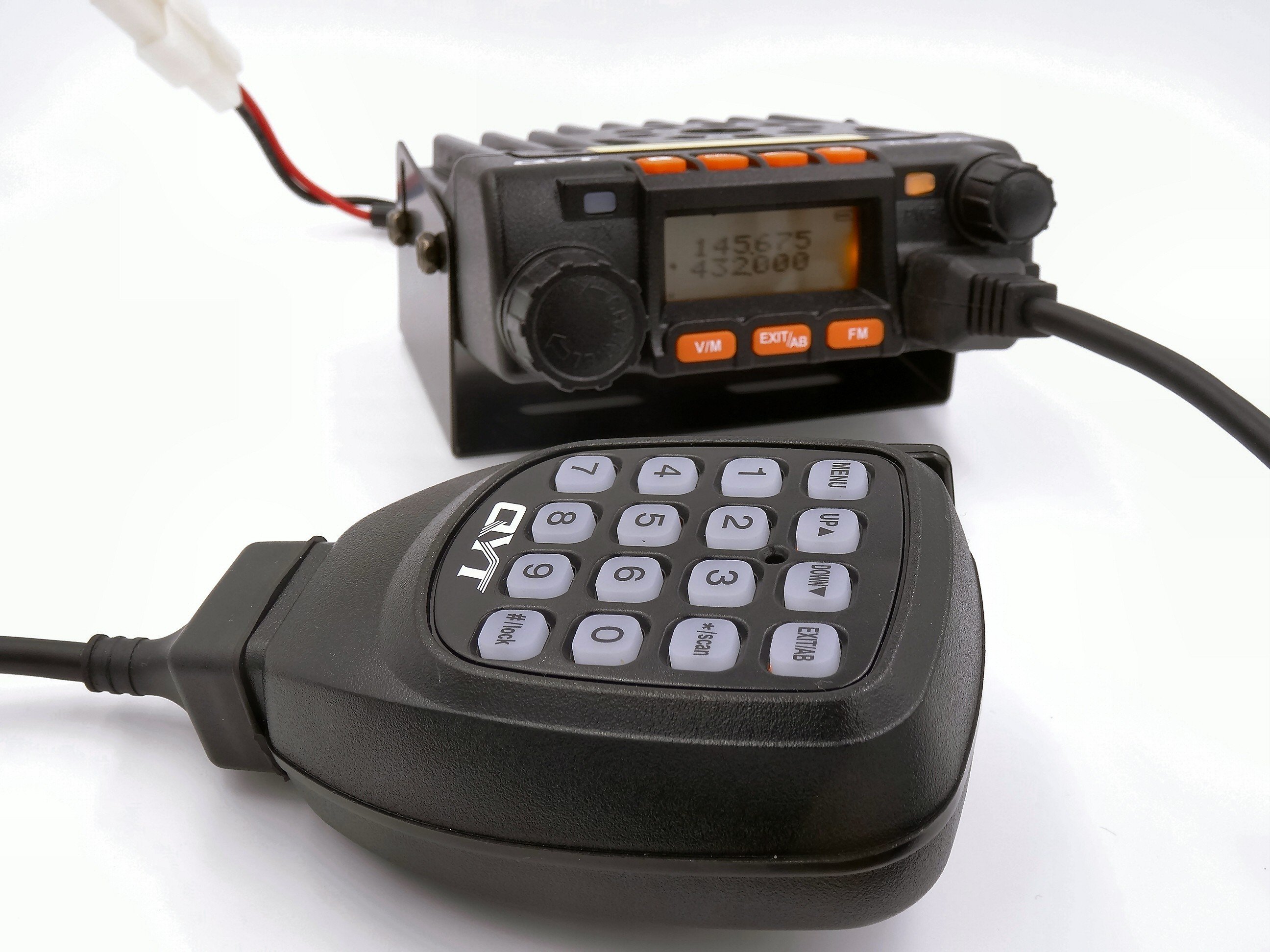

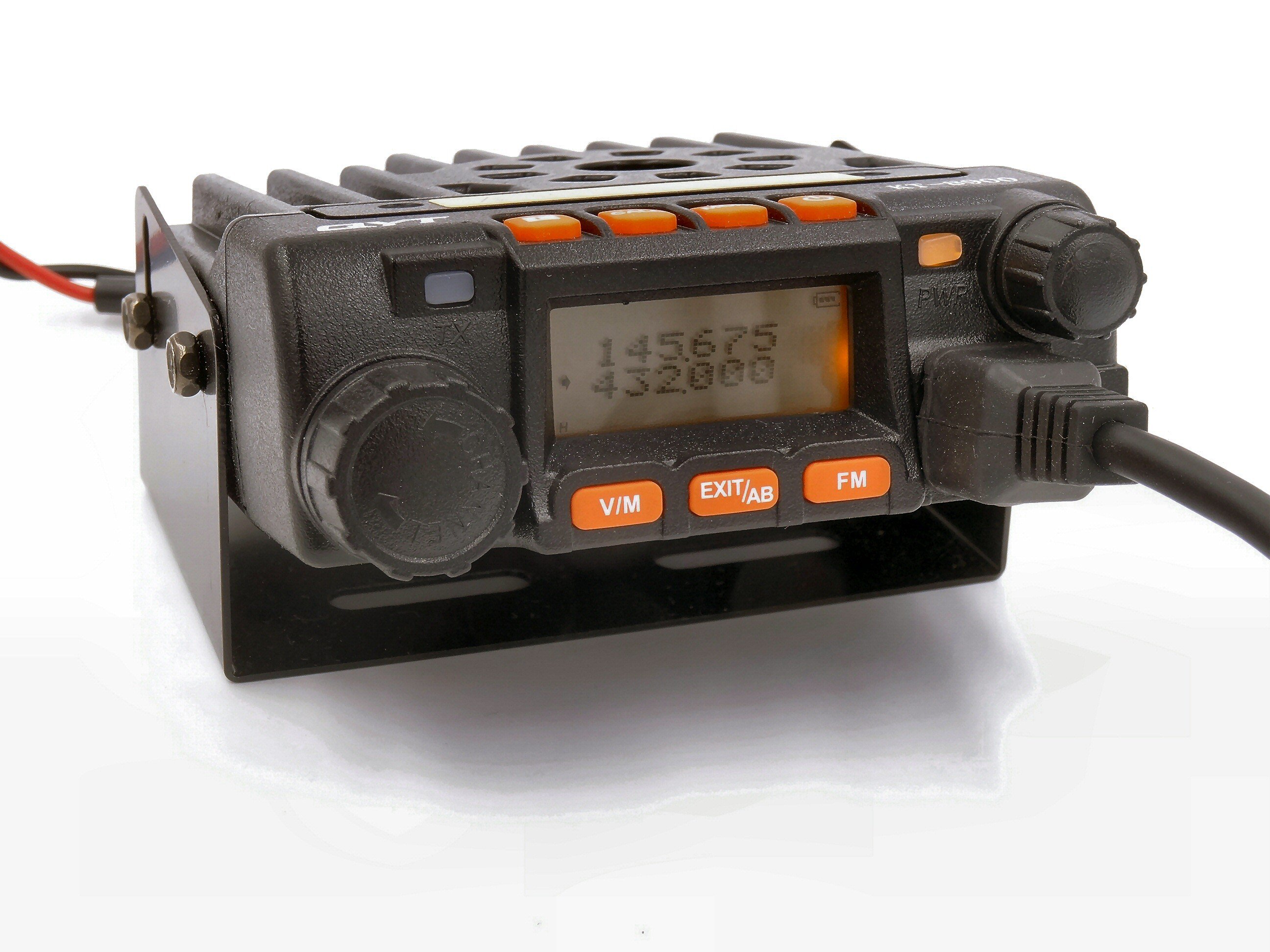

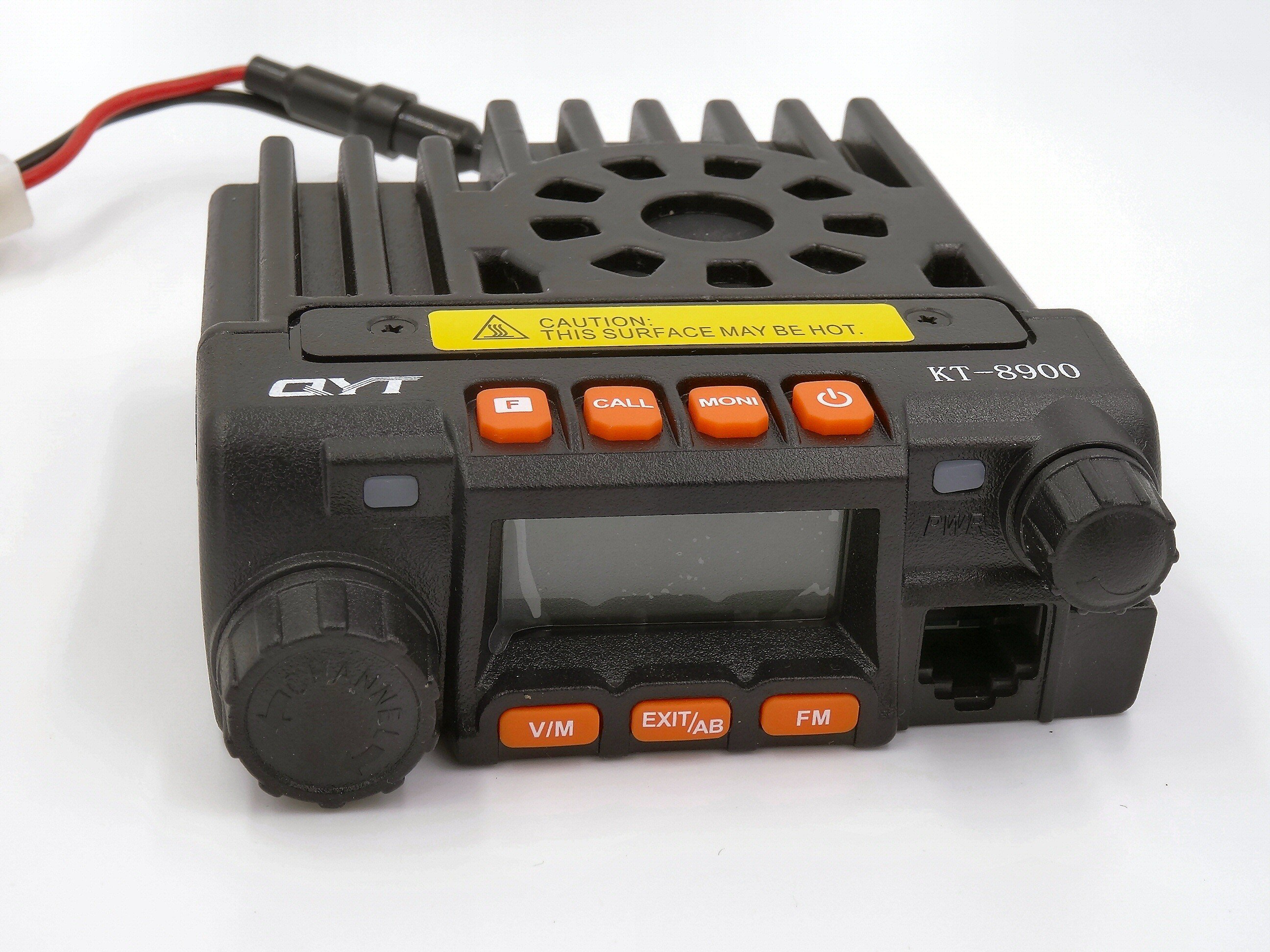

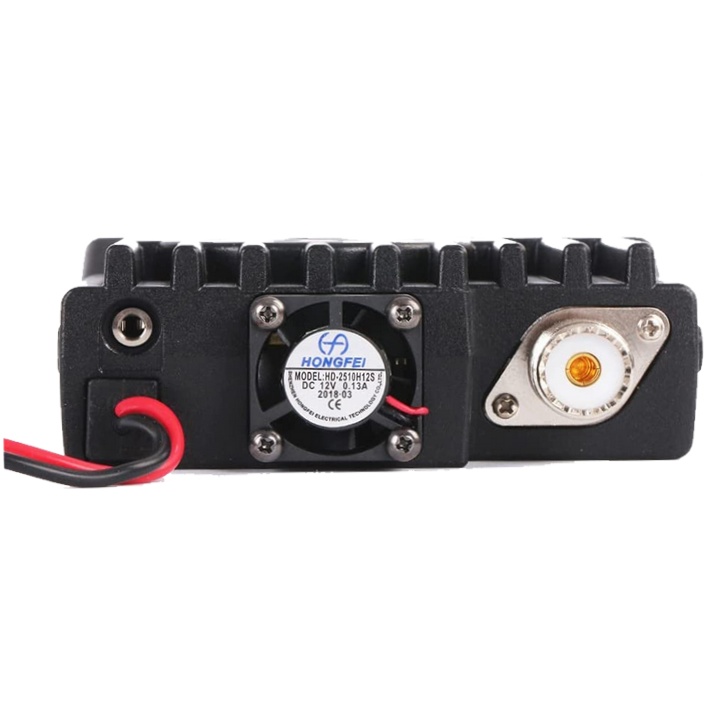

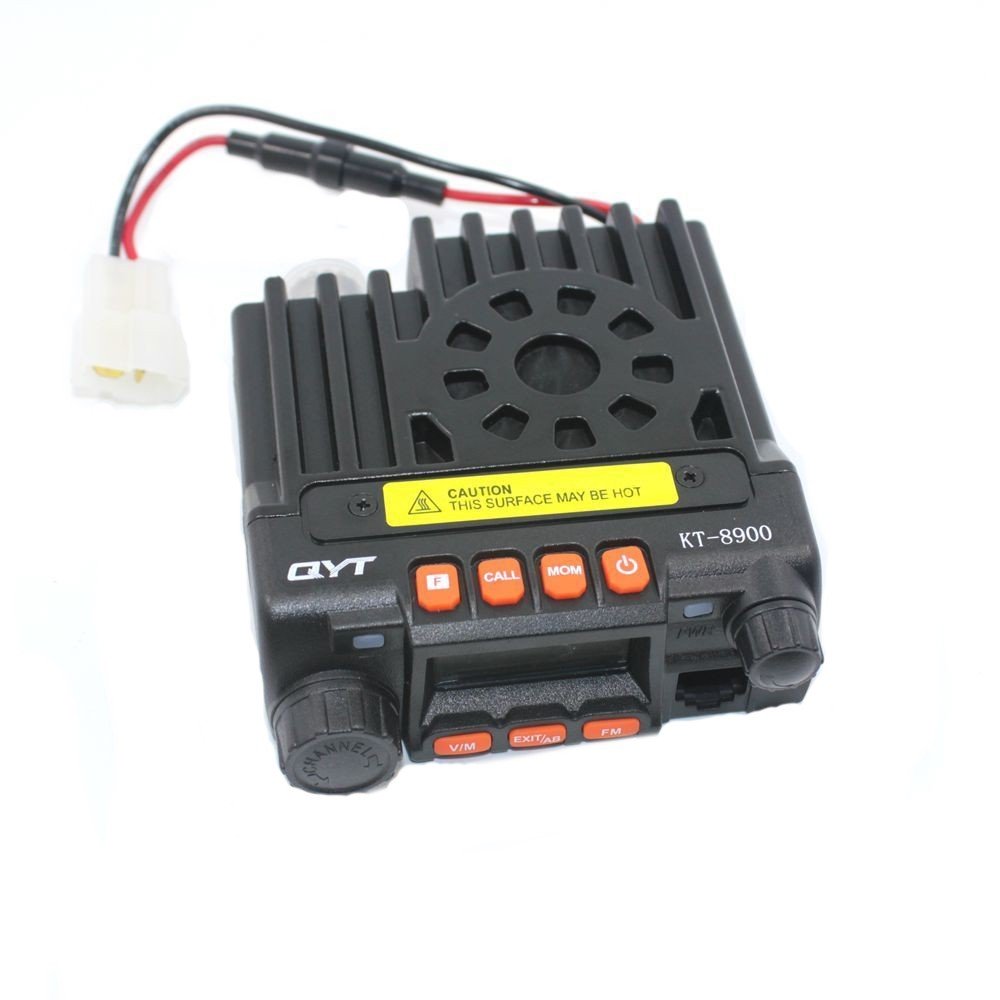

The mobile unit QYT mini KT-8900 (new version v2) is an ultra-compact transceiver dual-band VHF and UHF, covering in RX and TX 144-146MHz and 430-440Mhz in FM analog mode with 25 watts (VHF) and 20 watts (UHF) VFO button for changing channels or frequency and with fan at the back.

Functions: Scan, dual display, dual standby alternately display color setting (blue, orange, purple), relay mode, CTCSS, DTMF, 1750Hz tone, 200 channels, simple duplex, FM radio 88-108MHz , no frequency 5K, 6.25K, 10K, 12.5K and 25K and 3.5mm speaker / external receiver.

The QYT mini KT-8900 is programmable from a computer using the supplied USB cable and the Chirp programming software (free) to download.

Comes complete with: The mobile unit QYT KT8900 mini microphone with numeric keypad, USB programming cable, microphone holder clip bracket and screws for mounting, power cable with cigarette lighter car (12V) mode employment (in English).

More details

Download

Manual QYT KT-8900 (EN)

Manual in english QYT KT-8900. 743.63k

Drivers QYT Windows

QYT drivers for QYT programming USB cable, for all Windows. 4.2M

CPS software QYT KT8900

Programming software (CPS) for the QYT KT8900. 2.34M

Data sheet

Features QYT mini KT-8900

Dual band: VHF and UHF
TX amateur band version: 144-146 MHz et 430-440 MHz
TX export version: 136-174 MHz and 400-480 MHz
RX : 87.5-108MHz, 136-174 MHz, 400-480MHz
Dual Reception/Dual Display
DTMF encoding and decoding
PTT ID (Voice broadcast PTT ID)
Scan
200 memory channels
Power: 25W (HIGH) & 20W (LOW) in VHF - 20W (HIGH) & 10W (LOW) in UHF
TOT (Time-out timer)
Channel steps: 5K 6.25K 10K 12.5K 25K
Wide/Narrow band selection (25KHz, 12.5KHz)
Emergency Alarm
RPT Offset (Single/RPT+/RPT-)
1750Hz burst tone
Input frequency by using Keypad
PC software programmable
13.8V DC Power Supply
Size: 118*98*35mm
Weight: 408 grammes
CE certified
2 years warranty

This transceiver is usable with a radio license and under the sole responsibility of the user according to the laws applicable in the country. The QYT KT-8900 is delivered unprogramed.

Technical specifications QYT KT8900

Frequency Range	VHF 144-146MHz and UHF 430-440MHz
Number of channels	200
Channel spacing	25KHz, 20K, 2.5
Channel step	2.5KHz、5KHz、6.25 KHz、10 KHz、12.5 KHz、15 KHz、25 KHz
Working voltage	13.8V DC±15%
Squelch way	CTCSS, DCS, 5Tone, 2Tone, DTMF
Frequency stability	±2.5ppm
Operat temperature	-20°C to +60℃
Dimension	98(W)35(H)118(D)mm
Weight	408g

Receive RX

	Broadband	Narrow Band
Sensitivity	≤0.25μν	≤0.35μν
Channel Cholce	≥70db	≥60db
Intermodulation	≥65db	≥60db
Spurious Rejection	≥70db	≥70db
Audio Response	+1~~3db（0.3~3KHz）	+1~~3db（0.3~2.55KHz）
Signal to noise radio	≥45db	≥40db
Audio Distortion	≤5%
Audio output power	≥[email protected]%

Transmit TX

	Broadband	Narrow Band
Output Power	25W/20W（VHF/UHF）
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70db	≥60db
Signal to noise radio	≥45db	≥40db
Parasitic Harmonic	≥60db	≥60db
Audio Response	+1~~3db（0.3~3KHz）	+1~~3db（0.3~2.55KHz）
Audio Distortion	≤5%
