CHA MIL EXT 12-54 MHz whip for Chameleon CHA MPAS 2.0 antenna

The CHA MIL EXT 2.0 antenna whip has been designed to provide maximum portability and performance for those who already use the CHA MIL 2.0 portable whip for the man-pack antenna system.

This foldable antenna extension is to be used with the CHA MIL 2.0 to create a 5.5m long portable antenna. When combined with any HYBRID series antenna base (like the CHA HYBRID-MICRO from the CHA MPAS 2.0), the CHA MIL EXT 2.0 will operate at all frequencies in the 1.8-54 band. MHz without any adjustment with most modern external antenna tuners.

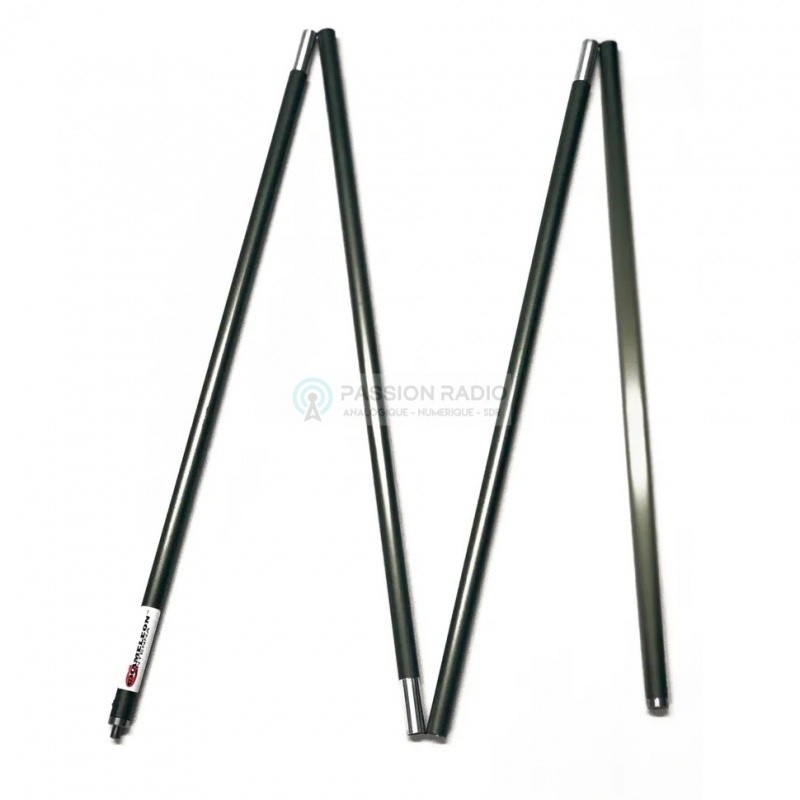

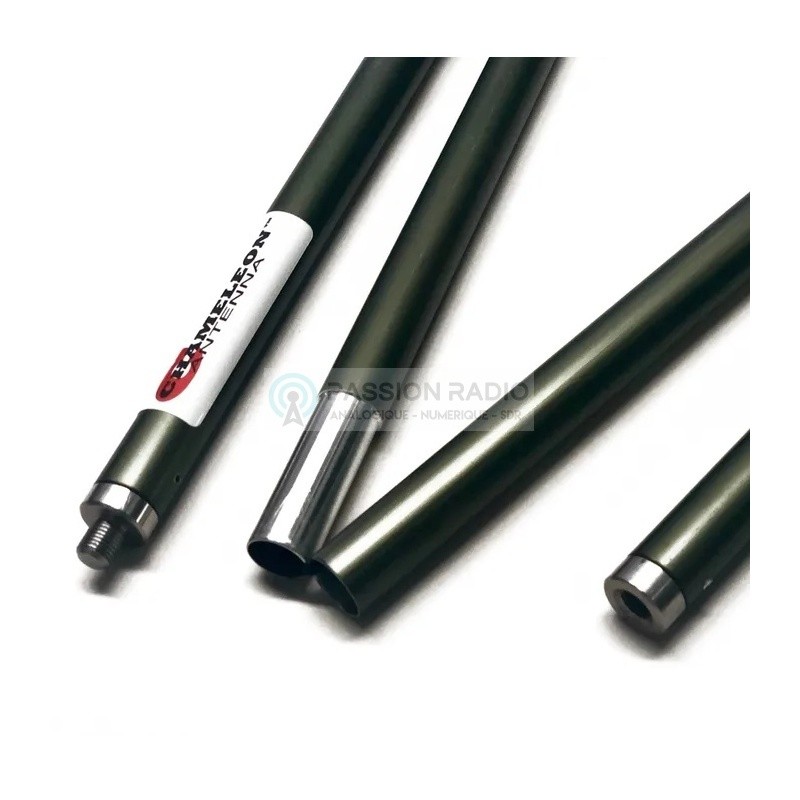

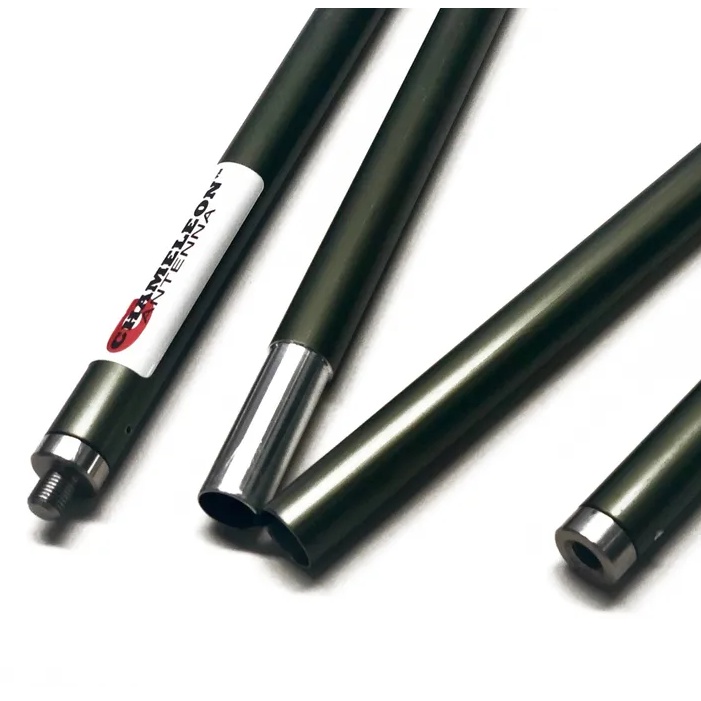

These four 71cm diameter ¾ "sections of aluminum alloy tubing are designed for portable HF communication where rapid deployment and ease of operation are essential but compactness is paramount. Junction inserts and main tube are made in one piece, which reduces losses.

More details

Download

Manual CHA MIL EXT (FR)

637.1k

Manual CHA MIL EXT (EN)

166.67k

Data sheet

Mounting configuration: 3 / 8-24 thread
Folded length: 71cm
Extended length: 2.65m

IT IS IMPORTANT TO WATERPROOF THE UNIT BEFORE PERMANENT INSTALLATION.

Use an anti-oxidant and anti-seize agent to improve the efficiency of aluminum conductor connections. This compound provides additional current paths within the strand and conductor.

The anti-oxidant and anti-seize compound improves the efficiency and life of aluminum electrical applications.
