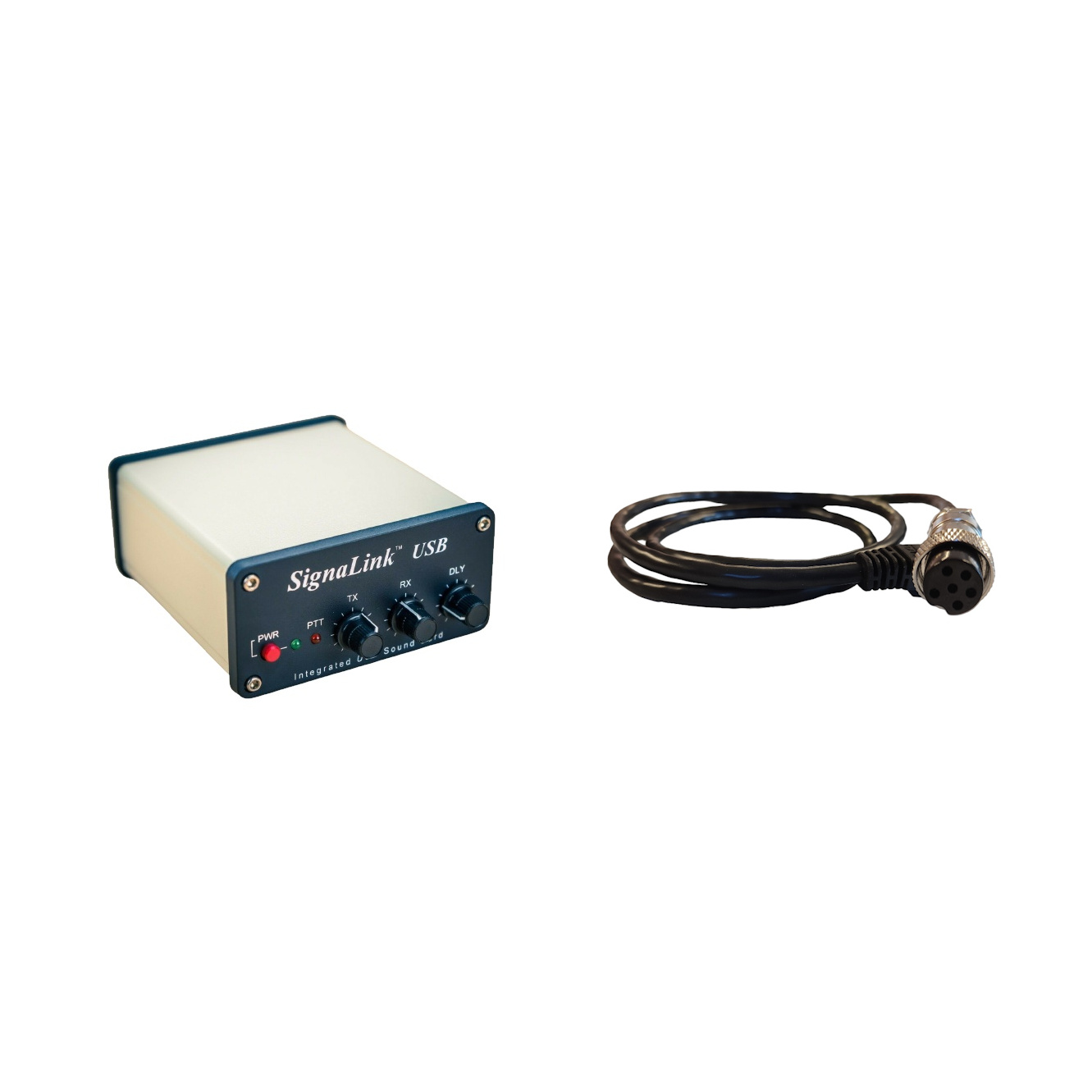

Signalink SLUSB-6R pack for President CRT RCI Anytone with 6-pin microphone socket View larger
Signalink SLUSB-6R pack for President CRT RCI Anytone with 6-pin microphone socket
Tigertronics

SIGNALINK-PACK-SLUSB6R-3017

New product

U.S.A

Safety Information +

Signalink SLUSB-6R pack for President CRT RCI Anytone with 6-pin microphone socket

rating No review at the moment

The Signalink SLUSB-6R interface pack is compatible with Président, CRT, Anytone, Kenwood and Ranger RCI radios fitted with a 6-pin microphone socket and listed below.

  • Low-noise USB sound card
  • Quick and easy installation via jumper, no soldering required
  • RX and TX adjustment from front panel
  • Supports ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker socket

Pack includes: Tigertronics Signalink USB interface, SLCAB6R cord to connect radio to interface, 1 x 2.5m USB cable, 1 x mono jack cable, 6 x 24 AWG pre-cut and stripped wires, 1 x Allen key - size 3/32", rubber feet, 1 x English manual.

Note : This interface does not allow frequency control (CAT control) on the radio used, but it does allow you to switch to PTT and send a signal to the radio and receive it, thanks to the USB peripherals created.

More details

179,00 € tax excl.

In stock

   7 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Power supply: USB 1.1/2.0/3.0 compatible, Male B connector
  • Power consumption: ~140mA in transmission, ~80mA nominal
  • Operating temperature : -30°C to +60°C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 bits, up to 48 kHz
  • 1200 or 9600 baud compatible
  • Operating system: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Radio input/output Z: 600 Ohm
  • Auto-PTT™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • Audio RX/speaker: 3.5 mm mono jack
  • Housing: Extruded aluminium, powder-coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible workstations

This Signalink pack is compatible with the following radios.

Anytone :

  • AT-500M
  • AT-6666

Kenwood :

  • TR-7800
  • TR-7850
  • TR-7950
  • TR-9000
  • TR-9130

CRT :

  • SS9900
  • MegaPro

President :

  • President Lincoln II
  • President Lincoln II+
  • President Richard
  • President Ronald

Ranger :

  • RCI-2950
  • RCI-2950DX
  • RCI-2950DX-CD
  • RCI-2970
  • RCI-2970N2
  • RCI-2970N33
  • RCI-2970N4
  • RCI-5054DX
