Raspberry Pi 3 B+ PLUS Quad Core 1.4Ghz WiFi dualband Bluetooth 1GB Raspberry Pi Raspberry Pi RASPBERRY-PI3-PLUS-09

View larger

Display all pictures

Manufacturer: Raspberry Pi

Reference:

Condition: New product

Country of origin:

United Kingdom

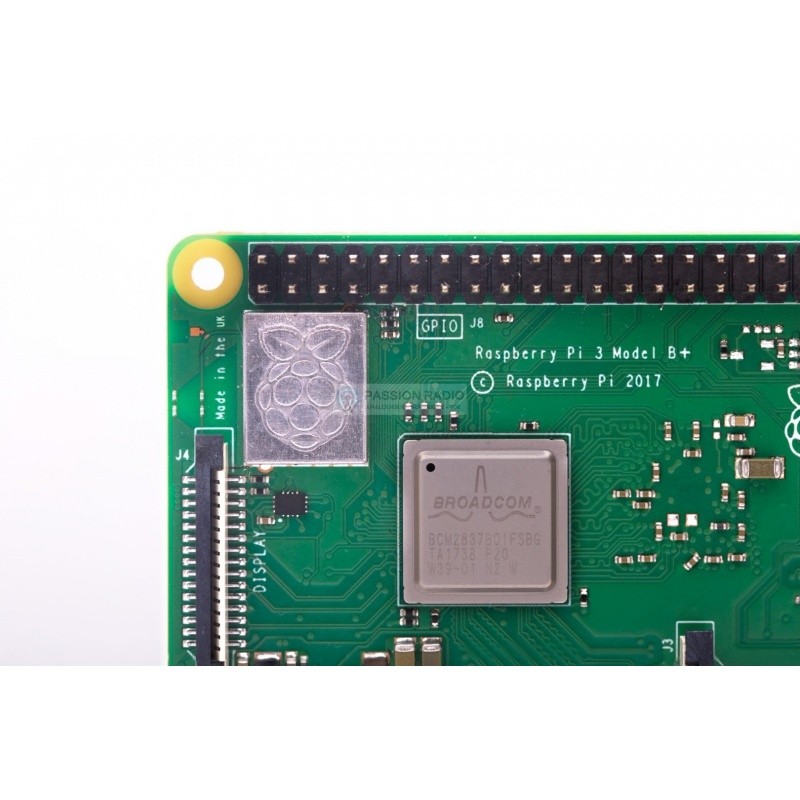

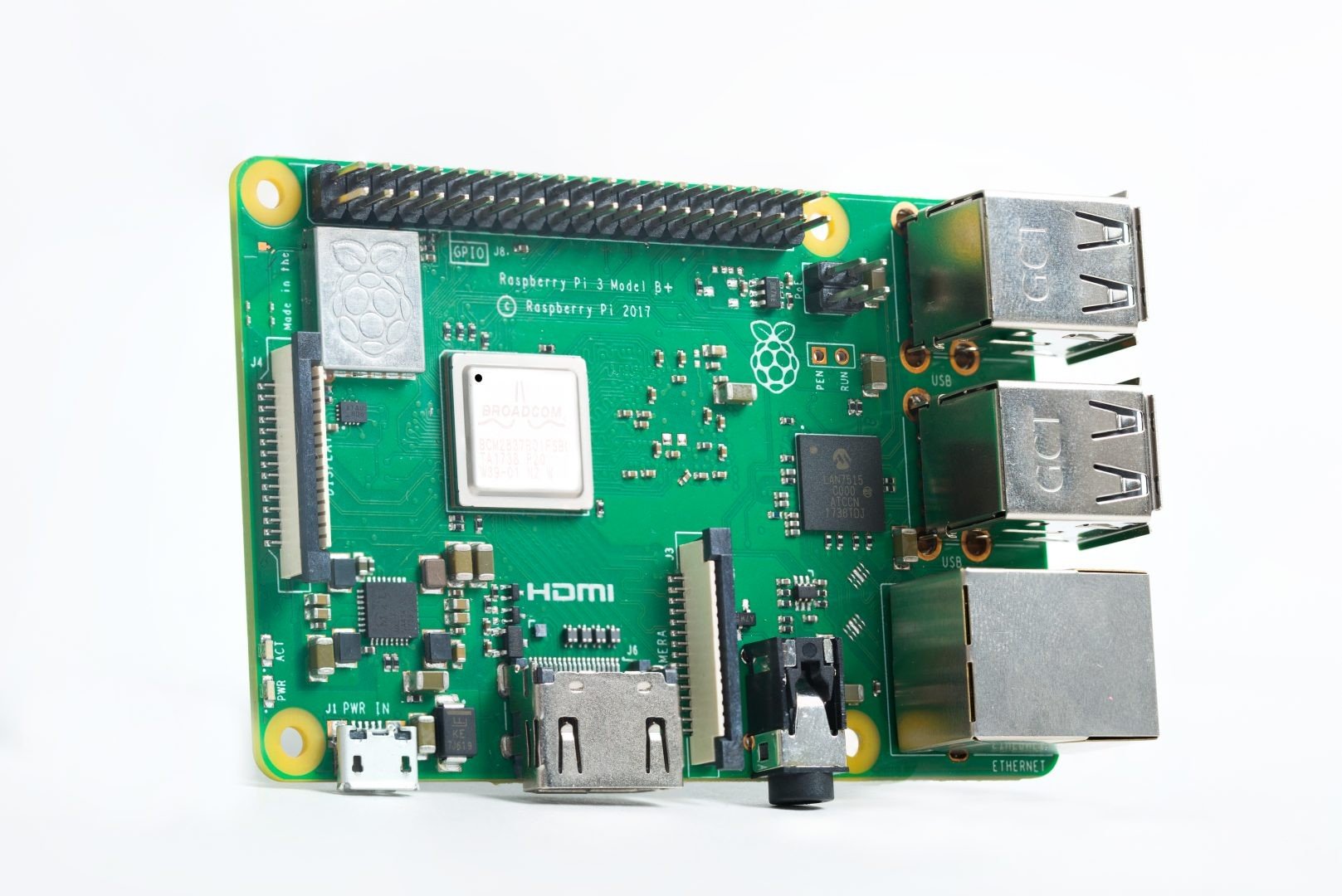

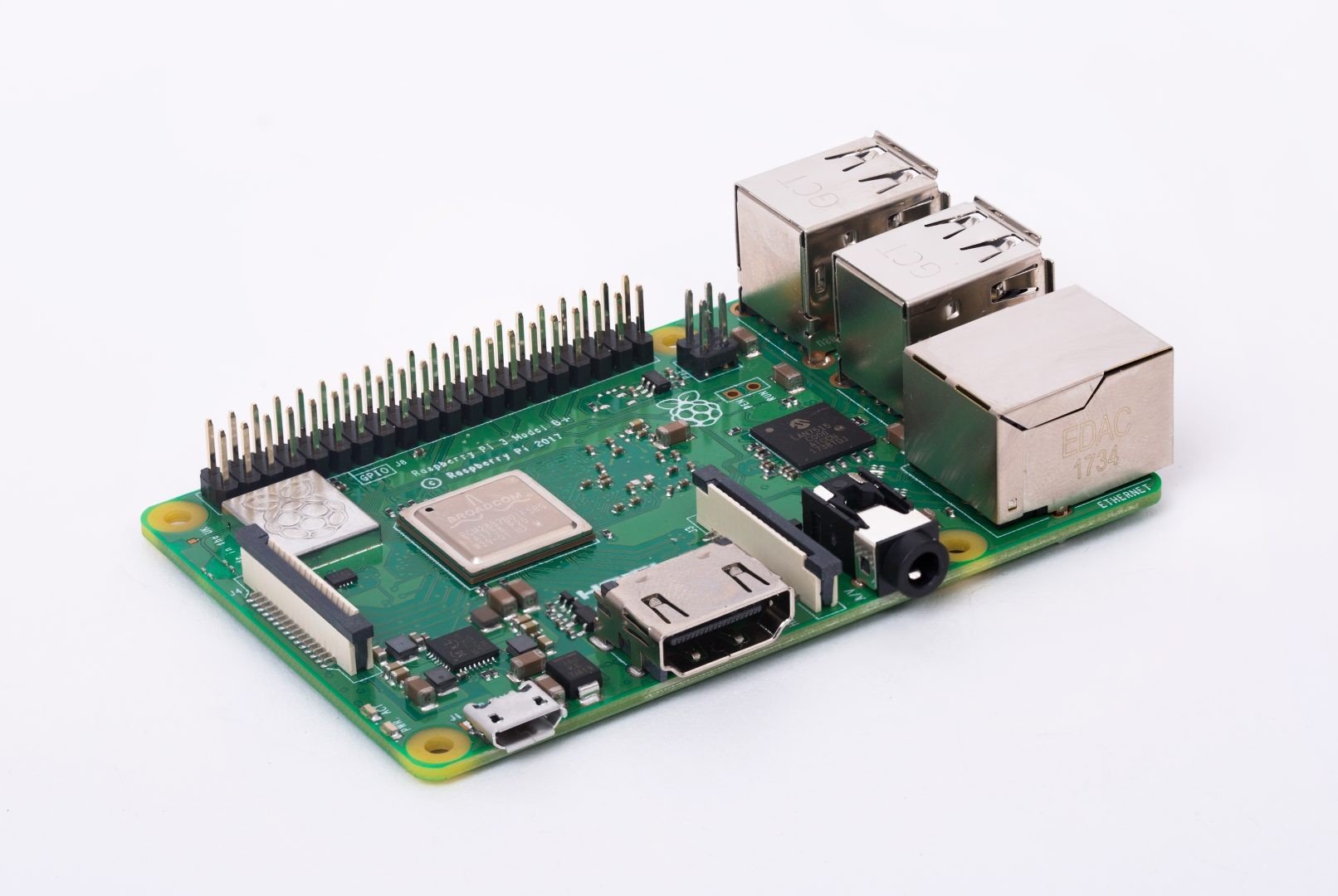

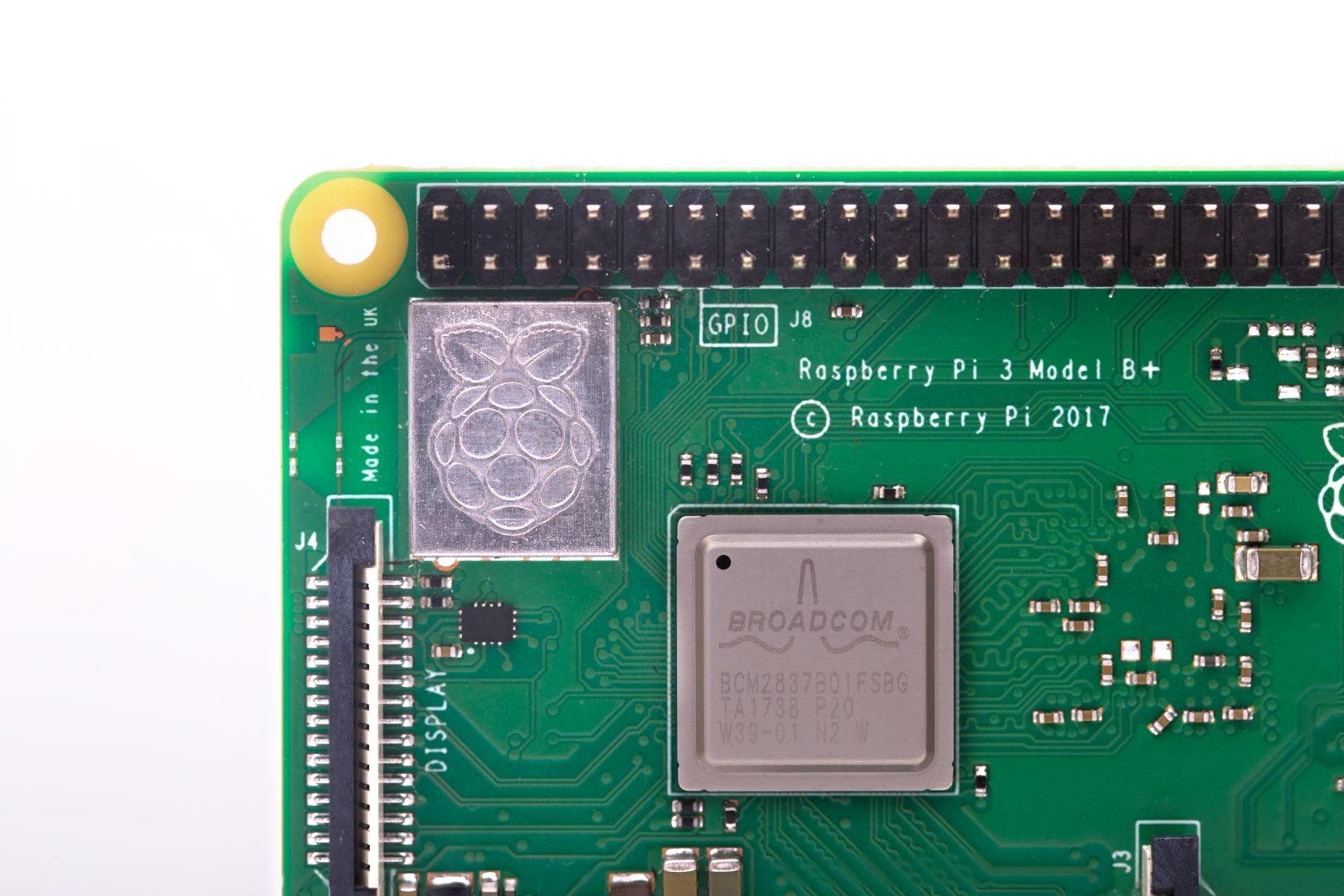

Raspberry Pi 3 B+ PLUS Quad Core 1.4Ghz WiFi dualband Bluetooth 1GB

No review at the moment

The new Raspberry Pi 3 model B & B+ features a 1.4Ghz Quad Core processor, WiFi 2.4Ghz / 5Ghz and Bluetooth Low Energy (BLE), making it even easier to develop RF and IoT radio applications.

CPU Broadcom Quad Core BCM2837B0, Cortex-A53 64-bit 1.4GHz
1 GB RAM memory
Wi-Fi 802.11 b/g/n/ac Cypress CYW43455 (2.4 Ghz and 5Ghz)
Bluetooth Low Energy 4.2
GPIO 40-pin
4 USB 2.0 ports
Stereo output (3.5mm jack) and composite video port
HDMI FullHD Jack - VideoCore IV 3D GPU
RJ45 315 Mb/s compatible Power over Ethernet with PoE expansion card (optional)
Camera port, DSI display port to connect a touch screen
Micro SD drive for operating system and store data (max 64GB)
Micro-USB cable power

Operating systems officially supported to download on Raspberrypi.org: Raspbian, Windows 10 Core IoT, OpenELEC, OSMC, Linux Arch, RISC OS, Pidora.

Comes with: Raspberry Pi 3 Model B or B+ board to choose below.

More details

Data sheet

The differences between the Raspberry Pi 3 B and B+

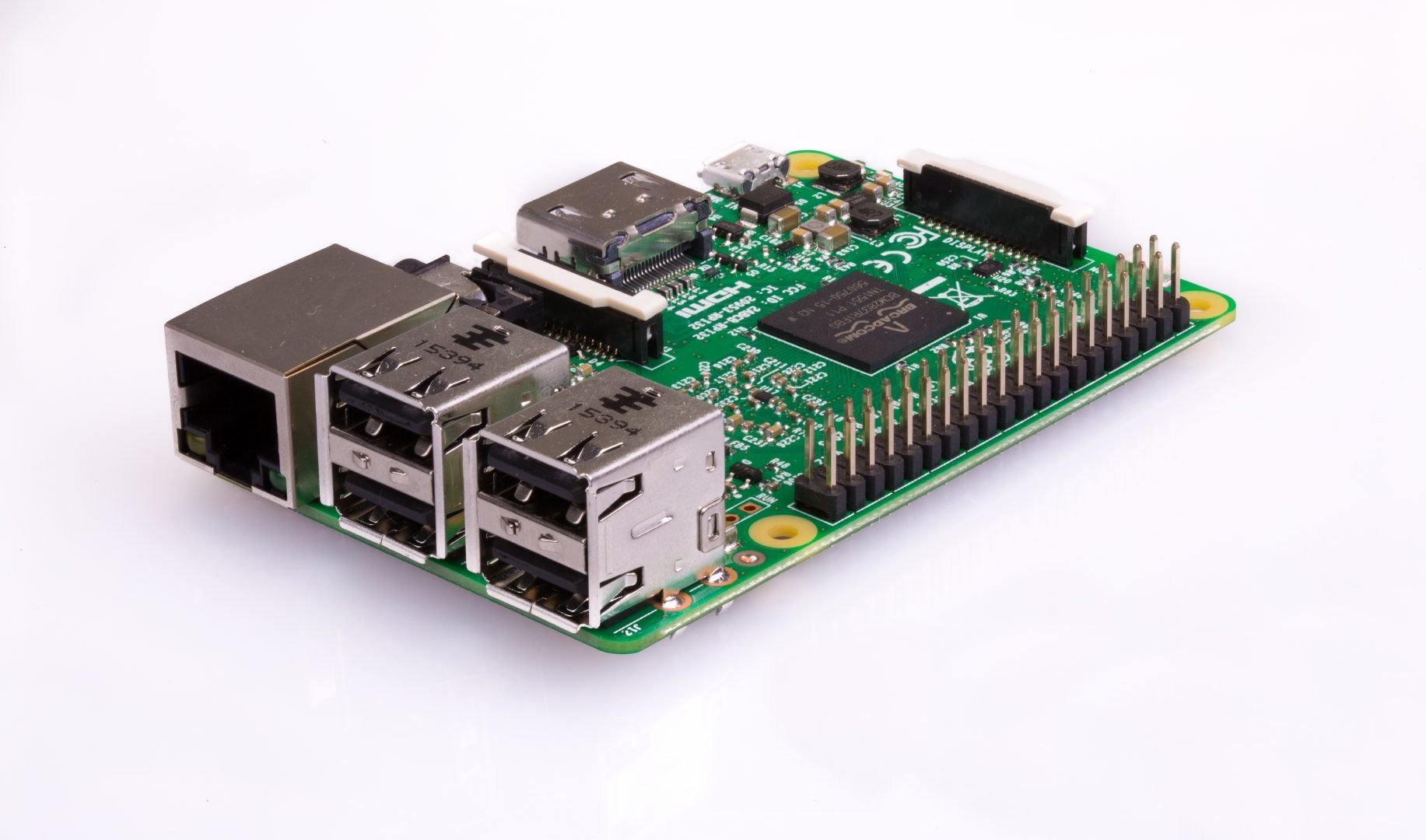

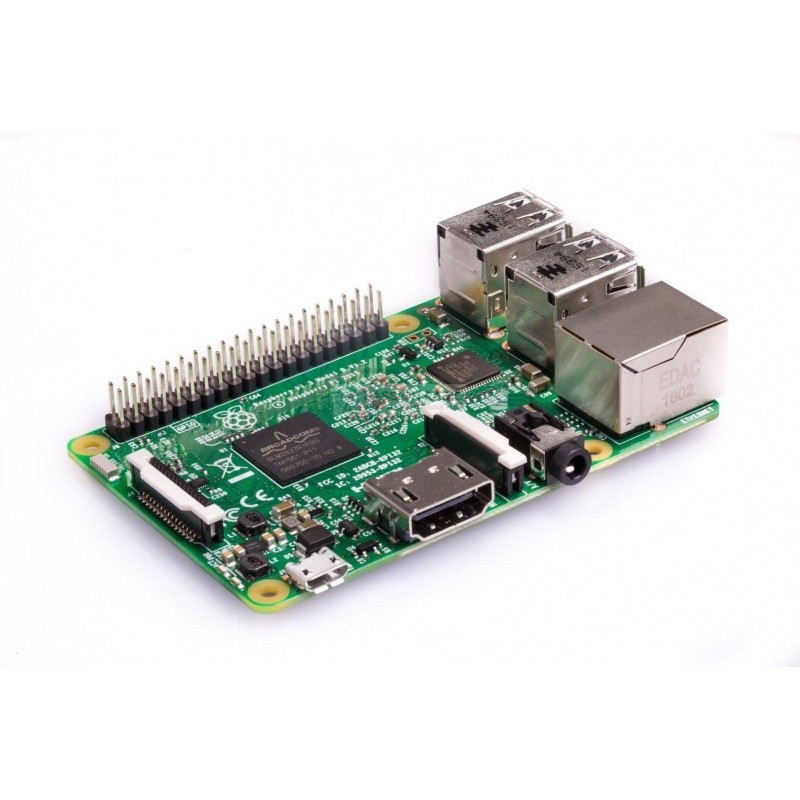

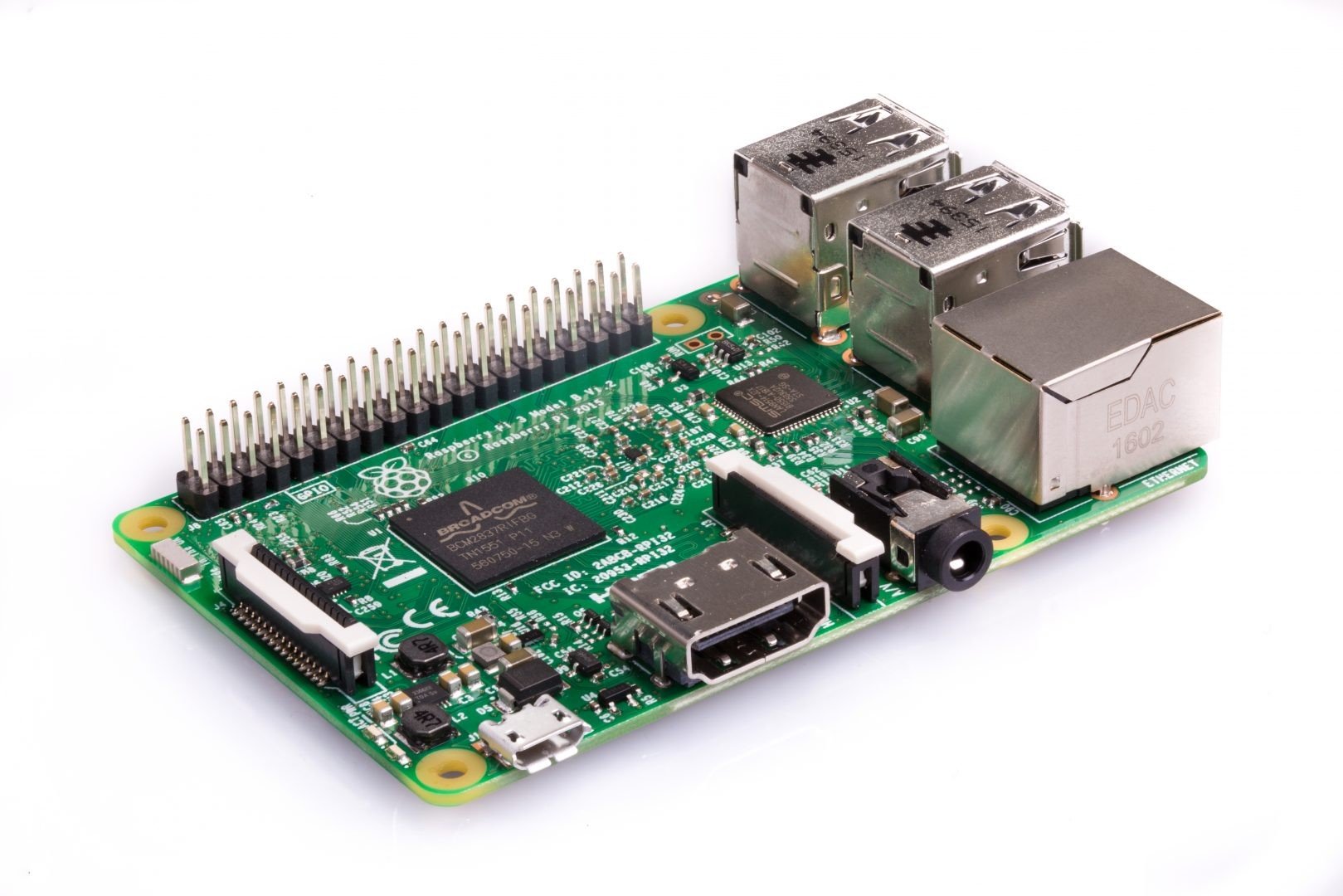

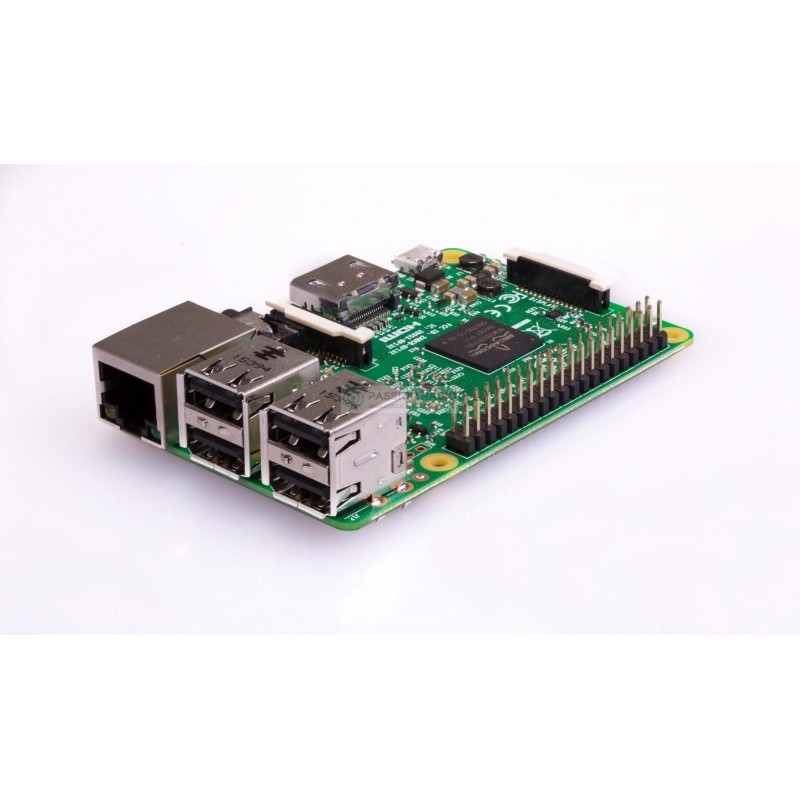

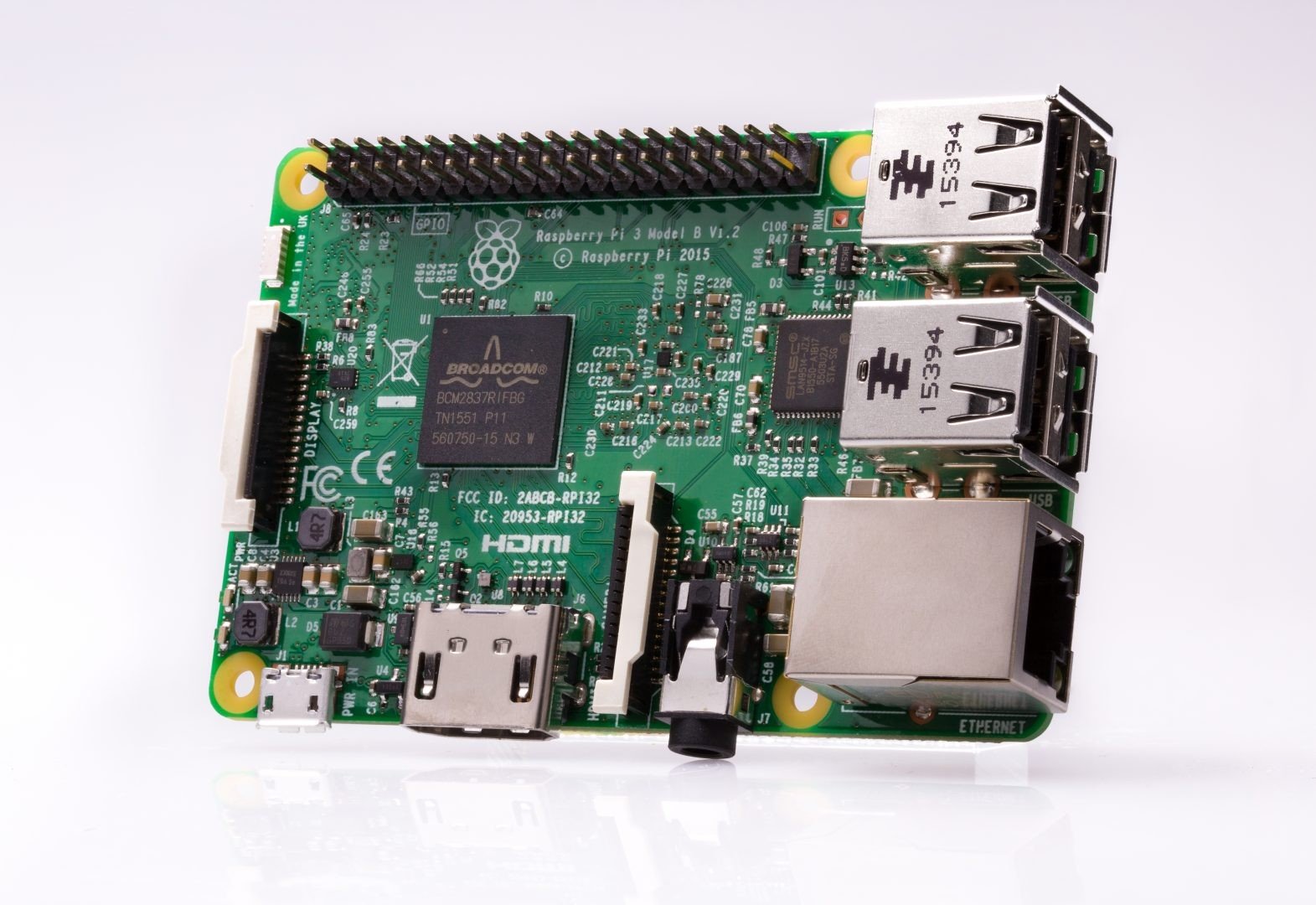

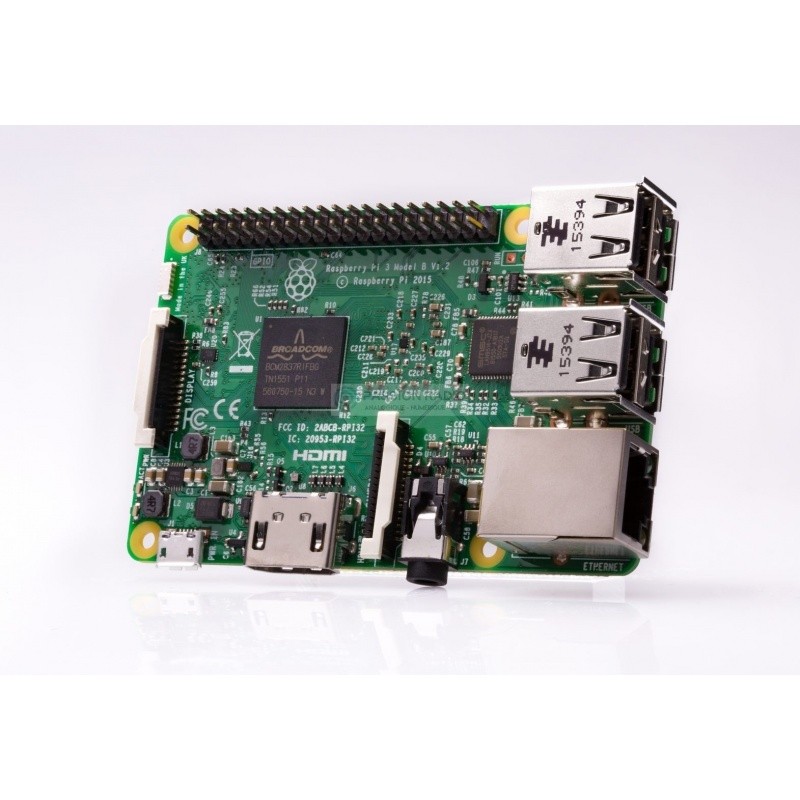

Raspberry Pi 3 B Version
- 1.2 GHz ARM Cortex-A53 Quad-Core CPU
- WiFi 802.11 b / g / n
- RJ45 LAN 10/100 Mbit/s

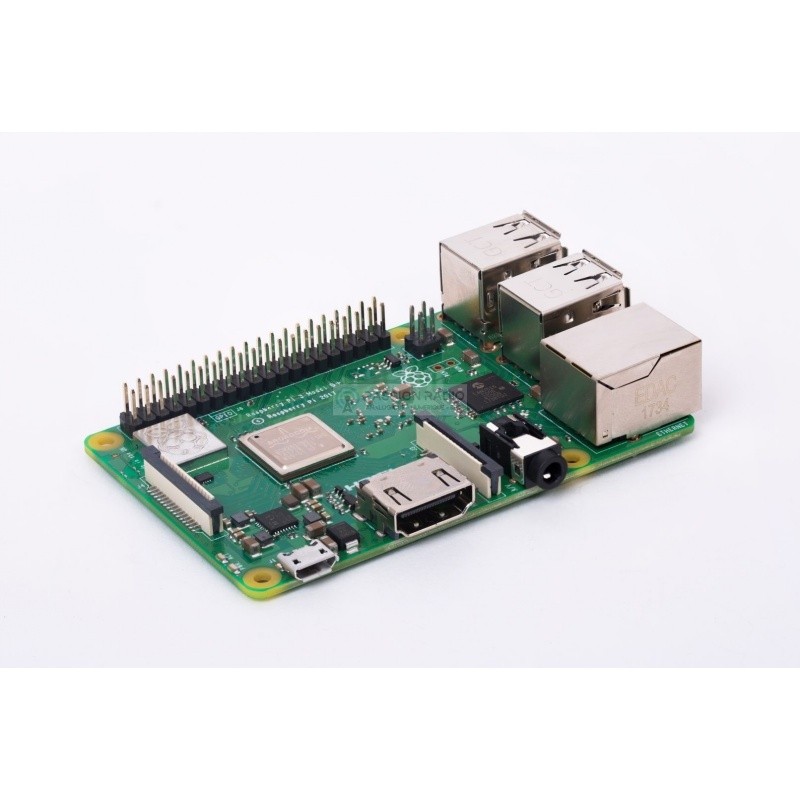

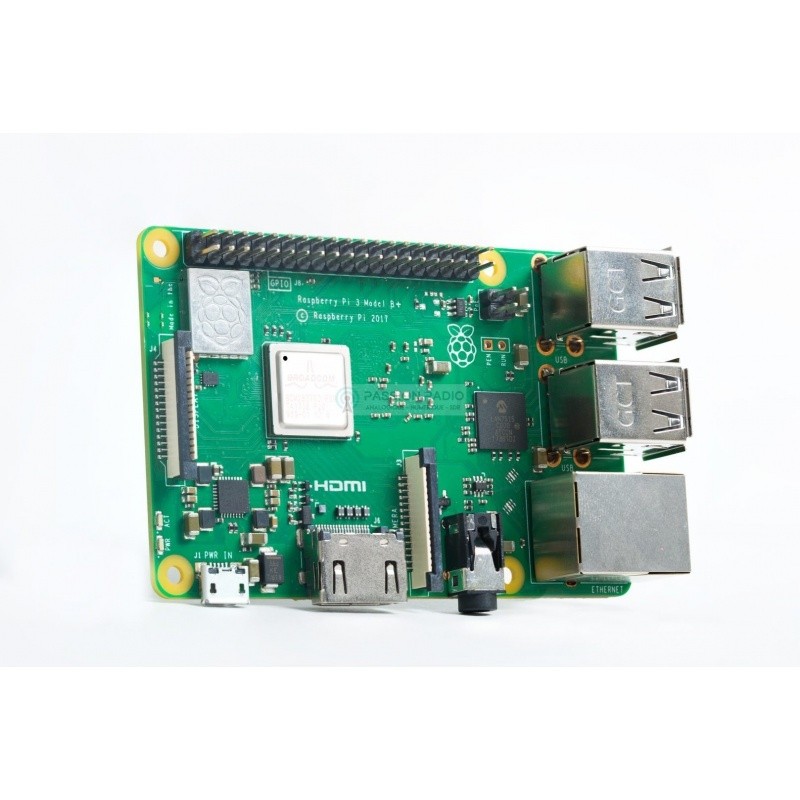

New version Raspberry Pi 3 B+ (PLUS)
- 1.4 GHz ARM Cortex A53 Quad-Core CPU
- WiFi 802.11 b / g / n / ac (2.4Ghz and 5GHz)
- RJ45 10/100/1000 Mbit/s LAN (Gigabit LAN USB 2.0 up to 300 Mbit/s)

How to use a Raspberry PI as a radio transmitter with Rpitx

Using Rpitx software from F5OEO, a raspberry PI can be used to transmit radio signals from 5khz to 500Mhz (AM/FM/SSB/FSQ/SSTV), using the GPIO 18 extension (pin 12) to connect a wire to serve as an antenna. The length of the wire depends on the frequency used to transmit.

Note that the generated signal is not "clean" and generates many harmonics that are harmful if amplified, without filtering.

With the addition of an RTL-SDR USB stick for reception, it's then possible, as an experiment, to create a transceiver with the qtcsdr software from HA7ILM.

As with any radio transmission equipment, the use is subject to the respect by the user of the laws in force in the country of use.
