> Radio Antennas>Mounting bracket>RF filters & preamp>Low-loss 70cm BPF bandpass filter N plug 200W 430-450 MHz (AA)

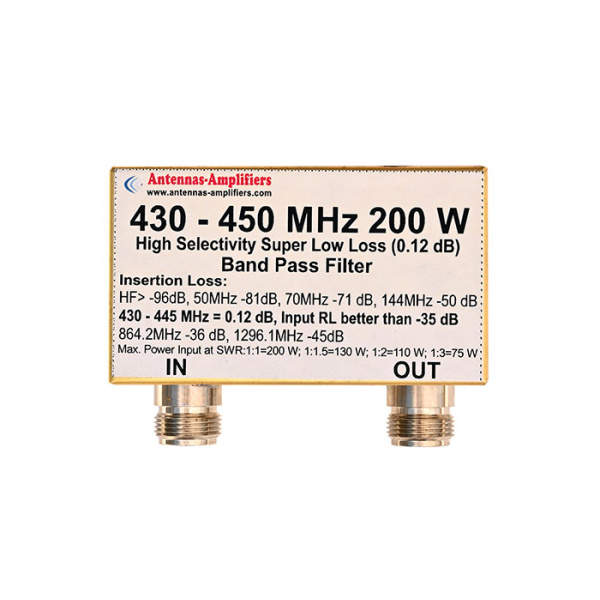

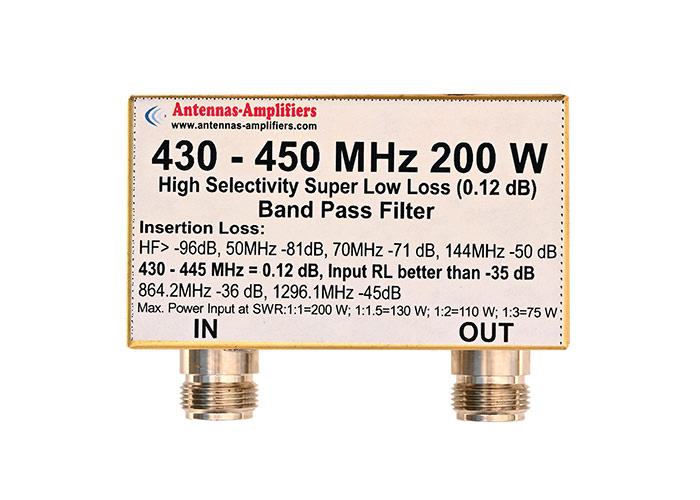

Low-loss 70cm BPF bandpass filter N plug 200W 430-450 MHz (AA) View larger
Low-loss 70cm BPF bandpass filter N plug 200W 430-450 MHz (AA)
Antennas Amplifiers

AA-6530-FILTERBPF450-2687

New product

Serbia

Safety Information +

Low-loss 70cm BPF bandpass filter N plug 200W 430-450 MHz (AA)

rating No review at the moment

Band-pass filter Antennas Amplifiers for transmitting on the 70cm amateur radio frequency band from 430 to 450 MHz, <0.12 dB with high selectivity, high Q and very low loss, designed for 200 W output power. Connectors: N female plug

The BPF bandpass filter uses high Q coils and capacitors, with an unloaded Q greater than 1500.

Designed for indoor use (default) or for outdoor mounting in a plastic enclosure.

The bandpass filter is enclosed in a robust 0.8 mm thick brass housing. The robust mechanics ensure stability and longevity.

More details

239,24 € tax excl.

In stock

   4 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

This filter is excellent for eliminating interference caused by out-of-band frequencies. As it has a maximum power of 200 W, it is perfect for transmitting, and as the attenuation is only 0.12 dB, it is perfect for use as a receiving filter.

Insertion loss (S21), measurements with a fully calibrated HP8753ES 2-port network analyser:

  • 1.82 MHz: < -105 dB
  • 3.8 MHz: < -105 dB < -105 dB
  • 7 MHz: < -105 dB < -105 dB
  • 14 MHz : < -105 dB < -105 dB
  • 21 MHz : < -105 dB < -100 dB
  • 28 MHz : - 96 dB
  • 50 MHz : - 80 dB
  • 54 MHz : - 78 dB
  • 70.2 MHz : - 71 dB
  • 88 MHz : - 65 dB (FM signal)
  • 108 MHz : - 60 dB (FM signal)
  • 144 MHz : - 50 dB (FM signal)
  • 148 MHz : - 49.5 dB
  • 430 MHz : -0.12 dB, input RL better than -40 dB
  • 432 MHz : -0.12 dB, input RL better than -40 dB -0.12 dB, input RL better than -40 dB
  • 440 MHz : -0.12 dB, input RL better than -40 dB
  • 720 MHz : - 26 dB
  • 864 MHz : - 35 dB
  • 1240 MHz : -45 dB
  • 1296 MHz : -45 dB

Connectors: N female plug
Manufacturer: Antennas Amplifiers
