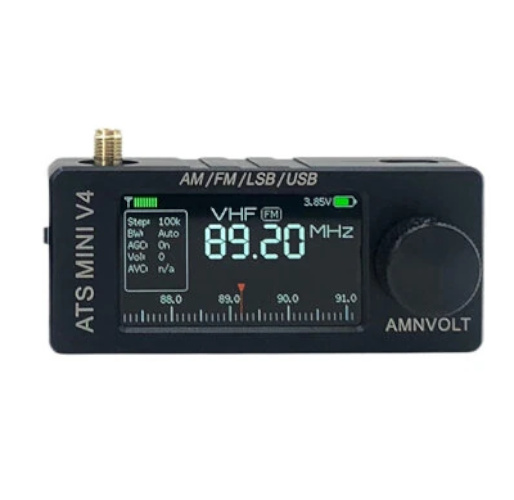

ATS Mini V4 SI4732 HF 0.1-30 MHz receiver + metal case + Donut WB antenna
Read the 2 reviewsTheATS Mini V4 is a pocket-sized (0.1-30 MHz) HF receiver based on the SI4732 DSP, now with a metal casing and internal RF shielding for improved immunity to interference.
It boasts optimised audio quality, a 1.9" IPS display, 1W speaker, 800mAh battery, and now allows the earphones to be used as an antenna when listening to FM.
Compact, robust and powerful, it covers LW/MW/SW/FM as well as AM, FM, USB and LSB modes, with AGC, ATT and Hi-Z circuitry.
- Robust metal casing greatly reduces interference
- SI4732 chip shielding for cleaner, more stable reception
- Headphone socket as FM antenna for discreet listening
- Enhanced audio: 1 W speaker with optimised cavity
- 1.9" high-definition IPS screen with adjustable brightness
- Compatible with firmware updates via USB-C

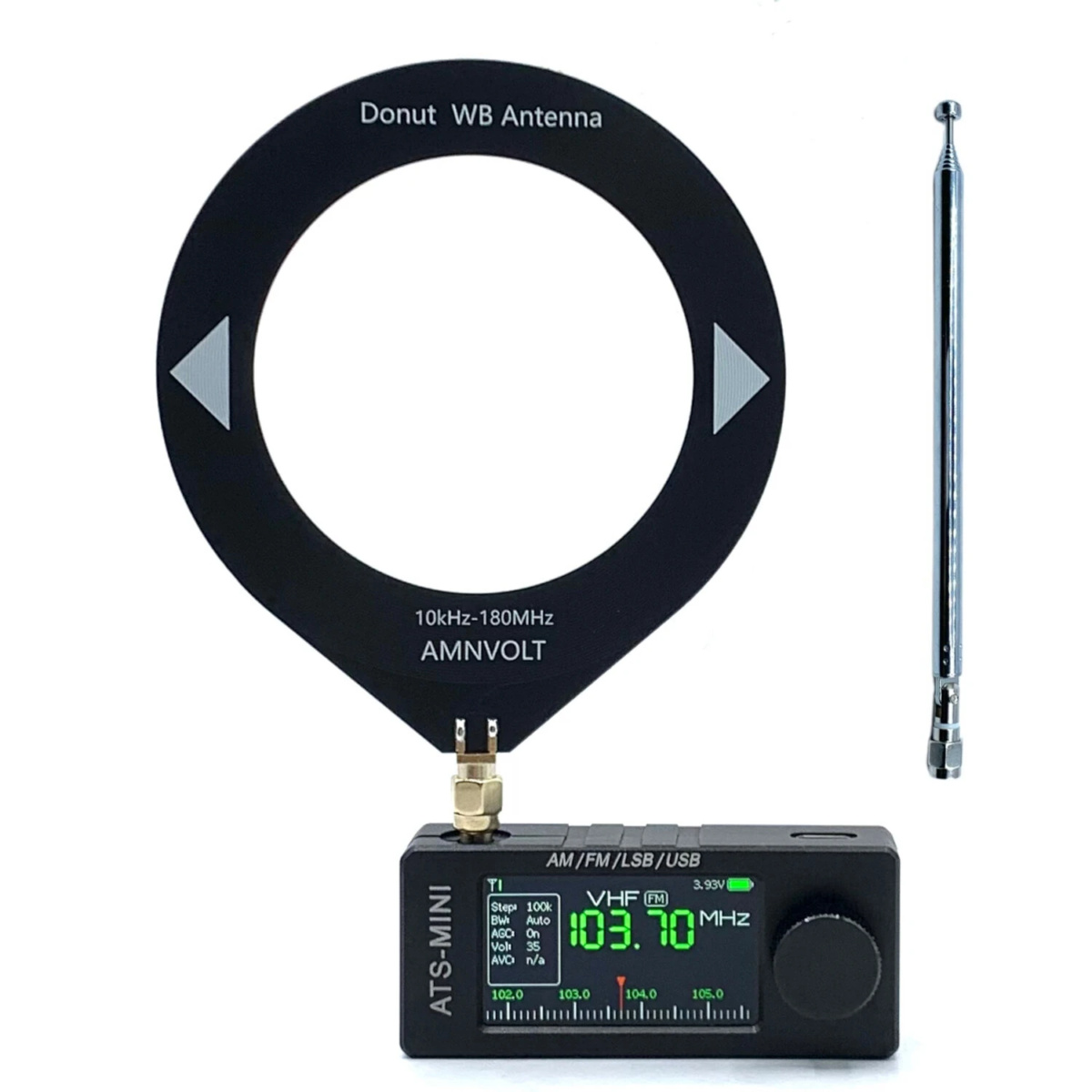

Supplied with: ATS Mini V4 receiver, Donut WB wideband antenna, telescopic antenna.
Data sheet
- Processor: ESP32-S3
- DSP: Silicon Labs SI4732 with integrated RF shielding
- Housing: metal, high mechanical rigidity, reduced RF interference
- Bands supported: FM, MW / AM, LW, SW (shortwave, 0.1 to 30 MHz)
- Modes: AM, FM, USB, LSB
- FM reception 88-108MHz
- Audio: 1W internal speaker, optimised cavity
- Integrated headphone amplifier
- Earphones can be used as FM antenna
- Display: 1.9" colour IPS, high definition, adjustable brightness
Advanced features :
- AGC (Automatic Gain Control)
- ATT (Attenuator)
- Internal Hi-Z circuit improves reception of weak signals
- Battery level indicator
- Simple interface: rotary encoder (click + rotate)
- Upgradeable firmware (update support)
Power supply :
- Integrated 800 mAh battery
- USB-C port for charging and updating
Antennas included :
- Wideband WB Donut antenna 100 kHz to 180 MHz
- Telescopic VHF antenna
Manual available online at https://esp32-si4732.github.io/ats-mini/manual.html
