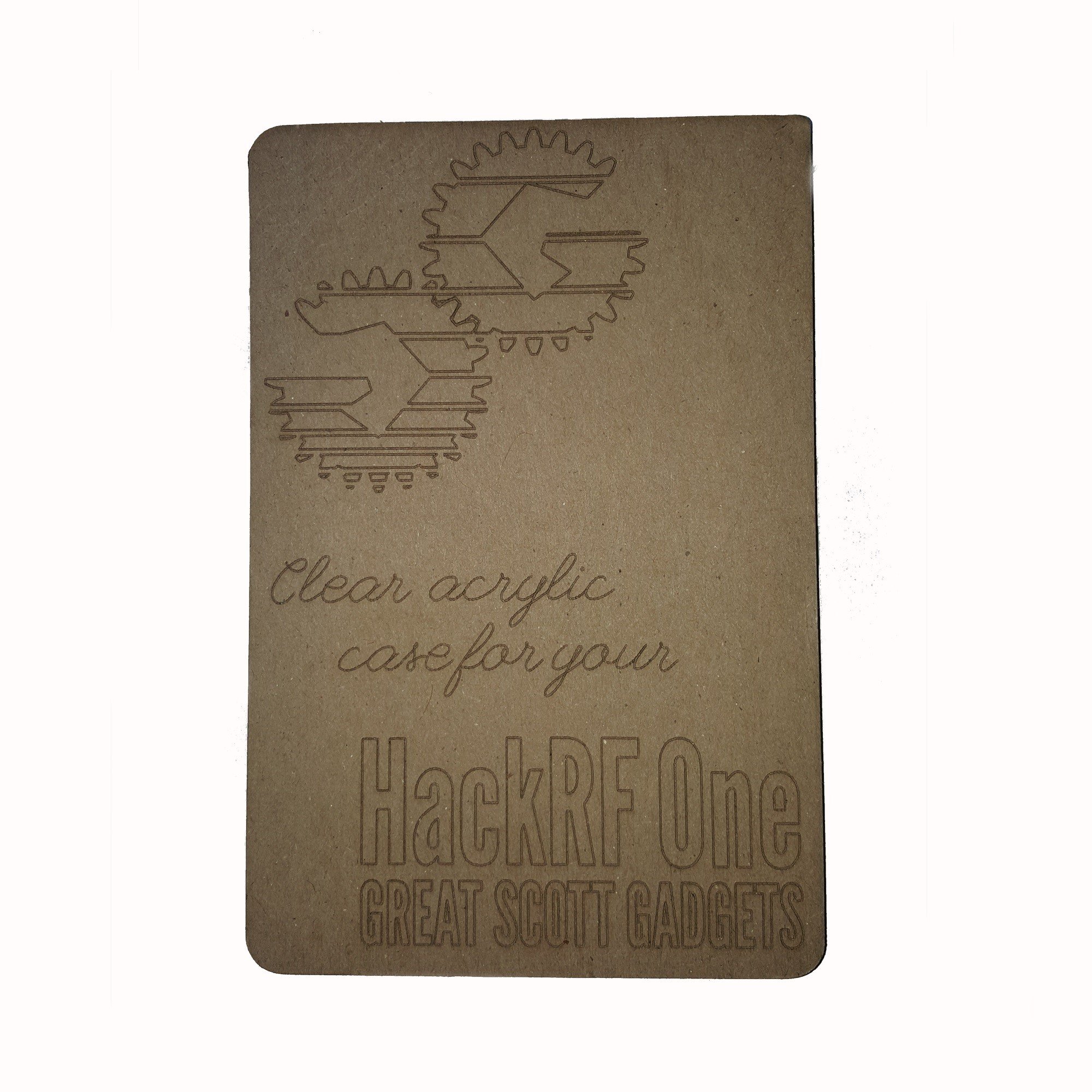

Clear Acrylic Case for...
Great Scott Gadgets official case, transparent...
-
ABS case for Raspberry Pi 4 Model B
4,45 € -50% 8,90 €
No review at the momentData sheet
Assembly Instructions

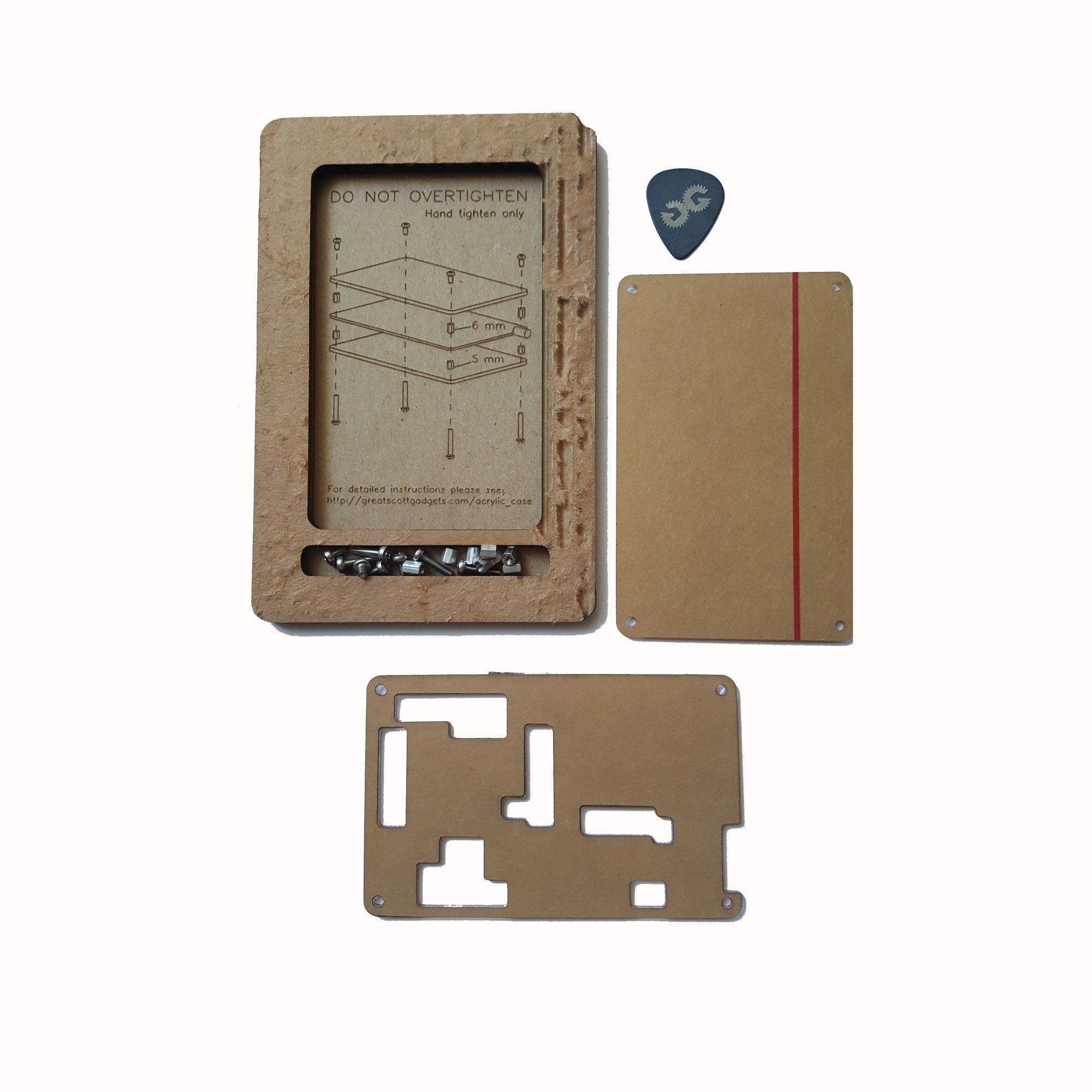

Warning: Do not overtighten! Hand-tighten only at every step.

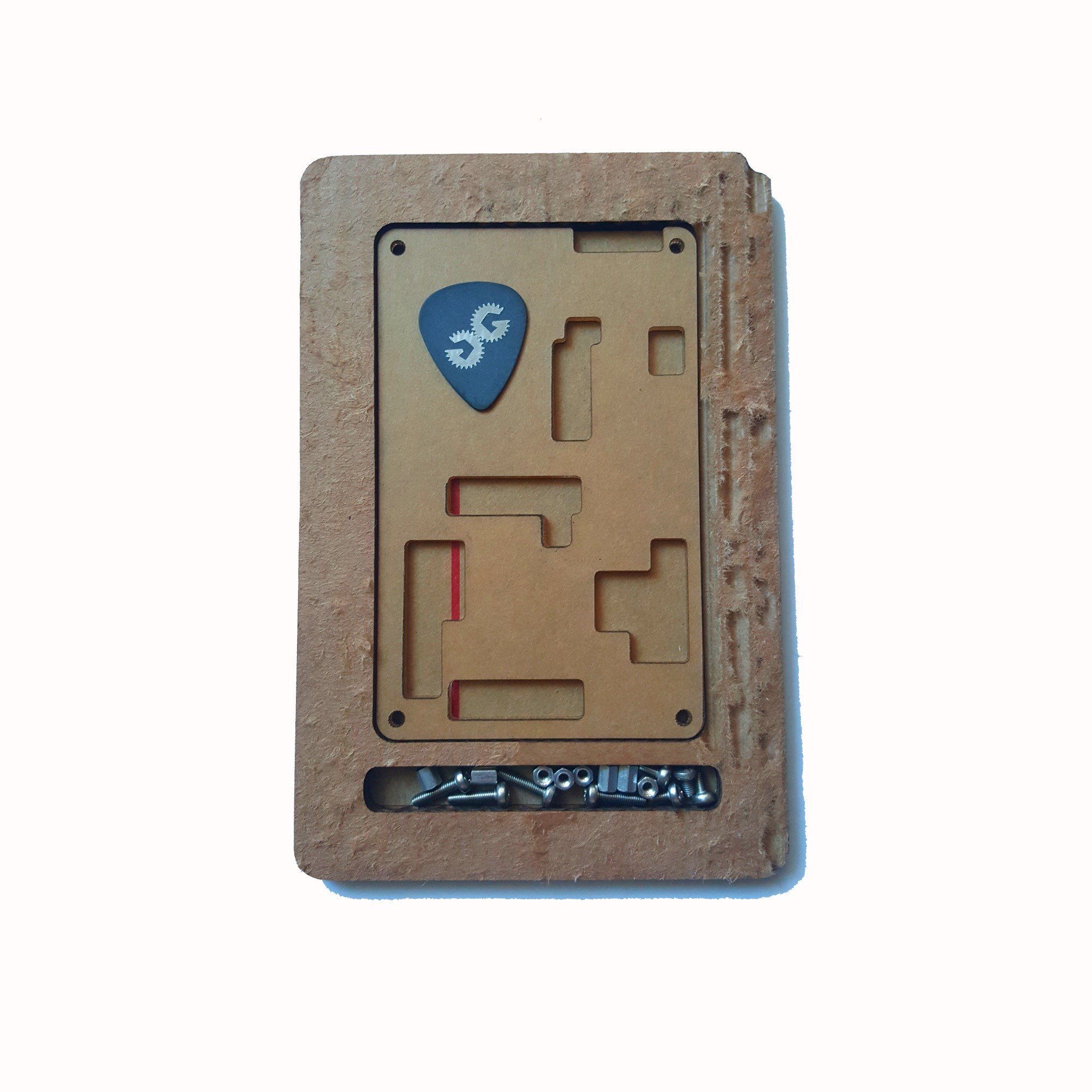

1 - Use the guitar pick supplied to extract the HackRF One circuit board from the black plastic case.
2 - Insert one long screw into each corner of the bottom acrylic panel. Secure each long screw with a short (5 mm) spacer on the opposite side of the panel.

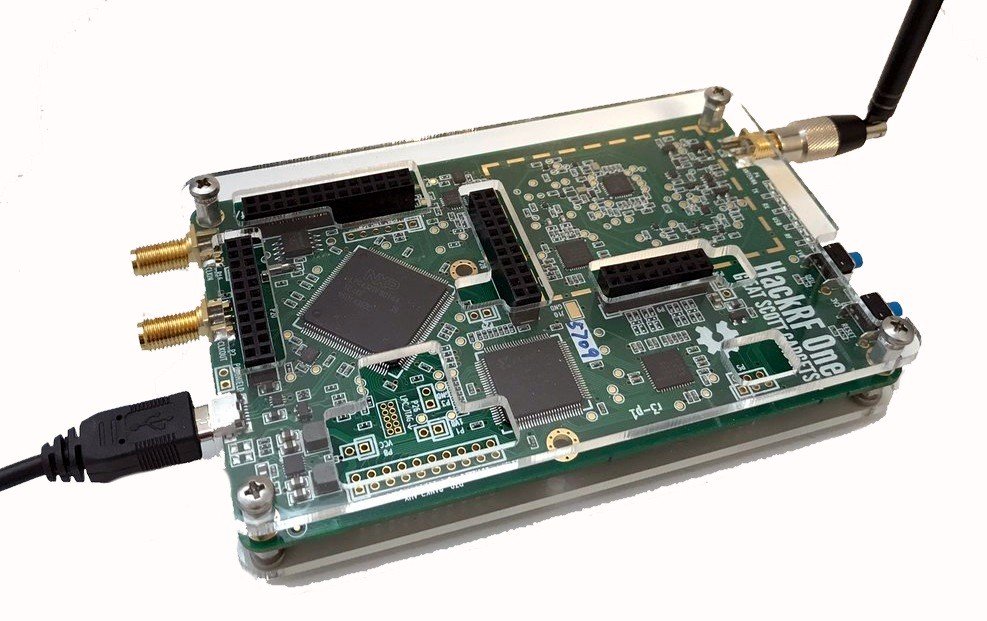

3 - Place the HackRF One circuit board (facing up) on top of the bottom panel, fitting the ends of the long screws through the corner mounting holes of the circuit board.
4 - Secure the circuit board with one long (6 mm) spacer in each corner.
5 - Place the top acrylic panel on top of the circuit board, aligning the cutouts with the circuit board's expansion headers.
6 - Secure each corner with a short screw.
