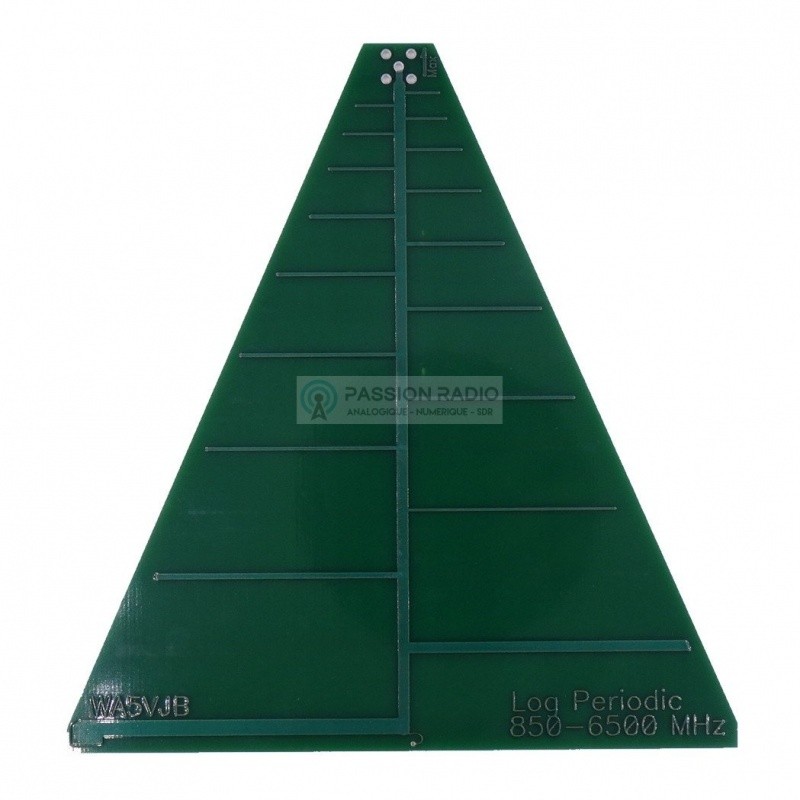

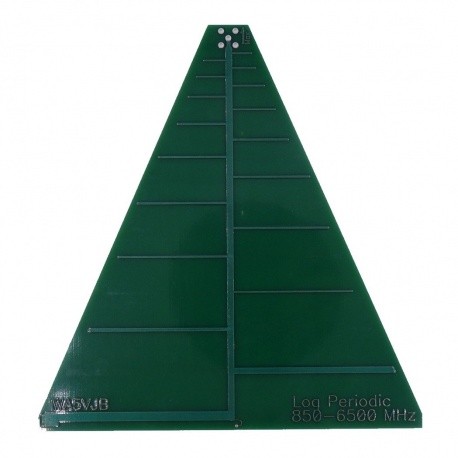

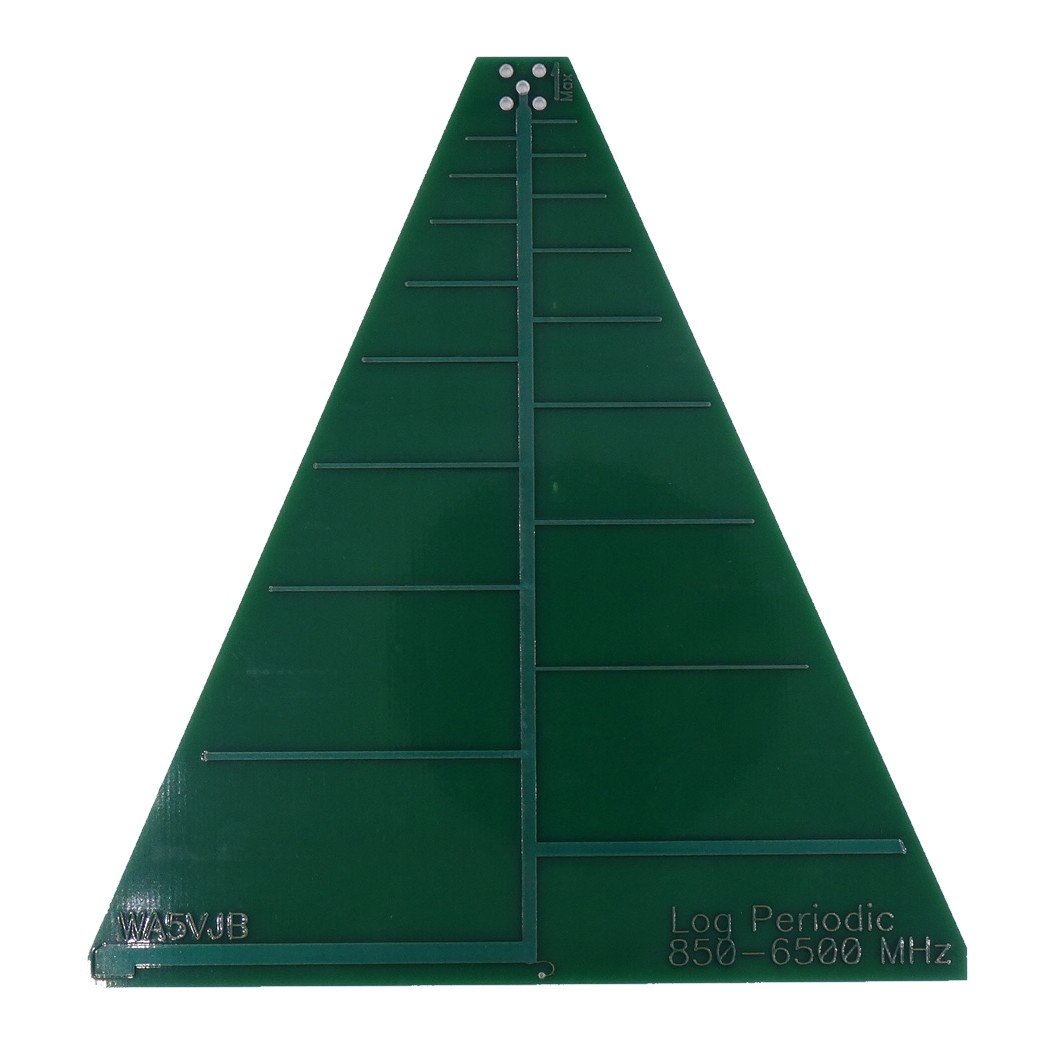

Log Periodic Antenna 850 MHz to 6.5 GHz Kent Electronics SDR Antennas WA5-ANT-LOG-LP6500-775 View larger
Kent Electronics

WA5-ANT-LOG-LP6500-775

New product

USA

Log Periodic Antenna 850 MHz to 6.5 GHz

PCB Log periodic antenna, for frequency from 850MHz to 6.5GHz with a gain of 6 dBi.

Supplied without SMA connector (soldering) or via a coaxial cable soldered directly to the PCB.

Frequencies: 850-6500 MHz
Type: Periodic Log
Gain: 6dBi
Impedance: 50 ohms
Amateur radio design: WA5VJB
Dimensions: 132x142mm
Weight: 33 grams

49,00 € tax incl.

In stock

Commandez avant 10:00 demain pour une livraison estimée entre le Friday 5th March et Saturday 6th March avec Chronopost Samedi
