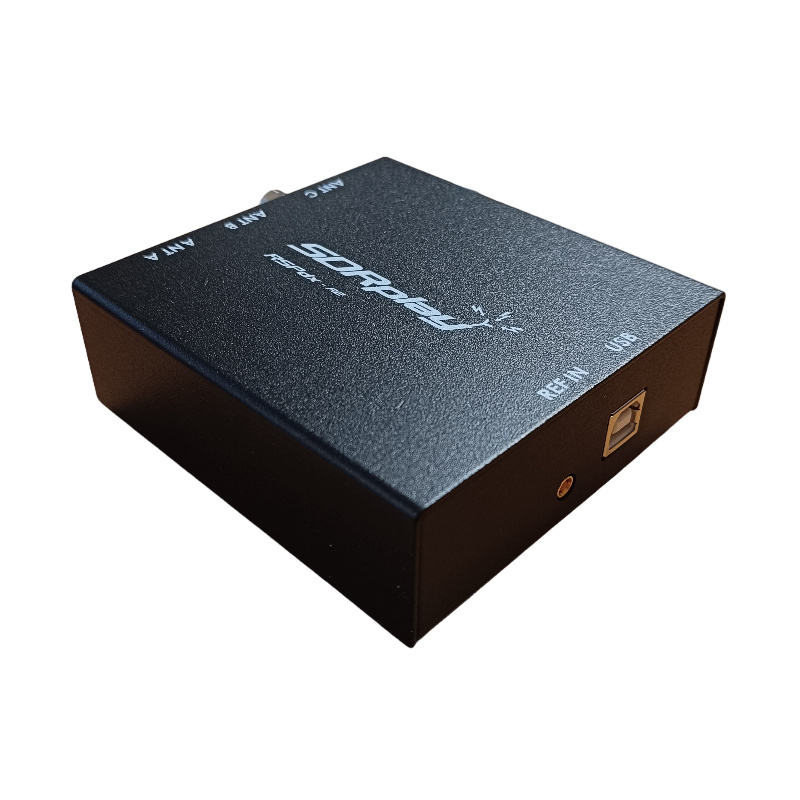

SDRPlay RSPdx 1KHz - 2GHz 14-bit LNA metal case

Specifications RSPdx SDRPlaY

SDR reception: From 1kHz to 2 GHz, no gap
Up to 10 Mhz bandwidth on the screen
14-bit sampling
HDR mode: Improved selectivity and performance below 2MHz
SDR Uno Software Adjustable LNA Preamp

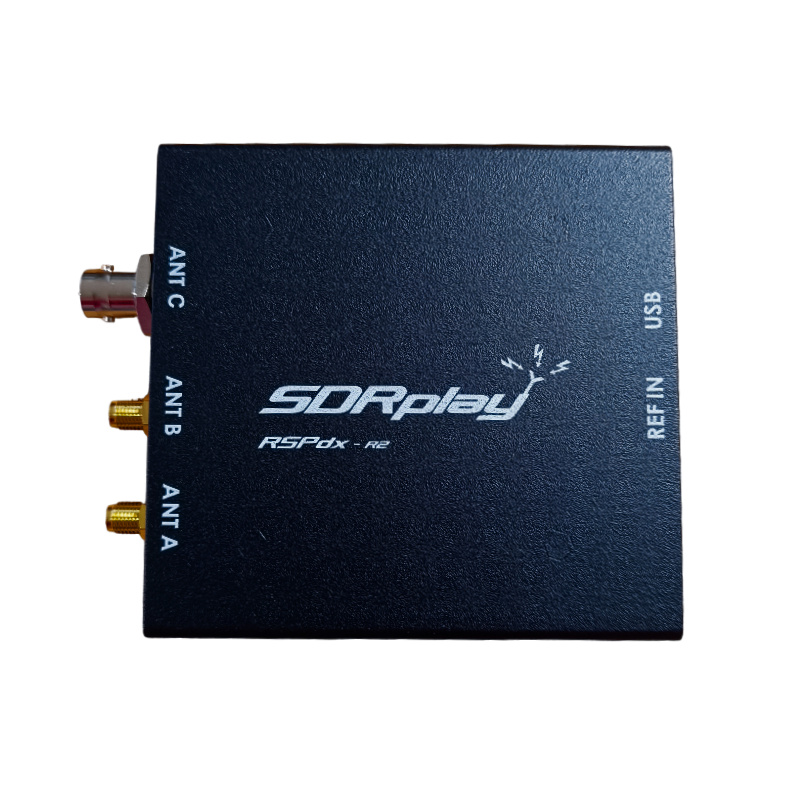

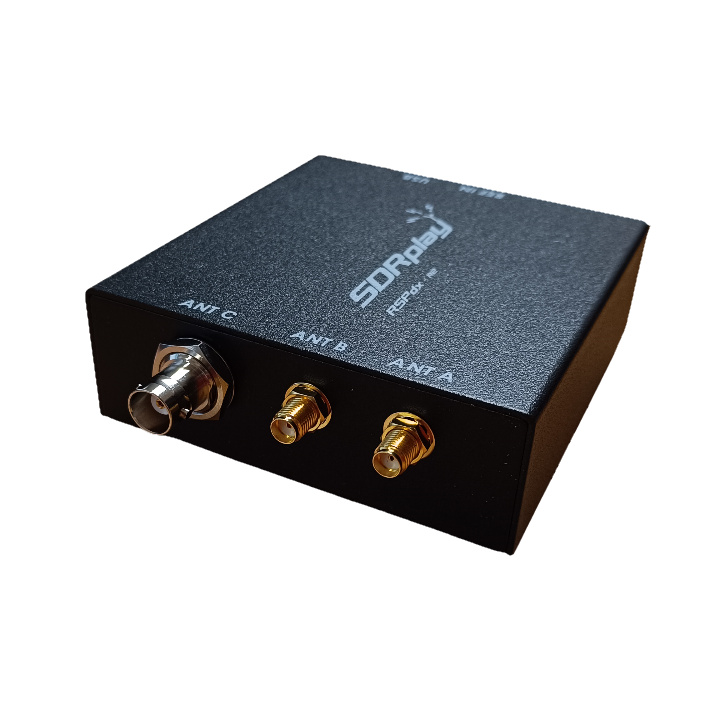

Antenna connector: 2x SMA female (1kHz - 2GHz) and 1 BNC female connector (1kHz - 200MHz), software switchable
Bias-T 4.7V (100mA) function on the SMA antenna connector (B)
VLF / LF filter: Improved reception below 500Khz
External clock connector: MCX female (24Mhz)
Power supply: USB 2.0 Male A - Male B cable, printer cable type (cable not included)
Consumption: Less than 200mA
Available API mode
Weight: 315g
Dimensions: 113mm x 94mm x 35mm
2 years warranty
CE Standards

The RSPdx is equipped with 12 band filters:

Low pass
500kHz
2MHz

Pass-band
2-12MHz
12-30MHz
30-60MHz
60-120MHz
120-250MHz
250-300MHz
300-380MHz
380-420MHz
420-1000MHz

High pass
1000Mhz

FM Notch Filter:
> 30dB 77 to 115MHz
> 50dB 85 to 107MHz
> 4dB 144 to 148MHz

MW Notch Filter:
> 15dB 400 to 1650kHz
> 30dB 500 to 1530kHz
> 40dB 540 to 1490kHz

Notch DAB filter:
> 20dB 155 to 235MHz
> 30dB 160 to 230MHz

Installation SDRPlay online

You will find an online tutorial for quick installation of the RSPdx: http://www.sdrplay.com/start-here/

To download the latest SDRPlay drivers and software for Windows, Mac, Linux (Ubuntu & Debian): http://www.sdrplay.com/downloads/
Recommendations for use and support

1 - Do not connect the RSPdx directly to the same antenna as your transmitter, or to a transmitting antenna, nor transmit and transmit signals near the RSP, as this may result in irreversible and unsupported damage. by the guarantee.

2 - The RSPdx, like any SDR receiver, is sensitive to electrostatic discharge that can damage the receiver if it is not protected or used properly. It is recommended to disconnect the antenna in stormy weather and to ground the antenna. Finally before reconnecting the coaxial cable after a thunderstorm, it is imperative to unload it (braid and core) by grounding it.

In these 2 cases of loss of reception and RF damages, the guarantee can not be applied and the equipment will not be repaired, exchanged or refunded. The signs of RF damage are characterized by signs of hot on or around components near the signal input, a burning smell is also an indication of RF damage.

For any support request, SDRPlay offers an online platform to directly contact the technical support team for our customers.

For any support request, SDRPlay offers an online platform to get in touch directly with the technical support team for our customers : Request for official support SDRPlay.
