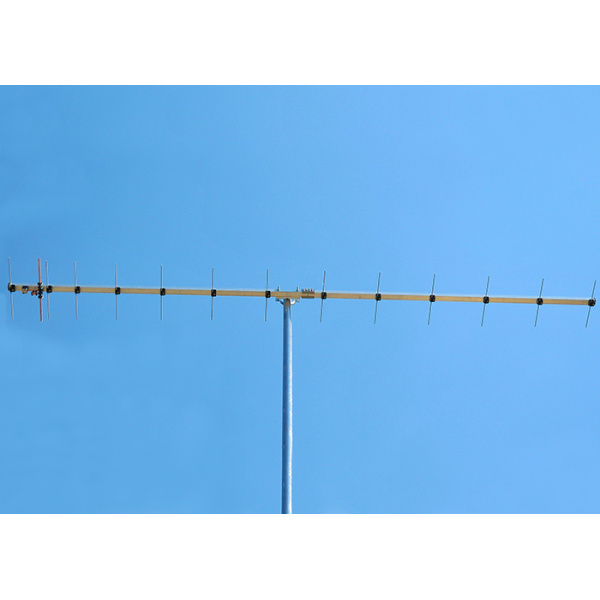

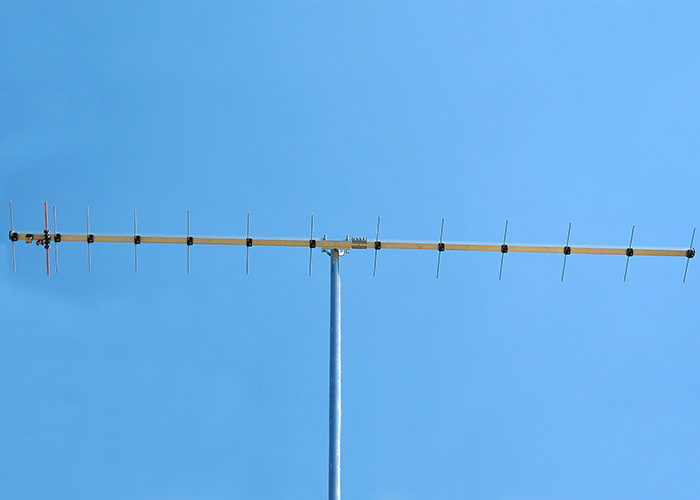

432 MHz 14 element DX Yagi 16.4dBi Antenna 70cm14WA (AA)

View larger

Manufacturer: Antennas Amplifiers

Reference: AA-1550-70cm14W-2867

Condition: New product

Country of origin:

Serbia

432 MHz 14 element DX Yagi 16.4dBi Antenna 70cm14WA (AA)

No review at the moment

Good for portable or stationary use. Excellent for DXing. Possible EME with just 50W and a single antenna.

A strong 30 x 30mm boom will ensure stable mechanical characteristics on any wind.

14 element, 16.4dBi gain.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

Data sheet

70cm14WA Electrical Specifications:

Frequency Range: 432 – 434MHz
Free Space Forward Gain: 16.4dBi
Front-to-Back Ratio: 27dB
3 dB Horizontal Beamwidth: 30.5°
3 dB Vertical Beamwidth: 32.4°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 850W
Matching Method: Direct feed through RG142 common mode choke (current balun)
Connector: “N”

70cm14WA Mechanical Specifications:

Number of Elements: 14
Element Diameter: 4 mm Aluminum rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 340 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 2.92m
Boom Size: 30x30mm
Number of Boom Pieces: 2
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43-70mm 1-11/16″ – 2-3/4″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 180km/h
Wind Load: 0.08m2
Net Weight: 2.5kg
Gross Weight: 4.5kg
Transportation Length: 1.5m

Horizontal Stacking Distance:

Two antennas 1280 mm for F/S< -12.3 dB, Gain: 19.05 dBi
Four antennas 1300 mm for F/S< -12.8 dB, Gain: 22 dBi
Eight antennas 1320 mm for F/S< -13.1 dB, Gain: 25 dBi

Vertical Stacking Distance:

Two antennas 1220 mm for F/S< -12.5 dB, Gain: 19.04 dBi
Four antennas 1230 mm for F/S< -12.6 dB, Gain: 22 dBi
Eight antennas 1240 mm for F/S< -13.2 dB, Gain: 25 dBi

The old name of the antenna was PA432-14-3A.
