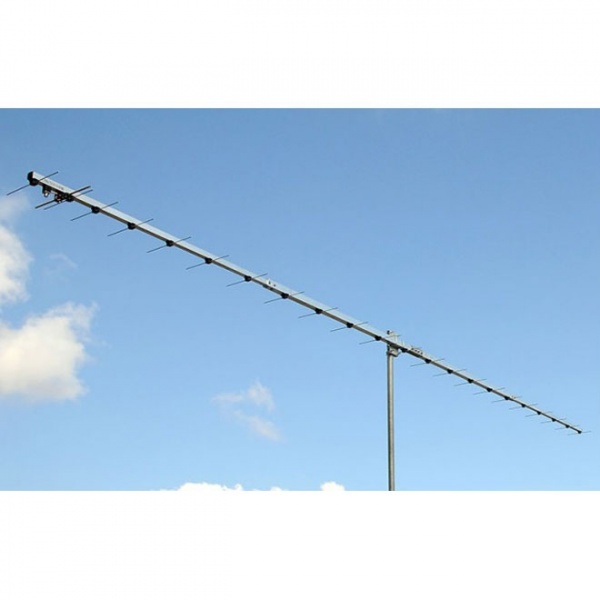

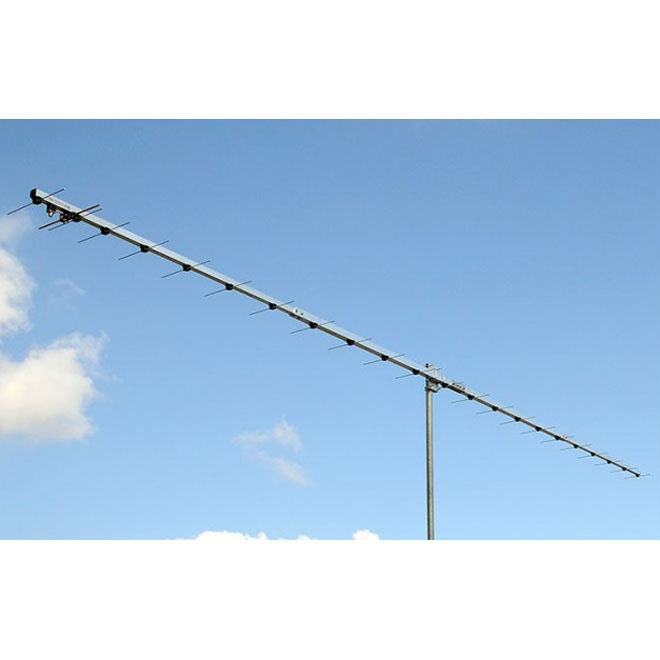

432 MHz 23 Elements 19.1dBi 850W Beam Antenna 70cm23DX (AA)

No review at the moment

70 cm Low Side Lobes Excellent G/T Yagi antenna 23 elements and 19.1dBi gain.

Excellent low noise antenna for stationary or portable use. Easy to assemble and disassemble.

Even with single antenna and 50 W possible to work EME stations on 70 cm band.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

Data sheet

70cm Low Noise Super Yagi EME Q65 Contest Antenna PA432-23-6B Ultimate G/T

Electrical Specifications 70 cm
Frequency Range:	432 – 434 MHz
Free Space Forward Gain:	19.1 dBi
Front to Back Ratio:	30 dB
3 dB Horizontal Beam-width:	21.6°
Polarization:	Horizontal
Nominal Input Impedance:	50 Ohm
Maximum SWR at any freq.:	1 : 1.2
Maximum Power Input:	850 W
Matching Method:	Direct feed through current balun.
Connector:	“N”
Mechanical Specifications
Boom length:	5.8 m
Boom:	Tapered boom 40 x 40 + 30 x 30 mm
Longest element:	340 mm
No. of elements:	23
Turning radius:	3.3 m
Mounting Mast Diameter:	43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed:	150 km/h
Weight:	6 kg

432.1 MHz JT65 Q65 EME and Contest Yagi Antenna Low Noise Design PA432-23-6B
