2 position antenna switch with N female ALPHA DELTA 2B-N

View larger

Display all pictures

Manufacturer: ALPHA DELTA

Reference: ALPHA-DELTA-SWITCH-2B-N-1214

Condition: New product

Country of origin:

United States

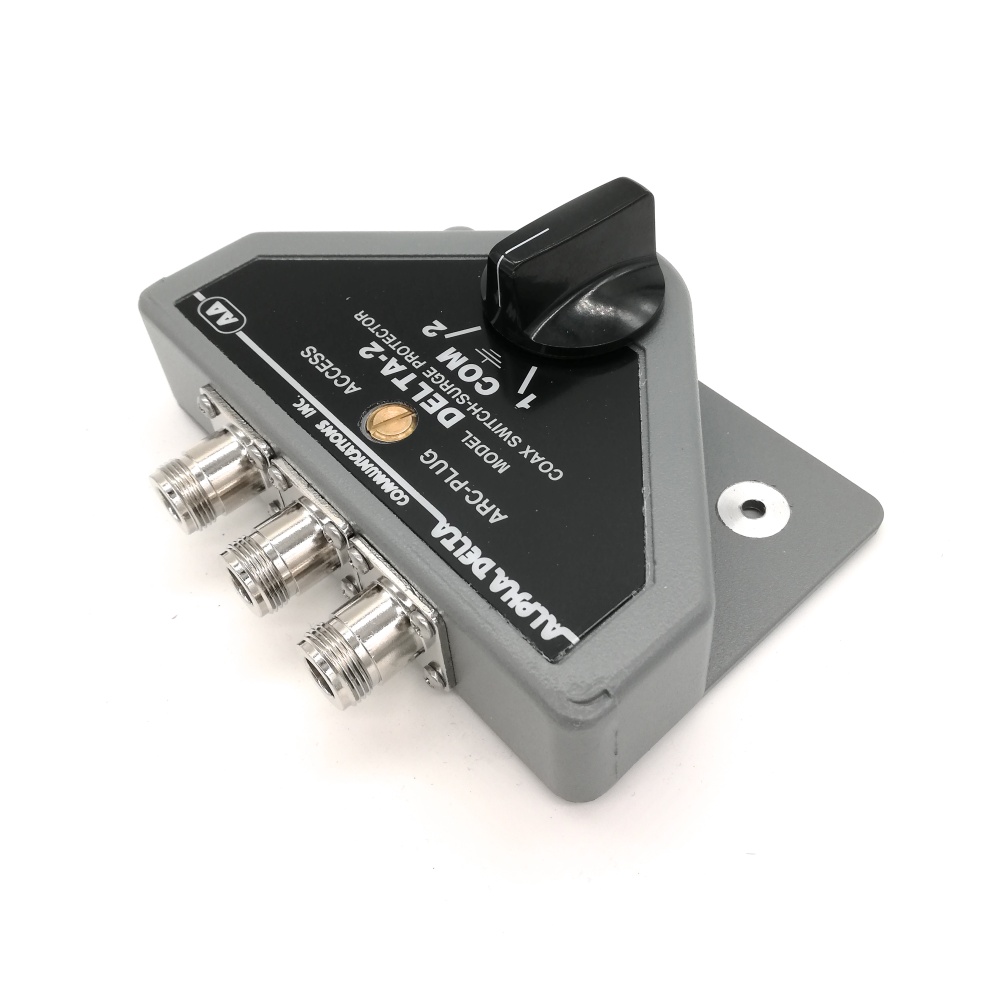

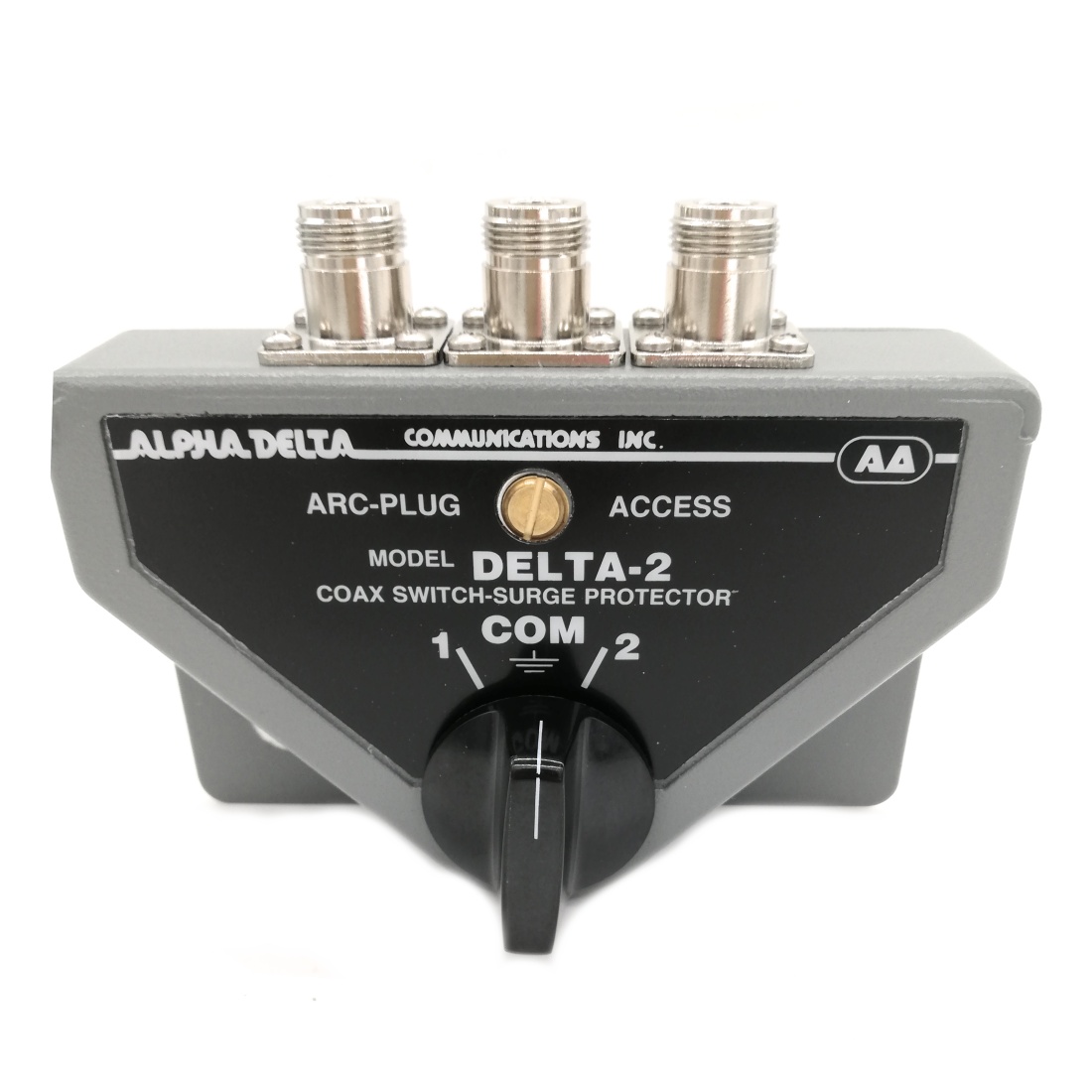

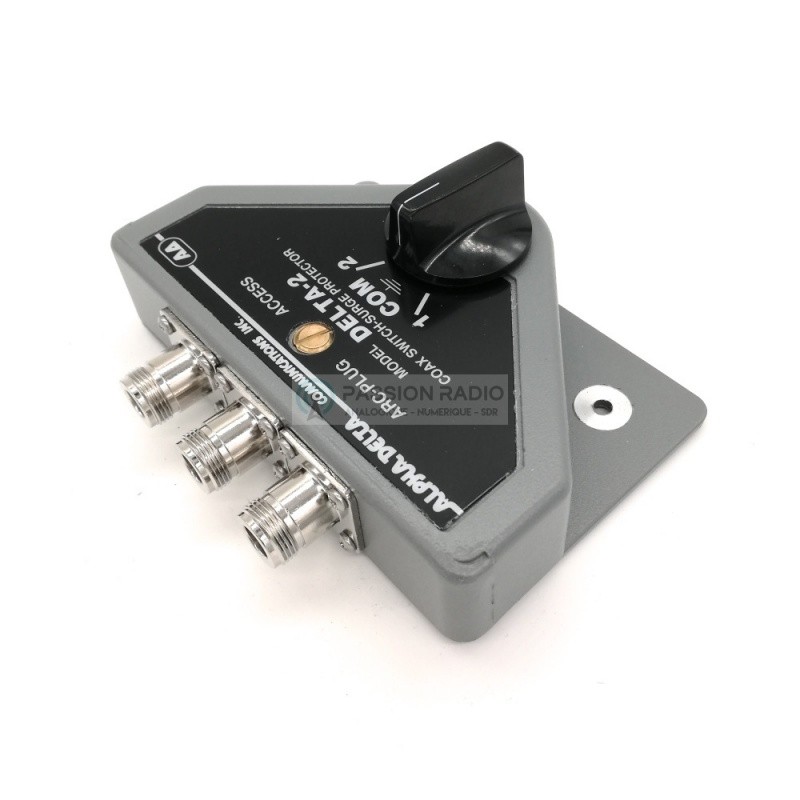

2 position antenna switch with N female ALPHA DELTA 2B-N

No review at the moment

Robust antenna switch ALPHA DELTA 2B-N 2 positions with N female connectors for frequency use from 0 to 1600 Mhz.

With robust switch shaft and precision machined mechanism for stable switching performance over time.

This switch features a low loss microstrip cavity, positive detent switching, main antenna grounding function, removable front panel overvoltage protection and excellent HF to UHF performance.

Unselected antenna ports are grounded for maximum protection and isolation.

When placed in the "COM" position, all switch positions are grounded. When an antenna port is selected, that port is no longer grounded while all other ports remain grounded.

More details

Data sheet

Frequency range

0 to 1600 Mhz

Power range

0 to 150 MHz : 1.5KW (1500W)
150 to 500 Mhz : 1KW (1000W)
500 to 1200 Mhz : 800W

Insertion loss

0 to 30 MHz : Less than 0.10 dB
150 MHz : Less than 0.15dB
> 1600 Mhz : Less than 0.5 dB

Output port isolation

0 to 1600 MHz : >50-60 dB

Impedance

50 ohms

Connectors

N Female

Chassis

Robust metal chassis
Dimension: 14 x 9 x 3 cm, without connectors and button.
