> RF Measuring Instruments>SWR-Power meter>RF Power-Meter 1-8000Mhz -45dBm à -5dBm
RF Power-Meter 1-8000Mhz -45dBm à -5dBm SWR-Power meter RF-Power8000-926 View larger
Previous Next

RF-Power8000-926

New product

RF Power-Meter 1-8000Mhz -45dBm à -5dBm

rating No review at the moment

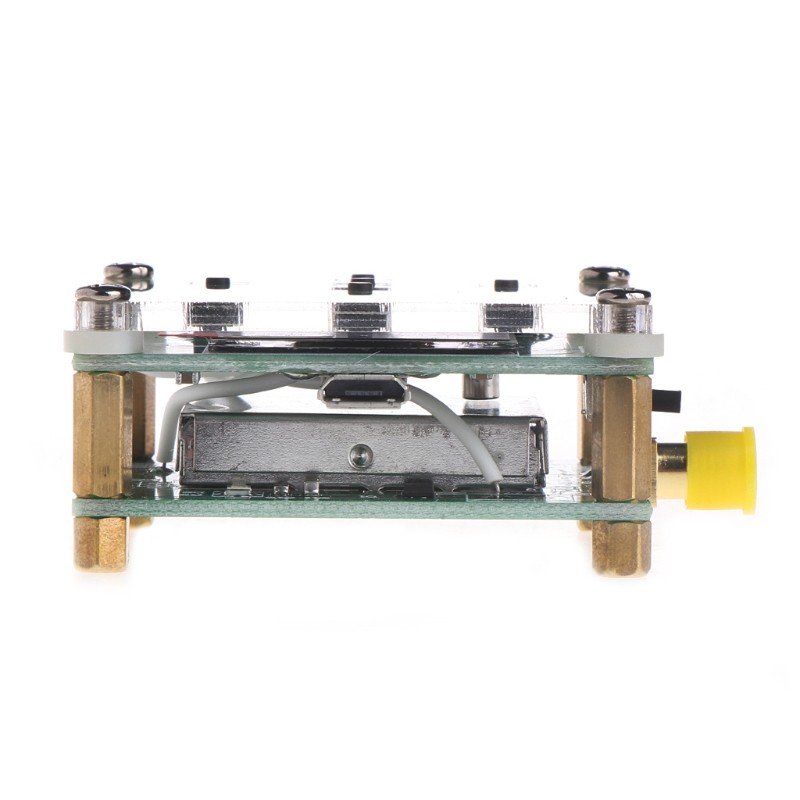

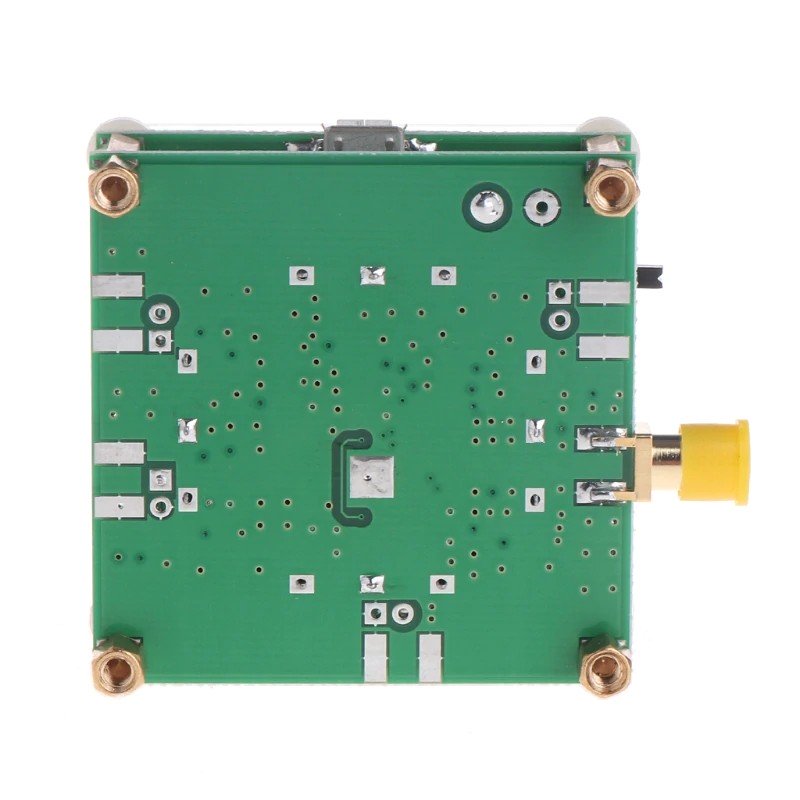

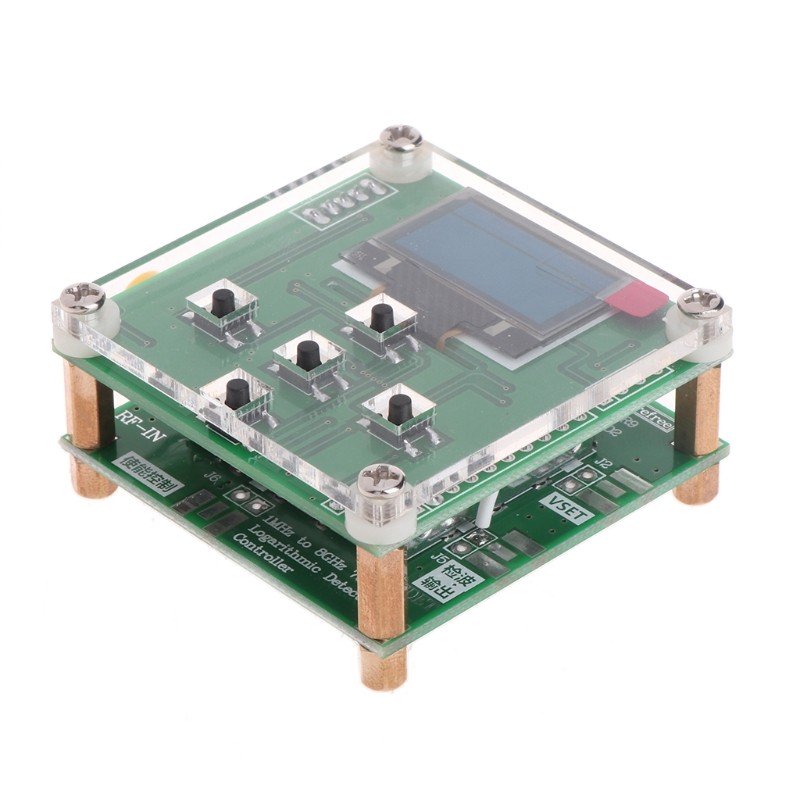

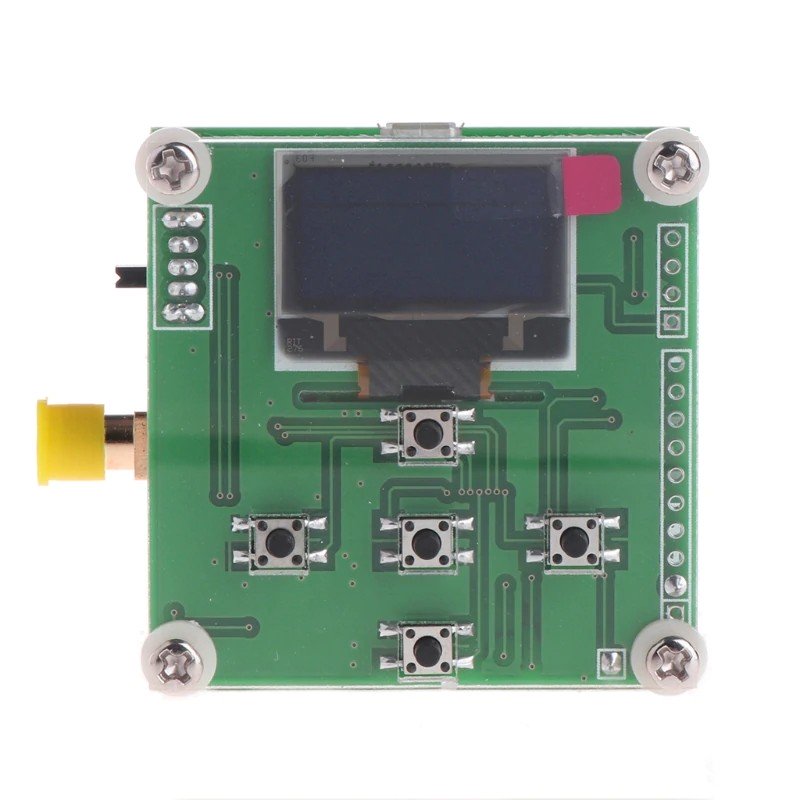

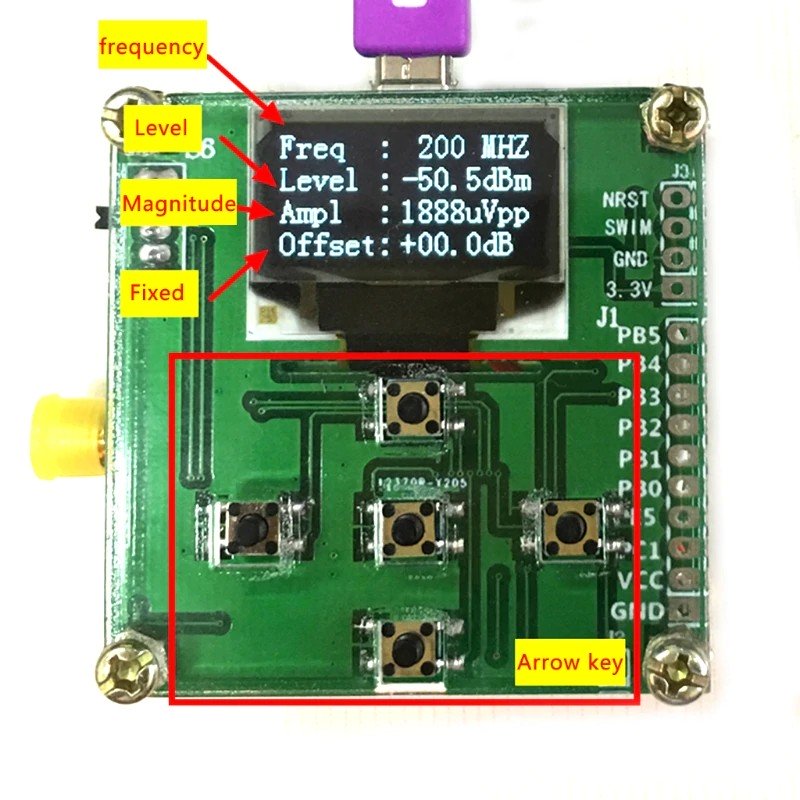

The RF-Power 8000 module is a 0.96-inch OLED wattmeter for power measurements from 1nW to 2W (with the use of optional attenuators), from -45dBm to -5dBm in nominal for the frequencies of 1 at 8000Mhz maximum (nominal 1-5000Mhz), with data reading and settings from a Windows PC (software and drivers to download below).

Adjustable frequencies, preset attenuation, reliable and stable measurements and with high sensitivity and measurement speed.

Comes with: 1 RFPower8000, 1 USB power cable.

More details

This material is no longer available

Download

Software RF POWER8000 WIN

Windows software for RF Power 8000 with CH340 USB drivers. 652.23k

Manual RF Power 8000 (EN)

Software Installation Guide for RF Power 8000 in English. 234.73k

Manual RF8000 French

User manual in French for the RF POWER 8000 by Sylvie from F4HEU. 1.6M

Data sheet

RFPower8000 Features

Measurement range: -45 to -5 dBm
Measurement resolution: 0.1 dBm
Measurement frequency range: 1 MHz - 5 GHz
Measured power: 1nW ~ 2W (with the use of attenuator RF attenuator to extend to 33dBm)
Power supply: 5V DC (via micro-USB and CH340 drivers)
Configurable from Windows software
Operating current: <50 mA
Working temperature: -40° ~ 65°
Dimensions: 50x50x25mm
