LILYGO T-Deck Plus SX1262 LoRa 868MHz Meshtastic Terminal with Keyboard

rating Read the 2 reviews
Average rating: 4/5 Number of reviews: 2

All-in-one handheld terminal with colour screen, QWERTY keyboard and LoRa SX1262 868MHz module. Complete solution for mesh communications and IoT applications.

  • 2.8-inch TFT colour screen
  • Integrated QWERTY keyboard
  • LoRa SX1262 868MHz module
  • Built-in rechargeable battery
  • Meshtastic firmware pre-installed
  • WiFi and Bluetooth connection

Available in 2 versions: With internal 868MHz antenna, or with female SMA connector and 868MHz external antenna included, choose below.

Supplied with: 1X LILYGO T-Deck Plus SX1262 868MHz, 1 rechargeable battery.

More details

99,57 € tax excl.

Out of stock, available within 1 month

  • With antenna
  • Without antenna

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

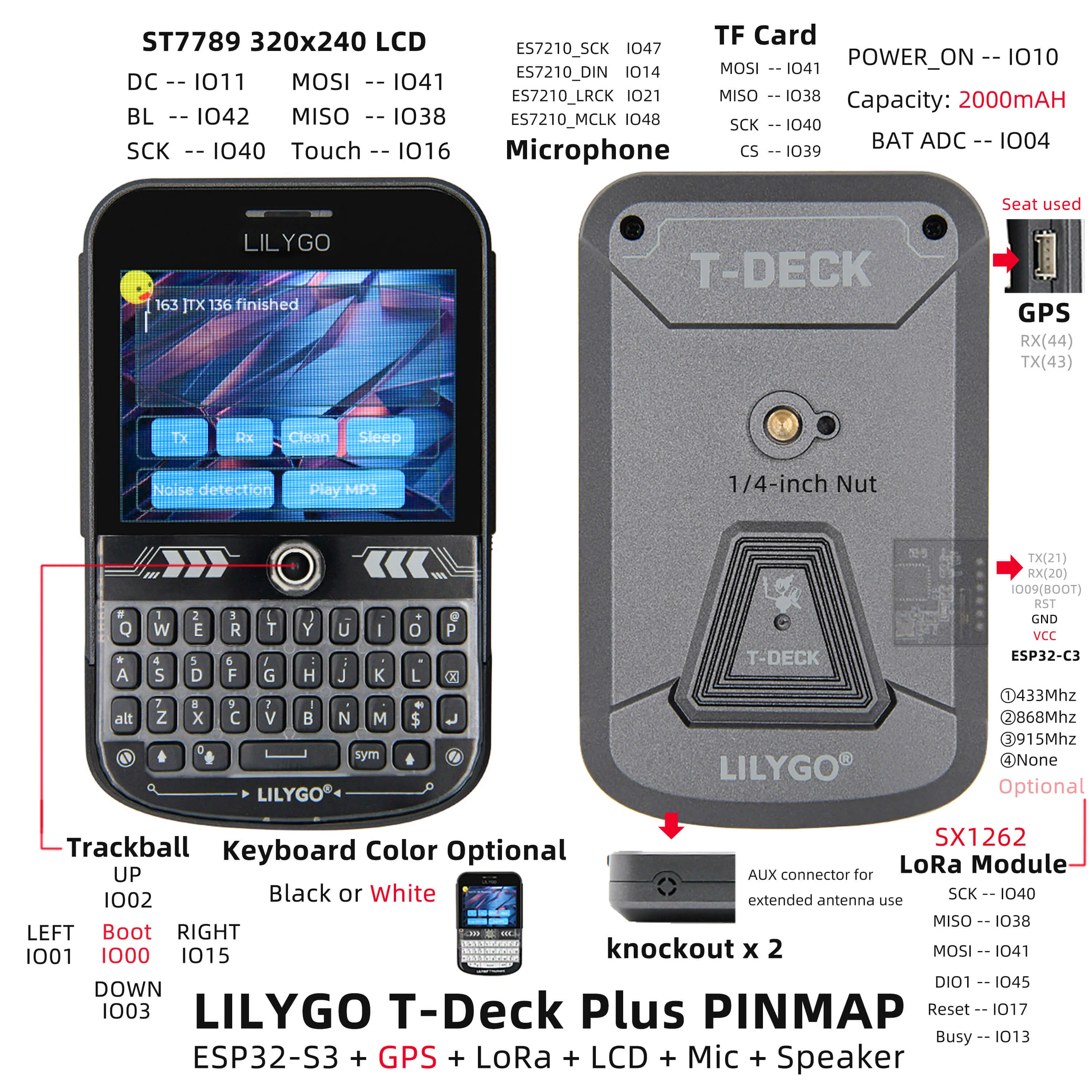

  • Processor: ESP32-S3 dual-core Xtensa LX7 up to 240MHz
  • Screen: 2.8-inch 320x240px colour TFT
  • Keyboard: backlit physical QWERTY keyboard
  • LoRa module: SX1262 868MHz
  • Transmit power: Up to +22dBm
  • Battery : 2000mAh Li-Po rechargeable battery
  • Connectivity: WiFi 802.11 b/g/n, Bluetooth 5.0
  • Interface: USB-C, MicroSD, speaker, microphone
  • Dimensions: 120 x 68 x 20 mm

Features

  • Complete portable terminal with screen and keyboard
  • Long-range LoRa communication
  • Meshtastic firmware pre-installed
  • MicroSD card reader
  • Integrated speaker and microphone
  • Robust, portable casing
  • Several days' battery life

FAQ

Q: How long does the battery last?
A: Battery life varies according to use, but is generally 2-5 days in normal use.

Q: Can I use a MicroSD card?
A: Yes, a MicroSD reader is integrated to extend storage capacity.

Q: Is the keyboard backlit?
A: Yes, the QWERTY keyboard is backlit for use in the dark.

Q: Can we send text messages via LoRa?
A: Yes, with Meshtastic you can send text messages, share your location and create communication channels.
