TETRA antenna & VHF-UHF + GPS pour voiture + cable 5m

No review at the moment

Demander un devis

Discreet antenna for car and transceiver on TETRA, VHF bands from 130 to 230 MHz, UHF from 380 to 470Mhz and GPS GNSS-GALILEO antenna.

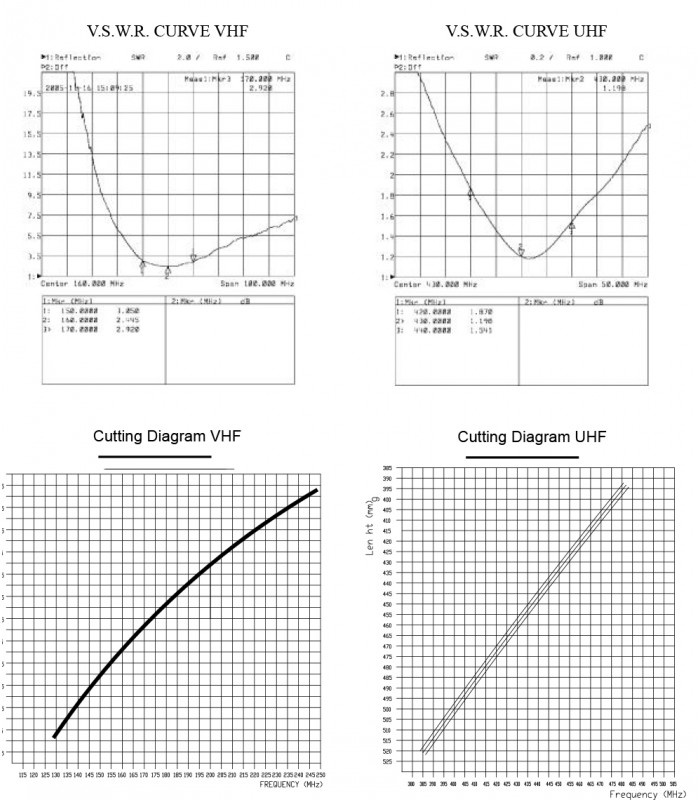

This antenna must be cut before being used, according to the cutting diagram and the frequency for which to use it in transmission.

VHF frequencies: 130 to 230 Mhz (cutting edge)
TETRA and UHF frequencies: 380 to 470Mhz (cutting edge)
Type: 1/4 wave in VHF and 5/8 wave in UHF
Max power : 50W (peak)
Gain: 5 dBi (UHF) and 2.14 dBi (VHF)
Strand length: 50cm +/-
TETRA, VHF, UHF connector: BNC male
GPS connector: SMA male

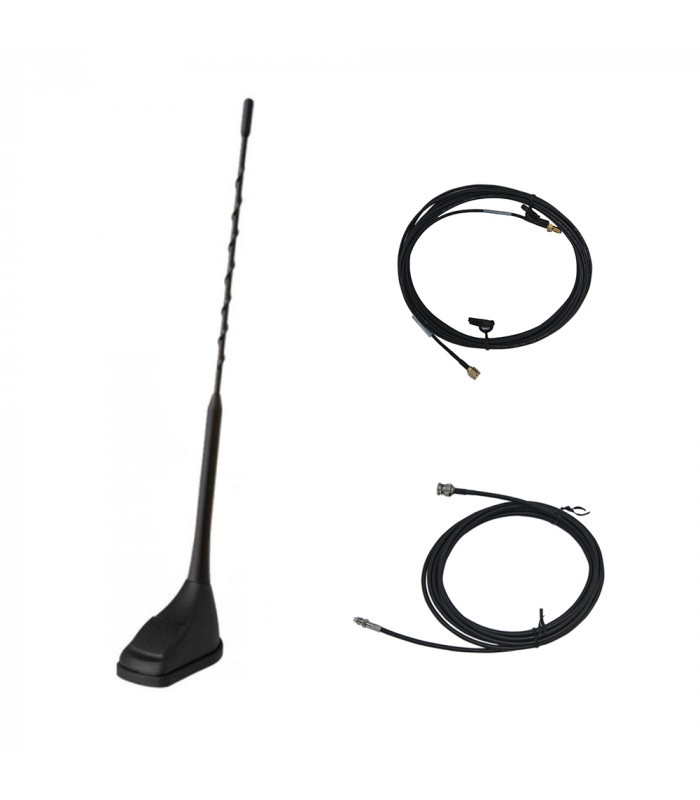

Delivered with: 1 antenna Komunica MA-4202-2, guaranteed of origin.

More details

Data sheet

VHF / UHF TETRA antenna technical data

VHF antenna type: 1/4 wave
UHF antenna type: 5/8 wave
VHF frequency range: 130 to 230 MHz (antenna to be trimmed according to the frequency)
TETRA / UHF frequency range: 380 to 470 MHz (antenna to be trimmed according to the frequency)
Impedance: 50 Ω
Maximum power: 50W (peak)
SWR: Less than 2.2 (VHF) and 1.5 (UHF)
Polarization: vertical and omnidirectional
Gain: 5 dBi (UHF) and 2.14 dBi (VHF)
Cable length: RG-316 21cm + cable extension RG-58 5m
Connector: BNC male

GPS technical data:
Antenna type: Active planar patch antenna
Impedance: 50 Ω
Frequency range: 1580 MHz
Bandwidth: ± 28 MHz
SWR: Less than 2.0
Polarization: RHCP (right circular)
Supply voltage: 2.7 ÷ 5.1 V
Current absorption (mA): 10 ÷ 30 mA
Gain amplifier (dB): 12 ± 1 dB at 2.7 V
Gain Patch Antenna: 2dB
Noise figure: 1.7 ÷ 2.1 dB
Temperature: -30ºC ÷ + 80ºC
Cable length: RG 174 of 1.8cm + extension RG-174 of 5m
GPS antenna connector: SMA male

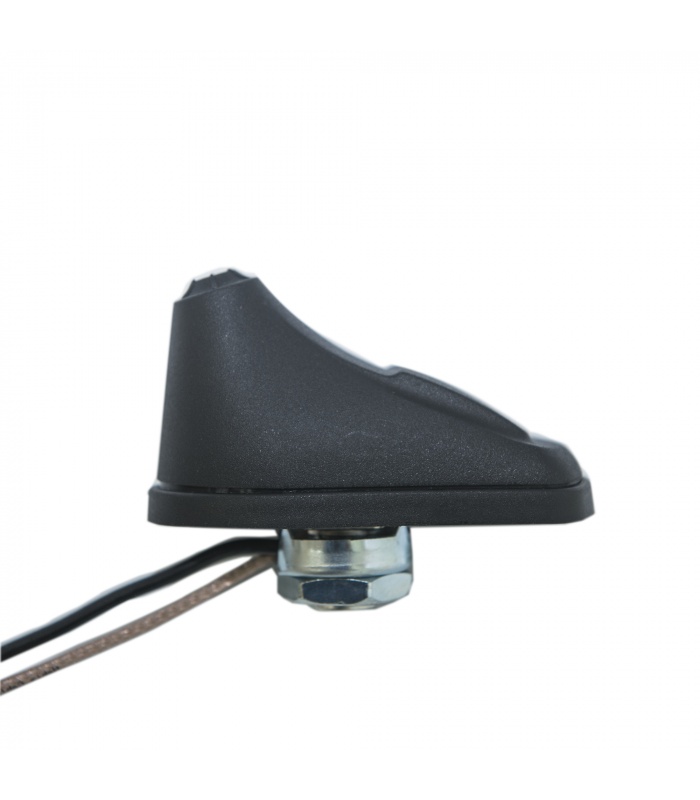

General specifications of the TETRA, VHF and UHF antenna:

Base dimensions (mm): 52
Rod dimensions: 50cm
Cover material: Polyamide 6
Rod material Pibiflex 2564
Basic material: Arnitel EM400
Weight: 180g
Black color
Mounting hole (mm): square 15x15 - round Ø 19
Operating temperature: -30ºC - + 80ºC
