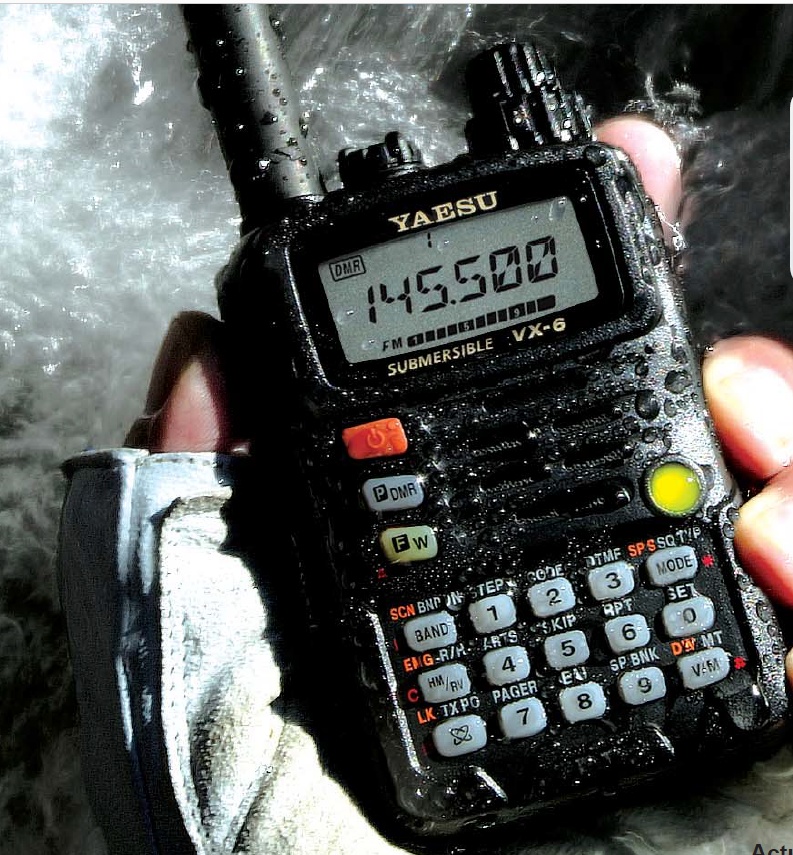

The Yaesu VX-6R is a portable JIS7 waterproof dual-band FM walkie-talkie (IP67 equivalent), ultra-robust for transmission and reception in VHF 144Mhz and UHF 430 MHz. It is submersible for 30 minutes under 1m of water.
The walkie-talkie also offers wide reception coverage from 504 kHz to 998.99 MHz, an automatic emergency identification system (EAI) specific to Yaesu and direct access to important functions from the keyboard.
Compact design housing made of polycarbonate resin and die-cast aluminum with gasket.
Supplied with: 1 VX-6E, 1 lithium-ion battery FNB-80LI 7.4 V, 1,400 mAh, 1 charger NC-72C, 1 antenna YHA-67, 1 belt clip, 1 wrist strap, 1 manual in French. Material guaranteed original Yaesu.
Complete manual in French for the Yaesu VX-6E 2.7M
RX frequency ranges:
0.5 - 1.8 MHz
1.8 - 30 MHz
30 - 76 MHz
76 - 108 MHz
108 - 137 MHz,
137 - 174 MHz,
222 - 420 MHz
420 - 470 MHz
470 - 800 Mhz
800 - 998.990 MHz
AM, NFM circuit type: Double conversion superheterodyne
WFM: Triple conversion superheterodyne
TX 144 - 146 MHz and from 430 to 440 MHz,
No channel 5/9/10 / 12.5 / 15/20/25/50/100 kHz
Frequency stability ± 5 ppm @ (-10 ° C to 50 ° C)
Relay offset function: ± 600 kHz (144 MHz) and ± 1.6 / 5 / 7.6 MHz (430 MHz)
Emission type F2D, F3E
3 output powers
144 MHz / 430 MHz 5W 2.5W 1W
Modulation type: F2D, F3E
Microphone impedance 2 kΩ
Nominal supply voltage: 7.4 V DC, negative ground
Operation: 5.0 ~ 16.0 V DC (EXT DC jack)
11.0 ~ 16.0 V DC (EXT DC socket during charging)
Current consumption 150 mA (reception)
(Approx. @ 7.4 V) 60 mA (standby, economizer off)
20 mA (standby, economizer on)
1 mA (ON timer activated)
200 mA (automatic power off)
1.6 A (5 W TX, 144 MHz)
1.5 A (1.5 W TX, 222 MHz: United States only)
1.8 A (5 W TX, 430 MHz)
Operating temperature (–20 ° C to 60 ° C)
Case size: 58 x 89 x 28.5 mm
Weight: 270 g (with FNB-80LI battery and antenna)
CE RED and Rohs standards for amateur bands, 2 year warranty.
Dual band antenna 2m / 70cm, original Diamond SRH771 with SMA Male connector, compatible with the walkie-talkie dual band Yaesu, Wouxun and ICOM. This antenna is compatible with all VHF / UHF
SWR-meter and watt meter portable, original Diamond SX-27P for VHF bands from 140 to 150MHz and UHF band from 430 to 450MHz, it can measure the SWR and power (60 watts maximum). Operating
Official Yaesu soft case for the Yaesu VX6E (VX-6R VX-6 VX-6E) waterproof walkie-talkie. Delivered with: 1 Yaesu CSC-91 case, guaranteed original Yaesu part.
Waterproof hand microphone MH-73A4B for the YAESU VX-6E (VX-6R VX-6 VX6E) walkie-talkie. With 1 pin connector.Delivered with: 1 micro Yaesu MH-73A4B, guaranteed original part Yaesu.
Headset microphone SSM-64A for the YAESU VX-6E walkie-talkie. With 1 pin connector.Delivered with: 1 headset Yaesu SSM-64A, guaranteed original part Yaesu.
