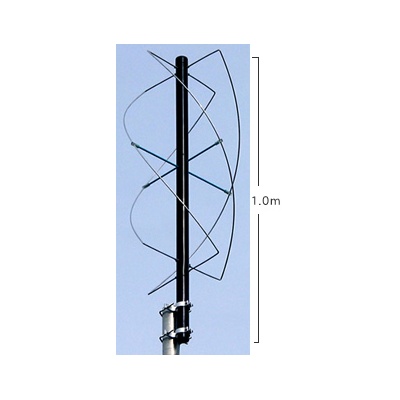

QFH antenna 137 Mhz for NOAA METEOR ACARS Diamond DP-KE137

QuadriFilar Helix QFH antenna with circular polarization Diamond DP-KE137, for NOAA weather satellite reception on 137 Mhz and ACARS signals on 135Mhz.

With its specific helical design, weather satellites are received even at a very small angle above the horizon, as well as vertically. Circular polarization compensates fluctuations of the signal.

This antenna also works for ACARS signals reception from airplanes on 135 MHz.

Supplied with: 1 Diamond KE137 antenna, original warranty.

More details

Download

Manual DP-KE137 Diamond (EN)

User manual and datasheet in english Diamond Antenna DP-KE137 1.35M

Data sheet

Antenna type: QFH (Quadri Filar Helix)
Polarization: Right circular
Frequency: 135/137 Mhz
Length: 100cm
Weight: 1.1kg
Radius: 30cm
Mat diameter accepted: 25-62mm
Connector: SO-239 (UHF-Female)
