Portable Yagi ARROW II antenna for Satellite 146/437MHz

View larger

Manufacturer: Arrow Antenna

Reference: ARROW-121-5-3BP-1706

Condition: New product

Country of origin:

U.S.A

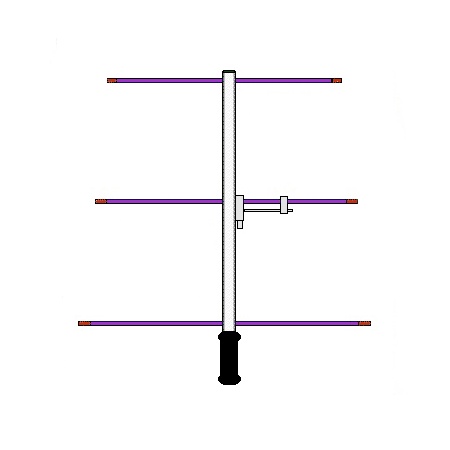

Emergency frequency antenna YAGI VHF 121.5 MHz Arrow Antenna

Read the 3 reviews

Average rating: 5/5 Number of reviews: 3

Designed to provide maximum gain and efficiency in the smallest possible size and weight, especially for use with a walkie-talkie and in portable applications.

The antenna is directional for the emergency and search frequency 121.5 MHz, it weighs less than 250g, made of aluminum with foam grip for comfortable handling. With BNC male connector.

The boom is removable in 2 parts, it measures 1.1m, the Arrow Antenna is a 3 element Yagi type in VHF.

The longest part of the antenna is less than 56cm long.

Under the foam handle the boom is drilled and tapped with a 1/4-20 hole for most camera tripods.

More details

Download

Manual VHF 121.5 MHz Arrow (EN)

176.85k

Manual VHF 121.5 MHz Arrow (FR)

In english. 336.53k

Data sheet

Directional antenna : Yagi 3 elements VHF
Polarization : Horizontal or vertical
Receiving frequency : 118-136 Mhz
Transmitting frequency : 121.5 MHz
Max. power : 150W 150W (10W recommended with a walkie-talkie)
Connector : BNC male
Impedance : 50 Ohms
Boom length : 110cm (removable in 2 parts)
Longest element : 56cm
Weight : 250g

Customers also bought
- 4,90 €
  Reference: ADAPT-BNC-F-SMA-F-55
  BNC Female SMA Female Adapter
  BNC Female <> SMA Female adapter.
  4,90 €
- 6,90 €
  Reference: CORDON-RG58-BNC-30CM-1115
  RG58 coaxial cable extension with BNC Male
  Coaxial patch cable with BNC Male connector - BNC Male with RG58 MIL-C-17 50 ohm coaxial cable for use in frequencies from 0 to 1000Mhz. Available in different lengths: 30cm, 50cm, 1m or 2 metres
  6,90 €
- 32,34 €
  Reference: ICOM-OPC2421-1769
  DC power cord 150cm ICOM 13,8V for IC-705
  ICOM power cord, 150cm long, with a fuse (125V/4A) in each line, for IC-705. Supplied with: 1 OPC-2421 ICOM power cord.
  32,34 €
- 5,00 €
  Reference: KOMUNICA-G-BK1500-18
  Rubber protection for Komunica BK-1500 magnetic base
  Rubber protection for Komunica BK-1500 magnetic base with 150cm diameter.
  5,00 €
We also recommend
- 7,90 €
  Reference: RFKONNECT-ANTENNA-ADSB-308
  1090 MHz PCB passive ADS-B antenna for SDR reception
  Passive omnidirectional PCB antenna for ADS-B reception on 1090 MHz, operates on RX from 1060 to 1120 MHz. The antenna is supplied with a female SMA connector soldered to the PCB. Optional: SMA
  7,90 €
- 259,00 €
  Reference: YAESU-VERTEX-FTA550-4803
  Handheld VHF air band 8.33 khz Yaesu FTA-550L et FTA-550AA
  As of 1 January 2018, all aircraft are required to use new channel spacing 8.33 kHz and instead of 25 kHz for air band VHF communication radio.The Yaesu handhelds FTA-550 and FTA-750 (with GPS) VHF
  259,00 €
- 319,00 €
  Reference: YAESU-VERTEX-FTA-450L-518
  Handheld VHF air band 8.33 khz Yaesu FTA-450L
  As of 1 January 2018, all aircraft are required to use new channel spacing 8.33 kHz and instead of 25 kHz for air band VHF communication radio (COMM ONLY).The new Yaesu handhelds FTA-450 VHF are 8.33
  319,00 €
- 15,54 €
  Reference: NAGOYA-NA771A-SMAM-560
  Nagoya NA-771A Air Band antenna 118-136Mhz RX/TX
  The Nagoya antenna NA-771A for walkie-talkie on the VHF Aviation band, it works in reception and transmissionfrom 118 to 136MHz.Frequencies: 118-136MHz Length: 39cm SWR: Less than 1.5: 1 Impedance:
  15,54 €

Reviews

Click here to leave a review

F5TXM

2023-10-16

Solide

Montage rapide et solide pour recherche de balise efficace. Prise BNC pratique pour ler accordement.

Tapani

2023-02-03

The antenna

Product as described in the info. Clean and flawless package.

MECRU

2022-11-23

Problème

ATTENTION ! l'anodisation et/ou le vernis violet est isolant d'où un mauvais contact avec la pièce qui relie l'élément actif au gamma match. Il faut vérifier la continuité électrique entre le boom et le petit tube alu du gamma match (sinon gratter la couche violette..)
