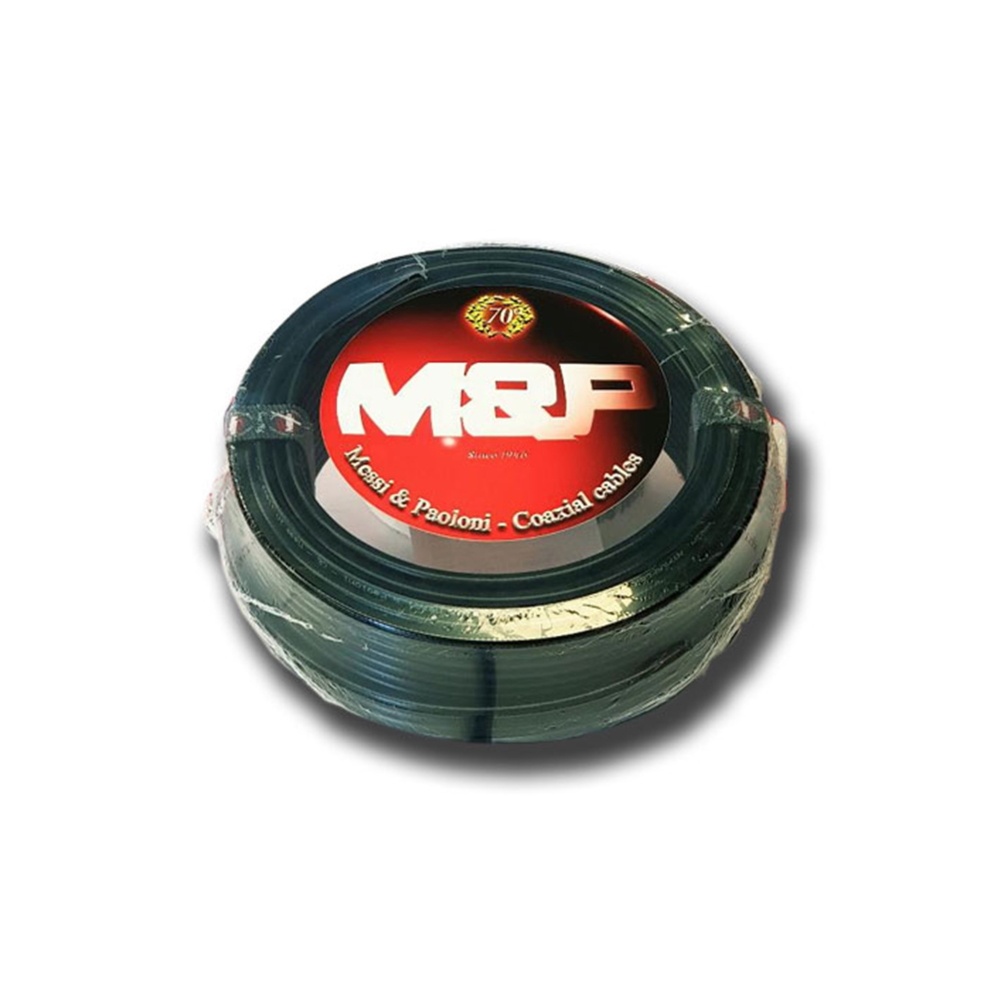

Ultra light and low loss AIRBONE 5 mm coaxial cable

Messi & Paoloni AIRBONE 5mm coaxial cable, ultra light, offering better performance and lower attenuation compared to RG58 and RG213U coaxial cable. For frequency use from 0 to 6000Mhz.

This cable can be used underground, it is waterproof and resistant, recommended for DX expeditions.

Available in different sizes: 30m, 50m, 100m and 200m (to choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 25 mm
Operating temperature: -45°C to +70°C
Capacitance: 76 pF / m ± 2
Velocity: 85%
Class: A++
Internal conductor resistance: 17 Ohm/Km
Resistance of outer conductor: 34 Ohm/Km
Voltage test (spark test): 8 kV
Maximum peak power: 2000 WATTS
CE and Rohs standards

Net weight over 100m: 2.3 Kg

PL259 (UHF-Male), N-Male, BNC-Male or SMA-Male compatible connector, available as an option, below.

Price per meter from: 1.475 € TTC (1.23 € HT) for 200m.

More details

38,90 € tax incl.

In stock

  • 30m
  • 50m
  • 100m
  • 200m

Download

Data sheet

Main differences between HYPERFLEX and AIRBONE cables:

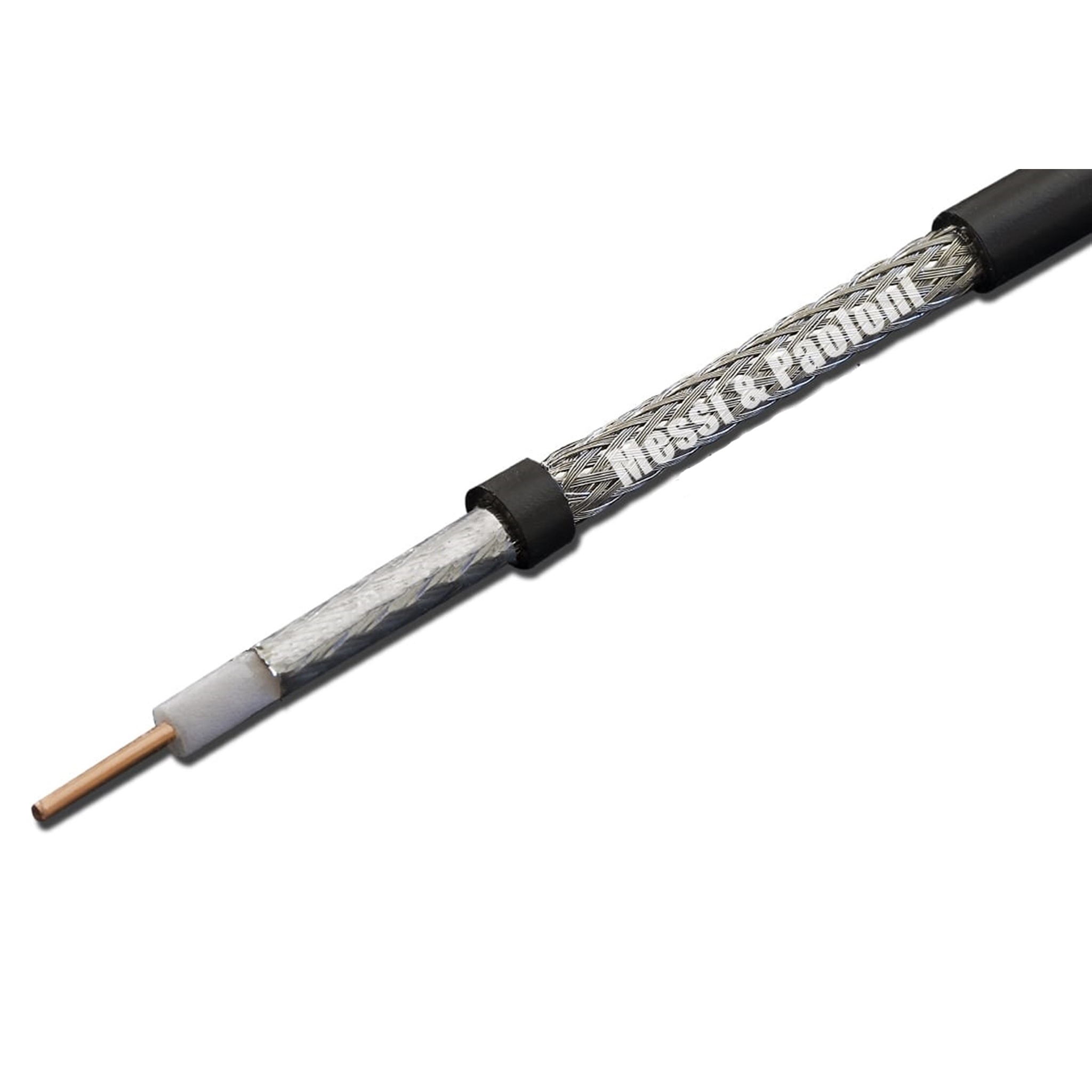

HYPERFLEX coaxial is more flexible with PVC sheath with copper conductor, while AIRBONE coaxial has more rigid PE sheath, it is lighter, thanks to copper coated aluminum conductor.

Attenuation at 20°C in dB/100m

1,8 MHz 1,7dB
3,5 MHz 2,3dB
7 MHz 3,0dB
10 MHz 3,4dB
14 MHz 4,0dB
21 MHz 4,8dB
28 MHz 5,5dB
50 MHz 7,1dB
100 MHz 9,4dB
144 MHz 11,1dB
200 MHz 12,8dB
400 MHz 18,3dB
430 MHz 19,0dB
800 MHz 26,5dB
1000 MHz 29,8dB
1296 MHz 34,2dB
2400 MHz 47,5dB
3000 MHz 53,5dB
4000 MHz 61,0dB
5000 MHz 68,6dB
6000 MHz 75,6dB

Maximum power at 40°C depending on frequency

1,8 MHz 1172 W
3,5 MHz 837 W
7 MHz 625 W
10 MHz 543 W
14 MHz 471 W
21 MHz 394 W
28 MHz 346 W
50 MHz 268 W
100 MHz 198 W
144 MHz 170 W
200 MHz 146 W
400 MHz 102 W
430 MHz 99 W
800 MHz 71 W
1000 MHz 63 W
1296 MHz 55 W
2400 MHz 39 W
3000 MHz 35 W
4000 MHz 31 W
5000 MHz 27 W
6000 MHz 25 W
