> Ham & radio equipment>Digital Radio>DMR equipment>DMR & FM Handheld TYT MD-380 VHF / UHF
Sale!

-30%

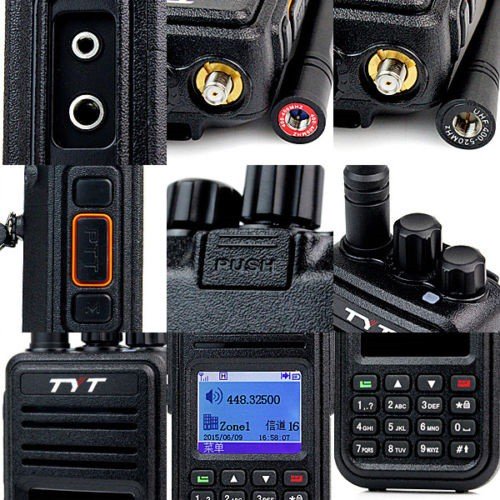

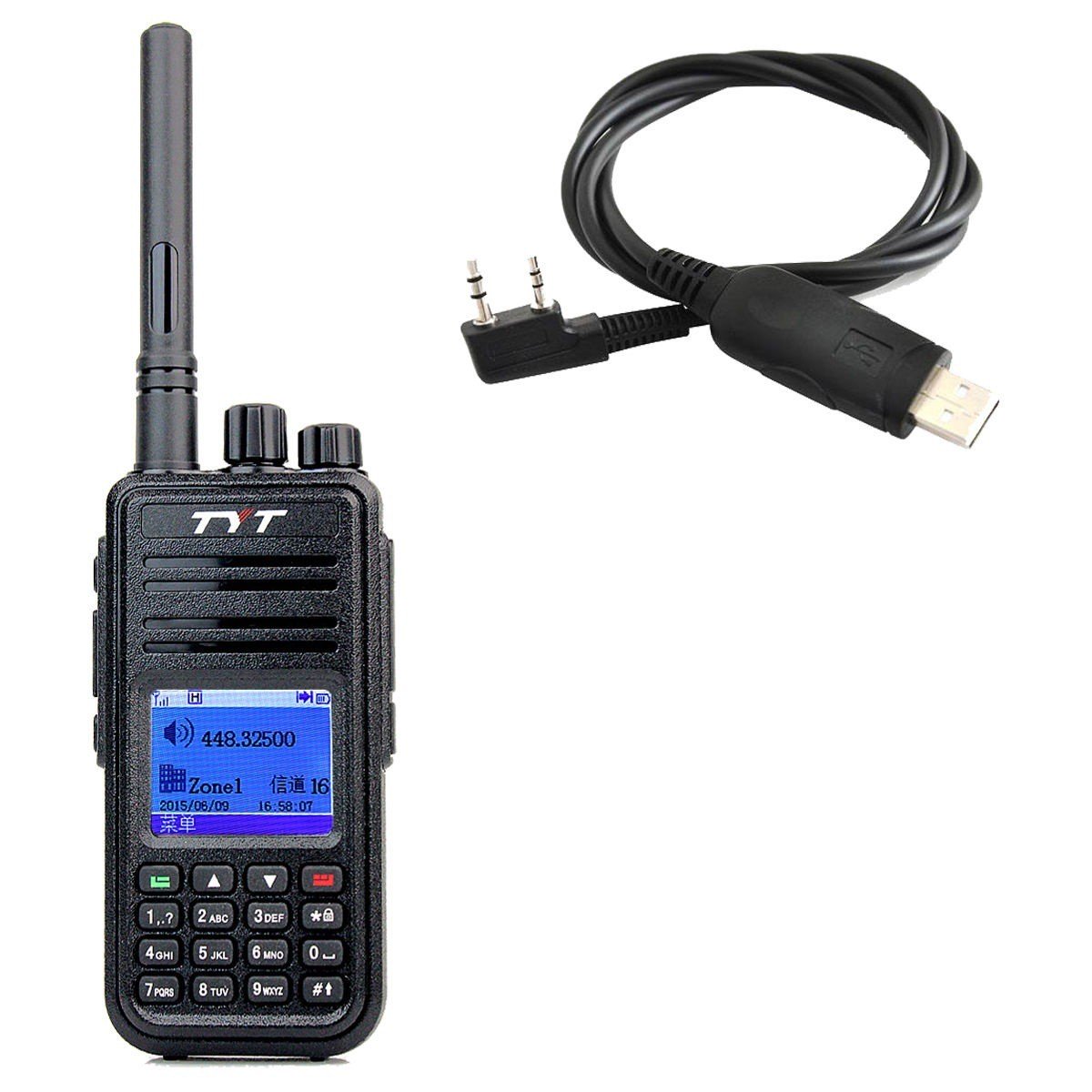

DMR & FM Handheld TYT MD-380 VHF / UHF TYT DMR equipment TYT-MD380-UHF-3218 View larger
Previous Next

TYT

New product

China

DMR & FM Handheld TYT MD-380 VHF / UHF

rating Read the 12 reviews
Average rating: 5/5 Number of reviews: 12

DMR handheld ideal to start in digital mode, TYT MD-380 is an analogue FM and digital HT available either in single-band UHF 400-480MHz with 4 watts (real) or in single-band VHF from 136-174Mhz with 5 watts and now in dual-band VHF+UHF!

Compatible MOTOTRBO, Tier I and Tier II, with repeaters and DMR devices Hytera & Motorola and the DMR Brandmeister network. Color LCD display and keypad.

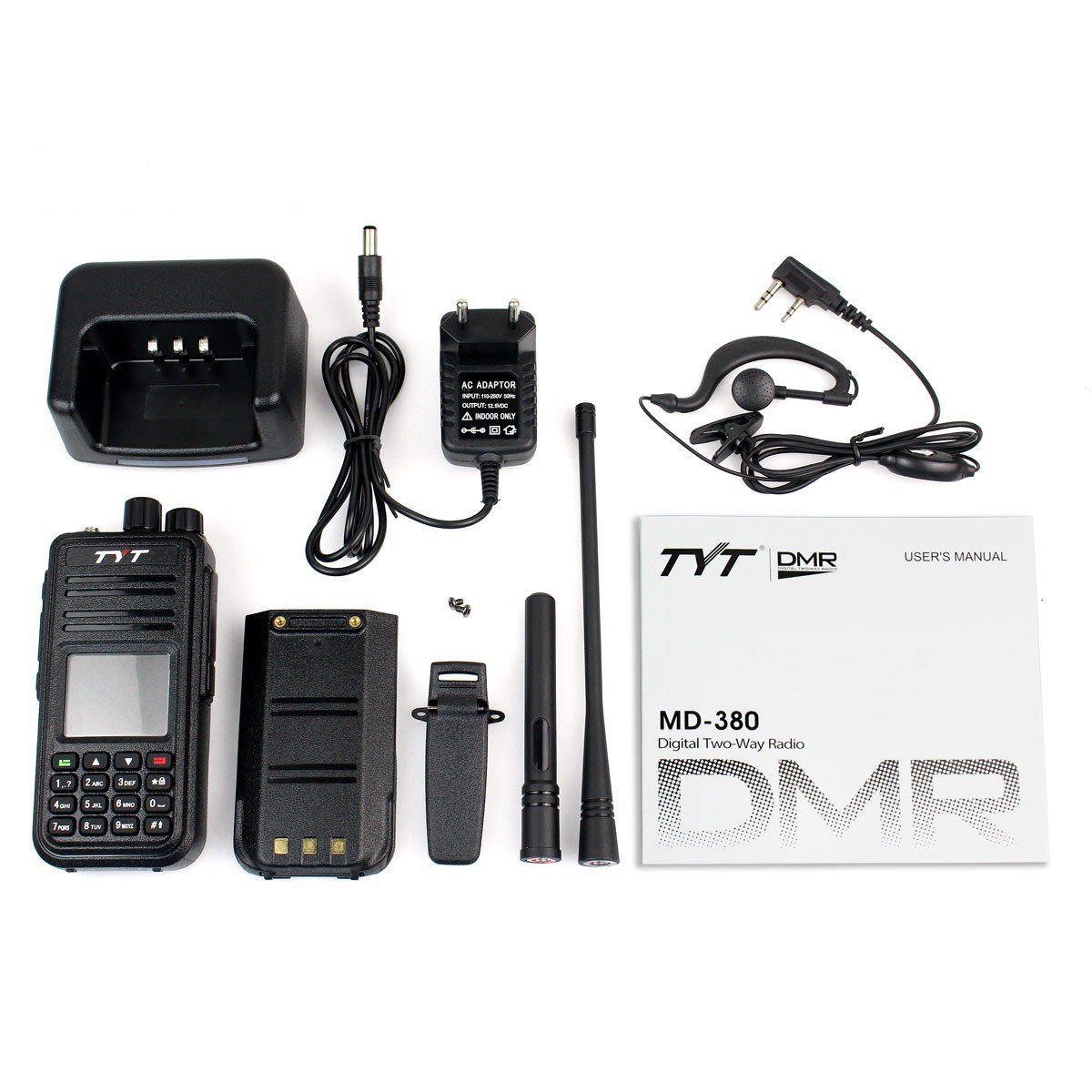

Comes complete with: 1 TYT MD-380, single-band VHF, UHF or Dual-band VHF+UHF, 1 AC Desktop Charger (EU plug), 1 battery (Li-ion 7.2V 2000mAh), 1 antenna according to the version), 1 belt clip, english manual and USB programmation cable genuine TYT included and 2 years warranty.

The TYT MD-380/380UV uses a standard connector Kenwood 2-pin (K1) for headset (in option).

The antenna connector on the portable is SMA female.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user. Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other. It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.

More details

90,30 € tax excl.

129,00 €

This material is no longer available and we don't know if and when we will have it again.

  • VHF - 136-174Mhz
  • UHF 400-480Mhz
  • Dual-Band VHF+UHF
  • Dualband VHF+UHF+GPS

Download

CPS software 1.12 MD-380UV/390UV

TYT codeplug CPS editor for Windows and MD-380UV and MD-390UV, dual-band only. 1.81M

Software CPS TYT 1.41 MD-380/390

Windows TYT 1.41 CPS programming software and codeplug editor for MD-380 and MD-390 single-band. 1.74M

Firmware Update Guide

179.89k

Manuel MD-380/RT3 FR

1.88M

TYT DMR USB cable drivers

For Windows 10, 8, 7, Vista, XP and DMR TYT hardware. 1.16M

Firmware MD-380UV/390UV 18.11

Version 18.11 - October 2019 for MD-380UV and MD-390UV dualband only, with and without GPS 6.8M

Firmware MD-380UV/390UV 18.16

Version 18.16 - March 2020 for MD-380UV or MD-390UV dualband only 6.83M

Firmware MD380/390 D35.14

Only for single-band VHF or UHF versions, without GPS. 871.46k

Firmware MD-380UV/390UV 19.26

For dual-band VHF and UHF versions, without GPS. Firmware (CSV) V19.26 and (REC) D19.26. 2.46M

Firmware MD380UV/390UV GPS 19.26

For dual-band VHF and UHF versions with GPS. Firmware (CSV-GPS) P19.26 and (GPS-REC) S19.26 2.48M

Firmware MD380/390 GPS S35.14

For single-band VHF or UHF version only and with GPS. MD390 S35.14 firmware. 879.58k

TYT firmware update software

1.46M

Data sheet

TYT MD-380 main functions

- Compatible MOTOTRBO Tier I & II
- Compatible DMR Brandmeister
- Dual mode : FM analog and digital DMR
- Digital TDMA which doubles the number of users on a single frequency
- Complies with the 12.5KHz step
- DMR digital protocol
- Private call, group call, all calls
- CTCSS / DCS
- 1750hz tone
- DTMF
- Scan function
- Batterry 2000 mAh
- 1000 programables channels
- English Voice
- 2 power mode: low 1W, High 4-5W
- Encryption

2 years warranty and CE.

Technical specifications TYT MD380UV

- Power: 5 watts minimum and minimum 1 watt
- Vocoder: AMBE+2TM
- Frequency: UHF 400MHz to 480MHz and/or VHF 136-174Mhz
- Frequency stability: +-2.5 PPM
- Antenna Impedance: 50Ω
- Operating temperature: -30 ° C ~ + 60 ° C
- Audio High Power Speaker: 1W
- Antenna connector: SMA Female
- Dimension: 128mm x 61mm x 38mm
- Weight: 258g

Reminder: The use of any radio transmission apparatus and walkie-talkie TYT MD-380/MD-380UV is subject to the respect by the user of the frequencies and the legislation in force and requires a radio license to be used legally.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user.

Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other.

It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.
