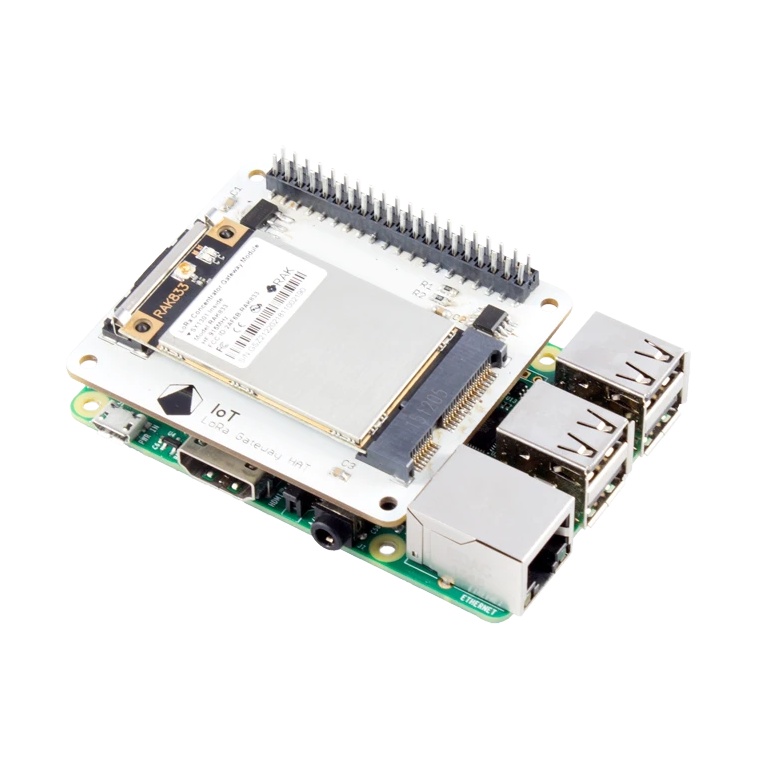

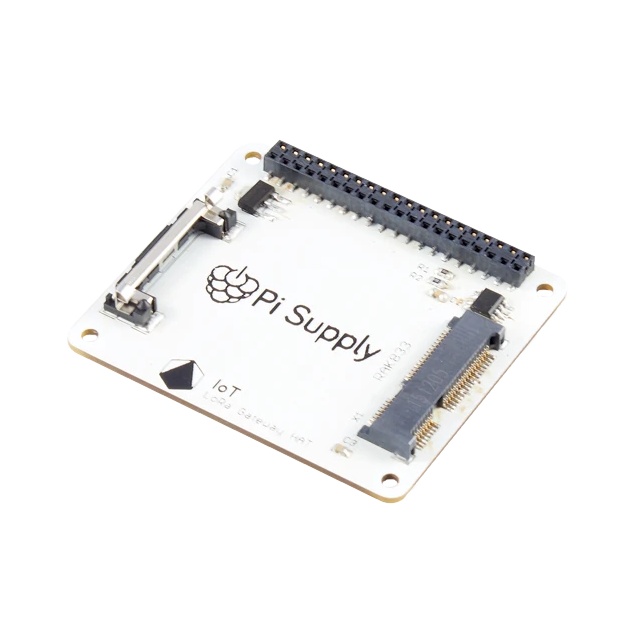

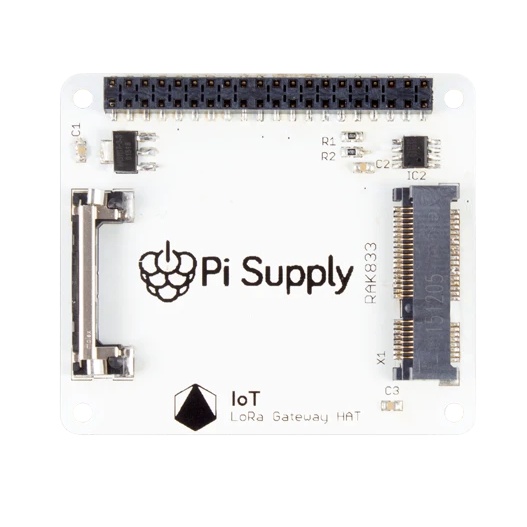

The IoT LoRa Raspberry Pi HAT allows to create an economical LoRa gateway compatible with The Things Network (TTN) on the ISM Europe 868Mhz band.
This HAT for Raspberry Pi allows you to configure your IoT LoRa gateway in a few minutes and for 1/3 the price of traditional LoRa gateways.

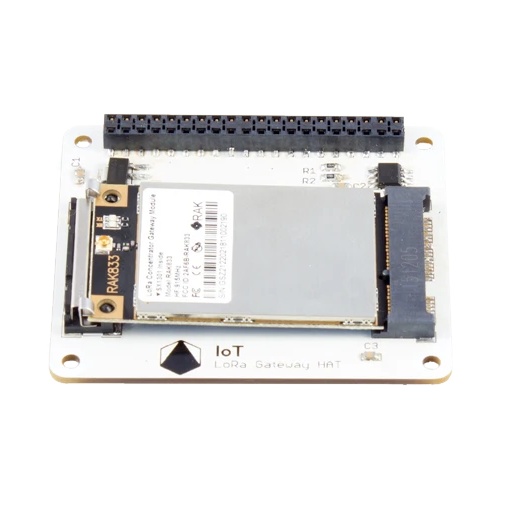

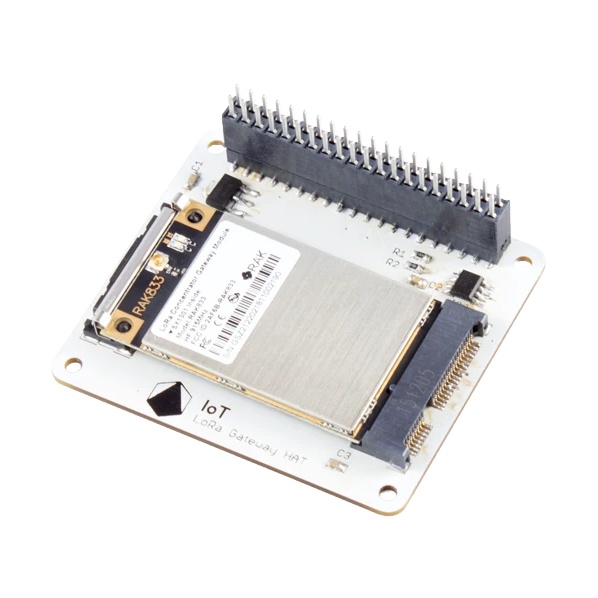

The LoRa HAT IoT Gateway uses the RAKWireless RAK2245 LoRa Gateway Hub Module which provides a fully LoRaWAN compatible gateway listening on 8 channels simultaneously.
Comes with: 1 PI-SUPPLY IoT LoRa Raspberry Pi HAT for Raspberry Pi (not included), 1 RAK2245 RAKWireless pre-assembled.
- Low energy consumption
- Fully welded and assembled
- More compact than other solutions on the market
- Reliability to industrial standard
- With RAKWireless RAK2245
- Suitable for LoRa / LoRaWan applications such as irrigation systems, smart metering, smart cities, home automation, etc.
- Real-time monitoring
- Up to 8 channels simultaneously
- Frequencies EU 863 - 870MHz and IN 865 - 867MHz
Compatible with :
Raspberry Pi A +
Raspberry Pi B +
Raspberry Pi 2B
Raspberry Pi 3B
Raspberry Pi 3B +
Raspberry Pi 4B
Raspberry Pi Zero
Raspberry Pi Zero W
And any other Raspberry Pi with 40 GPIO pins
Pi-Supply documentation and software:
PI-Supply software from Github
Guide to install the LoRa HAT and SD-Card gateway
What is a LoRa gateway?
A LoRa gateway is a piece of hardware in a LoRaWAN network that is configured to receive data packets from LoRa nodes and connect them to a LoRaWAN network such as The Things Network. These are capable of receiving hundreds of nodes at the same time and providing LoRaWAN coverage for both your devices and others within range of it.
What is The Things Network (TTN)?
The Things Network (TTN) is a rapidly growing IoT LoRaWAN network provider around the world. The advantage of using a public TTN network is that the devices you build in one region will work in any region in Europe that is covered.
No coverage available in your area? You can configure your own gateway (such as our IoT LoRa Gateway HAT for Raspberry Pi) for you and others to use and increase coverage at the same time.
The Things Network offers a paid offer for commercial use, as well as a free offer for community networks.
