Nagoya antenna NA-770 telescopic 95cm 144/430Mhz + RX

rating No review at the moment

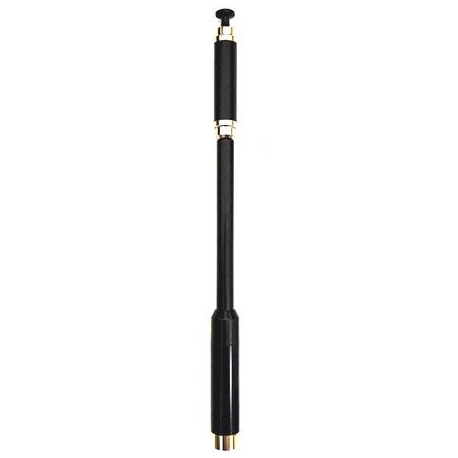

This large Nagoya NA-770 telescopic antenna measures 85.7cm unfolded and 22.3cm folded.

Reception from 80Mhz to 900Mhz and can be used in transmission on 144 / 430Mhz bands.

Because of its size, this antenna is fragile and to unfold / fold gently.

Delivered with: Nagoya antenna NA-770 original warranty. Available with SMA Female or BNC Male connector, selectable below.

More details

This material is no longer available

  • SMA Female
  • BNC Male

Data sheet

Specs Nagoya NA-770 antenna

Reception frequency (RX): 80Mhz to 900Mhz approximately
Receive frequency (TX): 144 / 430Mhz
Gain : 3.2dBi en VHF, 5.63dBi en UHF
ROS: <1.5
Length: 85.7cm unfolded and 22.3cm folded
Weight: 150g
Impedance: 50 ohms
Max power : 20 / 25W max. FM
Antenna base connector: SMA Female or BNC Male
