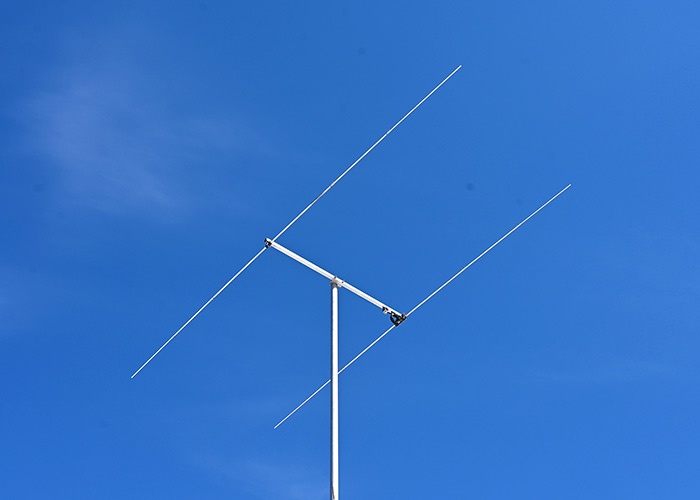

Yagi 50-50.5 MHz antenna 2 elements 6m 6.3 dBi 6m2DX (AA)

rating No review at the moment

The Yagi 6m 2 elements 6m2DX antenna is designed to withstand high winds. The relatively short boom produces a wide azimuthal radiation pattern.

  • Frequency range: 50 - 50.5 MHz
  • Front gain in free space: 6.3 dBi
  • Front-to-back ratio: 10 dB
  • Horizontal beamwidth at -3 dB: 68.4°.
  • Polarisation: Horizontal
  • Nominal input impedance: 50 Ohms
  • Full-band SWR: <1.2
  • Maximum input power: 1000 W (more on request)

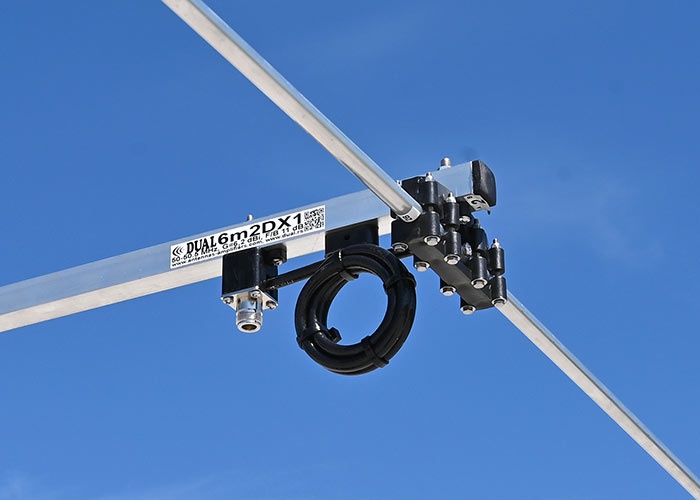

  • Matching method: Direct supply via common mode choke (current balun)
  • Connector: "N

Antennas Amplifiers (AA) equipment is available to order only with shipment usually within 10 to 15 days.

More details

120,96 € tax excl.

In stock

   2 Items

Data sheet

What does 6m2DX mean?

6m - 50MHz magic band antenna

2 - Elements

DX - Designed for use in the DX part of the 50-50.5MHz band with excellent SWR

Mechanical specifications of the 6m 2-element 6m2DX antenna

  • Number of elements: 2
  • Tapered elements. 12mm central tube, 10 and 8mm extensions
  • Conical dipole. 12mm central tube, 10 and 8mm extensions
  • Balun and connector: Included
  • Longest element: 3.1 metres
  • Element mounting position: Under pole
  • Boom length: 1.1 metres
  • Arm size: 20 x 20 mm
  • Turning radius: 1.8 metres
  • Number of boom parts: 1
  • Guy wire support: Not required. Solid boom
  • Mounting mast diameter: 30 - 50 mm 1-1/4″ - 2″ OD
  • Clamp: M8 stainless steel
  • Survival wind speed: 150 km/h
  • Net weight: 1.1 kg
  • Gross weight: 2.5 kg
  • Transport length: 1.2 m

Vertical stacking distance for two 6m 2nd elements 6m2DX antenna

2.75 m Gain 9.3 dBi, F/B 18.6 dB (+3 dB)
3.2 m Gain 9.8 dBi, F/B 21.6 dB (Max F/B) (+3.5 dB)
3.5 m Gain 10 dBi, F/B 16 dB (+3,7 dB)


Vertical stacking distance for four 6m2DX

2.55 m Gain 12.1 dBi, F/B 17 dB (+5.8 dB)
2.7 m Gain 12.3 dBi, F/B 19 dB (+6 dB)
2.95 m Gain 12.6 dBi, F/B 25 dB (+6.3 dB)
3.2 m Gain 12.9 dBi, F/B 26 dB (+6.6 dB)

F/B and G/T superiority.

All antennas have been calculated using state-of-the-art 3D electromagnetic simulation software, including the influence of the boom, support, baluns and connectors. The performance of antennas designed using these techniques is exceptional, much better than antennas designed using "wire" programmes.
Comparison of electromagnetic simulation software

No antenna tuning

Before shipment, we assemble each antenna and test its characteristics. This means you can expect exceptionally good electrical and mechanical performance, including low SWR over the entire designed range, immediately after assembly.
There is no need to tune the dipole, or any other element to get perfect SWR over the designed frequency range. Everything is pre-tuned.

Easy to install

Everything is labelled, just put one number on top of another. The antenna can be assembled with hand tools.
Everything is included in the antenna box: antenna, balun with connector, and bracket. All you have to do is assemble it and have fun!
