DESHIBO WV-601 Aluminium passive loop antenna 0-999 MHz

View larger

Display all pictures

Manufacturer: CHELEGANCE / JNCRadio

Reference: CHEL-CH0012505-M-3085

Condition: New product

Country of origin: China

Safety Information +

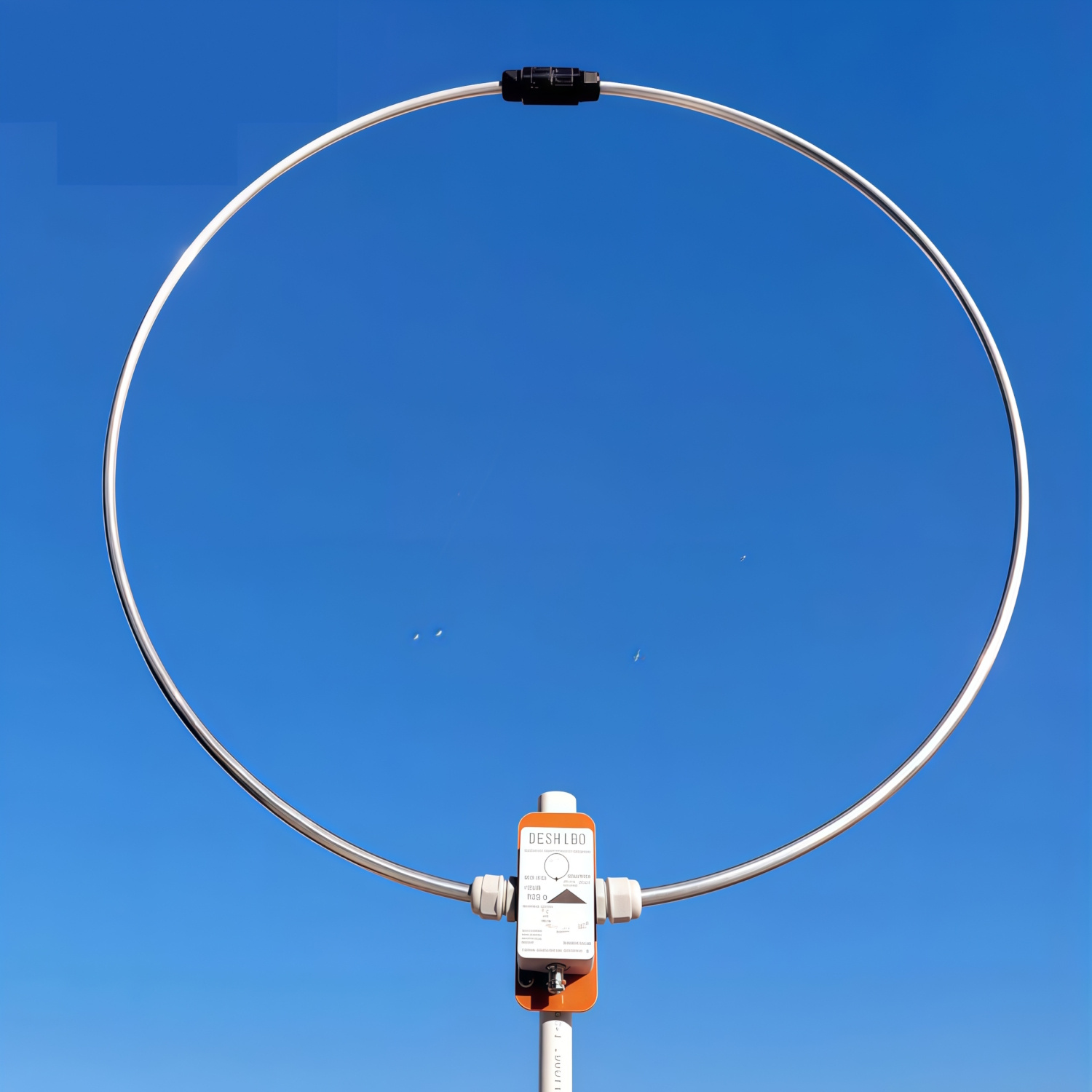

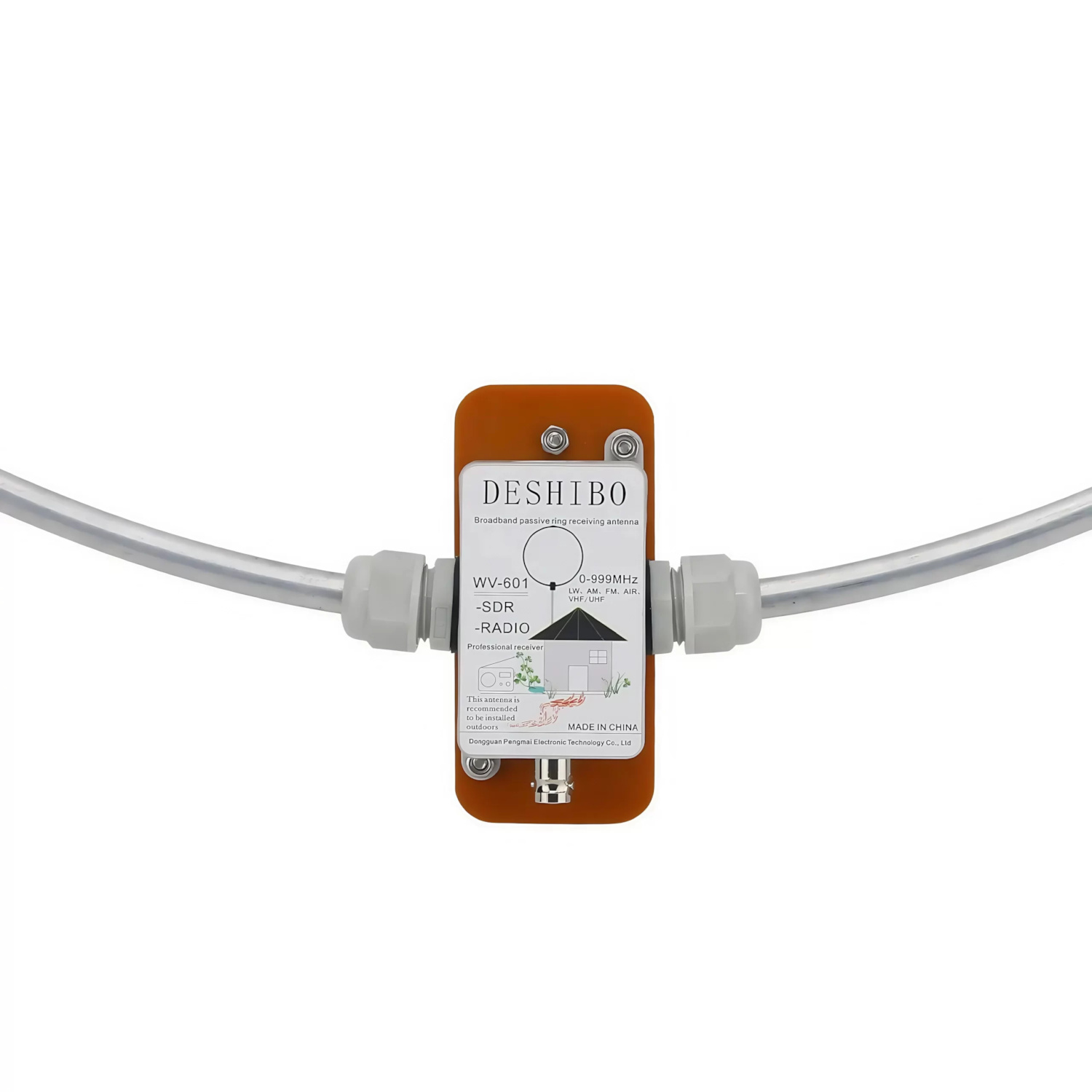

DESHIBO WV-601 Aluminium passive loop antenna 0-999 MHz

No review at the moment

The DESHIBO WV-601 is a portable passive aluminium magnetic loop antenna designed for radio amateurs and broadband reception enthusiasts.

It offers full reception coverage from 0 to 999 MHz and transmits up to 10W on the 2m and 70cm bands. Compact, lightweight and weatherproof (IPX4), it's easy to install outdoors.

0-999 MHz reception: covers LW, MW, SW, FM, AIR, VHF and UHF bands.
Transmits at 2 m / 70 cm up to 10 W (144-148 MHz / 430-440 MHz).
Passive, low-noise design: ideal for SDRs, wideband receivers and short-wave radios.
Lightweight aluminium structure: only 2 kg for rapid deployment in the field.
IPX4 rating: splash-proof, suitable for outdoor installation
70 cm diameter loop: compact size for portable or mobile use.

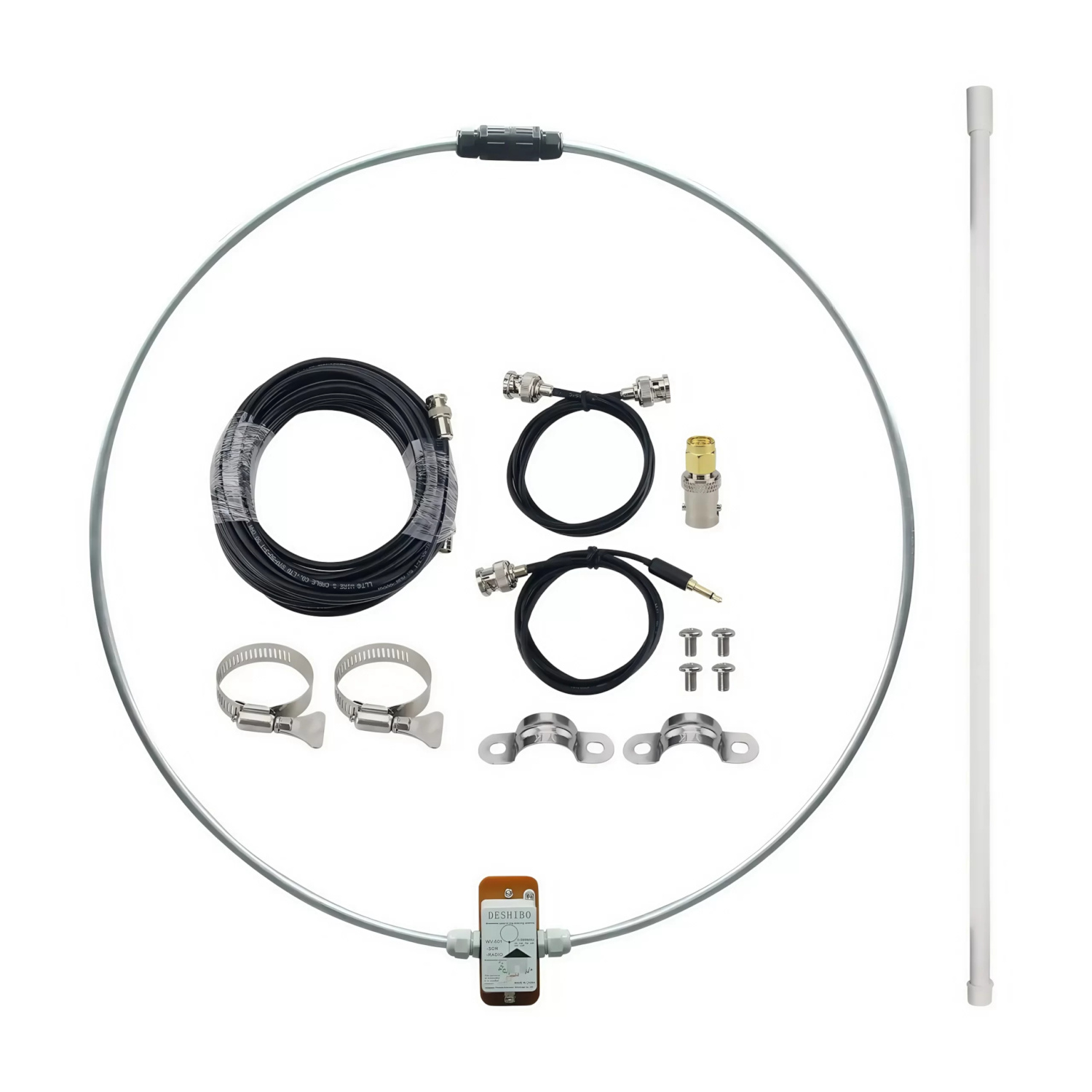

Supplied with: loop antenna, support mast with mounting accessories, 10 m BNC male/female cable, 1 m 3.5 → BNC male cable, 1 m BNC male/male cable, SMA adapter, user manual.

More details

Data sheet

Type: broadband passive loop antenna
Receive frequency (RX): 0 - 999 MHz

LW: 144 - 288 kHz
MW: 540 - 1700 kHz
SW: 2.3 - 30 MHz
FM: 64 - 108 MHz
AIR: 118 - 137 MHz
VHF: 140 - 470 MHz
UHF: 430 - 480 MHz

Transmission frequency (TX): 144 - 148 MHz and 430 - 440 MHz (up to 10 W)
Recommended impedance: 50 Ω

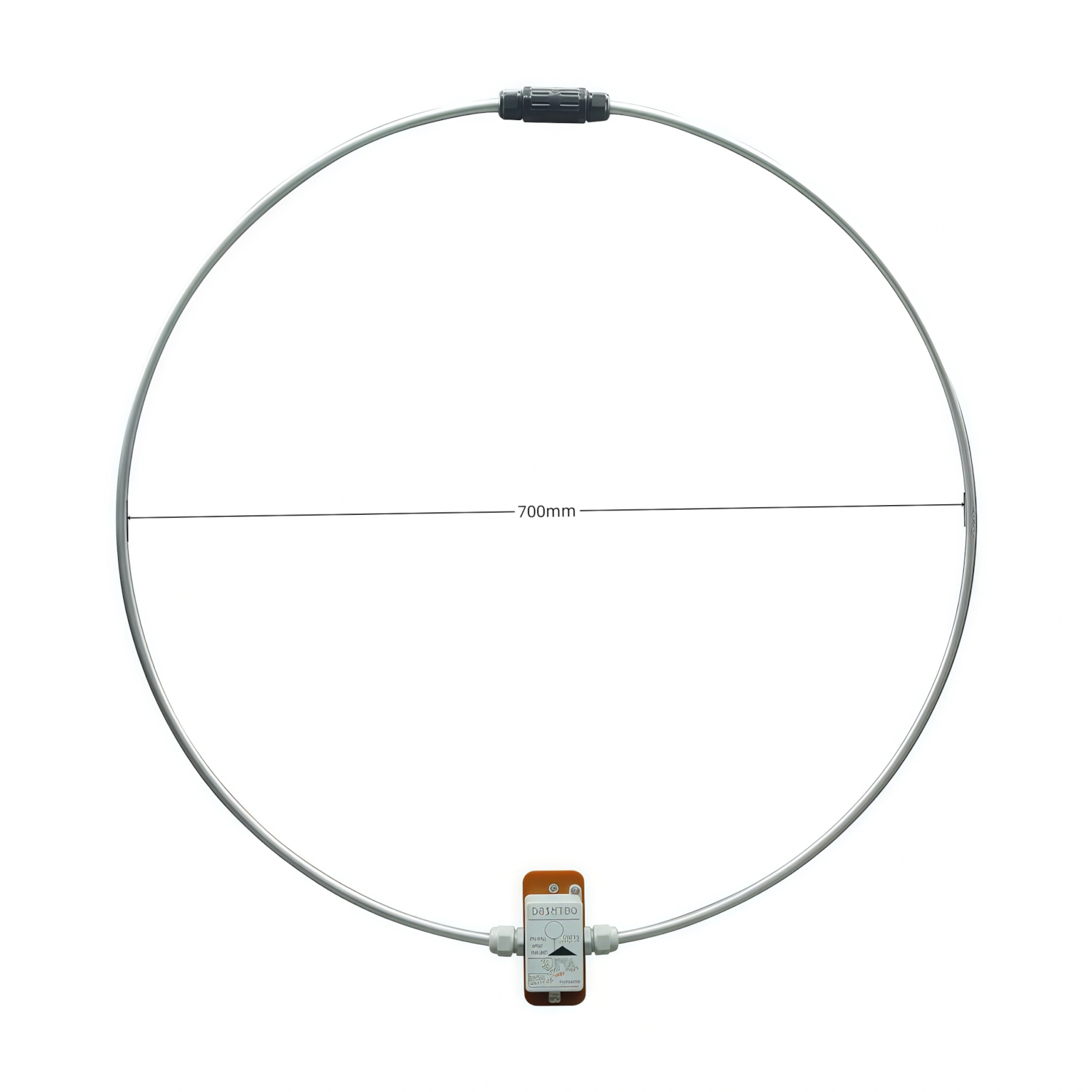

Loop diameter: 700 mm ± 5 mm
Protection: IPX4 (rain and splashproof)
Net weight: 2 kg (antenna only)
Packed weight: 5 kg
Material: factory-treated and tested aluminium

Loop antenna installation :

Install outdoors if possible: reception is much better than indoors, where walls and equipment generate interference.
Height: the higher the loop, the better the signal. A minimum height of 2 to 4 m above the ground is recommended.
Keep it away from sources of interference: keep it at least 5 m away from power cables, LED lights, Wi-Fi routers, solar panels, computers or other electronic equipment.
Orientation: loop antennas are directional. Orient it to maximise the useful signal or reduce parasitic noise (by turning the loop, you can often "cancel out" a source of interference).
Compatibility: SDR, broadband receivers, short-wave radios, scanners.
