> Ham & radio equipment>Mobile VHF UHF>Mobile FM Quad-Band 50W TYT TH-9800 Plus
Mobile FM Quad-Band 50W TYT TH-9800 Plus TYT Mobile VHF UHF TYT-TH-9800-PLUS-386 View larger
Previous Next

TYT

TYT-TH-9800-PLUS-386

New product

China

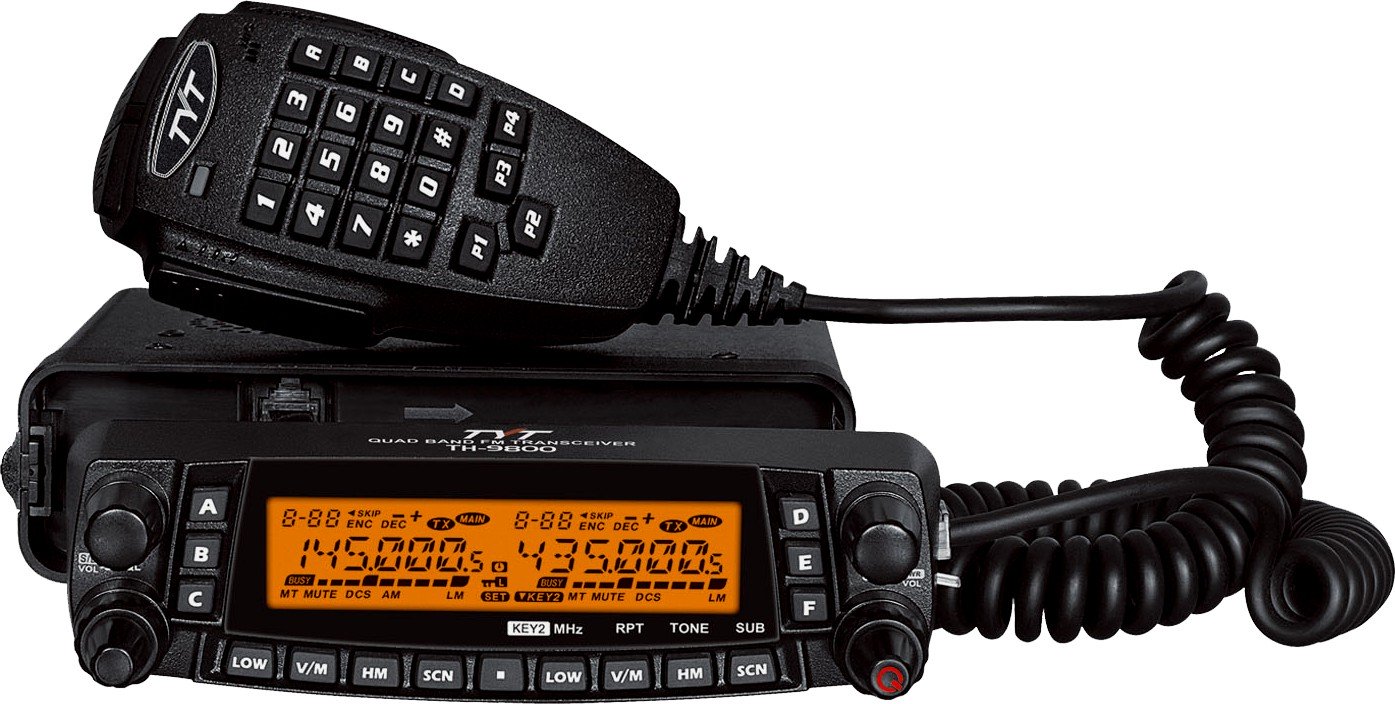

Mobile FM Quad-Band 50W TYT TH-9800 Plus

rating No review at the moment

New version Tytera TYT TH-9800 Plus - Quad band with 2 separate VFO for 10, 6, 2 meters and 70cm.

- Covers 4 bands in FM mode 29/50/144 MHz with 50 watts, and 430 MHz with 40 watts
- 108-118Mhz AM Aircraft band (receive only)
- Full duplex mode VHF UHF
- Double VFO, simultaneous reception V V +, V + U, U + U

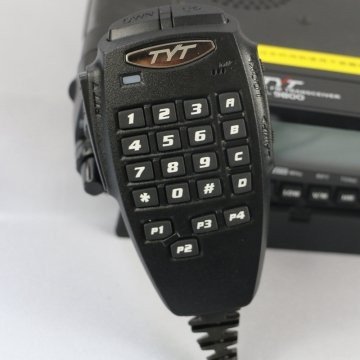

- Micro Multi-function

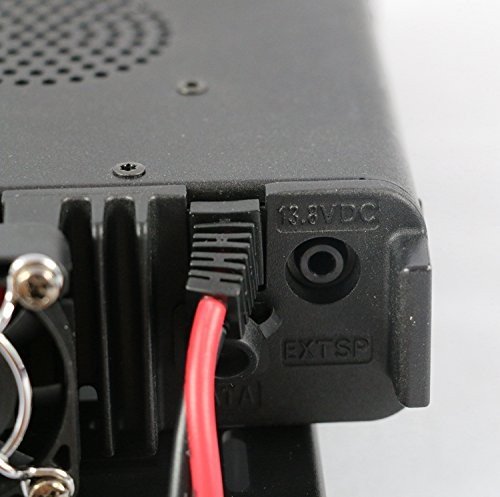

- External speaker jack
- 1750Hz Tone, CTCSS, DTMF and 800 channels
- Connectors Antenna: SO-239 (UHF female).

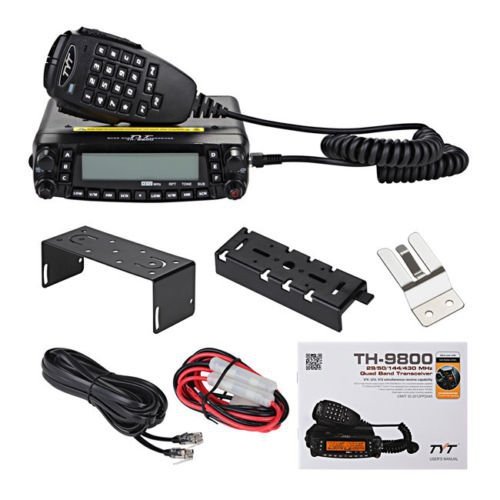

Comes complete with: 1 TYT TH-9800 Plus mobile radio, 1 remote support for the panel front, 1 extension cable for the front, 1 microphone clip fastening, 1 mount bracket, 1 DC power cable, screws and fuse, English manual + USB programming cable Tytera included.

More details

This material is no longer available

Download

Software for TH-9800

Programming software for TH-9800 Plus and Windows 2.41M

Manual TYT TH-9800

Manual for Tytera Th-9800 13.16M

Data sheet

TYT TH-9800 Features

Frequency range TX: 26 - 33MHz / 47 - 54 MHz / 136 - 174 MHz / 400 -470 MHz
Frequency range reception RX: 26-33 / 47-54 / 108-180 / 320-512 / 750-950 MHz

Modulation Mode: FM
Only AM mode for the air-band band 108-118 MHz (receive only)

Output power: 50/20/10/5W (29/50/144MHz) and 40/20/10/5W on 430 Mhz
Wide Band (25kHz) and Narrow Band (12.5 kHz)
1750Hz Tone
CTCSS / DCS setting
VOX
Shift Relay
Scrambler
DTMF tones and 2 tones 5
Adjusting not VFO: 5 / 6.25 / 10 / 12.5 / 20/25 / 50kHz

1 year warranty and CE standards.

Tytera TH-9800 Specifications

- Frequency Stability: ± 5 PPM
- Antenna Impedance: 50Ω
- Operating Temperature: -20° C ~ + 50° C
- Connectors Antenna: SO-239 - UHF Female
- Dimension: 250mm x180mm x80mm
- Weight: 2 kgs

Drivers and Tytera software

Download the software and drivers in the "download" section below.

Reminder: The use of any radio transmitting device, such as Tytera TYT-9800 is subject to the respect by the user frequency and law and requires a radio license to be used legally.
