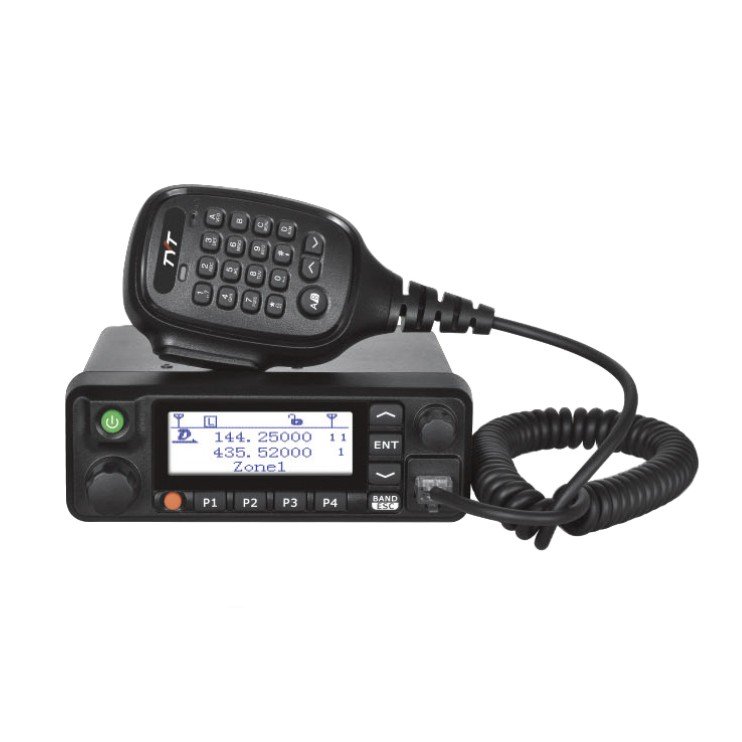

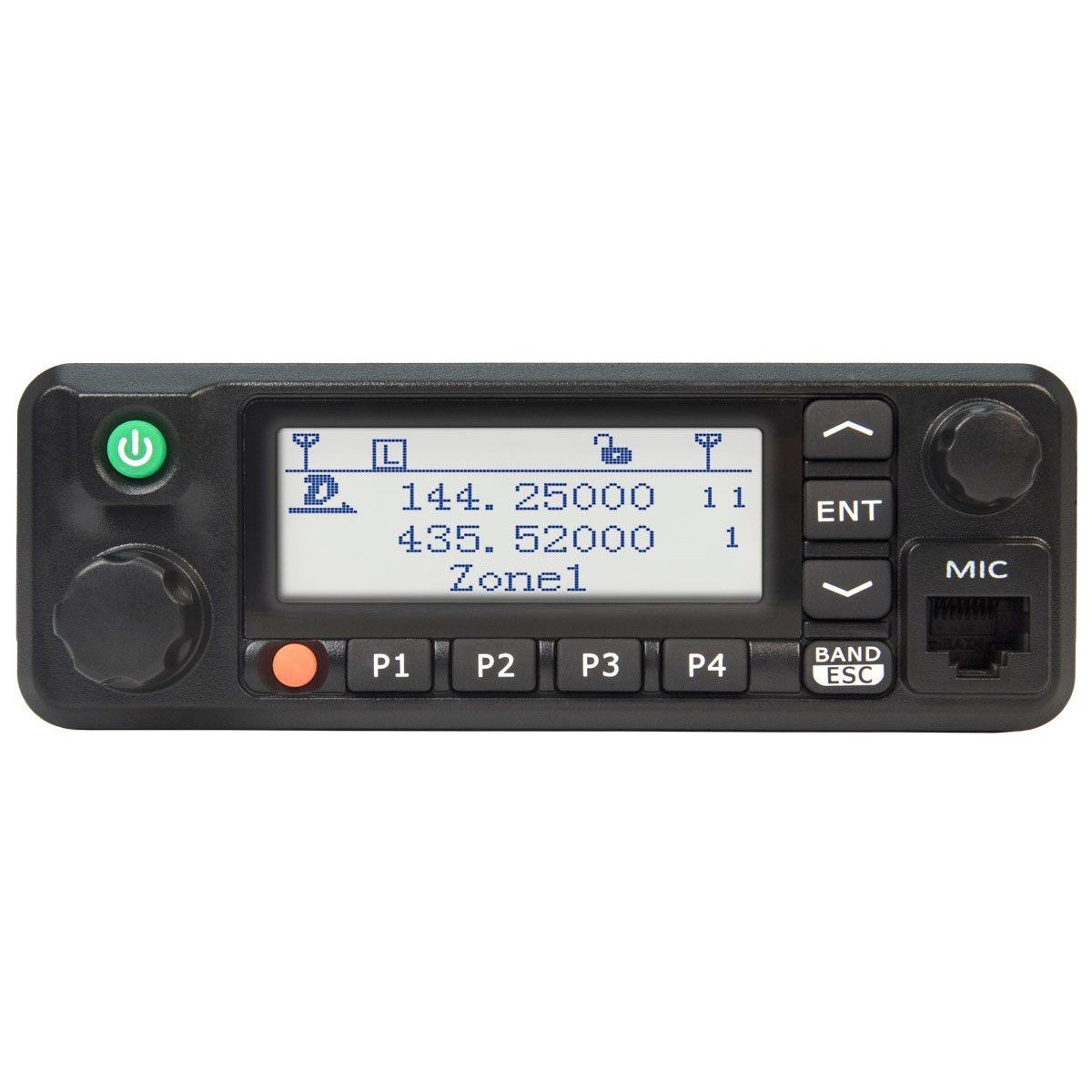

Mobile DMR & FM Dualband TYT MD-9600 version V4 (STM32)

rating Read the 13 reviews
Average rating: 5/5 Number of reviews: 13

Mobile TYT MD-9600 new version V4 with GPS in option and new PLL is a FM analog and digital DMR and dual band, covers VHF band from 136 to 174 Mhz with 50 watts and UHF from 400 to 480Mhz with 45 watts, and now available with GPS

Step frequencies 6.25 / 12.5 / 25khz, CTCSS, DTMF, 1000 channels, 16 zones, Tier2, TDMA (2 TimeSlot), Mototrbo compatible.

The antenna connection on the mobile is SO-239 (female UHF).

The TYT MD-9600 is available in 3 versions, be aware: Dual-band, VHF single-band or UHF single-band. At Passion Radio we only offer the dual band version (VHF+UHF).

Supplied complete with: 1 TYT MD-9600 (V4) Dualband VHF-UHF DMR & FM, 1 microphone, 1 bracket mounting bracket, 1 DC power cable, screws and fuse, manual in English + USB TYT programming cable included. GPS in option to choose below.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user. Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other. It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.

More details

299,00 € tax excl.

Out of stock, available within 1 month

  • With GPS
  • Without GPS

Download

TYT DMR USB cable drivers

For Windows 10, 8, 7, Vista, XP and DMR TYT hardware. 1.16M

CPS v1.23 for MD-9600 V1 V2 V3

TYT v1.23 official codeplug editor software for MD-9600 V1, V2 and V3 only 1.81M

Update firmware software

2.56M

CPS v1.27 for MD-9600 V4 V5

TYT v1.27 official codeplug editor software for MD-9600 V4 & V5 only 11.6M

Firmware 16.24 MD-9600 V4 V5

Firmware update software 3.07 and firmware 16.24 only compatible with MD-9600 V4 & V5 version 6.85M

Firmware 6.24 MD-9600 V1 V2 V3

Firmware update software 3.07 and firmware 6.24 only compatible with MD-9600 V1 V2 V3 version 6.85M

Manual MD9600 (FR)

MD-9600 TYT user manual in French translated by Thierry ON2CQ. 921.45k

Firmware 26.45 MD-9600 V4 V5

Firmware 26.45 of May 2021, only compatible with the new version V4 & V5 of the MD-9600 with PLL 2571. 6.77M

Firwmare 26.57 MD9600 V4 V5

For V4 & V5 version. Firmware (CSV) V26.45, (CSV-GPS) P26.45 and (REC) D26.57. 3.12M

DOC CE RED MD-9600

175.54k

MD-9600 Quick Guide (EN)

351.24k

Data sheet

TYT MD-9600 features V4

  • RX and TX frequency range configurable from : 136 to 174MHz VHF and 400 to 480 MHz UHF
  • Max. output power in VHF : 50W, adjustable 25/15/6W
  • Max. output power in UHF: 40W, adjustable 15/10/5W
  • Dualband VHF and UHF in FM and DMR mode
  • GPS in option
  • New PLL version
  • Microprocessor STM32
  • CTCSS / DCS
  • VOX, Shift Relay, Keypad Lock
  • DTMF tones 2 & 5 tones
  • Alarm function, scan, Talkaround, Time-out Timer, Auto Power Off
  • VFO step:6.25/12.5/25kHz
  • 2 years warranty and CE standards.

How to recognize the V4 version?

If the serial number starts after 2006T00001 or 2006U00001, it is MD9600 version V4.

Technical specifications MD9600

 MD-9600
General
Frequency RangeVHF:136-174MHZ or
UHF:400-480MHz
Channel1000 Channels
PLL Channel spacing6.25/25/12.5KHZ
Voltage ratingDC 13.8v
Operating temperature-30℃~+60℃
Storage temperature-30℃~+85℃
Size143*50*175mm
Microprocessor MCUSTM32
Transmitter
RF Power OutputL:25W H:50W(VHF)
L:25W H:45W(UHF)
FM hum and noise-40dB @ 12.5KHZ
-45dB @ 25 KHZ
Modulation limited+/-2.5KHZ@12.5KHZ
+/-5.0KHZ@25KHZ
Conducted/radiated emission-36dBm<1GHz
-30dBm>1GHz<4GHz
Adjacent channel power-60dB @ 12.5KHZ
-65B @ 25 KHZ
Audio response+1dB~-3dB
Audio distortio 3%
FM modulation12.5KHZ:11 K0F3E
25KHZ:16 K0F3E
4FSK digital modulation12.5KHZ(data only):7K60FD
12.5KHZ(data+audio):7K60FXE
Digital protocolETSITS102361-1,-2,-3
Digital Vocoder typeAMBE2+
Digital agreementDMR
 Receiver
Frequency stability (-20℃+60℃,+25℃)+/-1.0ppm
Digital sensibility0.3 uV/-117.4dBm(BER 5%)
0.7 uV/-110dBm(BER 1%)
Analog sensibility0.35uV/-116dBm(20dB SINAD)
0.22 uV/-120dBm(20dB SINAD)
Rated audio5w
Adjacent channel selectivityTIA603C: 60dB @ 12.5KHZ
ETSI:  60dB @ 12.5KHZ
IntermodulationTIA603C: 65dB
ETSI:  65dB
Co-channel Rejection12dB @ 12.5KHZ
Spurious rejectionTIA603C: 70dB
ETSI:  70dB
Audio distortion @rated audio≤3%
FM hum and noise-40dB @ 12.5KHZ
-45dB @ 25 KHZ
Audio response+1dB~-3dB
Spurious emission<-57dBm@<1 GHZ
>-47dBm@>1 GHZ
Block84dB

Reminder: The use this mobile radio TYT MD9600 requires a radio license and is subject to the respect by the user of the law and local frequency that may applied.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user.

Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other.

It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.

  • Customers also bought

  • We also recommend

    • DMR & FM Handheld TYT MD-380 VHF / UHF TYT DMR equipment TYT-MD380-UHF-3218
      90,30 € 129,00 € tax excl. -30%tax excl. Material no longer available
      Sale!

      -30%

      Reference: TYT-MD380-VHF-3219

      DMR & FM Handheld TYT MD-380 VHF / UHF

      DMR handheld ideal to start in digital mode, TYT MD-380 is an analogue FM and digital HT available either in single-band UHF 400-480MHz with 4 watts (real) or in single-band VHF from 136-174Mhz with 5

      90,30 €

      129,00 €

    • USB programming cable for TYT MD-9600 TYT TYT TYT-CABLE-USB3-9600-TYT-527
      9,00 €

      Reference: TYT-CABLE-USB3-9600-TYT-527

      USB programming cable for TYT MD-9600

      Programming USB cable genuine TYT for mobile DMR & FM TYT MD-9600. Comes with : USB cable without CD (software and drivers to download below).

      9,00 €
    • 12V power cable genuine for TYT MD-9600 TYT TYT CABLE-TYT-MD9600-602
      6,50 €

      Reference: CABLE-TYT-MD9600-602

      12V power cable genuine for TYT MD-9600

      TYT original 12V power cable for MD-9600.

      6,50 €
    • Bracket support for TYT MD-9600 TYT TYT ETRIER-TYT-MD9600-604
      8,50 €

      Reference: ETRIER-TYT-MD9600-604

      Bracket support for TYT MD-9600

      TYT original bracket support for MD-9600.

      8,50 €

Reviews

Click here to leave a review

rating 5
Super!
Je possède déjà plusieurs de ces appareils. Ils sont très faciles à utiliser et de haute qualité
rating 5
Great radio
This radio is HW v5. Working well with OPENGD77 software.
rating 5
TYT MD 9600
Parfait en tout points
rating 5
Merci
Livraison rapide, bon prix. Vendeur sérieux.
rating 5
TYT MD-9600 VERSION V4 (STM32)
Great service and support. Thank You !
rating 5
dmr radios
exalent service and quality of products
rating 5
Mobile DMR & FM Dualband TYT MD-9600 : New version

An excellent device, it meets all the requirements of a radio amateur.

rating 5
Bon rapport qualité-prix

Après remplacement par Passion-Radio d'un exemplaire défectueux (merci à eux pour leur sérieux et réactivité), ce transceiver FM-DMR (version GPS) s'avère globalement performant, notamment en sensibilité et sélectivité. Penser à laisser la première fois le TRx (à l'arrêt) raccordé à une source 12 V pendant environ 24 heures. Cela permettra à la batterie RTC de se recharger, notamment consécutivement à un stockage prolongé, et assurer ainsi la conservation des informations sauvegardées dans la mémoire RAM.

rating 5
Very good for OPENGD77

With original firmware, I wont use it anymore, with OPENGD77 a new dimension is opened. Very impressive und usable for ham radio operation. Very sensitive receiver.

rating 5
TYT MD-9600
Fait le job. RAS
rating 5
MD 9600
IL N'Y A PAS MIEUX ..... POUR L'INSTANT :-)
rating 5
md 9600
très bon poste pour ceux qui se pose la question le problème haut parleur qui claquais avant a été résolu facile a programmer et très simple en utilisation je recommande
rating 5
Très bon poste, complet
J'ai pris ce poste pour sa fonction DMR, et j'ai pu faire des tests en PMR, ça fonctionne vraiment très bien, il a un qualité d'écoute et de modulation excellente. Le seul défaut, c'est sa notice très succincte et en English.

Questions

Question

Do you know if the MD-9600 version 4 is compatible with Open GD software, which makes it more versatile and functional?

Answer

The Open GD77 firmware can be used on the MD-9600, however we do not guarantee 100% compatibility.

https://www.youtube.com/watch?v=apR33-b7B8Q
https://www.youtube.com/watch?v=Tj5UTItSG2Y

Ruben on 2022-10-03 20:16:35
