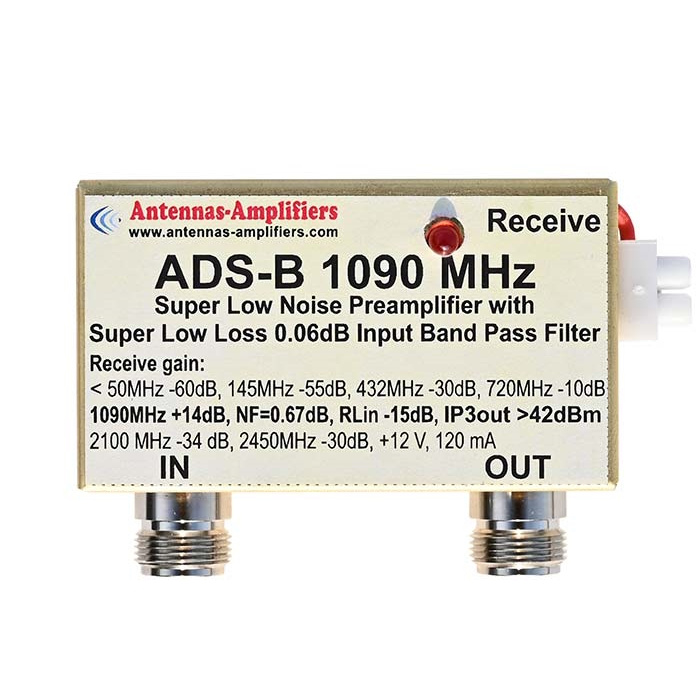

1090 MHz outdoor ADS-B preamplifier on mast with bias-tee

rating No review at the moment

Low-noise 1090MHz outdoor ADS-B preamplifier, with +13.8dB gain, for outdoor use, with box and bracket supplied for mast mounting.

ADS-B stands for Automatic Dependent Surveillance-Broadcast. ADS-B enables pilots and air traffic controllers to 'see' and control aircraft more accurately over a much larger percentage of the earth's surface.

With this ADSB 1090MHz outdoor preamplifier with polarising tee, you'll get the possibility of much better reception of ADS-B signals. You'll "see" many more air traffic messages than ever before.

With integrated BIAS-T, coaxial power supply.

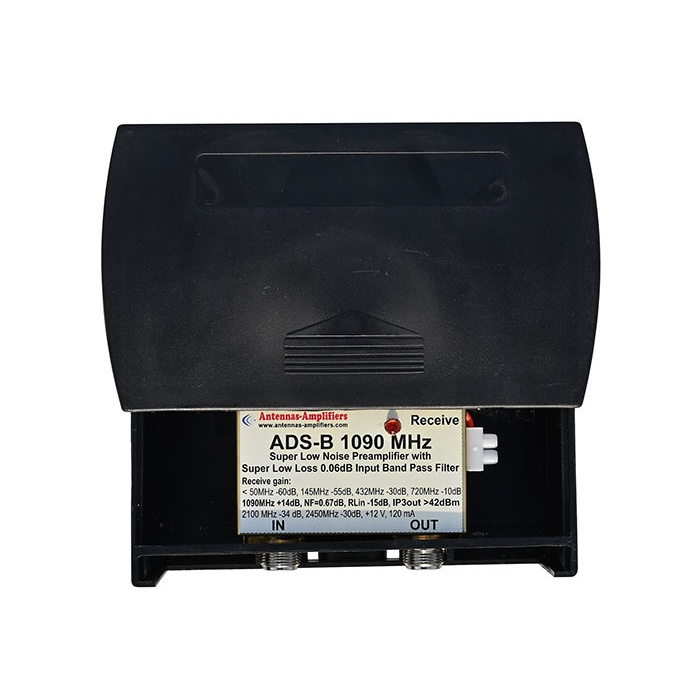

Supplied with a box for outdoor mounting.

More details

235,00 € tax excl.

Available to order only, within 10 to 15 days

Notify me when available

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

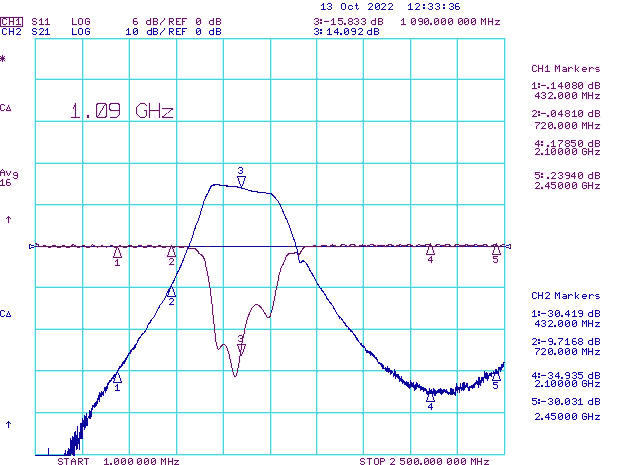

Results measured:

Reception gain:
1.8 MHz -67dB
14 MHz -75 dB
28 MHz -58 dB - HF
50 MHz -57 dB - 6m band
145 MHz -55 dB - 2m band
222 MHz -47 dB - 1.25m
432 MHz -30 dB - 70cm band
600 MHz -19 dB TV DVB-T or DVB-T2
720 MHz -10 dB - 4G frequencies
1090MHz +13.8dB, NF=0.67dB, RLin -15dB, IP3out >42dBm
1535 MHz -11 dB Radio link frequencies
1710 MHz -22 dB PCS and LTE
2170 MHz -34 dB
2100 MHz -35 dB
2450 MHz -30dB WiFi band
Consumption: +12 V, 120 mA
Bias tee integrated. Power supply via coaxial cable

Connector in (to antenna): N female
Connector out (to receiver) : N female

For best results with the preamplifier, place it as close as possible to the 1090MHz ADS-B antenna installed outdoors on a mast. A coaxial cable of about 1m is sufficient.
