> Satellite & QO-100>TAOGLAS RF Filter Bandpass 2.4Ghz 10W WiFi and QO-100 - BPF.24.01
Reduced price!

-50%

RF Pass-Band Filter 2.4Ghz 10W WiFi and QO-100 Satellite & QO-100 QO100-FILTRE-TAOGLAS-942 View larger

QO100-FILTRE-TAOGLAS-BPF.24-942

New product

TAOGLAS RF Filter Bandpass 2.4Ghz 10W WiFi and QO-100 - BPF.24.01

rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

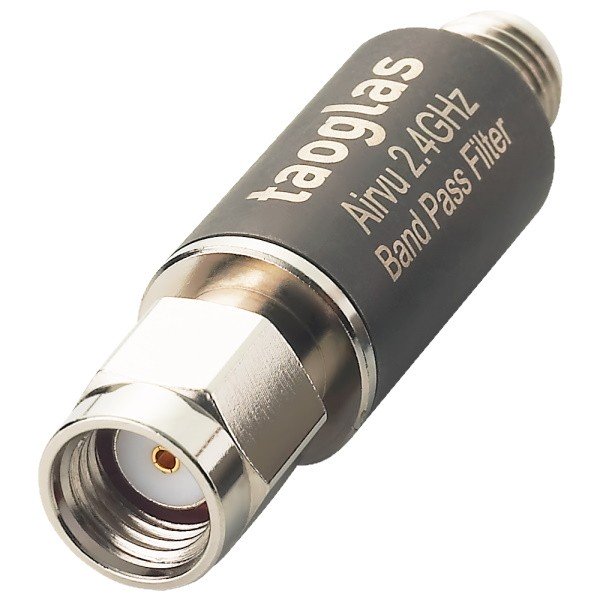

The Taoglas Airvu 2.4Ghz bandpass filter is a 100Mhz broadband filter, for use in frequency from 2400 to 2500Mhz and a maximum power of 10W.

Connector 1: RP-SMA Male
Connector 2: RP-SMA Female

Note: The connector is in inverted SMA (RP-SMA - Reverse SMA).

This filter is particularly recommended for use in transmission on the QO-100 satellite with a WIFI amplifier.

Delivered with: 1 filter Taoglas Airvu BPF 2.4Ghz.

More details

12,04 € tax excl.

24,08 €

In stock

   3 Items

Download

Datasheet Airvu BPF.24

551.55k

Data sheet

Frequency range: 2400 - 2500 MHz
Central frequency: 2450 MHz
Bandwidth: 100Mhz
Impedance: 50 Ohms
Maximum power: 10W
Insertion loss: 1.3dB @ 2400 MHz
Connector 1: RP-SMA Male (to the TX or the amp)
Connector 2: RP-SMA Female (to the antenna)
Dimensions: 35x10mm
Rohs Standards
