RF Amplifier 2400 MHz 100mW for QO-100 and Upconverter F1OPA

rating Read the review
Average rating: 5/5 Number of reviews: 1

This power amplifier equipment with a gain of 30dB is intended to operate primarily with F1OPA's upconverter 144 / 432Mhz - 2400 MHz to traffic on the QO-100 satellite uplink with 100mW output (20dBm) with a -9dBm input.

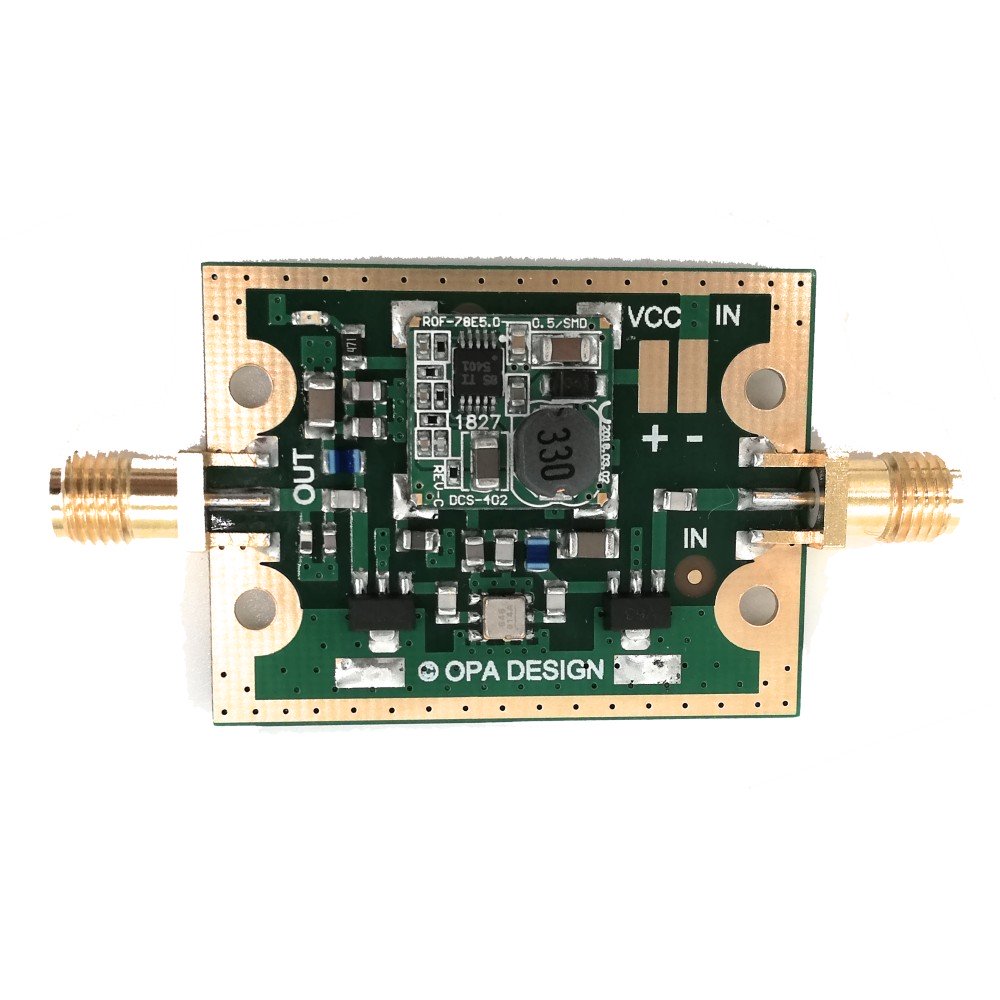

This 2400Mhz RF amplifier is equipped with a SAW filter for a clean signal and a power-on LED indicator on the PCB.

Comes with: PCB assembly amp OPA Design 2400Mhz 100mW.

More details

41,67 € tax excl.

Out of stock, available in 2 to 3 weeks

Download

Data sheet

Specification amp 13cm F1OPA for QO100

Frequency range: 2400 MHz (13cm)
Amplifier based on 2 MMIC
Gain: 30dB
Output power : 100mW (20dBm) - Max. 22dBm with -7dBm input
Minimum input power: -9dBm
Maximum input power: +5dbm
Impedance: 50 Ohms
Supply voltage: 8-14V
Operating temperature: -20°C to + 65°C
Dimension: 42 x 36 x 20mm
Consumption: 98mA to 12V
Amateur Radio Design: F1OPA

This material is intended for amateur radio use on the 13cm band only.

The warranty does not cover the PA and the loss of power, which may result from an assembly error, an incorrect antenna adjustment (ROS), a maximum input power not respected, a short -circuit of the power supply or the coaxial line and the damage linked to electrostatic discharges.
