> Satellite & QO-100>RF Amplifier 2400 MHz 20dB Analog Devices CN0417
RF Amplifier 2400 MHz 20dB Analog Devices CN0417 Analog Devices Satellite & QO-100 QO100-ANALOG-CN0417-777 View larger
Previous Next

Analog Devices

QO100-ANALOG-CN0417-777

New product

USA

RF Amplifier 2400 MHz 20dB Analog Devices CN0417

rating Read the review
Average rating: 5/5 Number of reviews: 1

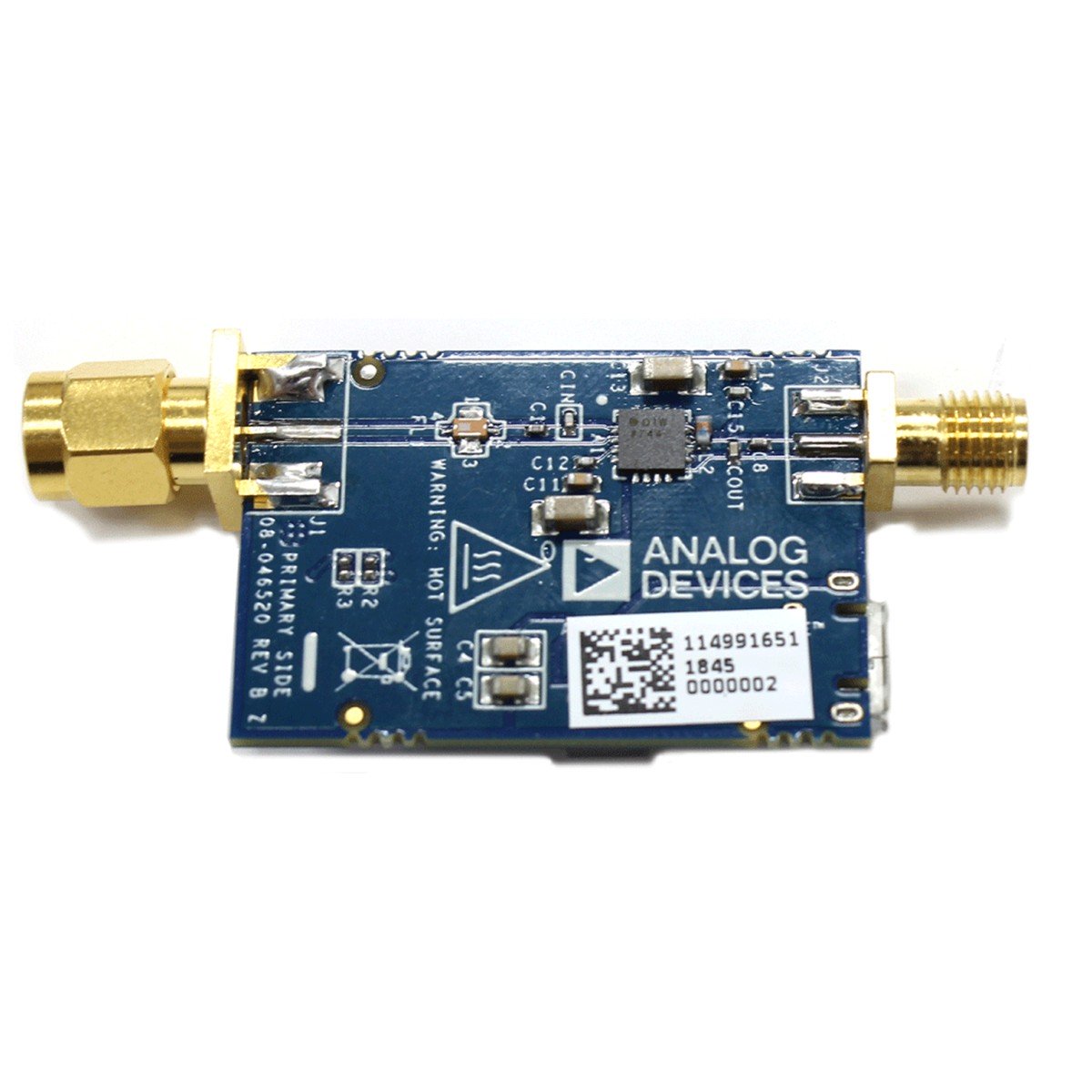

The Analog Devices CN0417 is a small RF power amplifier, powered by micro-USB, optimized to operate on 2400 MHz with 100mW max, gain of 20-21dB max., with a integrated bandpass filter 2400 to 2500Mhz.

It is powered by 5V directly via a micro-USB jack (cable not supplied). RF input and output connector in SMA.

This equipment is recommanded to be used with PlutoSDR/Adalm-Pluto.

Comes with: 1 Analog Devices RF Amplifier 2.4Ghz EVAL-CN0417-EBZ, version 08-046520 REV C.

More details

69,00 € tax excl.

This material is no longer available

Download

Datasheet Analog Devices CN0417

103.37k

Data sheet

Specification RF Amplifier 2400Mhz Analog CN0417

Frequency range: 2400 - 2500 MHz
Maximum gain: +21dB
Impedance: 50 Ohms
Max supply voltage: 5V / 370mA

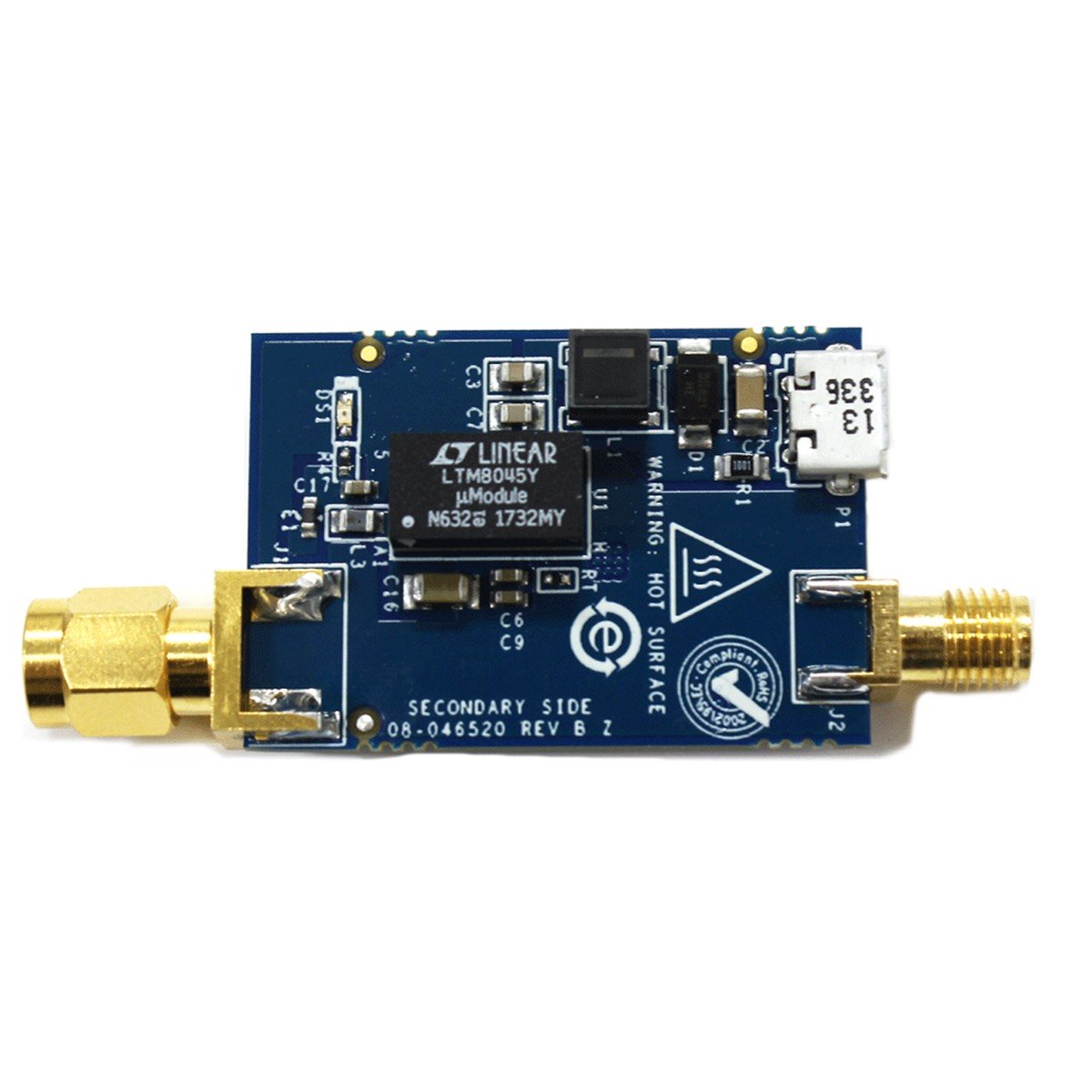

With circuit: ADL5606 and LTM8045
Insertion loss: 0.4dB @ 2000 MHz

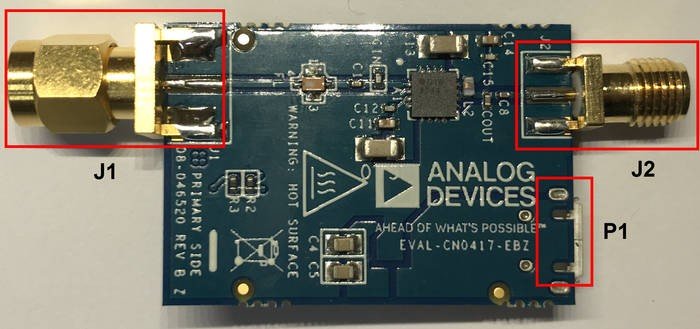

Connector J1: SMA Male (to TX SDR)
Connector J2: SMA Female (to antenna)
CE & Rohs
2 years warranty*

* The warranty does not cover the PA and the loss of power, which may result from an assembly error, an incorrect antenna adjustment (ROS), a maximum input power not respected, a short -circuit of the power supply or the coaxial line and the damage linked to electrostatic discharges.
