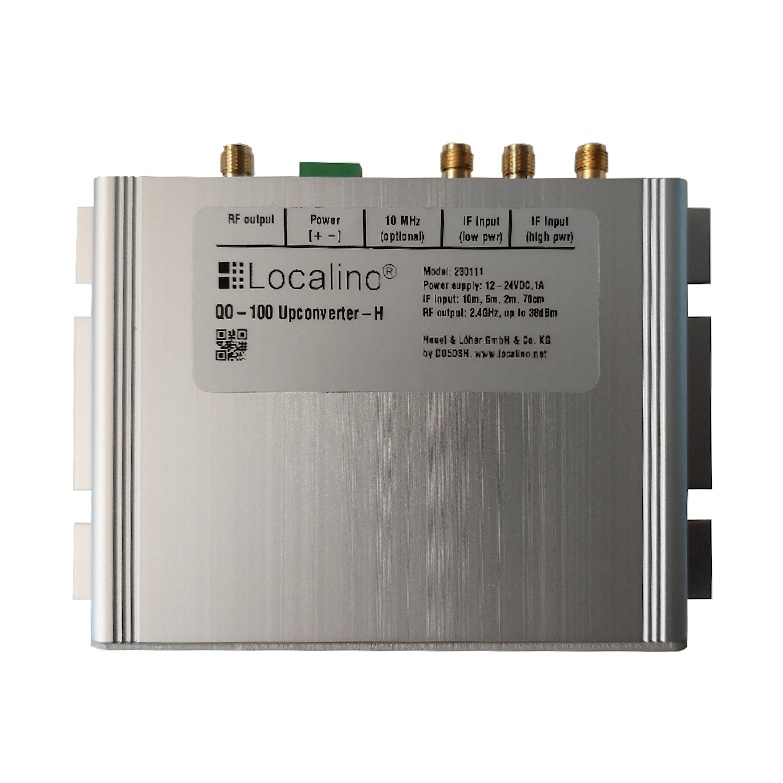

Adalm Pluto compatible 2.4 GHz 10W QO-100 amplifier

No review at the moment

13cm 2.4GHz amplifier for QO-100 compatible with the use of a Adalm Pluto to be operational on the QO-100 satellite in SDR with a maximum power of 10W on the 13cm 2.4 GHz band.

With integrated TCXO, input power from 10mW to 5W maximum, VOX PTT, no PTT switching required. It is powered from 10 to 24V with a typical voltage of 13.8V to 20V.

Supplied with : 2.4GHz Localino amplifier, supplied as a modified 13cm amplifier only, fitted and tested.

More details

Download

Datasheet Upconverter-H (FR)

1.36M

Datasheet Upconverter-H (EN)

1.35M

10GHz LNB with EXT OSC (EN)

6.47M

Data sheet

TX output frequency: 2400 MHz (13cm)
TX input frequency: 2400 MHz (13cm)
TX input power: 7-10mW minimum
TX output power: 10W maximum @ 24V
Driven by internal TCXO or external socket for 10MHz reference
With built-in 2.4 GHz bandpass filter
LED indication (voltage, PLL lock, power transmission)
Power supply: 10-24V DC
Power consumption: 60mA (standby) to 900mA (TX 10W @ 20V)
Protection circuit against undesirable power peaks over a short period of time
Connectors: SMA female
External 10 MHz reference socket
Dimensions: 100 x 80 mm
Design by : DO5DSH
1 year warranty except PA*.

Reminder: This equipment requires an amateur radio licence to be used. Amplifiers with a burnt-out PA will not be returned or reimbursed.

* The warranty does not cover the PA or loss of power, which may result from an assembly error, incorrect antenna adjustment (VSWR), maximum input power not respected, a short-circuit in the power supply or a problem with the coaxial line.
