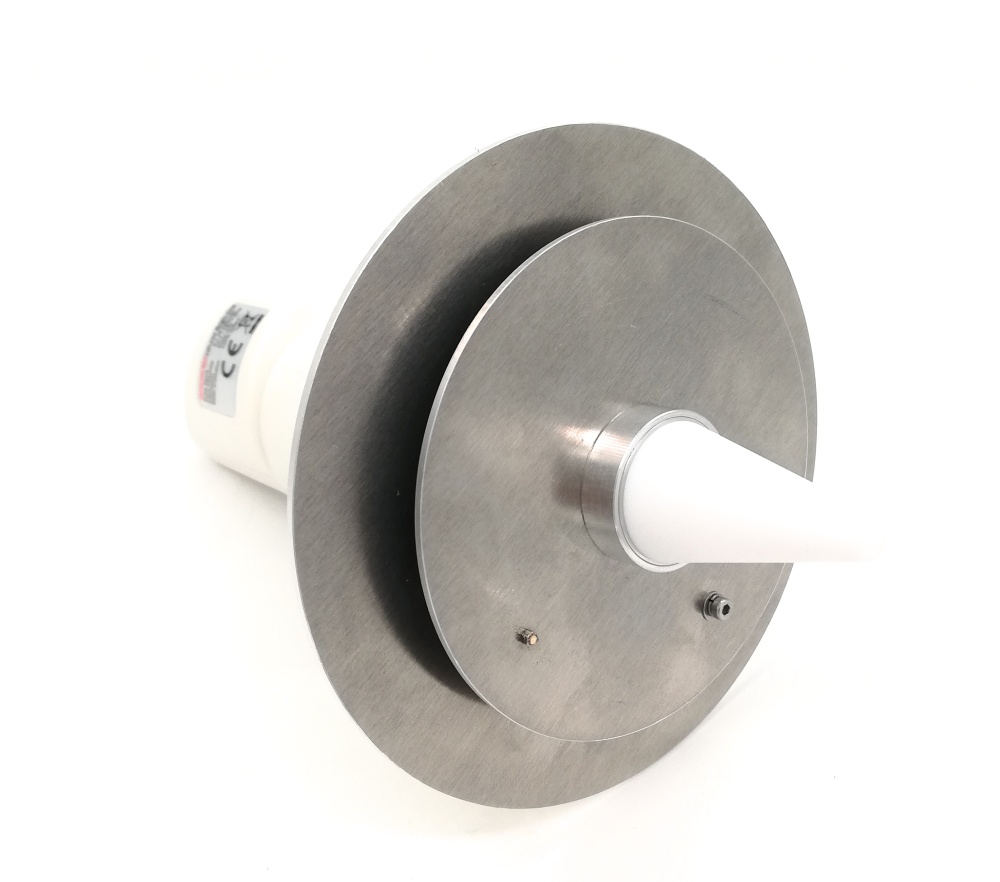

DuoBand-Feed 2.4 & 10 GHz Antenna with LNB for QO-100 Satellite & QO-100 QO100-ANT-207011-DJ7GP-LNB-891 View larger

New product

Online only

DualBand Feed 2.4 & 10 GHz DJ7GP V2 Antenna with LNB Single / Twin

rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

This V2 version of DJ7GP's 2.4 / 10 Ghz dualband feed antenna is ready for use in RX and TX LHCP Circular Polarized for 2400 MHz and 10500 MHz reception for Oscar-100 satellite via LNB head climb.

Version 2 improves the left circular polarization (LHCP), has more space for mounting and a new lens for better reception gain on 10 Ghz.

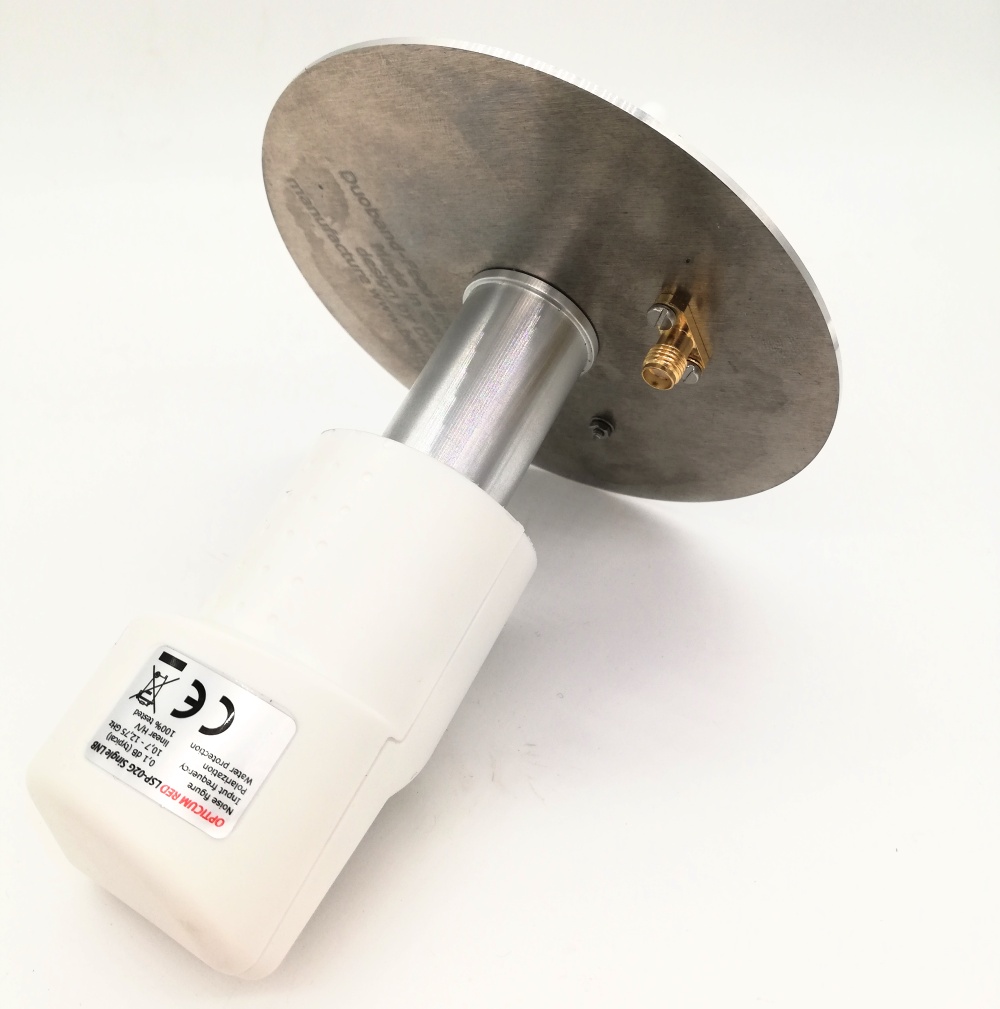

Version LNB Single Opticum LSP-02G (1 output): The antenna includes a single LNB PLL (unmodified) head for receiving the satellite QO-100 10 Ghz channel, on the 739Mhz frequency band with an SDR receiver and the SDR Console software which incorporates an automatic frequency drift correction function.

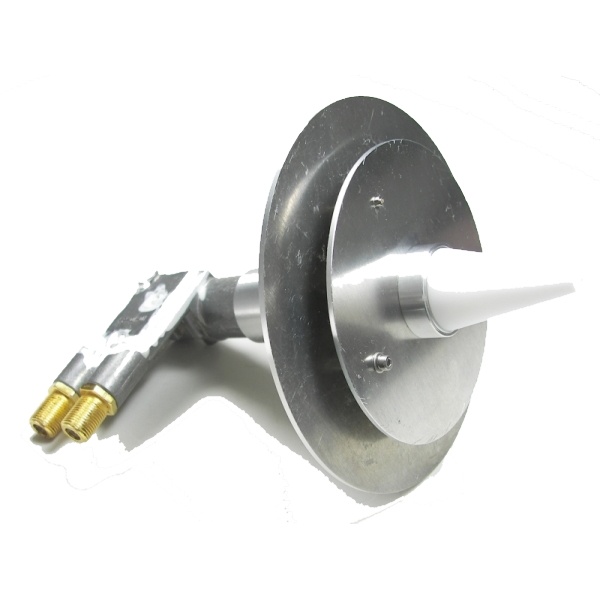

LNB Twin OPTICUM LTP-04H version (2 outputs): Includes a dual output PLL LNB head (unmodified) with female F-plug.

Comes with: 1 DualBand feed DJ7GP V2 antenna for 2.4 / 10Ghz with LNB include.

More details

112,50 € tax excl.

In stock

   More than 10 Items

  • Single 1 output
  • Twin 2 outputs

Data sheet

Specification antenna 2.4 - 10 Ghz QO-100

TX Frequency: 2.4 GHz Left Circular Polarization (LHCP)
Frequency RX: 10.5 Ghz linear polarization converts to 739Mhz via the LNB head to power with a Bias-T
Version: V2
Diameter of the antenna: 10,7cm
Antenna impedance: 50 Ohms
Power Max.: 50 Watts
Setting the SWR: By screw on the antenna (original preset for QO-100 frequencies)
Version 1 output LNB Opticum Single LSP-02G
Version 2 outputs LNB OPTICUM Twin LTP-04H
Antenna Connector 1: Female SMA for 2.4Ghz
Antenna Connector 2: Female F via LNB Head for 10 Ghz
Material: Aluminum, stainless steel screws
Diameter of the rod: Ø 23 mm
Outer diameter of the largest disk: 11cm
Amateur Radio Design: DJ7GP
