> Software Defined Radio>SDR transceivers>Dongle Yard Stick One FSK ASK GFSK
Sale!

-10%

Dongle Yard Stick One FSK ASK GFSK Great Scott Gadgets SDR transceivers GSG-YARDSTICK-ONE-326 View larger
Great Scott Gadgets

GSG-YARDSTICK-ONE-326

New product

USA

Dongle Yard Stick One FSK ASK GFSK

rating No review at the moment

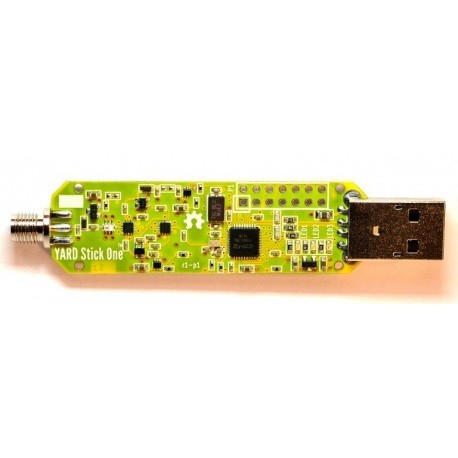

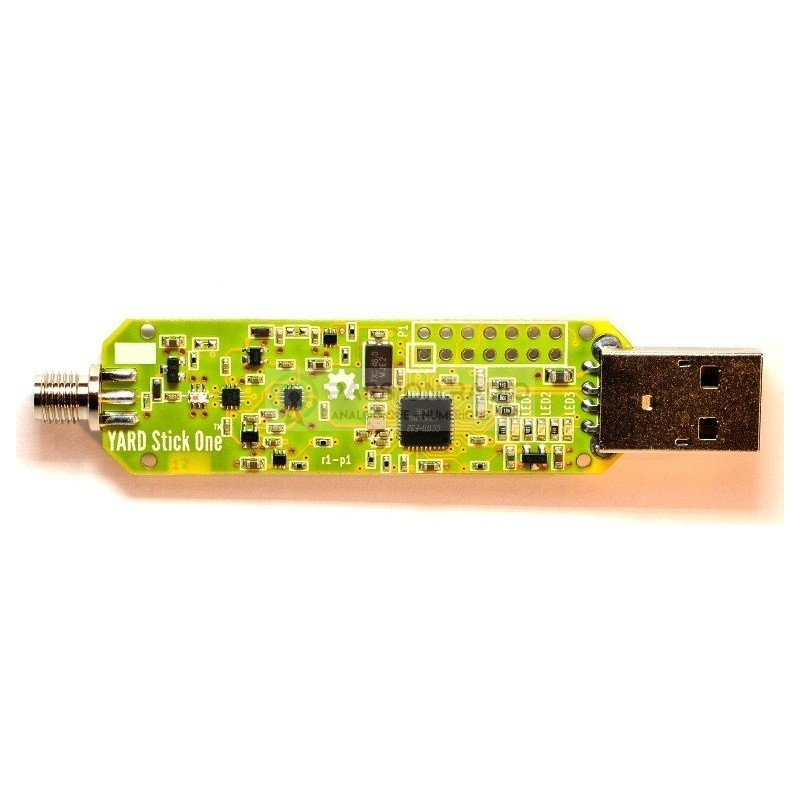

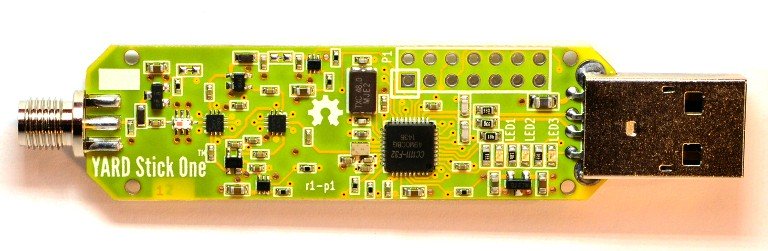

The Yard Stick One dongle (Yet Another Radio Dongle) can transmit and receive half-duplex digital radio signals on frequencies of 300-348 MHz, 391-464 MHz and 782-928 MHz, in modulations: ASK, OOK, GFSK, 2-FSK, 4-FSK and MSK.

The YardStick One dongle uses the same radio circuit that popular IM-Me console with the ability to modify the firmware to create your own radio applications.

The USB Stick Yard One comes with the RFCat firmware installed to control the transceiver from a Python shell or your own program + CC Bootloader installed.

Delivered without antenna (optional).

More details

This material is no longer available

Data sheet

Datasheet YardStick One

Half-duplex reception
Official frequency: 300-348 MHz, 391-464 MHz, 782-928 MHz
Unofficial frequency: 281-361 MHz, 378-481 MHz, 749-962 MHz
Modulations: ASK, OOK, GFSK, 2-FSK, 4-FSK, MSK
Data rates up to 500 kbps
Full-Speed USB 2.0
Antenna connector: SMA Female

* Official frequencies are guaranteed, informal operating frequencies are to be tested and not guaranteed to work.

Find documentation on the wiki Yardstick One https://github.com/greatscottgadgets/yardstick/wiki.
