miniVNA PRO² Analyzer Bluetooth 0.1 - 230 Mhz

rating No review at the moment

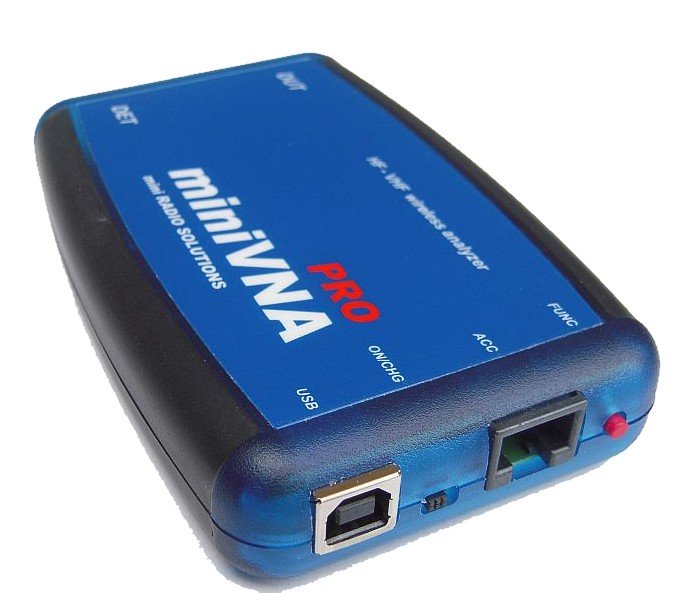

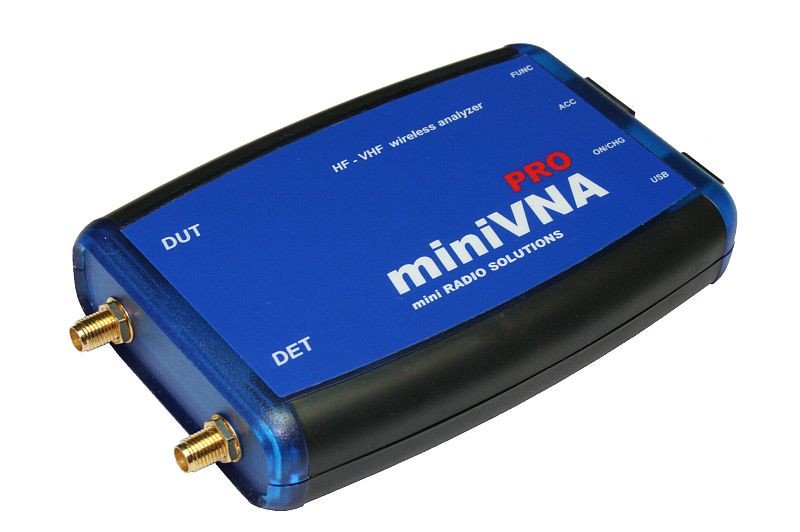

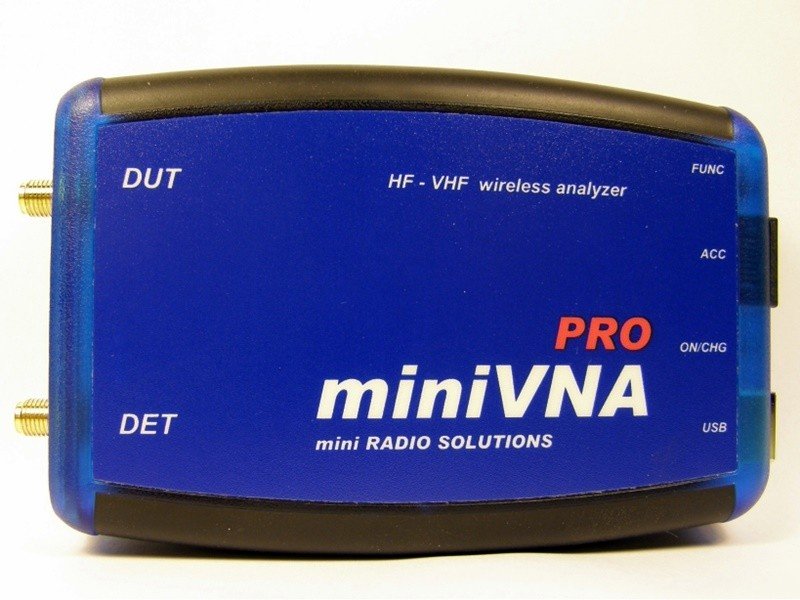

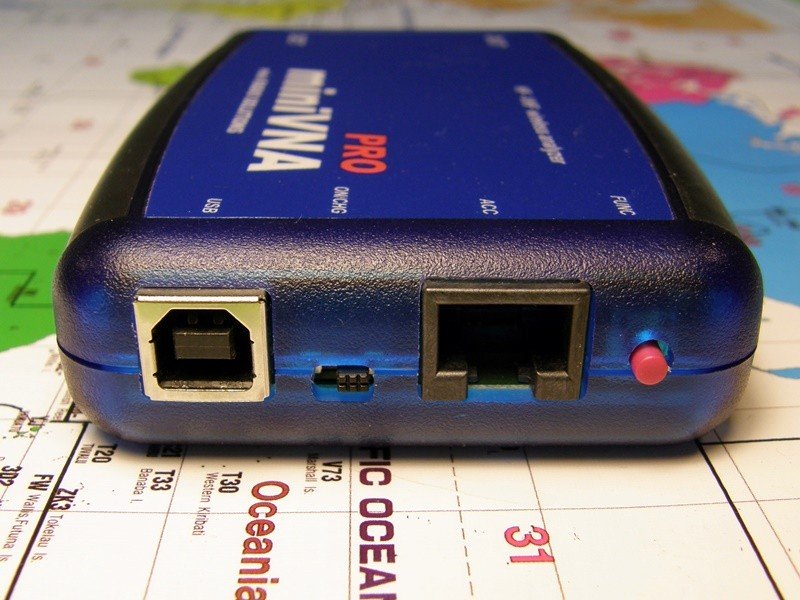

The mini-VNA Pro² BT is a portable VNA antenna and network analyzer that covers from 0.1 to 230Mhz, it has a 1000mAh internal Li-ion battery and a new Bluetooth interface to let use the mini-VNA Pro BT outside, directly at the base of the antenna.

New version MiniVNA Pro2 BT since June 2018
Improved dynamics to 100 dB (instead of 90 dB)
Extended frequency at 230 MHz (instead of 200 MHz)
New 24 bit converter
Improved Bluetooth connectivity

Main functions and features of the mini-VNA Pro²:

Frequency range from 0.1 to 200 MHz
Impedance range Z from 1 to 1000 Ω
2 separate RF outputs for I/Q and SDR measurement
Bluetooth adapter (Class 1)

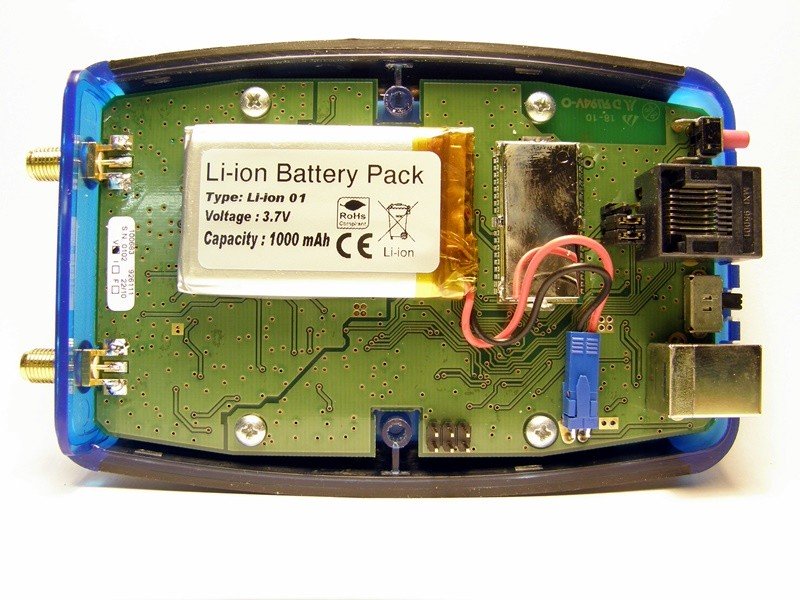

Internal battery 1000 mAh included (4h battery life)
Low power consumption: 220 mA @ 3.6V

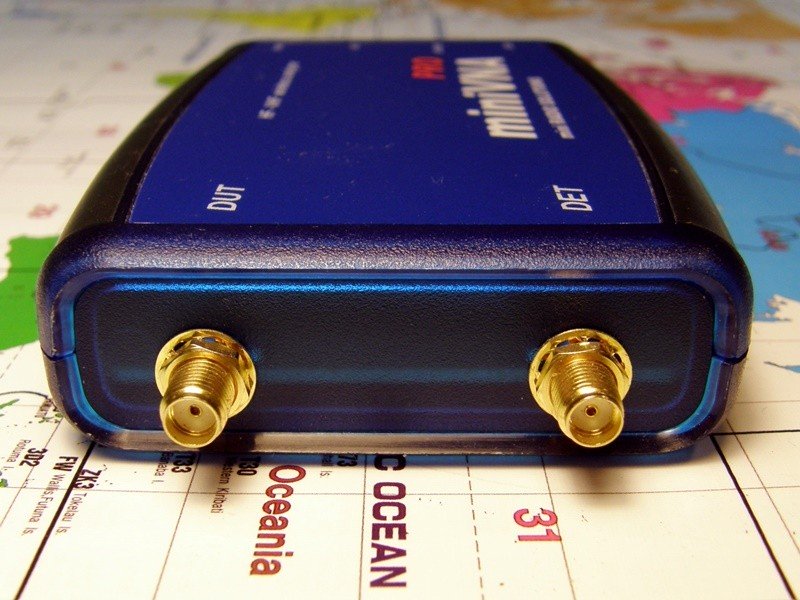

SMA connectors
Windows PC, Linux and MAC software and BlueVNA Android application

Comes with: Mini VNA Pro² BT, 1000mAh battery, USB cable, manual in English.

More details

465,00 € tax incl.

387,50 €

tax excl.

Backorder available under 1-3 months

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Download

Manual minivna PRO

MiniVNA PRO user manual in English 905.41k

Data sheet

Features of the mini-VNA Pro² BT

Frequency range from 0.1 to 230 MHz
Calibration using open load or short circuit for more accurate results
Impedance range Z from 1 to 1000 Ω
Two VNA ports with S11 and S12 display; displayed and saved results

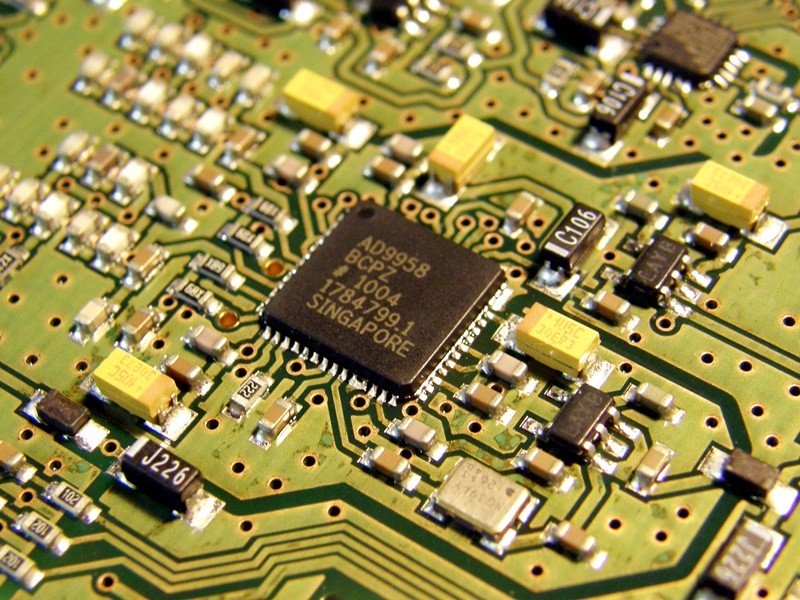

DDS I/Q generator with 0 dBm output power
2 separate HF outputs for I / Q for SDR experiments
Bluetooth adapter (Class 1)
1000 mAh Li-ion battery included (4 hours of battery life)
Battery charger included
Accessory port for future interfaces and frequency extensions
Low power consumption, 220 mA @ 3.6V in analyzer mode using USB port
Energy saving mode
SMA connectors for better isolation
Extended dynamic range: up to 90 dB for transmission and 50 dB for reflection
Boot loader for future firmware updates
User-friendly interface for Windows PC, Linux and MAC
Smith's chart in the software
Measurement of dynamic quartz parameters, cable length & more
Export data in several formats; JPEG, Excel, ZPLOT, S2P, PDF

The Blue VNA Android app for MINI-VNA Pro BT is in permanent development and downloadable on the Google Playstore.

For computer, the recommended software is vna/J from DL2SBA, written in Java and compatible with Windows, MacOS and Linux.
