Long distance range LoRa 100mW Module 433 868 Mhz EBYTE E32

This EBYTE E32 module is a 100mW long range transceiver with UART interface, available in 433Mhz or 868Mhz version and based on SEMTECH chip SX1276 (868Mhz) and SX1278 (433Mhz) for LoRa network and IoT.

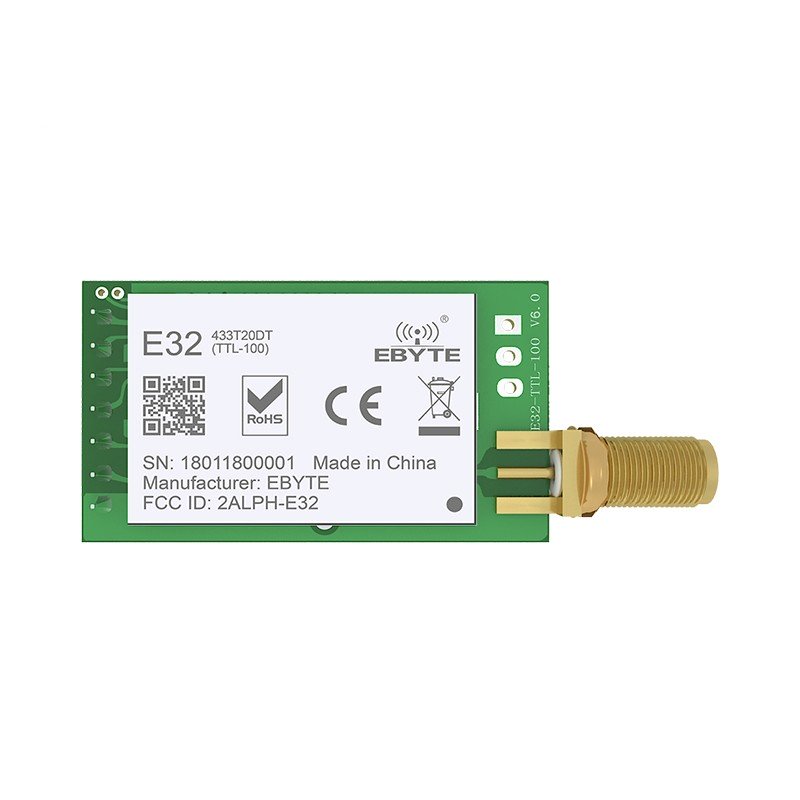

Comes with: 1 EBYTE card E32-433T20DT (433 Mhz version) or E32-868T20D (868 Mhz version).

More details

Download

Manual EBYTE E32-868T20D

1.19M

More info

Specifications EBYTE E32 LORA

Frequency ISM band	862 - 893 MHz 410 - 441 Mhz	Version SX1276 - 868 MHz, canal 32 Version SX1278 - 433 Mhz
Power supply	2.1-5.5 V DC	5 V recommanded for SX1276 3.3V recommanded for SX1278
Output power	20dBm max.	100mW max. Can be set 20, 17, 14, 10dBm
Data rate	2.4 kbps	Can be set 0.3, 1.2, 2.4, 4.8, 9.6, 19.2, kbps
Antenna connecter Impedance	SMA Male 50Ω
Operating temperature	-40 ~ + 85 ℃
Operating humidity	10% ~ 90%
Size	21*36mm
Weight	6.7g
Long distance range	3000 m	In free and open space, 20dBm, antenna gain 5dBi, height: 2 m
Communication interface	UART	8N1, 8E1, 8O1, eight types of UART baud rate, 1200 to 115200 bps

Diagram EBYTE E32 SX1278

diagram ebyte e32 sx1278

Reminder: This radio communication equipment is to be used in accordance with the legislation in force in the country of use and under the sole responsibility of the user.
