> LPWAN & IoT>Zigbee>ZigBee USB Dongle CC2531 2.4 Ghz 2.5mW
ZigBee USB Dongle CC2531 2.4 Ghz 2.5mW View larger
Previous Next

EBYTE

EBYTE-ZIGBEE3-E18-2G4U04B-1048

New product

China

ZigBee USB Dongle CC2531 2.4 Ghz 2.5mW

rating No review at the moment

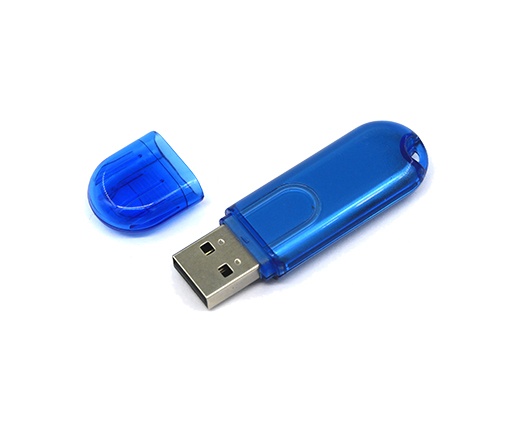

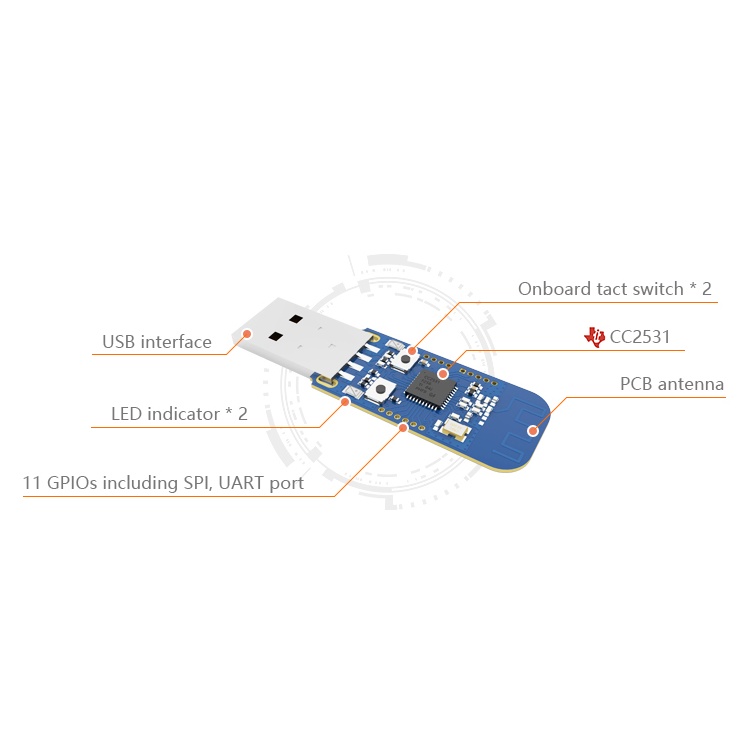

ZigBee 2.4 Ghz USB stick with integrated PCB antenna and based on the original RF chip CC2531 from Texas Instrument with a power of 2.5mW, integrated LNA, TCXO, 2 push buttons and case.

Supplied with: 1 Zigbee EBYTE E18-2G4U04B dongle (with case included).

More details

Produit plus disponible!

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Download

Datasheet E18-2G4U04B

885.81k

Data sheet

Zigbee CC2531 EBYTE datasheet

Operating voltage 2.7 V to 5.5 V (typical 5V)
Frequencies: 2394 to 2507 Mhz
Output power: +4 dBm (2.5mW)
RF module: CC2531
Sensitivity -96.4dBm
Protocol: Zigbee
With integrated LNA and TCXO
Bit rates: 250Kbps
FLASH memory: 256 KB
RAM memory: 8 KB
Dimensions: 59 x 18 mm (with case)
Integrated PCB antenna
Rohs, CE and FCC certified

Reminder: This radio communication equipment is to be used in accordance with the legislation in force in the country of use and under the sole responsibility of the user.
