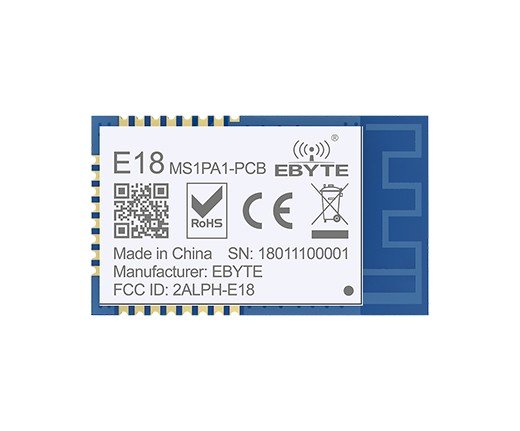

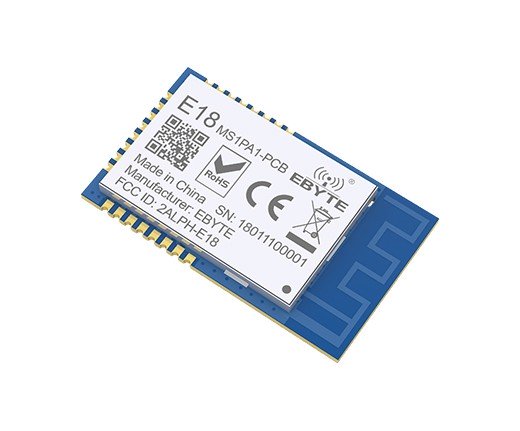

PCB module Zigbee 100mW long range 2.4 Ghz

Long-range distance PCB module for Zigbee with 2.4Ghz integrated antenna, based on the Texas Instrument CC2530 genuine RF chip, the 8051 microcontroller, the CC2592 power amplifier for a Zigbee transceiver with the IEEE 802.15.4 protocol of 2, 4 GHz and a power of 100mW.

Supplied with: 1 EBYTE E18-MS1PA1-PCB module (with integrated 2.4Ghz PCB antenna).

More details

Download

Specification Zigbee

Communication Protocol Specification for Zigbee Module. 134.55k

Manual EBYTE E18 MS1PA1-PCB

1006.24k

More info

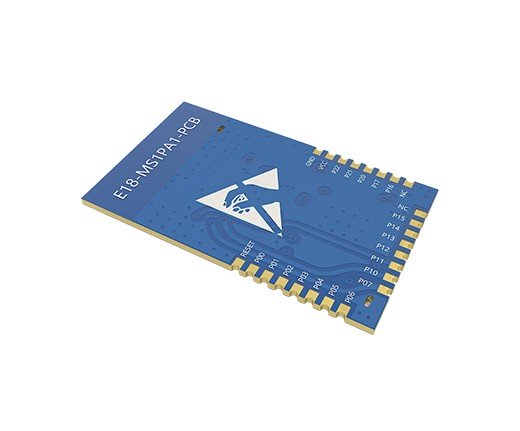

PIN zigbee module EBYTE

zigbee ebyte e18 ms1 cc22530

Reminder: This radio communication equipment is to be used in accordance with the legislation in force in the country of use and under the sole responsibility of the user.
