Reduced price!

-5%

mAT-K100 HF automatic tuner for KENWOOD and ICOM transceivers View larger

MAT-TUNER

MTUNER-MAT-K100-1611

New product

China

HF mAT-K100 MAT-TUNER for KENWOOD and ICOM

rating No review at the moment

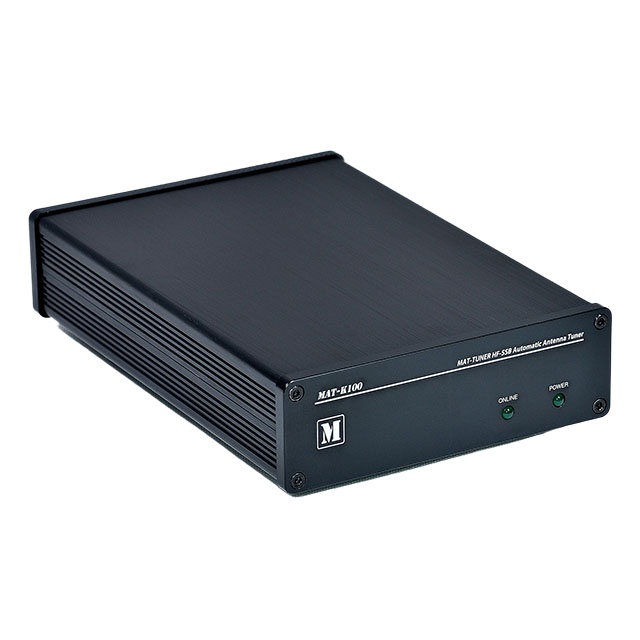

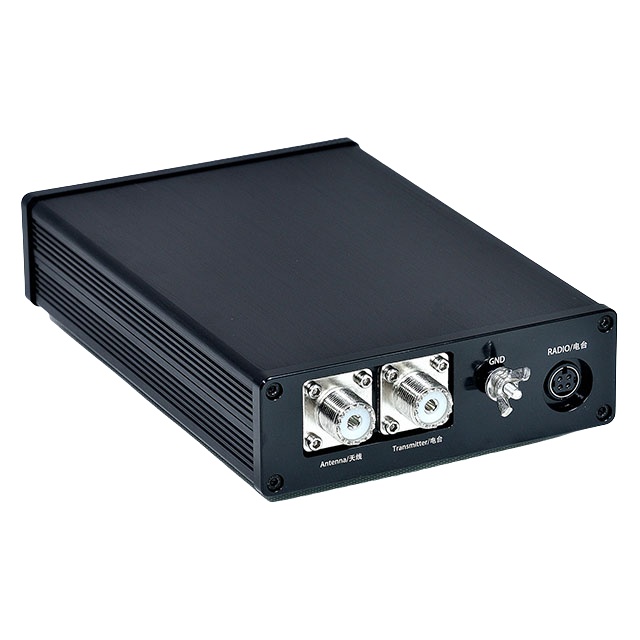

The mAT-K100 is an automatic antenna tuner operating in the 1.8MHz to 54MHz range, at power levels up to 120 watts.

It allows tuning of dipoles, verticals, Yagis, or virtually any coax-fed antenna.

It is designed for modern ICOM and KENWOOD HF transceivers depending on the control cable added: the mAT-CI for ICOM (not supplied) and mAT-CK for KENWOOD (supplied).

Compatible ICOM units: IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, AH-3 and AH-4

Compatible KENWOOD units: TRC-80, TK-80, TS-2000, 50, 450, 480SAT (except HX version), 570, 590, 850, 870, 990 and any unit supporting KENWOOD AT-300 tuners. KENWOOD TS-430, TS-440 are too old to use this tuner.

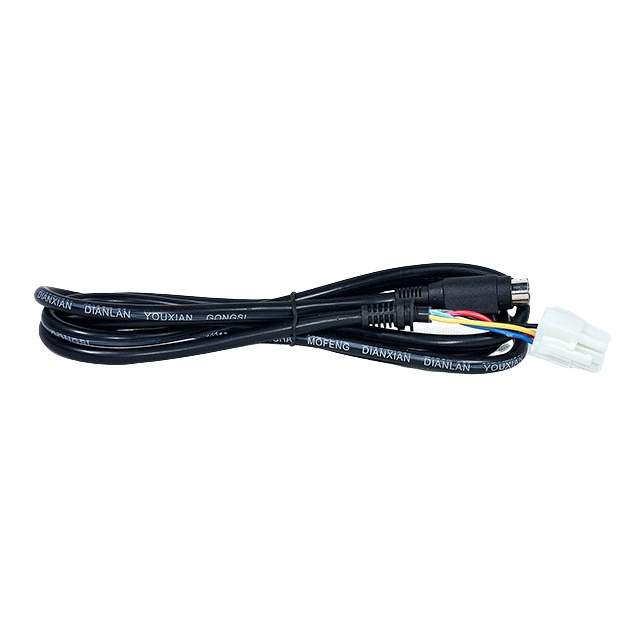

Delivered with: 1 mAT-K100 tuner and a mAT-CK control cable for Kenwood

More details

149,63 € tax excl.

157,50 €

In stock

   2 Items

Download

Data sheet

Features:

  • 0.1 to 120 watts of peak SSB and CW power, 30 watts in PSK and digital modes, and 100 watts on 6 meters.
  • 16,000 memories for instantaneous frequency and band changes.
  • Tuning times: 0.1 to 5 seconds full tuning, 0.1 seconds memory tuning.
  • Coverage from 1.6 to 54.0 MHz. Built-in frequency sensor.
  • Tunes loads from 5 to 1500 ohms.
  • For dipoles, verticals, whips, wire or any other coaxial fed antenna.
  • Weight: 0.8Kg.

The mAT-K100 has 16,000 frequency memories. When tuning to or near a previously tuned frequency, the mAT-K100 uses "Memory Tune" to recall the previous tuning settings in a fraction of a second. If no stored settings are available, the tuner performs a full tuning cycle, storing the settings for memory recall on subsequent tuning cycles on that frequency. In this way, the mAT-K100 "learns" as it goes along, adapting to bands and frequencies. You can also start a tuning cycle manually if necessary.
