VNA Analyzer RigExpert Stick Pro 100 kHz to 600 MHz

No review at the moment

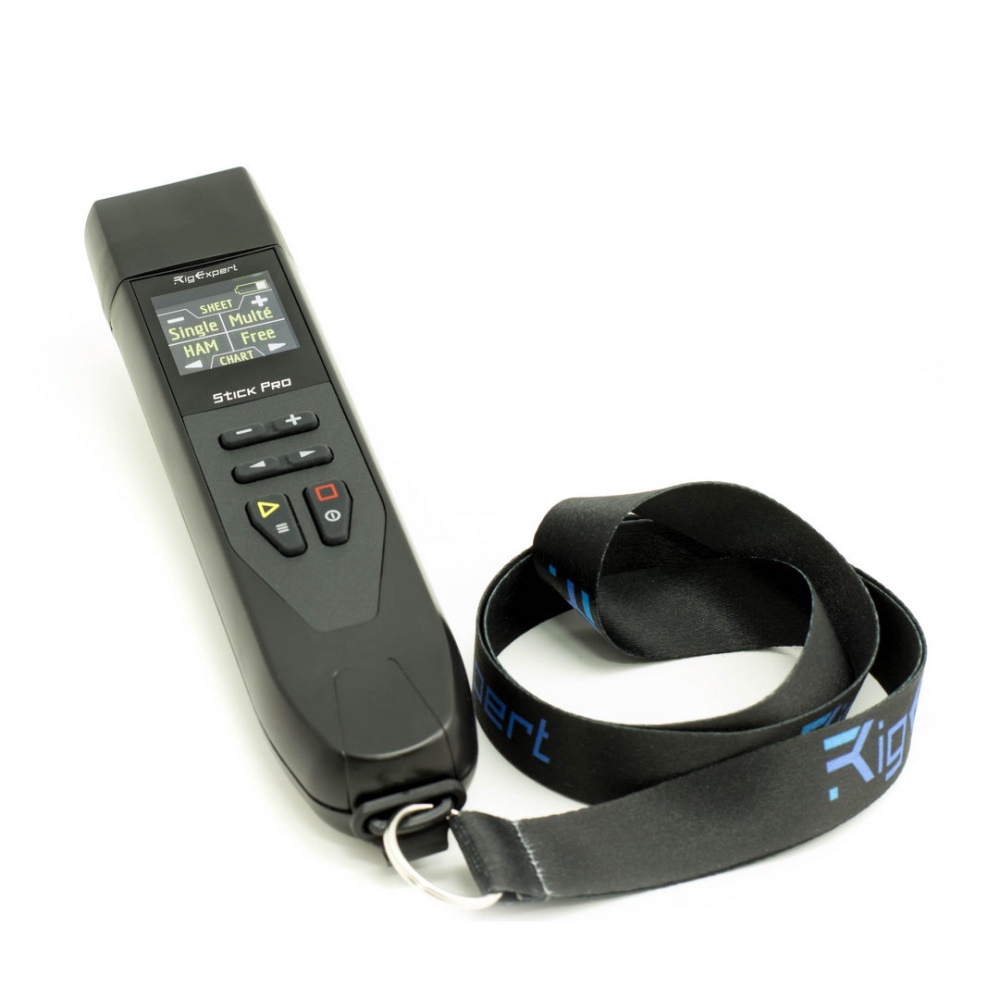

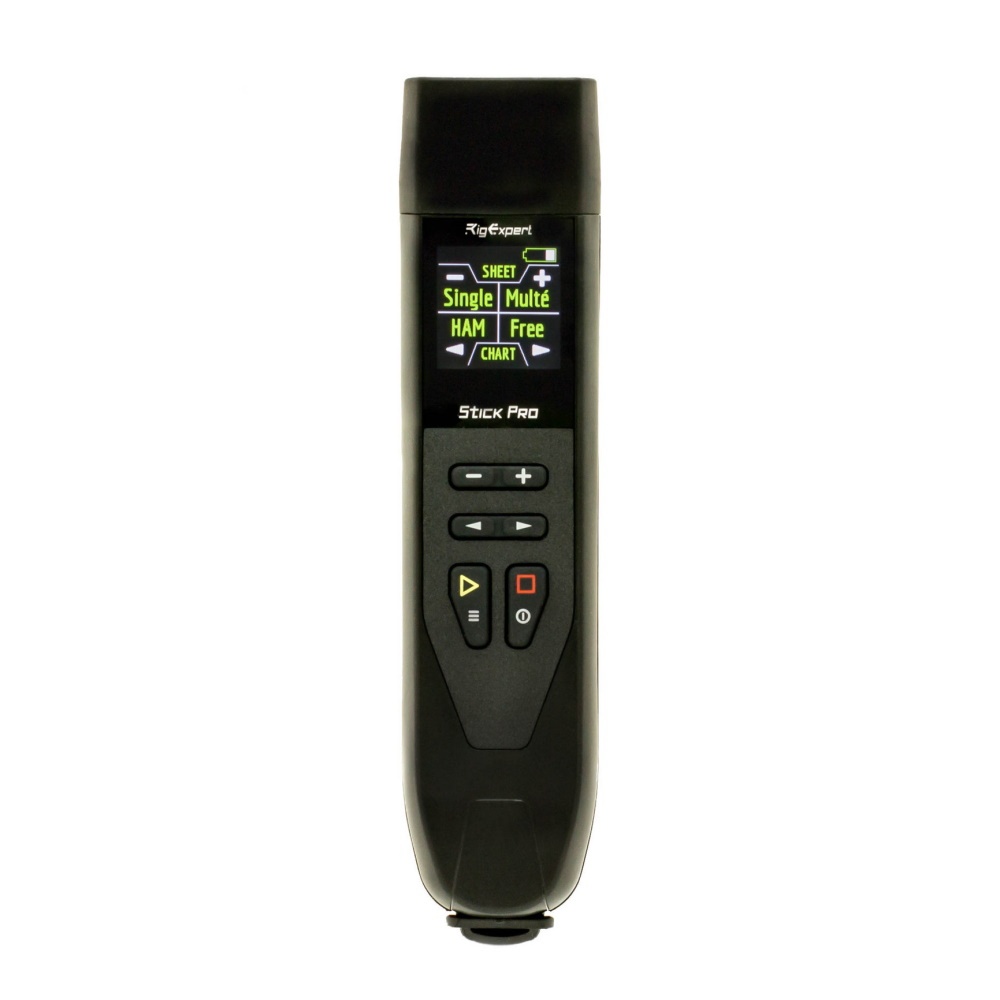

The RigExpert Stick Pro is a vector analyzer (VNA) of antennas and cables. The analyzer allows you to measure various parameters of antennas, cables, lines, filters and many more in the frequency range from 100 kHz to 600 MHz .

The Stick Pro analyzer has a compact size and light weight, which is ideal for using the analyzer at home and in the field.

Comes with: 1 RigExpert Stick Pro antenna analyzer, 1 Li-ion battery, 1 quick start guide, 1 neck strap, 1 USB cable, 1 N-UHF adapter.

More details

Download

AntScope2 Windows software

44.61M

Flashtool RigExpert Software

20.88M

Stick Pro User Manual

248.41k

Data sheet

Frequency range: 0.1 ~ 600 MHz
No frequency input: 1 kHz
Measurements for 25, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graphic mode.
R and X range: 0 ... 2000, -2000 ... 2000
Operating modes: SWR, return loss, R, X, Z, L, C, magnitude and phase angle at one frequency. TOS graph, 100 points. Multé Mode - for quick testing of a multiband antenna.

HF output: Connector type: N-Female
Output signal form: pies, 0.1 to 600 MHz
Output power: -10 dBm (at a 50 Ohm load).

Power supply: A 3.7V lithium-ion battery. When the analyzer is connected to a PC or to a DC adapter with a USB connector, it is powered by the following sources.

Interface: 200 × 200 TFT screen. 2 × 3 keys on the waterproof keyboard.
Menu and help screens in English.
USB connection to a personal computer

Bluetooth: v.4.2 BLE singlemode, class B

Dimensions: 185mm x 40mm x 33mm
Operating temperature: 0 to 40 ° C
Weight: 185 g with battery
2 years warranty

The RigExpert Stick Pro is made in Ukraine.
