Anytone DMR AT-D878UV 144-430Mhz GPS VFO Bluetooth Anytone DMR equipment ANYTONE-D878UV1-751 View larger

Anytone

New product

China

Anytone DMR AT-D878UV 144-430Mhz GPS VFO Bluetooth

The new Anytone AT-D878UV is a VHF and UHF dual-band walkie-talkie, FM and DMR digital analog, Tier I & II compatible, Motorbro and Hytera, TDMA (2 TimeSlot), VFO button, GPS with APRS FM and DMR , Roaming function, 3100mAh battery and bluetooth in option.

Comes complete with: 1 ANYTONE AT-D878-UV with GPS (bluetooth optional with BT PTT button included), 1 desktop charger 120V-240V (EU plug), 1 waterproof battery (Li-ion 7.2V 3100mAh), 1 dual band VHF / UHF antenna, 1 belt clip , manual in English. 2 year warranty and programming cable included.

Improve performance with a larger antenna such as: Diamond Antenna SRJ77CA and Nagoya NA-771 with a SMA female connector.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user, see more below.

More details

189,00 € tax incl.

In stock

  • With Bluetooth
  • Without Bluetooth

Download

CPS Anytone D878UV + FW 1.24N

CPS programming software v1.24 for Anytone AT-878UV (version 1 only) with firmware 1.24N (June 2021). 9.35M

Programming guide D868/D878 FR

KD0PNC programming guide 1.26 in french for the Anytone AT-868UV and AT-D878UV, translated by VE2RI. 1.33M

Programming guide D868/D878 EN

KD0PNQ programming guide v1.33 for the Anytone AT-868UV and AT-D878UV. 3.99M

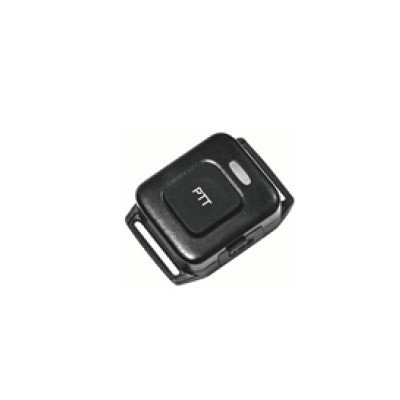

Bluetooth D878UV PLUS

Operating instructions for the PTT Bluetooth button included on the D878UV PLUS version 419.53k

CPS for Anytone D878UV + FW 1.23

Anytone CPS software, drivers and firmware v1.23, April 2021 9.36M

CPS for Anytone D878UV + FW 1.21

CPS programming software v1.21 for Anytone AT-878UV with firmware 1.21, September 2020. 9.25M

CPS Anytone AT-D878UV + FW 1.22

CPS Anytone v1.22 programming software and firmware 1.22 (february 2021) for AT-D878 9.26M

Codeplug template AT-878UV

DMR configuration template file, codeplug for the AT-878 of the REF25 with the DMR repeaters from Bourgogne-Franche-Comté region in France, produced by F8GHE. 67.29k

Data sheet

Datsheet Anytone AT D878-UV & PLUS

2 Timeslot, TDMA, compatible MOTOTRBO Tier I & II
Power: 6W / 2.5W / 0.5W
RX and TX frequency (amateur radio band): 144-146 MHz and 430-440 MHz
Auto-detection digital or analog mode
4000 channels, 10000 Talkgroup and 150000 Contacts
VFO button function to change frequencies
APRS function in FM or DMR
Bluetooth (option)

TFT color LCD display, dual display, dual standby
Bandwidth: 12.5 K / 25 K (analog); 12.5K (DMR)
No frequency: 5Khz, 6.25Khz
Coding and decoding CTCSS / DCS
DTMF / 2TONE / 5TONE / Tone 1750Hz
Up to 5 different DMR IDs
Icon indicator or voice prompt when connecting with a relay
Roaming function (selection of an accessible relay in a predefined list)
Encryption function
SMS function via the keyboard
Registration function
GPS function
ANI function, PTT ID, VOX
Male SMA antenna connector
Emergency alarm (with GPS data transmission)
KENWOOD microphone / headphone jack
Antenna connector: SMA Male (compatible antenna SMA female)
Waterproof: IP54
Battery: 3100mAh battery
CE and FCC certified
2 years warranty by Passion Radio

Find the latest versions CPS and firmware update for the Anytone AT-D878UV in the download area below or at OPEN-DMR - AT-878UV.

How to activate VFO mode and additional menus

To activate the VFO mode via the P2 key as well as the additional menus, here is how to proceed:

Go to the "Optional Settings" menu, then in the "Other" menu then in the "choose working mode" drop-down menu, select "amateur mode", so the modifications are applied, rewrite the codeplug on the radio.

P2 vfo mode anytone

Roaming / roaming function of AT-D878UV

The Anytone AT-D878UV is equipped with the new roaming function that allows, when roaming, the walkie-talkie to automatically switch to a pre-defined relay in a list.

The romaing function of the D878UV can be triggered manually or via a timer allowing the radio to switch to the loudest relay.

Note that the D878UV does not use the GPS position to locate the relays around it, they must be previously registered in the walkie-talkie.

Reminder: The use of the Anytone AT-D878-UV walkie-talkie is subject to license and to the respect by the user of the frequencies and the legislation in force in his country.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user.

Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other.

It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.
