Fixed antenna 868 Mhz SMA 2dB LoRa SIGFOX OPA Design ISM 433-868 Mhz OPA-ANT-FIXE-868-SMA-961 View larger

OPA Design

OPA-ANT-FIXE-868-SMA-961

New product

France

Outdoor antenna 868 Mhz SMA 2dBi LoRa Helium SIGFOX LoraWan

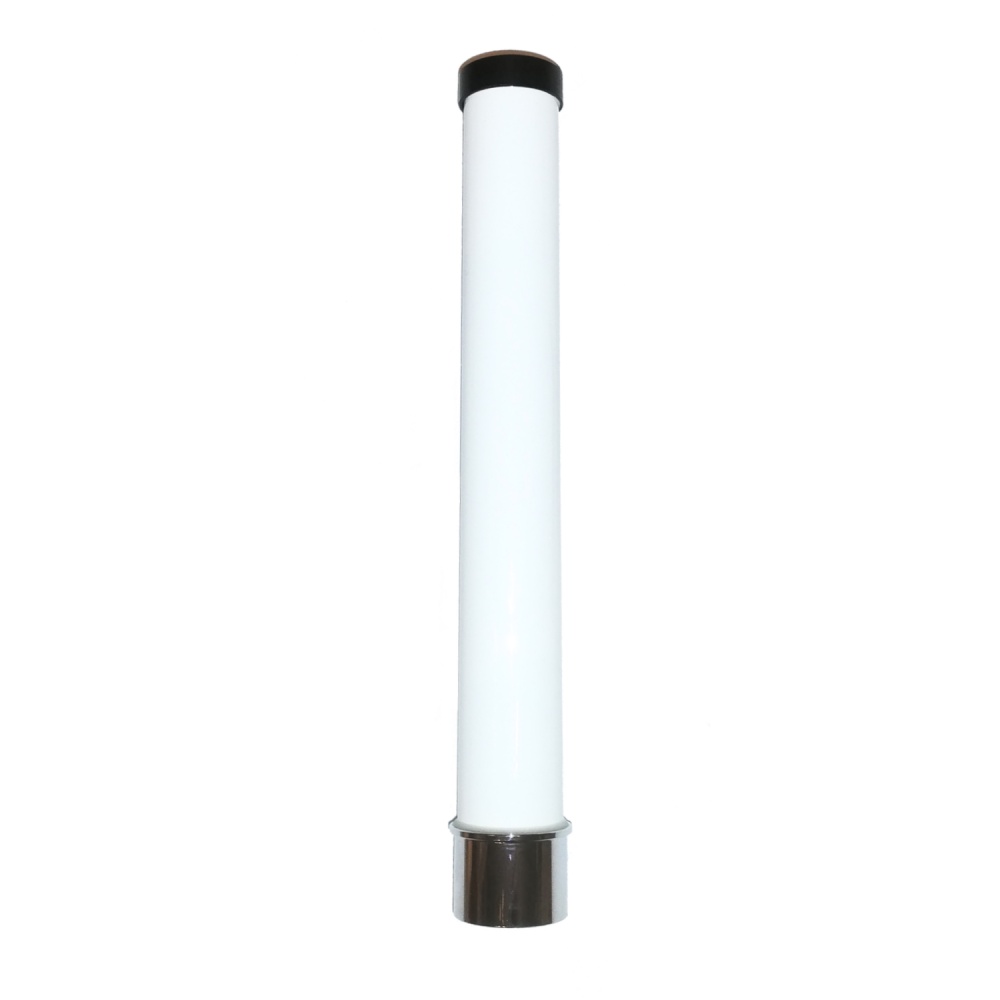

Omnidirectional vertical fiberglass antenna for outdoor use, transmitting and receiving on the 868Mhz ISM band (e.g. LoRa, LoRawan, Helium HNT hotspot, Sigfox), with 2dBi gain, female SMA connector and mast mounting bracket included.

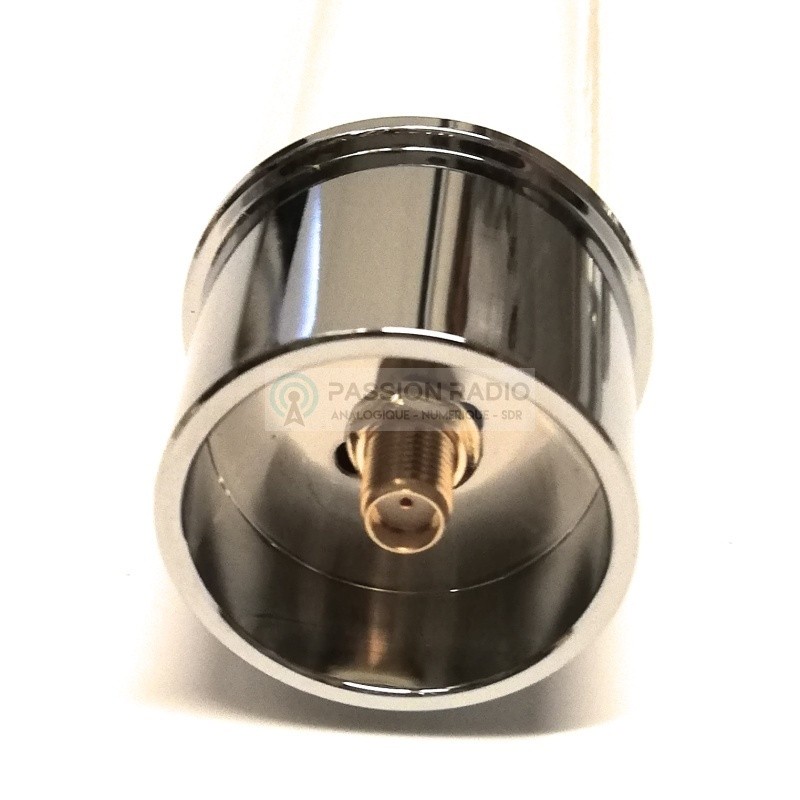

This 868Mhz antenna consists of a half wave dipole encapsulated inside a fiberglass radome with an aluminum mounting base. Color antenna is grey or white depending on availability.

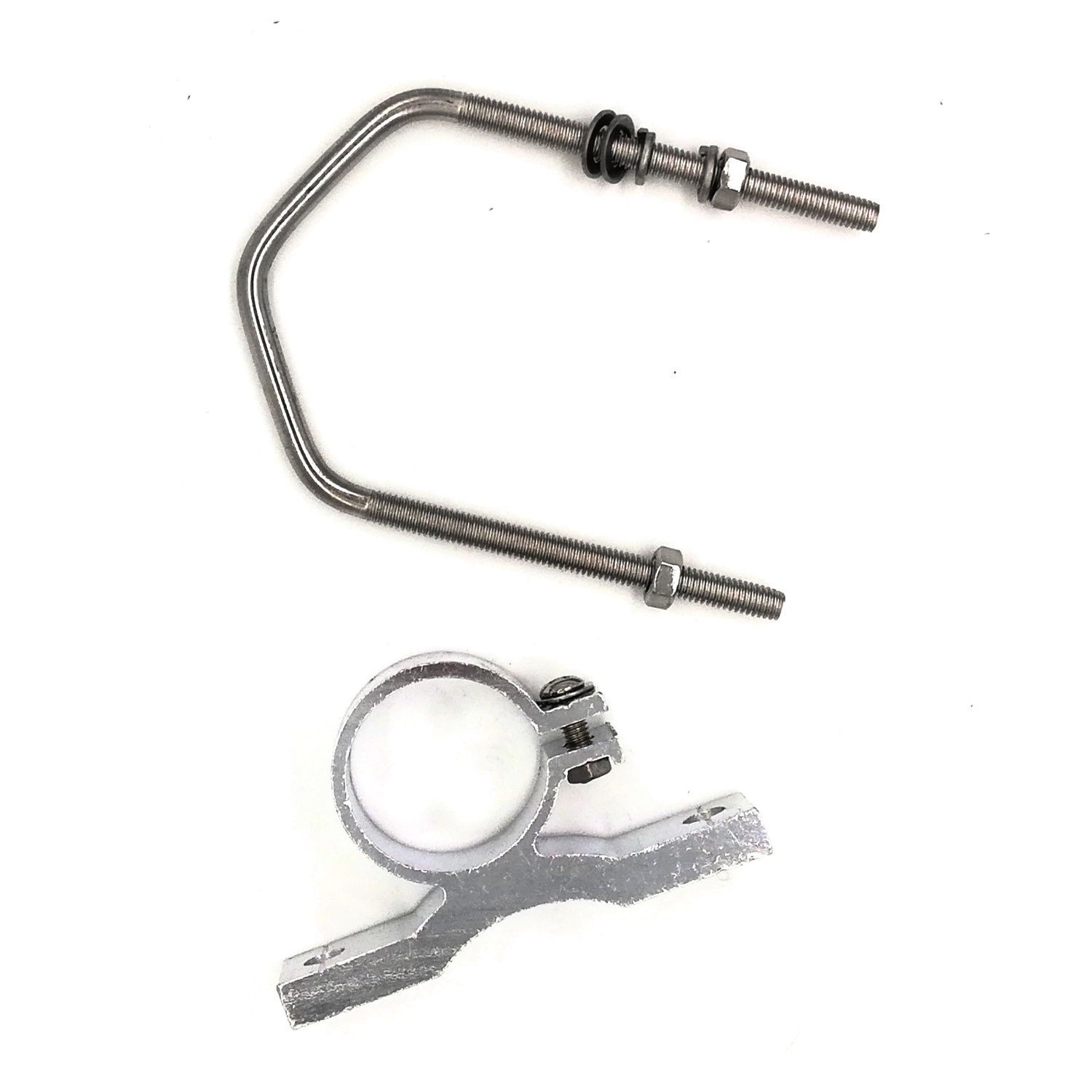

A mast support is included for easy installation on a 35-70mm diameter mast.

Delivered with: 1 fixed 868 Mhz antenna from OPA Design, with mounting bracket.

More details

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Download

Data sheet

Frequency: 868 MHz ISM band
Antenna type: 1/2 wave dipole
UV resistant fiberglass radome
Color : Grey or white depending on availability
Connector: SMA female
Installation type: 35-70 mm diameter mast with bracket supplied
Gain: 2.15dBi
SWR: ≤1.5
Polarization Type: Vertical
Maximum power: 10W
Impedance: 50 Ohms
Dimensions: 25cm
Tube diameter: 30mm
Compatible: LoRawan, Sigfox Zigbee networks and Helium HNT Hotspot
Made in France
2 years warranty
