TinySA ULTRA Spectrum analyser & signal generator 100 Khz to 5400 MHz

View larger

Display all pictures

Manufacturer: RF KONNECT

Reference: ANALYSEUR-TINYSA-ULTRA-2543

Condition: New product

Country of origin:

China

TinySA ULTRA Spectrum analyser & signal generator 100 Khz to 5.4 GHz

No review at the moment

Demander un devis

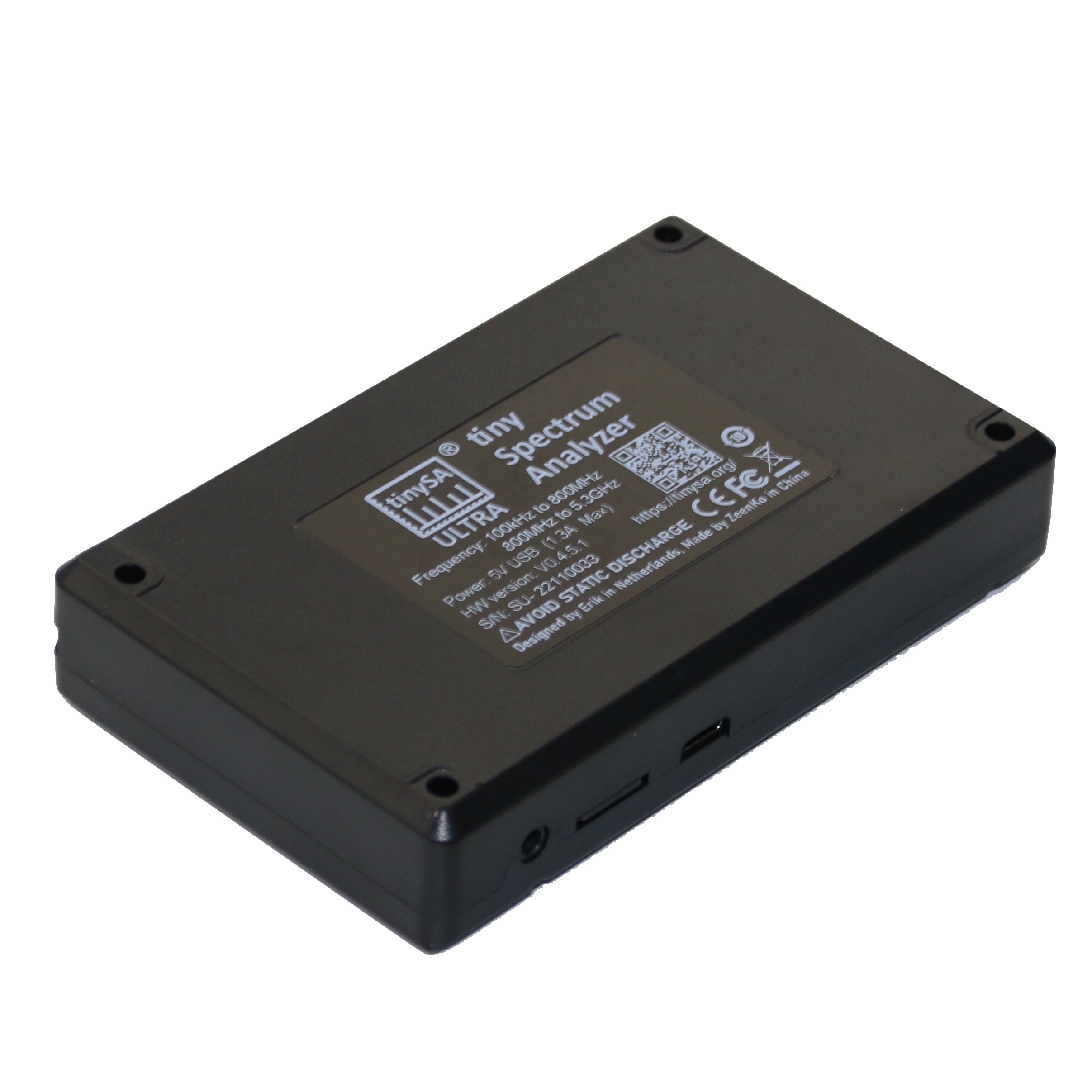

The tinySA ULTRA is the new, more powerful version of the mini portable spectrum analyser, for the MF/HF/VHF bands from 100 KHz to 800 MHz and the UHF and SHF bands from 800 MHz to 5400 MHz in ULTRA mode (downgraded).

480*320 pixel TFT 4" screen resolution
16 bits per RGB pixel
Resistive touch control
Jog switch control
USB serial port control
Optional TTL USART port on internal PCB
5V USB power supply (330mA consumption)
3000mAh battery
USB interface: USB type-C
Hardware version V0.4.5.1
MicroSD card
Dimensions: 117 x 72 x 23mm
2-year warranty

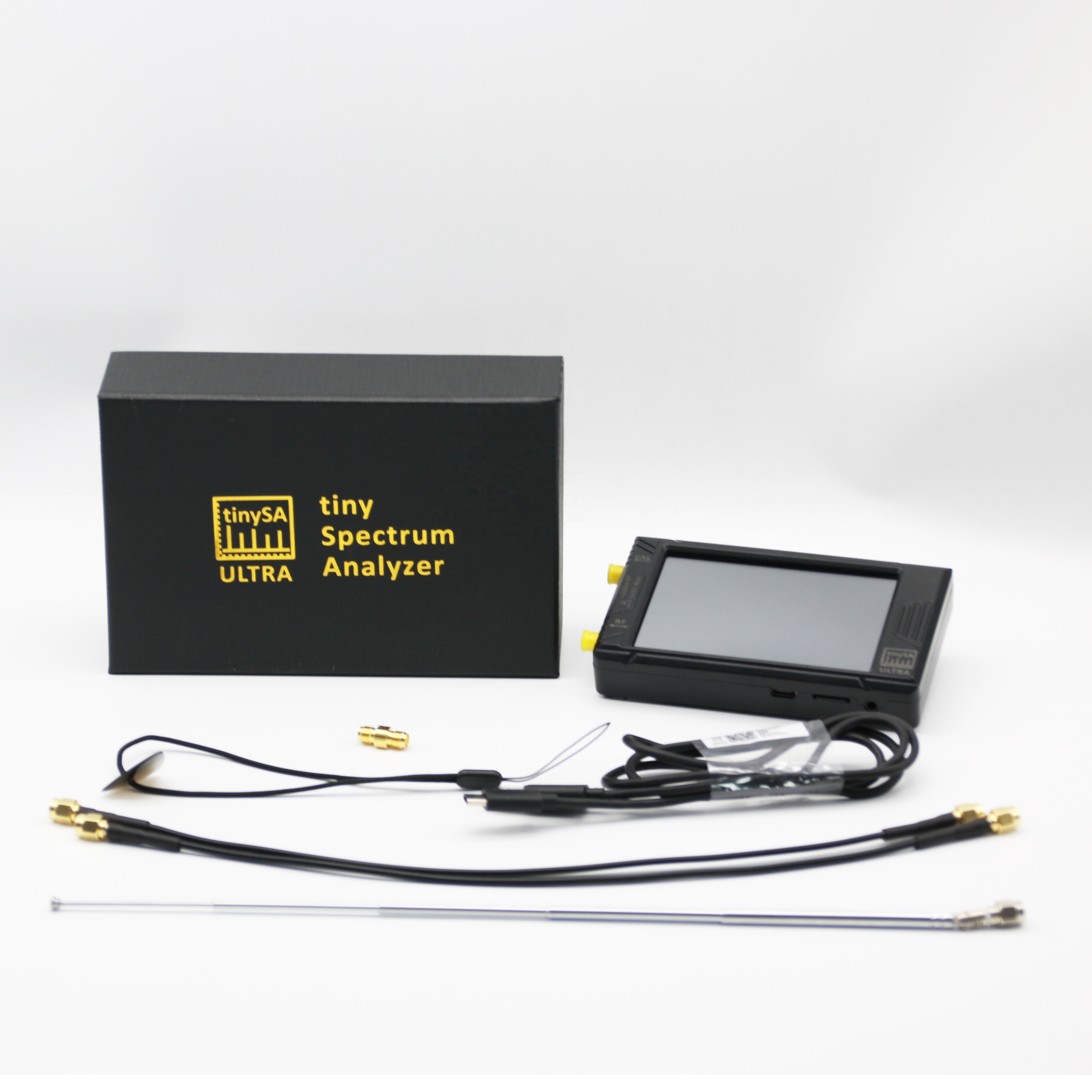

Supplied with: 1 TinySA ULTRA original warranty (official Erik Hugen version) with 3.7V 3000mAh battery and 4" screen, 1 USB Type-C data cable, 2 30 cm SMA ALSR100 cables, 1 SMA-SMA connector, 1 antenna with SMA connector, 1 32 GB MicroSD card (installed).

Official Erik Hugen version. Also available in TinySA 100 KHz to 960MHz version.

More details

Download

User Guide TinySA (FR)

Tiny-SA user manual in French by Kurt from OZ7OU. 7.31M

User Guide Tiny-SA (EN)

TinySA user manual in English by Kurt from OZ7OU. 7.31M

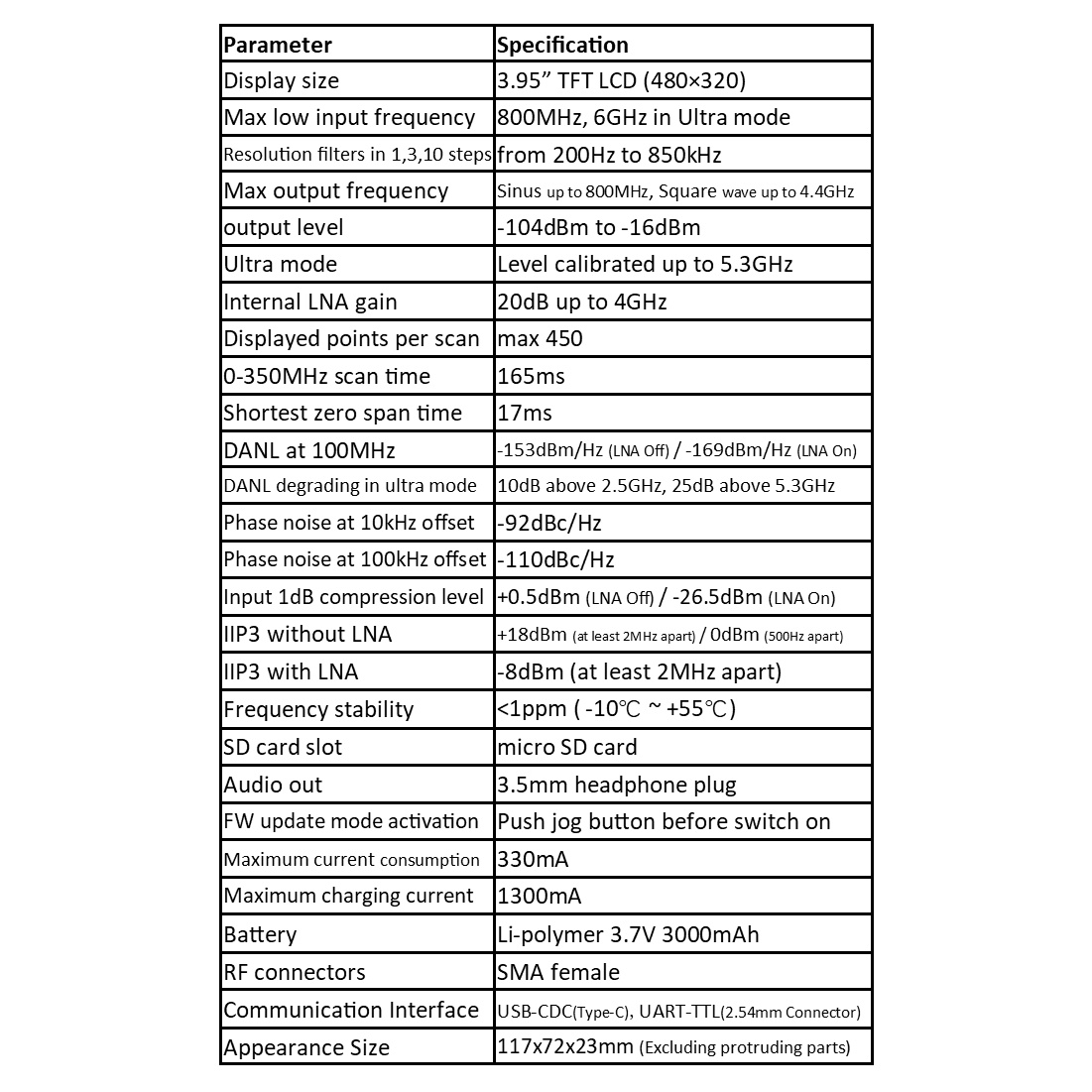

Data sheet

Spectrum analyser specifications

Input frequency range from 100kHz to 800MHz in normal mode and up to 6GHz in ULTRA mode.
Input impedance of 50 ohms when input attenuation is set to 10 dB or more.
Manual and automatic input attenuation selectable between 0dB and 31dB in 1dB steps when LNA is not active
Maximum input +/-5V DC
Absolute maximum input level of +6dBm with 0dB internal attenuation
Maximum absolute short-term input power of +20dBm with 30dB internal attenuation
Suggested maximum input power of +0dBm with internal attenuation in automatic mode
For best measurements, input power should be less than -25dBm.
Third-order modulation intercept point (IIP3) of +15dBm with 0dB internal attenuation
Compression point of 1dB at -1dBm with 0dB internal attenuation
Power detector resolution of 0.5dB and linearity as a function of frequency of +/-2dB below 5.3GHz, +/-5dB between 5.3GHz and 6GHz
Absolute power level accuracy after power level calibration of +/- 2dB
Optional integrated 20dB LNA with 5dB noise figure
Lowest discernible signal without LNA at 30MHz using 30kHz resolution bandwidth of -102dBm
Lowest discernible signal with LNA at 30MHz using 200Hz resolution bandwidth of -145dBm
Frequency accuracy equal to selected resolution bandwidth
Phase noise of -90dB/Hz at 100kHz offset and -120dB/Hz at 1MHz offset
Spur-free dynamic range when using a 30kHz resolution bandwidth of 70dB
Resolution filters with a width of 0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz
On-screen resolution of 51, 101, 145, 290 or 450 measurement points
Scanning speed of over 1000 points/second using the highest resolution filters
Automatic optimisation of the actual scan points to ensure coverage of the entire scan range, regardless of the resolution bandwidth chosen
Noise suppression option to assess whether certain signals are internally generated or actually present in the input signal
Headphone output for listening to demodulated audio (AM only). Stereo connector only, higher impedance is stronger, short circuit protection

Signal generator specifications

Sine wave output with harmonics less than -40dB from fundamental from 100kHz to 800MHz
Output level selectable in 1dB steps between -110dBm and -20dBm
Above 800 MHz, choice of two output modes
Cleanest signal mode: square wave, up to 4.4 GHz with coarse frequency steps and a less accurate output level
Maximum precision mode: reduced harmonics with possibly strong spurs up to 5.4GHz with a frequency resolution equal to less than 800MHz and fine output level steps
Level accuracy +/- 2dB up to 800Mhz between -72dBm and -18dBm, less accuracy below -72dBm, even less accuracy below -110dBm
Output frequency resolution 57.2Hz
Optional AM or FM modulation frequencies between 50Hz and 5kHz (AM) or 1kHz (FM) or sweep over selectable frequency range
AM modulation depth between 10% and 100
FM deviation between 1kHz and 300kHz
Optional output level sweep over entire output level range
Optional square wave output with -35.6 dBm fundamental connected to calibration output
Frequency can be set to 1 MHz, 2 MHz, 4 MHz, 10 MHz, 15 MHz or 30 MHz

TinySA ULTRA documentation, datasheet, software, firmware and wiki are available on : https://www.tinysa.org/wiki/

Support and Google Groups: https://groups.io/g/tinysa
