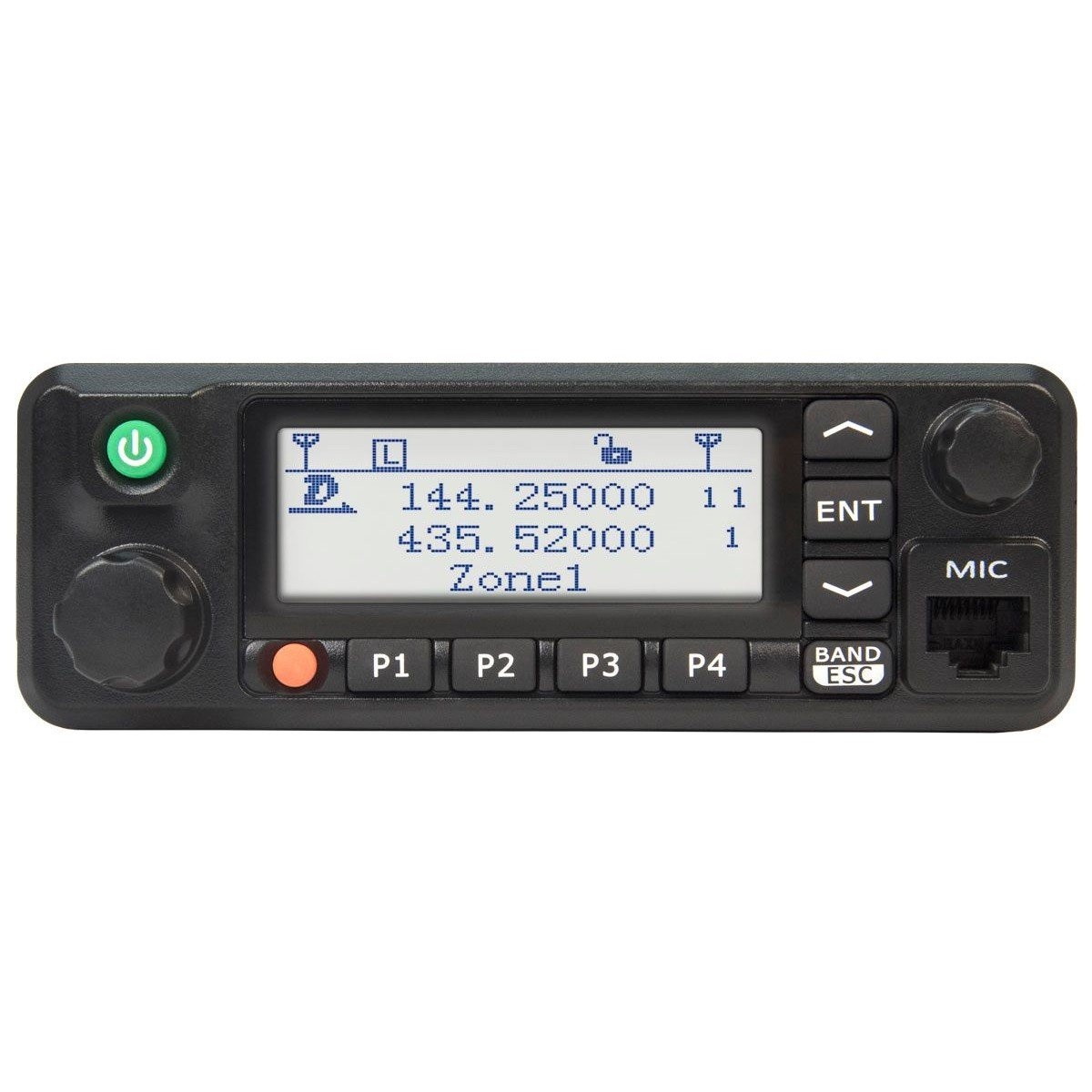

Mobile VHF-UHF TYT MD-9600 V5 (without STM32) FM & DMR View larger

TYT

New product

China

Mobile VHF-UHF TYT MD-9600 V5 (STM32 generic) FM & DMR

rating Read the review
Average rating: 5/5 Number of reviews: 1

The TYT MD-9600 V5 (without STM32, see below*) is a digital VHF-UHF DMR and analogue FM mobile, covering frequencies from 136 to 174 MHz in VHF (with a maximum power of 50 W) and from 400 to 480 MHz in UHF with a maximum power of 40 W).

This model features 6.25/12.5/25khz frequency step, 1750Hz tone, CTCSS, DTMF, 1000 channels, 16 zones, DMR Tier2, TDMA (2 TimeSlot), and Mototrbo compatibility.

Each TYT MD-9600 V5 unit is supplied with a microphone, mounting bracket, DC power cable, screws and fuse. It also includes an English manual and a TYT USB programming cable.

* The V5 differs from the V4 only in the microprocessor: the generic version on the V5 and the original STM32 version on the V4. Functionality, performance, original TYT-MD9600 V4 firmware, codeplugs and programming software for the 2 versions are identical and compatible. Only the Open-firmware version of the alternative firmware is not compatible with MD-9600 V5.

More details

199,40 € tax excl.

299,00 €

This material is no longer available

  • With GPS
  • Without GPS

Download

CPS v1.27 for MD-9600 V4 V5

TYT v1.27 official codeplug editor software for MD-9600 V4 & V5 only 11.6M

Firmware 16.24 MD-9600 V4 V5

Firmware update software 3.07 and firmware 16.24 only compatible with MD-9600 V4 & V5 version 6.85M

Manual MD9600 (FR)

MD-9600 TYT user manual in French translated by Thierry ON2CQ. 921.45k

Firmware 26.45 MD-9600 V4 V5

Firmware 26.45 of May 2021, only compatible with the new version V4 & V5 of the MD-9600 with PLL 2571. 6.77M

Manuel TYT MD-9600 en français

921.45k

Firwmare 26.57 MD9600 V4 V5

For V4 & V5 version. Firmware (CSV) V26.45, (CSV-GPS) P26.45 and (REC) D26.57. 3.12M

Data sheet

  • Adjustable RX and TX frequency range from : 136 to 174Mhz VHF and 400 to 480 Mhz UHF
  • Max. VHF output power: 50W, adjustable 25/15/6W
  • Max. UHF output power: 40W, adjustable 15/10/5W
  • Dual-band VHF and UHF
  • FM analogue and DMR digital
  • 1750Hz Tone
  • CTCSS / DCS tuning
  • VOX
  • Shift for relay
  • Optional GPS
  • Generic microprocessor (unbranded STM32)*
  • Keypad lock
  • Voltage display
  • 2-tone and 5-tone DTMF
  • Alarm, scan, talkaround, timer time-out, auto power-off function
  • VFO pitch adjustment: 5 / 6.25 / 10 / 12.5 / 20/ 25 / 50kHz
  • Antenna connection: SO-239 (UHF female)
  • 2-year warranty and CE standards

* Generic V5 microprocessor

The V5 differs from the V4 only in the microprocessor: the generic version on the V5 and the original STM32 version on the V4.

Functionality, performance, original TYT-MD9600 V4 firmware, codeplugs and programming software for the 2 versions are identical and compatible. Only the Open-firmware version of the alternative firmware is not compatible with MD-9600 V5.

This temporary change of microprocessor version was made necessary by the worldwide shortage of microprocessors, forcing TYT to change microprocessor models to a generic version for the duration of the shortage.

TYT CPS firmware and software

Download the programming software and firmware in the "Download" tab.

Technical specifications V5

MD-9600 V5
Frequency rangeVHF:136-174MHz and
UHF:400-480MHz
Channels1000 Channels
Frequency steps6.25/25/12.5KHZ
Nominal voltageDC 13.8v
Operating temperature-30℃~+60℃
Storage temperature-30℃~+85℃
Dimensions143*50*175mm
Microprocessor MCUGeneric (V5)
Transmitter
RF output powerL:25W H:50W(VHF)
L:25W H:45W(UHF)
FM noise and hum-40dB @ 12.5KHZ
-45dB @ 25 KHZ
Limited modulation+/-2.5KHZ@12.5KHZ
+/-5.0KHZ@25KHZ
Conduction/radiation emission-36dBm<1GHz
-30dBm>1GHz<4GHz
Adjacent channel power-60dB @ 12.5KHZ
-65B @ 25 KHZ
Audio response+1dB~-3dB
Audio distortion3%
FM modulation12.5KHZ:11 K0F3E
25KHZ:16 K0F3E
4FSK digital modulation12.5KHZ(data only):7K60FD
12.5KHZ(data+audio):7K60FXE
Digital protocolETSITS102361-1,-2,-3
Digital vocoder typeAMBE++
Digital modeDMR
Receiver
Frequency stability (-20℃+60℃,+25℃)+/-1.0ppm
Digital sensitivity0.3 uV/-117.4dBm(BER 5%)
0.7 uV/-110dBm(BER 1%)
Analogue sensitivity0.35uV/-116dBm(20dB SINAD)
0.22 uV/-120dBm(20dB SINAD)
Audio power5w
Adjacent channel selectivityTIA603C: 60dB @ 12.5KHZ
ETSI: 60dB @ 12.5KHZ
IntermodulationTIA603C: 65dB
ETSI: 65dB
Parallel channel rejection12dB @ 12.5KHZ
Spurious rejectionTIA603C: 70dB
ETSI: 70dB
Audio distortion @rated audio≤3%
FM noise and hum-40dB @ 12.5KHZ
-45dB @ 25 KHZ
Audio response+1dB~-3dB
Spurious radiation<-57dBm@<1 GHZ
>-47dBm@>1 GHZ

Reminder: The use of the TYT MD9600 mobile radio for transmitting is subject to a licence and to compliance with the following conditions by the user frequencies and legislation in force in the country of use.

This set is sold unprogrammed, without frequencies and without plug code. Programming is the responsibility of the user.
