Micro-earphone compatible with YAESU / MIDLAND / MAXON 2 pin View larger

Komunica

KOM-KP-2201-SL-1179

New product

Spain

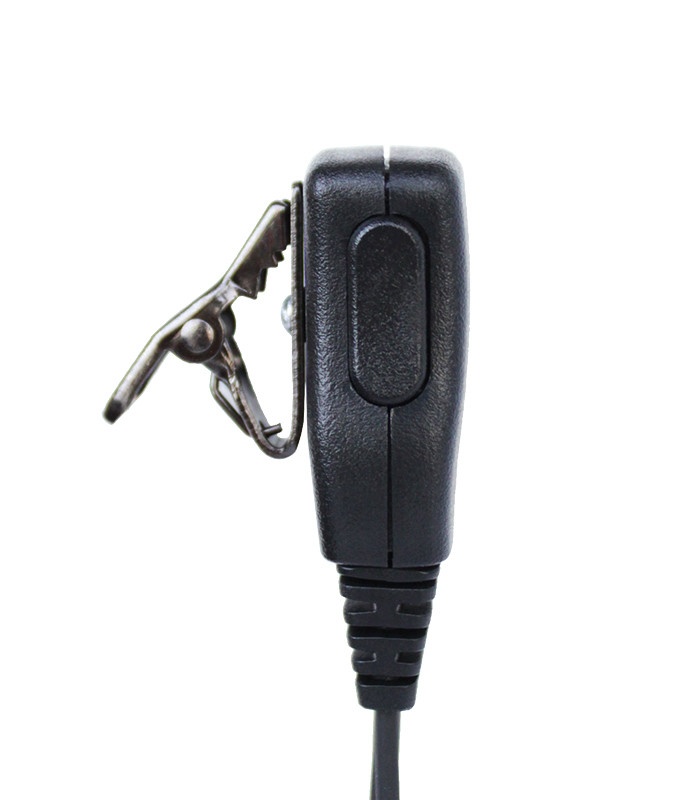

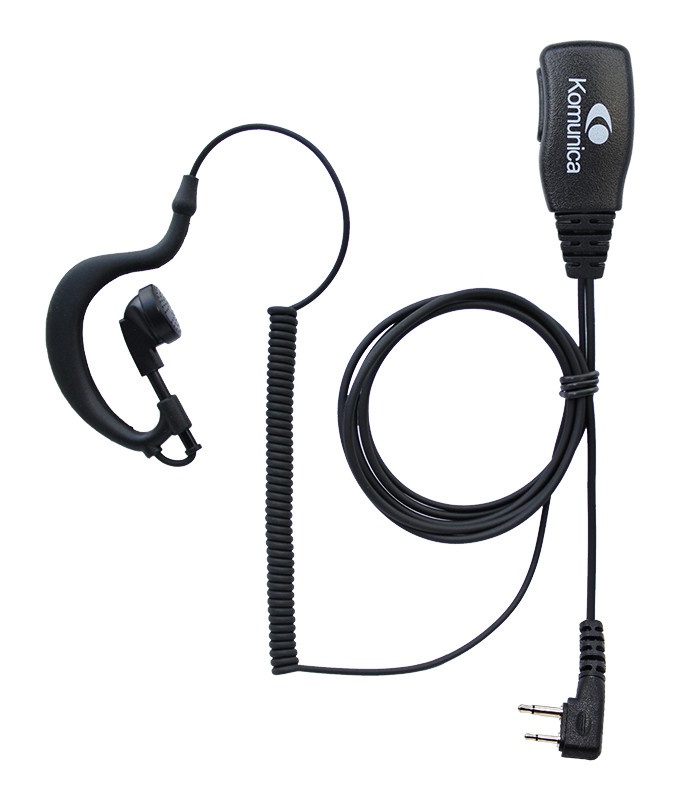

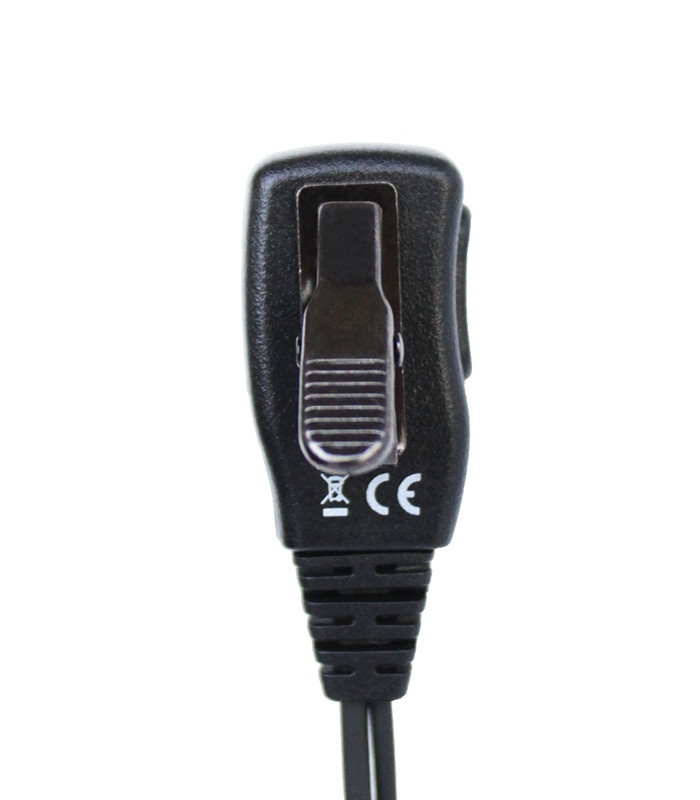

Micro-earphone compatible with YAESU / MIDLAND / MAXON 2 pin

Compatible with: VERTEX / YAESU
VX-310,VX-200,VX-500, VX510V, VX-510L… etc.

MAXON
SP120, SP130, SP140, SL25, GTX200/250, GTX300/325, PL-1145/2215/2415/2245/2445. SL-25/55.

ALAN / MIDLAND
Series G5/G7/G8/G9/M99/M48S/XT70 HP-108, HP-408L

More details

12,90 € tax incl.

In stock

Data sheet

Feature

  • Reinforced cable
  • High quality earphone and microphone provide absolute audio clarify
  • Revolving ear-hook allows use either right or left ear and adapts easily to any ear size
  • Designed for general applications, industrial, hotels hospitals surveillance, etc
Speaker
  • Distorsion:  <= 5% at 100 Hz – 5 KHz 1mW
  • Input Power:  Rated: 10mW Max:20mW
  • Speaker Sensitivity: 80dB±3dB @ 1kHz
  • Rated Resistance: 32 ohms ± 15%
  • Working Temperature:  -20ºC ~ + 55º
Microphone
  • Microphone Type:  Electret Microphone
  • Frequency Range: 100Hz - 10kHz
  • Directivity:  Omni-directional
  • Sensitivity: <=.2k ohms
  • Impedance:  -42dB±3dB @ 1kHz
  • Working Voltage:   1V~10V
  • Working Temperature:  -20ºC ~ + 55º
