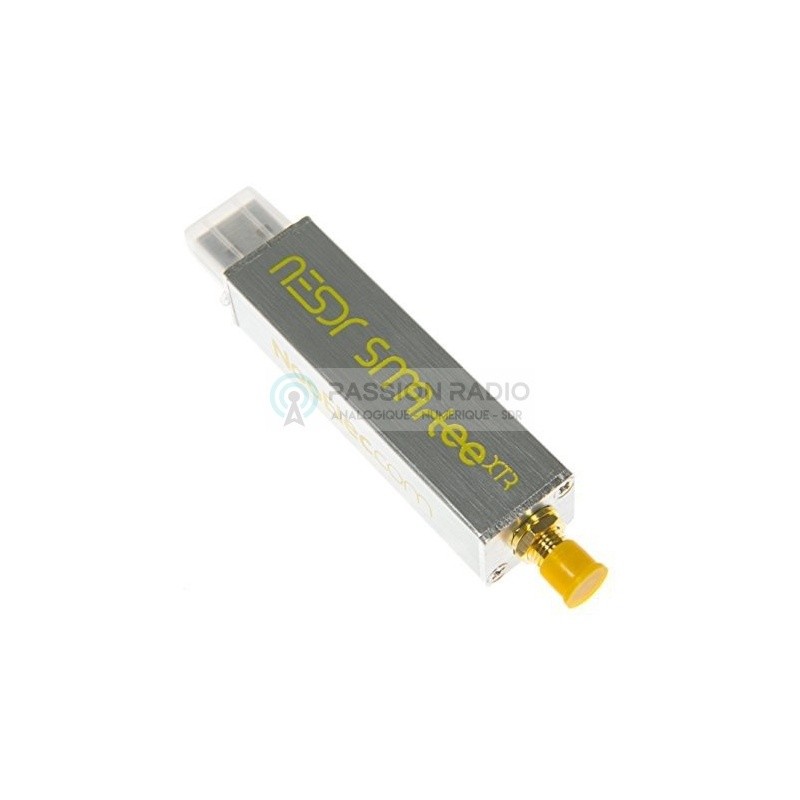

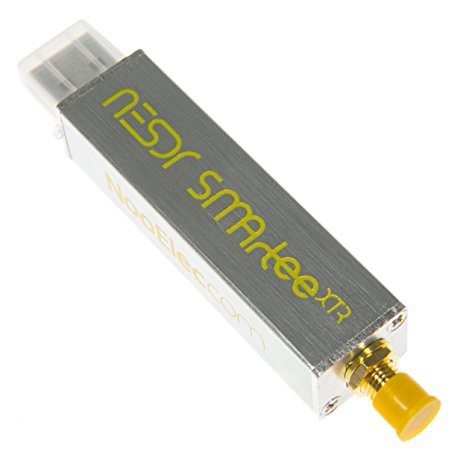

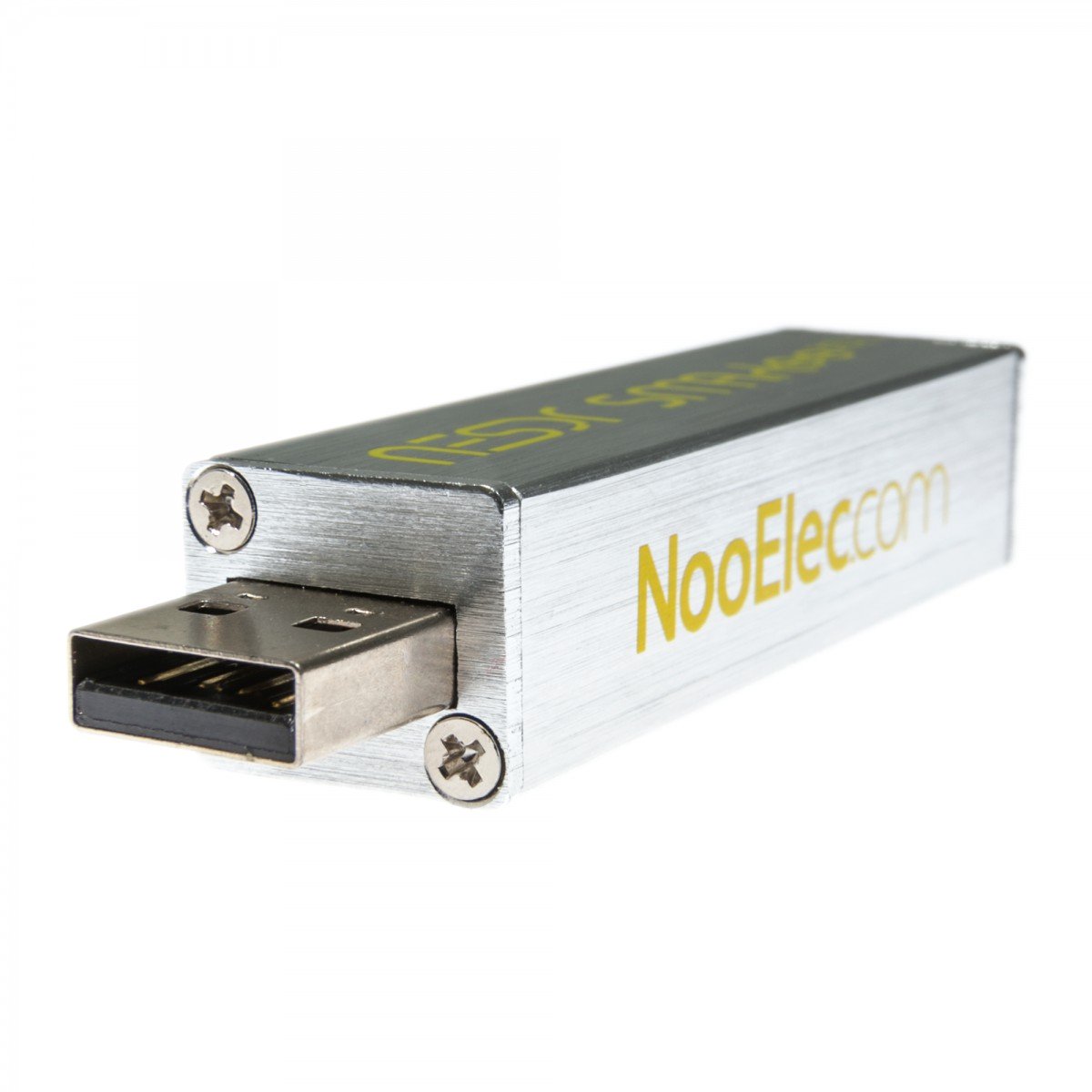

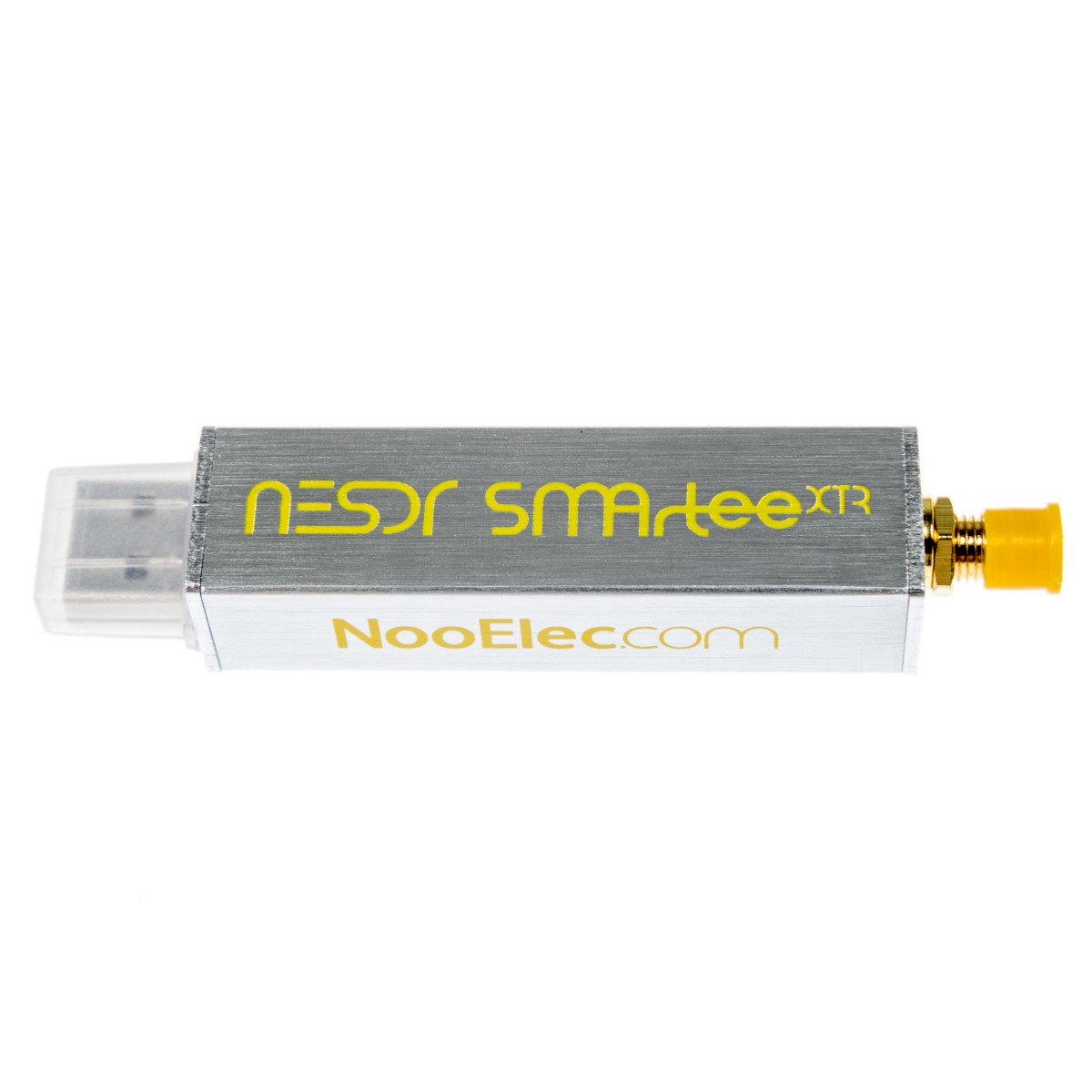

Clé SDR Nooelec SMARTee XTR (TCXO + SMA + Bias-T + boitier)

The Nooelec SMARTee dongle is the new enhanced version of E4000 tuner with RTLSDR2832, for SDR reception from 65 to 2300Mhz (with a hole around 1100-1200Mhz), works with all major SDR software for Windows, linux Or Mac.

The improvements of the NeSDR Smartee XTR version:

- TCXO 0.5ppm for better stability and precision
- RF voltage regulator and shielded inductor
- Integrated radiator for cooling the SDR key
- Antenna connector in female SMA (instead of MCX)
- Power supply via SMA Bias-Tee 3.3V (100mA) max.
- Aluminum housing to protect the key against interference

Comes with: 1 Nooelec Smartee SDR dongle, without antenna or CD.

Optional: Add HF frequencies from 0.5 to 50 MHz with the converter HF SDR Ham It Up.
.
Also available in optimized version with SMA, TCXO and Bias-Tee: SmarTee XTR

65,00 € tax incl.

Out of stock, available soon 5-7 days

Order it before 10:00 on lundi and receive it between Tuesday 22nd December and Wednesday 23rd December with Chronopost Relais
