Nooelec NESDR Nano 3 RTL-SDR 25MHz - 1750MHz ultra-compact TCXO aluminium case

rating No review at the moment

The Nooelec NESDR Nano 3 is an ultra-compact SDR (17x8x20 mm, 15g) designed for portable and embedded SDR applications. Housed in an aluminium case with internal heatsink, it incorporates a high-stability 0.5 ppm TCXO, the R820T2 tuner and SMA connectivity via an articulated adapter. Ideal for Raspberry Pi, USB OTG or multi-SDR installations in a small space.

  • Extremely compact format, ideal for mobility and integration
  • Aluminium case with thermal pads for efficient dissipation
  • Ultra-stable 0.5 ppm TCXO (low phase noise)
  • SMA connector via articulated adapter (SMA or MCX)
  • Compatible with a wide range of SDR software (Windows, Linux, macOS, Android, Raspberry Pi)
  • R820T2 tuner covering ~25 MHz to 1750 MHz
  • Reduced EMI environment thanks to fully shielded aluminium casing

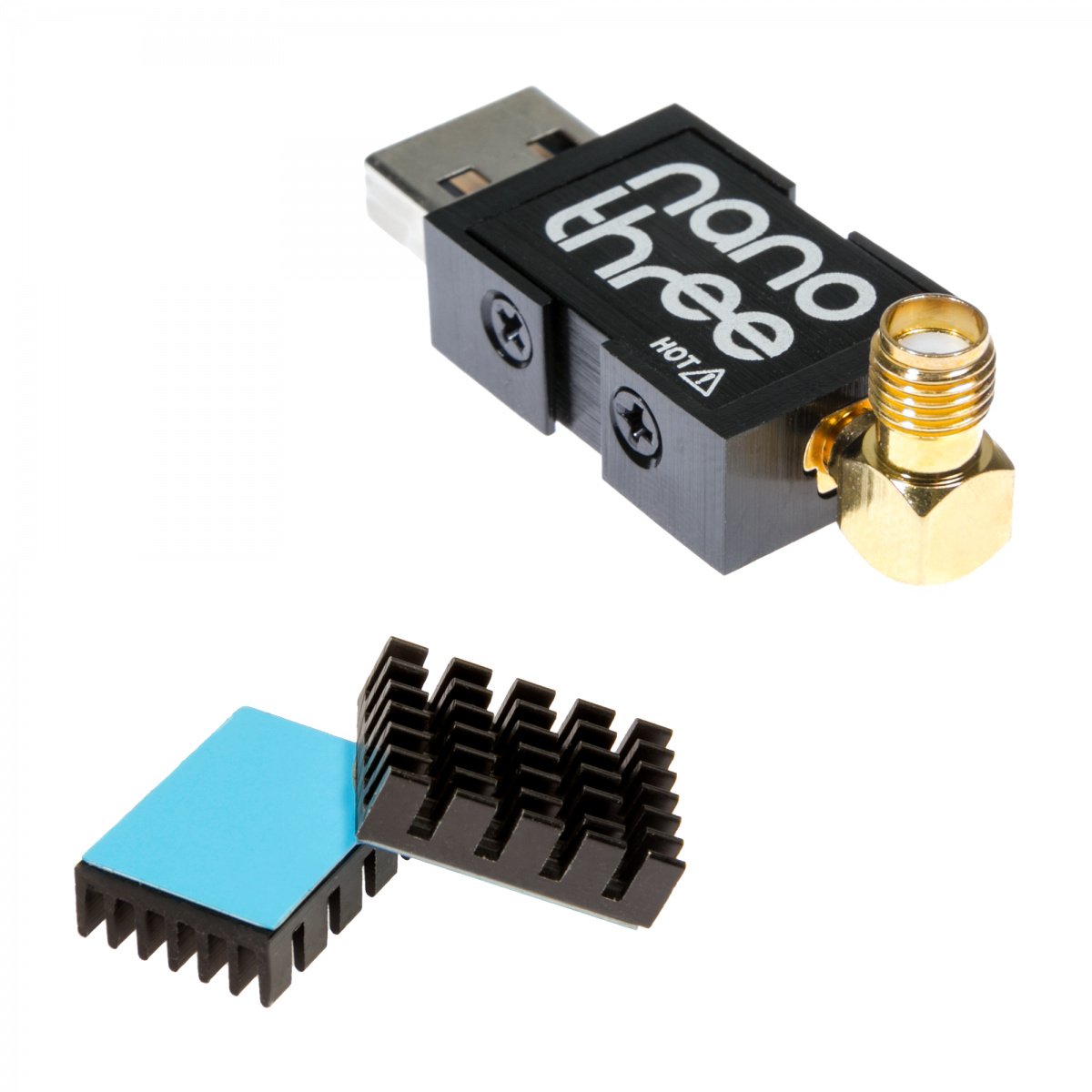

Supplied with : NESDR Nano 3, anodised aluminium case, SMA articulated MCX adapter, heatsink.

More details

65,43 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • RF tuner: Rafael Micro R820T2
  • USB interface / demultiplexing: RTL2832U
  • TCXO: 0.5 ppm, ultra low phase noise
  • Frequency range: approx. 25 MHz to 1750 MHz

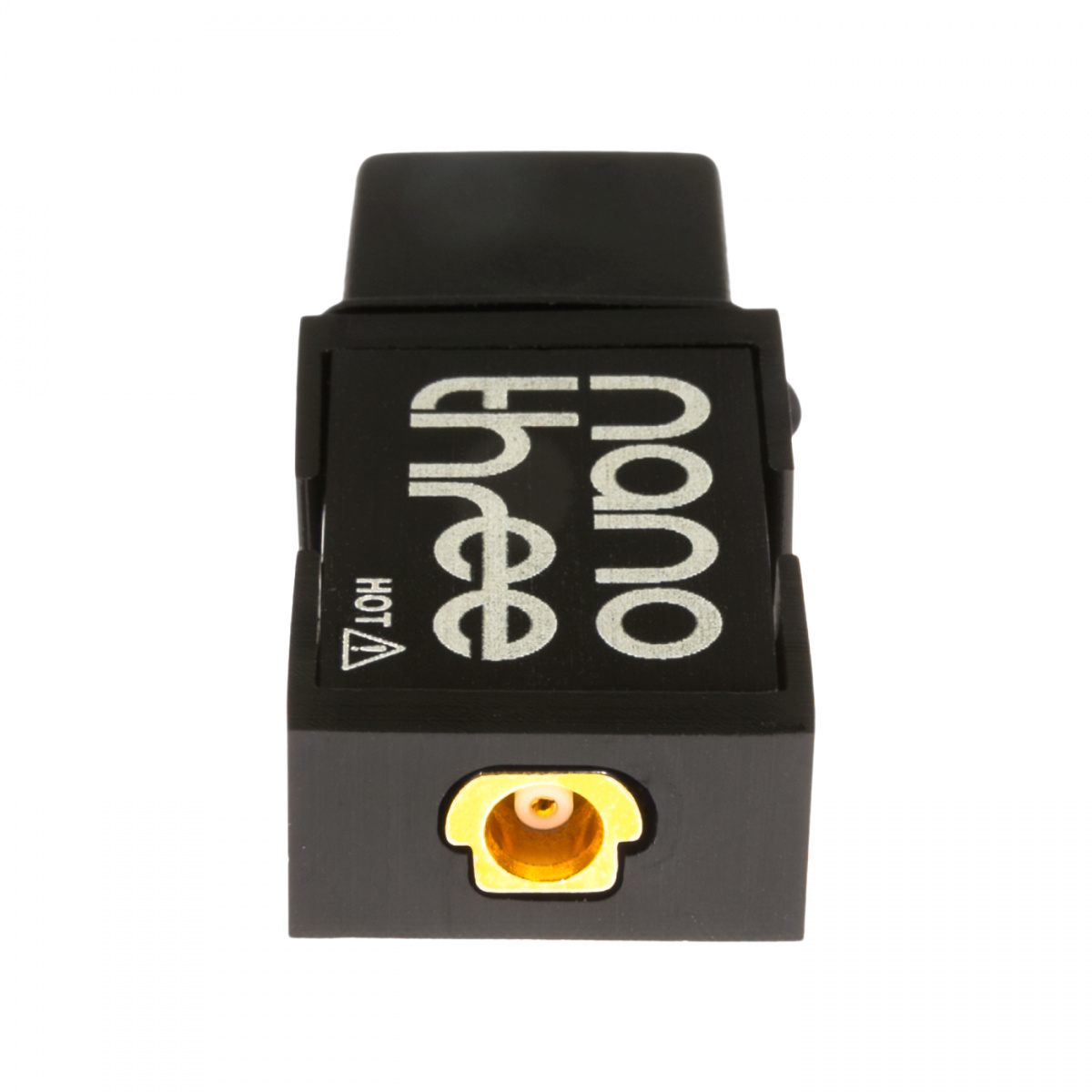

  • Antenna connection: MCX (articulated SMA adapter included)
  • Housing: brushed, anodised aluminium
  • Heat dissipation: Internal thermal pads and additional heatsink supplied for advanced cooling
  • Normal case heating (expected behaviour)
  • Weight: ~15 g
  • Size: 17 mm x 8 mm x 20 mm
  • Aluminium housing limits internal emissions
  • Protects RF chain from external interference
  • Can be used in sensitive environments (automotive, aerospace, embedded)
  • Software compatibility: Windows, Linux, macOS, Android, Raspberry Pi (includes multi-SDR applications)
  • Software: SDR#, HDSDR, CubicSDR, GQRX, GNU Radio, PlanePlotter, SDR Touch, SDRangle, etc.

Typical SDR applications :

  • ADS-B, ACARS, AIS reception
  • RF spectrum analysis
  • Digital and analogue radio
  • Amateur radio experimentation
  • On-board integration (UAVs, vehicles, IoT)
