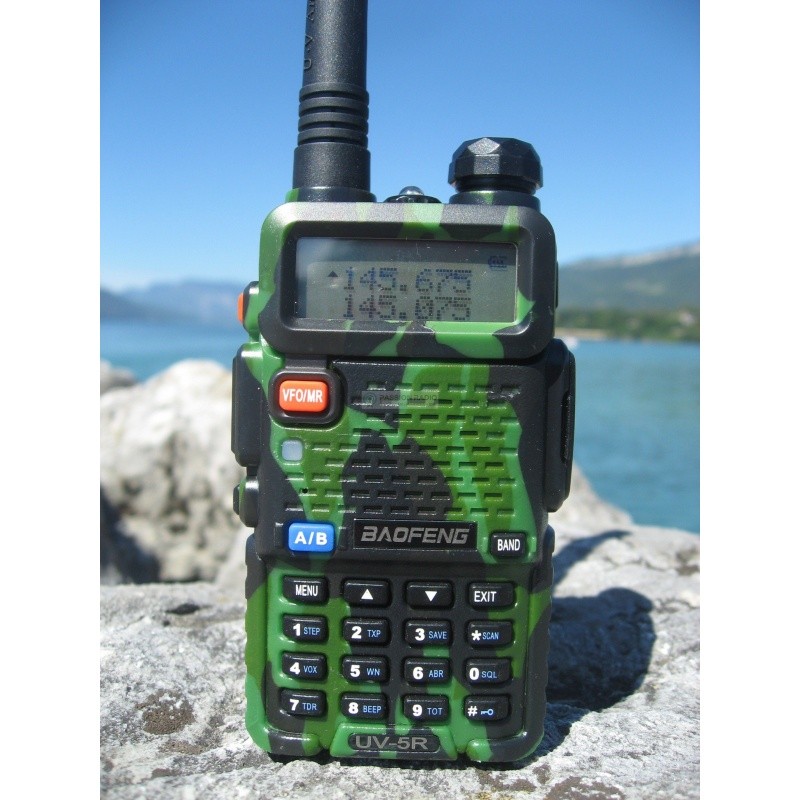

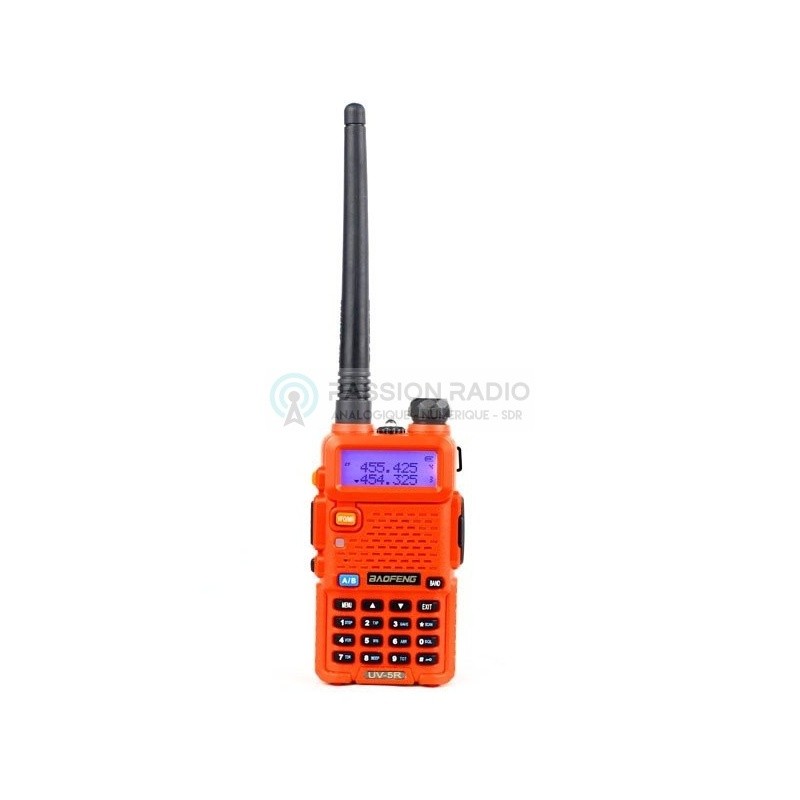

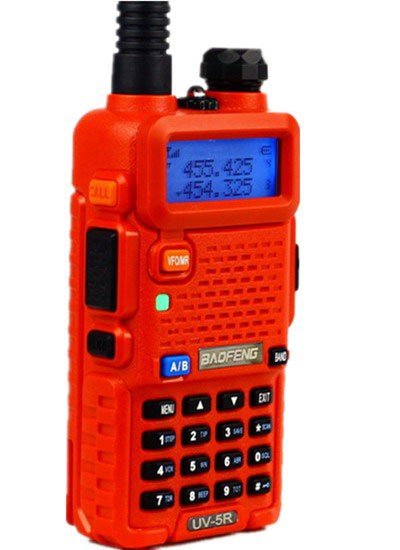

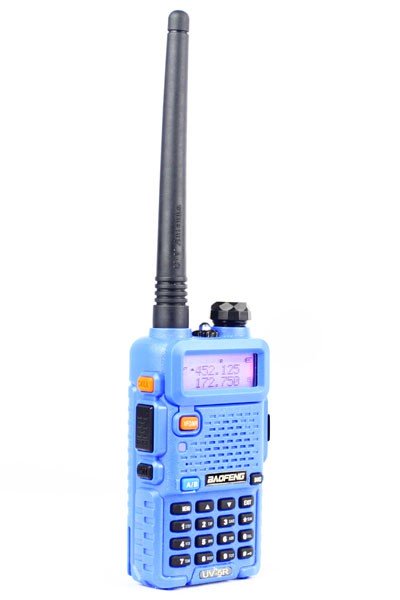

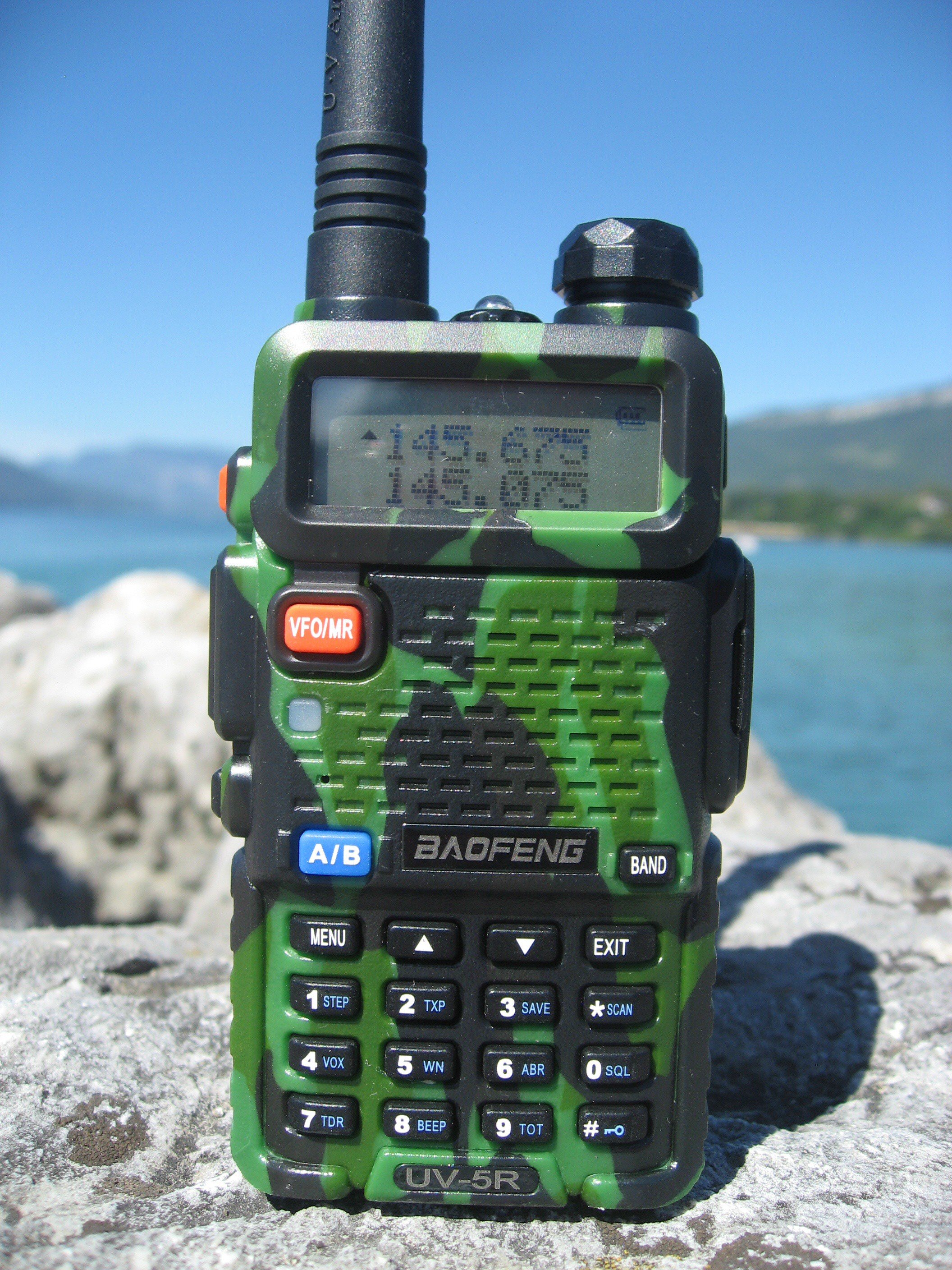

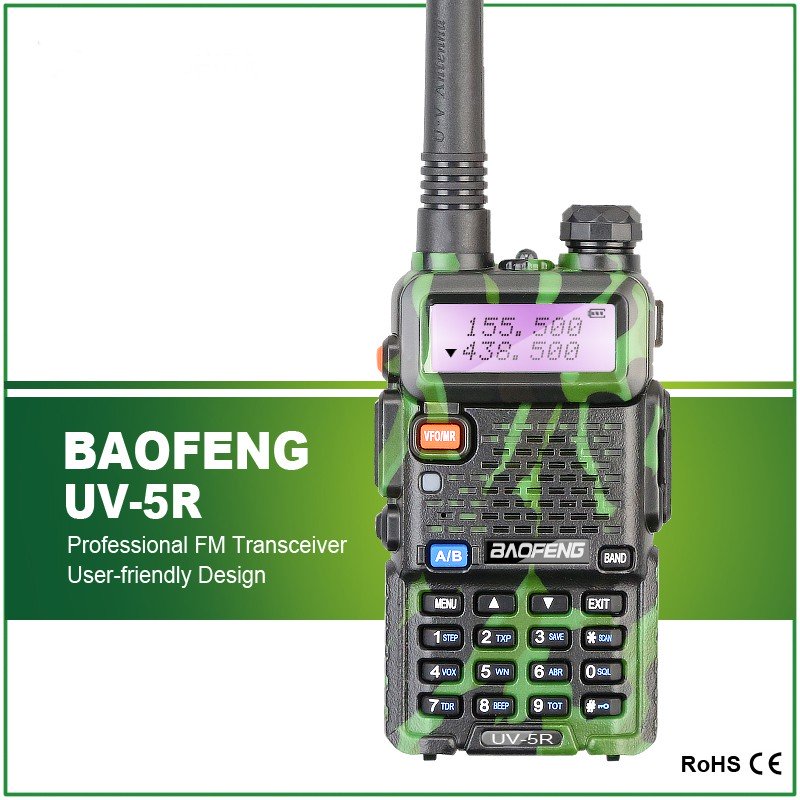

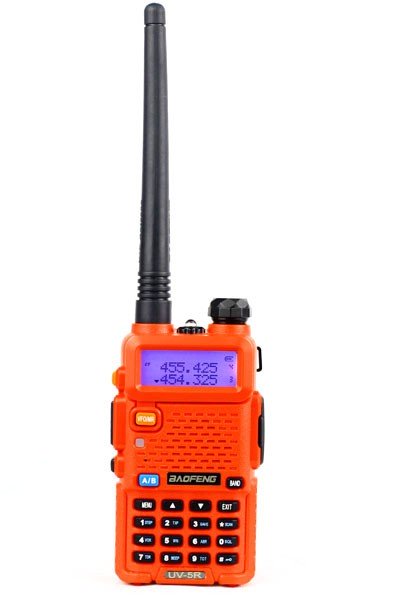

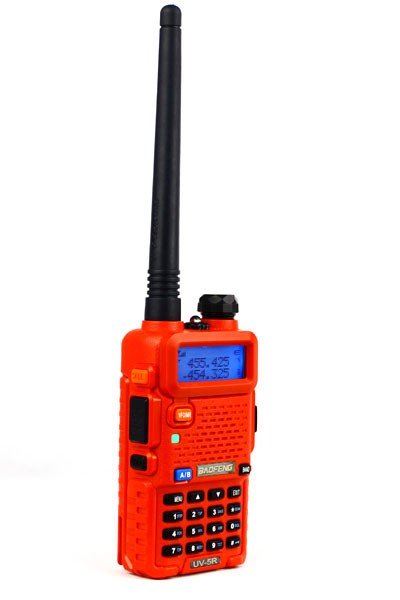

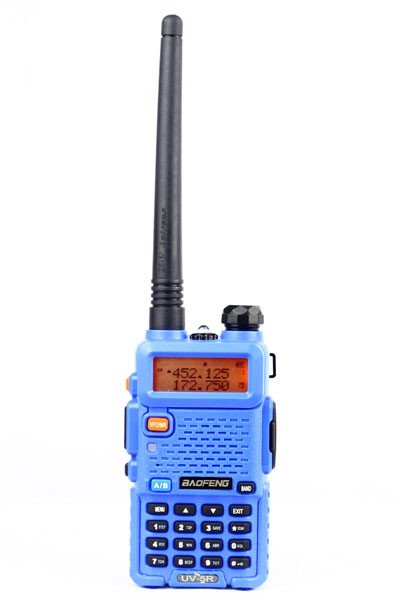

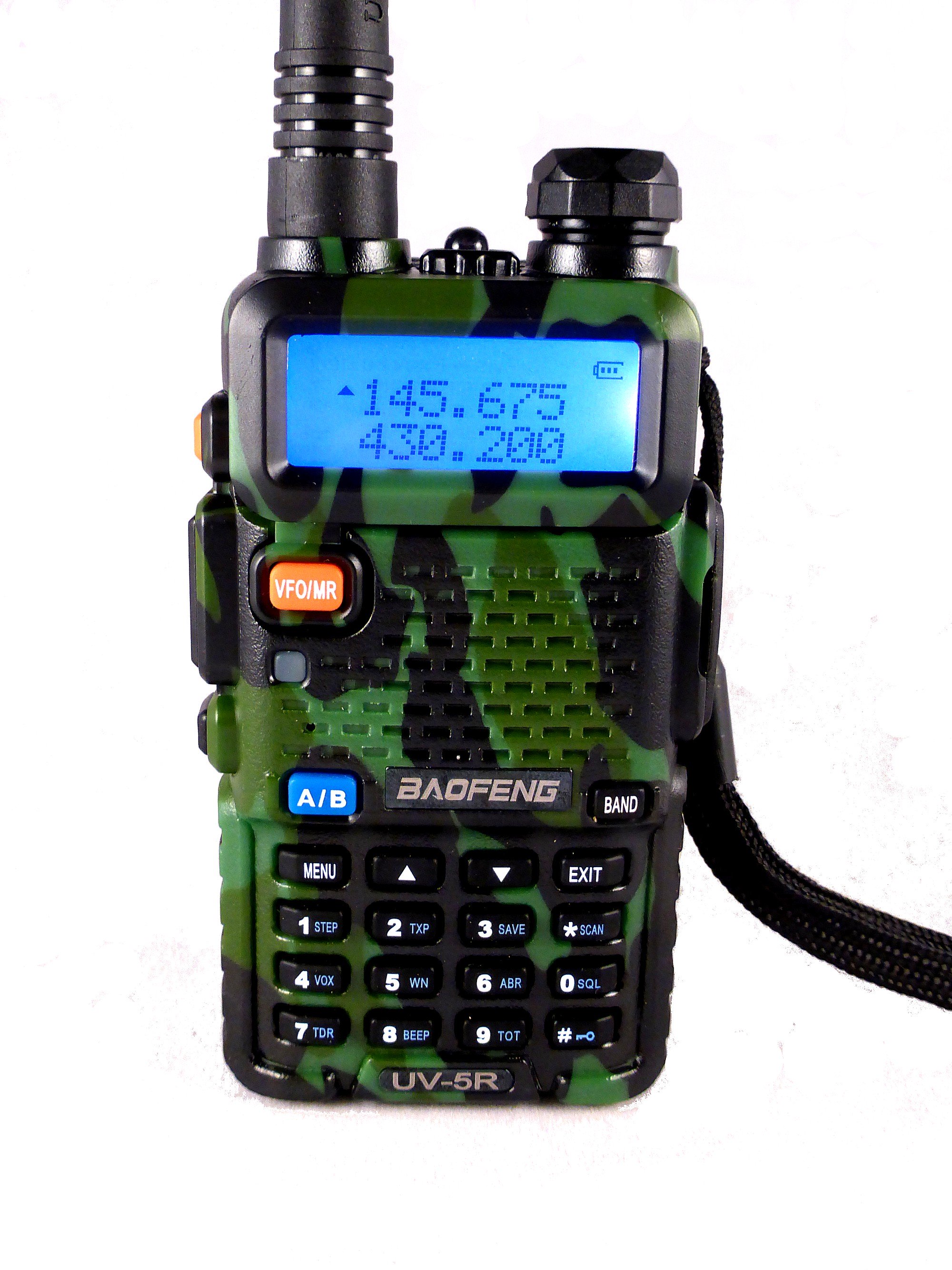

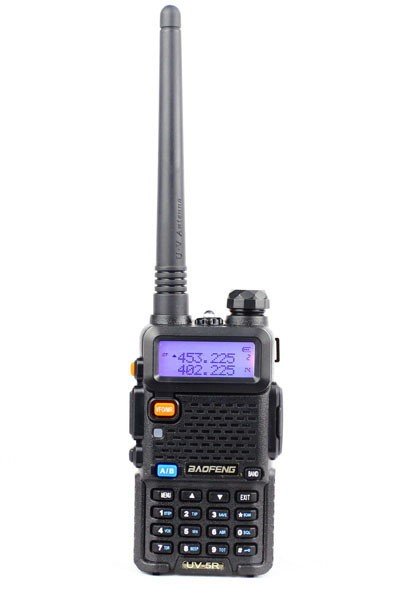

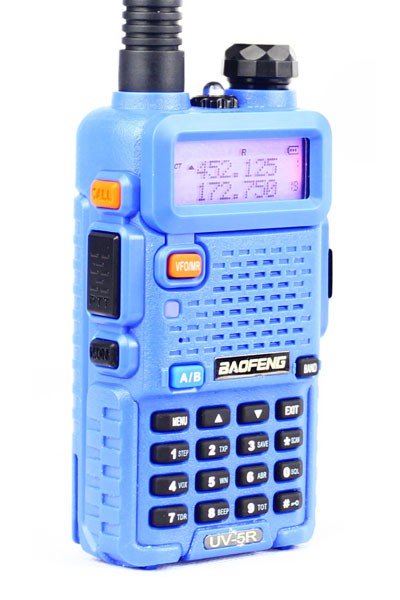

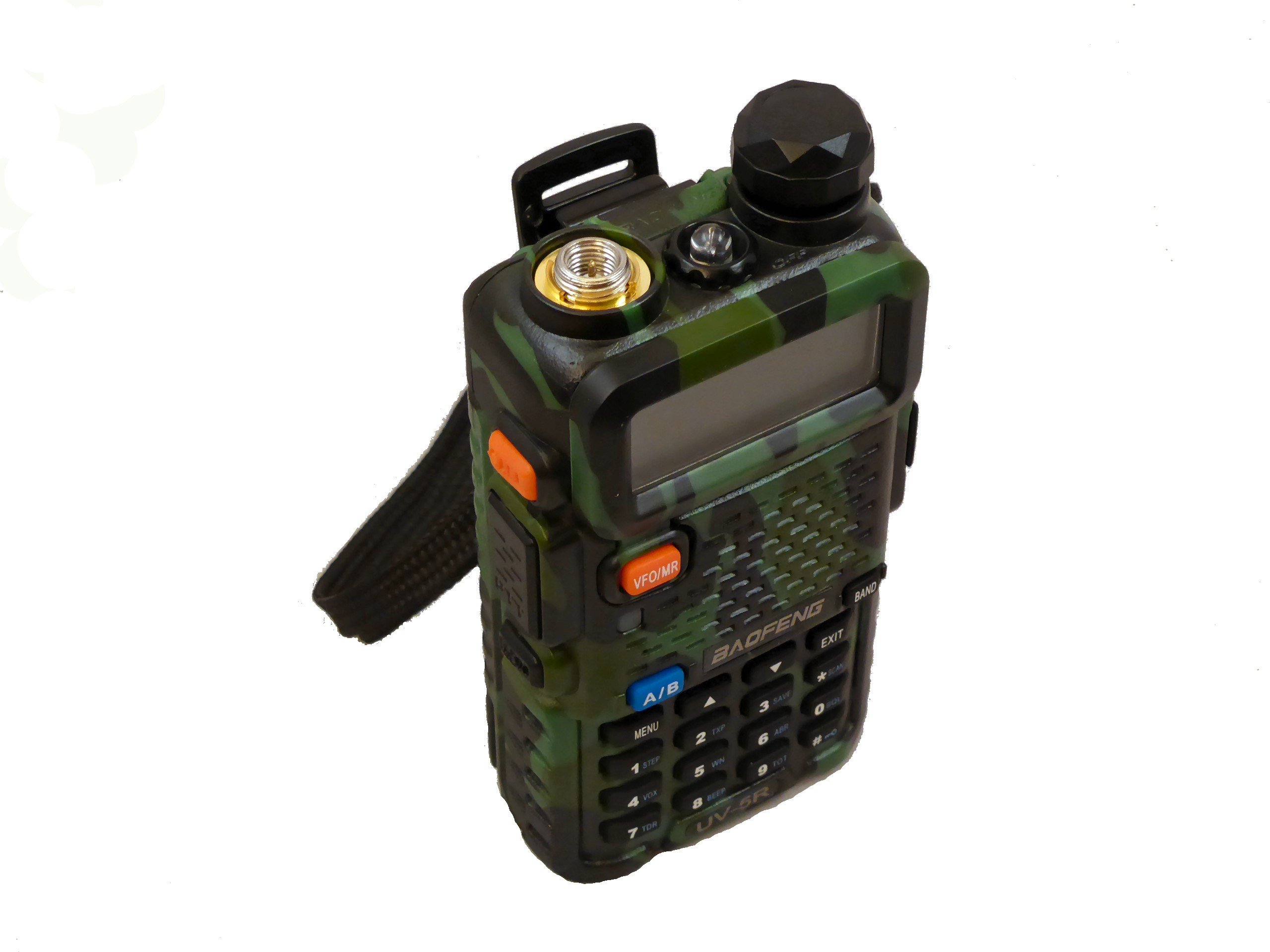

Handheld Baofeng UV-5R VHF-UHF 5W

Transceiver walkie-talkie type, genuine Baofeng UV-5R is a handheld dual band VHF/UHF, ultra-compact, TX and RX 136-174MHz / 400-520MHz with 5 watts FM, equipped with an FM radio and a LED lamp.

Download english manual of Baofeng UV-5R in the Download tab below.

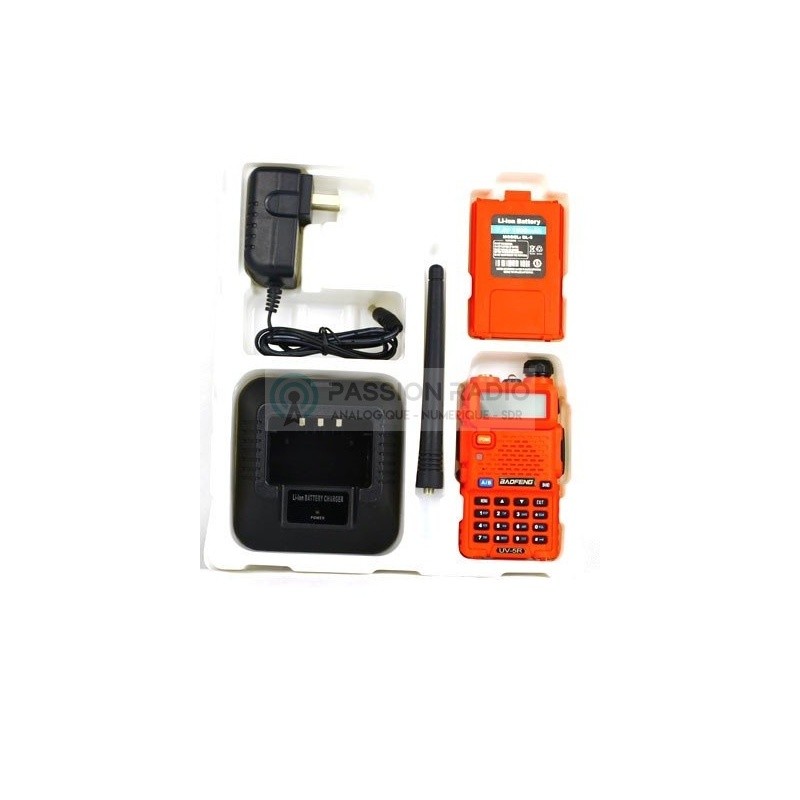

Comes complete with: Genuine Baofeng UV-5R, power desktop charger, headset microphone wire, belt clip, dual band antenna, battery, manual in English. 2 years waranty by Passion Radio Shop.

This material is no longer available in the shop and replaced by the new TYT TH-UV88 walkie-talkie which offers a better reception.

Antennas compatible with the Baofeng UV-5R talkie to improve range: SRJ77CA Diamond Antenna (40cm), Nagoya NA-771 (39cm) and NA-702 (30cm).

More details

Download

Manual Baofeng UV-5R FR

In french. 1.13M

Manuel UV5-R Anglais

Manuel et documentation du BAOFENG UV5-R en anglais 9.55M

CPS Software BAOFENG

Official Baofeng CPS to program UV-5R 2.48M

CPS Chirp Windows software

10.93M

Config file UV-5R Chirp

Full file .img for Chirp CPS software 6.32k

Data sheet

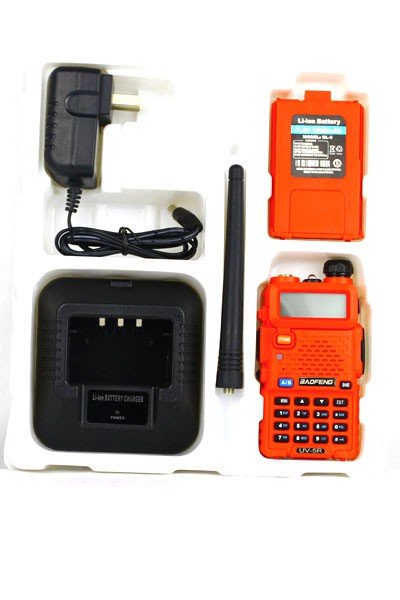

Baofeng UV-5R comes with

1 x Battery 7.4V 1800mAh Li-ion
1 x Antenna 136-174/400-470MHZ

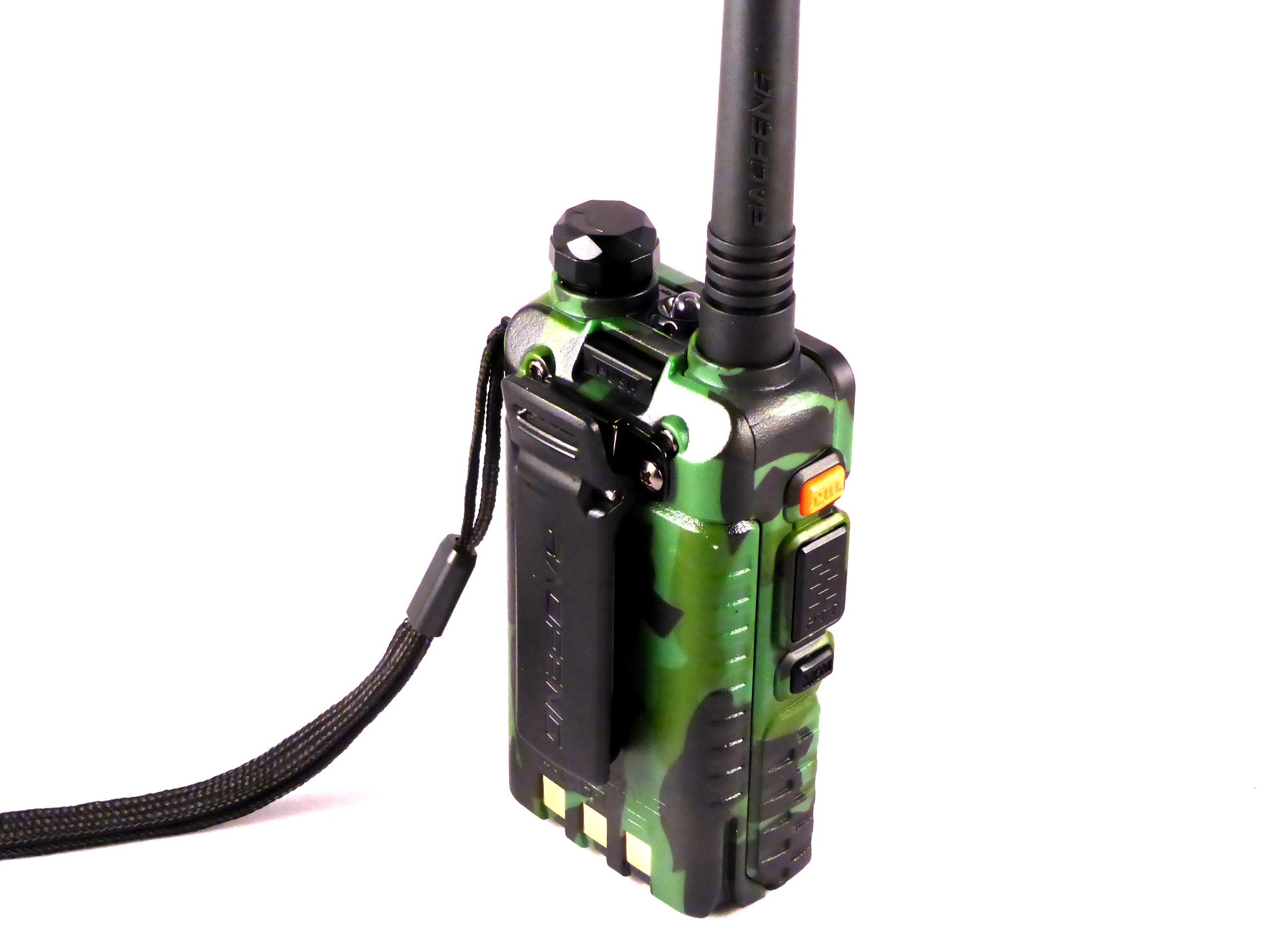

1 x Belt Clip
1 x English manual in French download on this site
1 x Desktop Charger (100V ~ 240V) EURO
1 x headset PTT

Specifications UV5R Handheld

Display Dual-Band, Dual Standby frequency
Output Power: 1/4 Watts (maximum 5 watts)
128 channels, 50 CTCSS and 104 CDCSS
VOX Tone 1750Hz

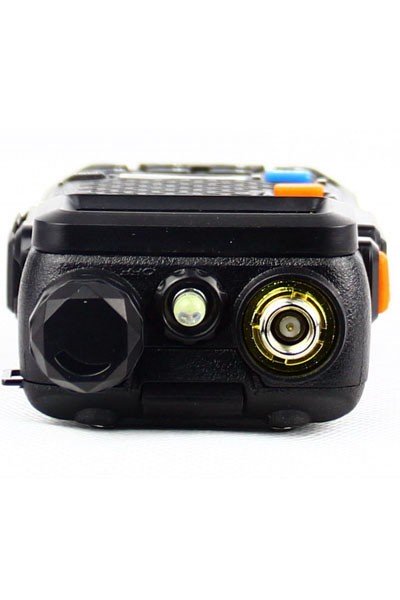

Connector: SMA Male
FM radio (87.0MHz-108.0MHz)
LED lamp
Large LCD display
Not switchable 25KHz/12.5KHz
Based emergency alert
Monitoring frequencies
Not increment: 2.5/5/6.25/10/12.5/25KHz
Roger beep
Using the 1750 Hz

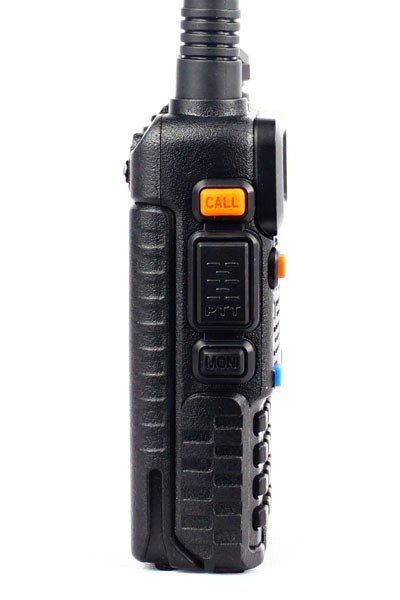

To activate the 1750hz tone and trigger the opening of an amateur radio relay, press the PTT button + the A / B button, or on some handhelds PTT + Band

2 years warranty and CE, FCC and RoHS standards.

The use of any radio transmitting device such as handheld Baofeng UV-5R is subject to the respect by the user of the frequencies and the legislation in force and requires a radio license to be legally used in transmission, as is the case with an amateur radio license ;-)
